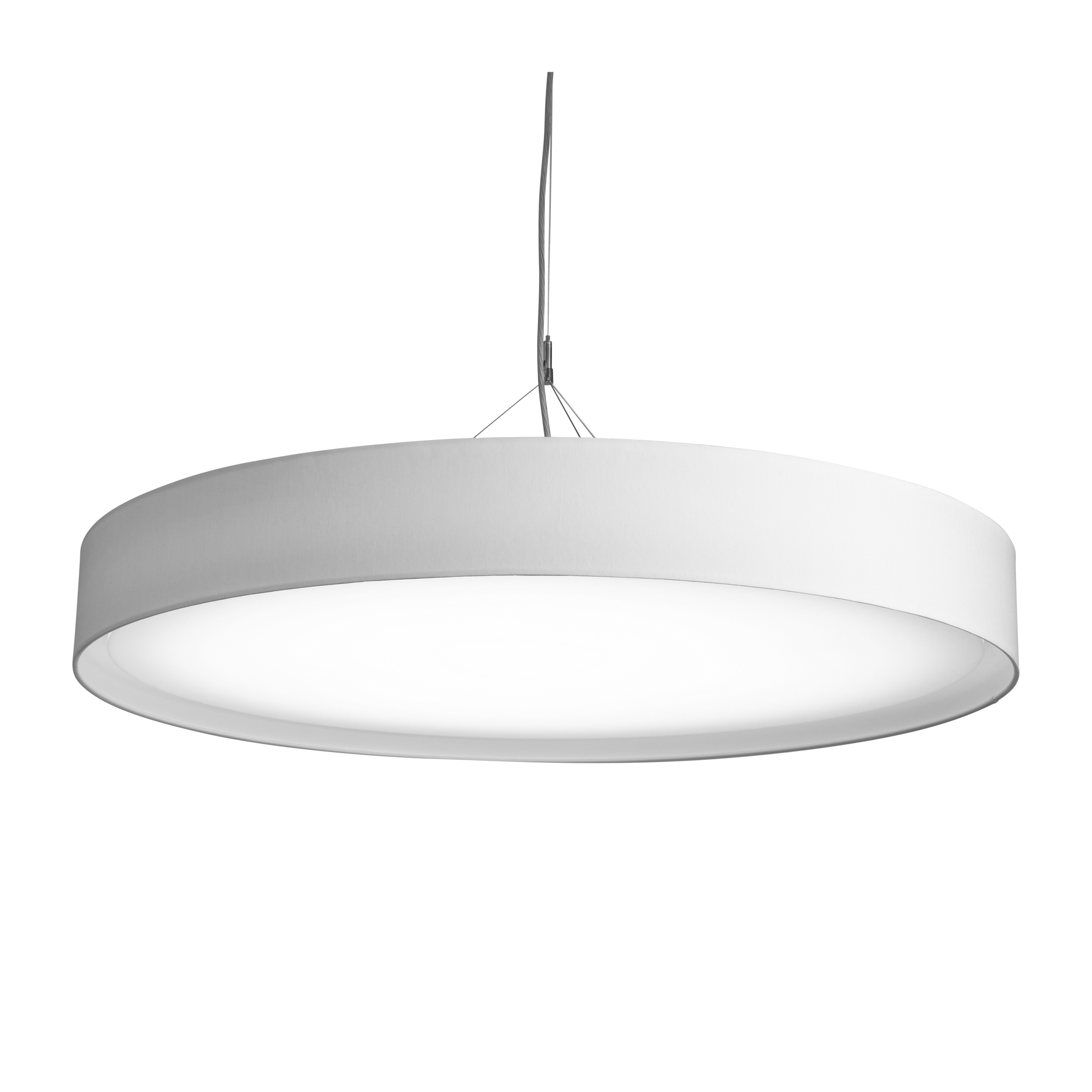

Nevalux aluna connect LS P910 3K
ELDAS® no. 222038
Price: Please log in to see prices
Light colour
Diameter
Intelligence
Connect LS (light sensor)
Connect PIR (motion and light sensor)
Mounting
Pendant mounting
Ceiling mounting
Identification
Manufacturer
Nevalux
Variants
Light colour
3000K
Diameter
Ø910mm - 9800lm
Intelligence
Connect LS (light sensor)
Mounting
Pendant mounting
Dimensions
Dimensions Ø × H
910 x 118 mm
Suspension length
2000 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
78 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
Nevalux sensor technology
Smartlink, BT SIG Mesh
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
9800 lm (Down 8430, Up 1370)
Beam angle
105°
Luminaire luminous efficacy
126 lm/W
Glare value
UGR < 21
Lifetime
LED lifespan (25 °C)
70000 h
Settings
DALI dimming
Yes
With emergency light
No
Direct/indirect ratio separately controllable
No
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Steel
Cover material
Acrylic glass opal
Mounting type
Ceiling pendant
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
D
