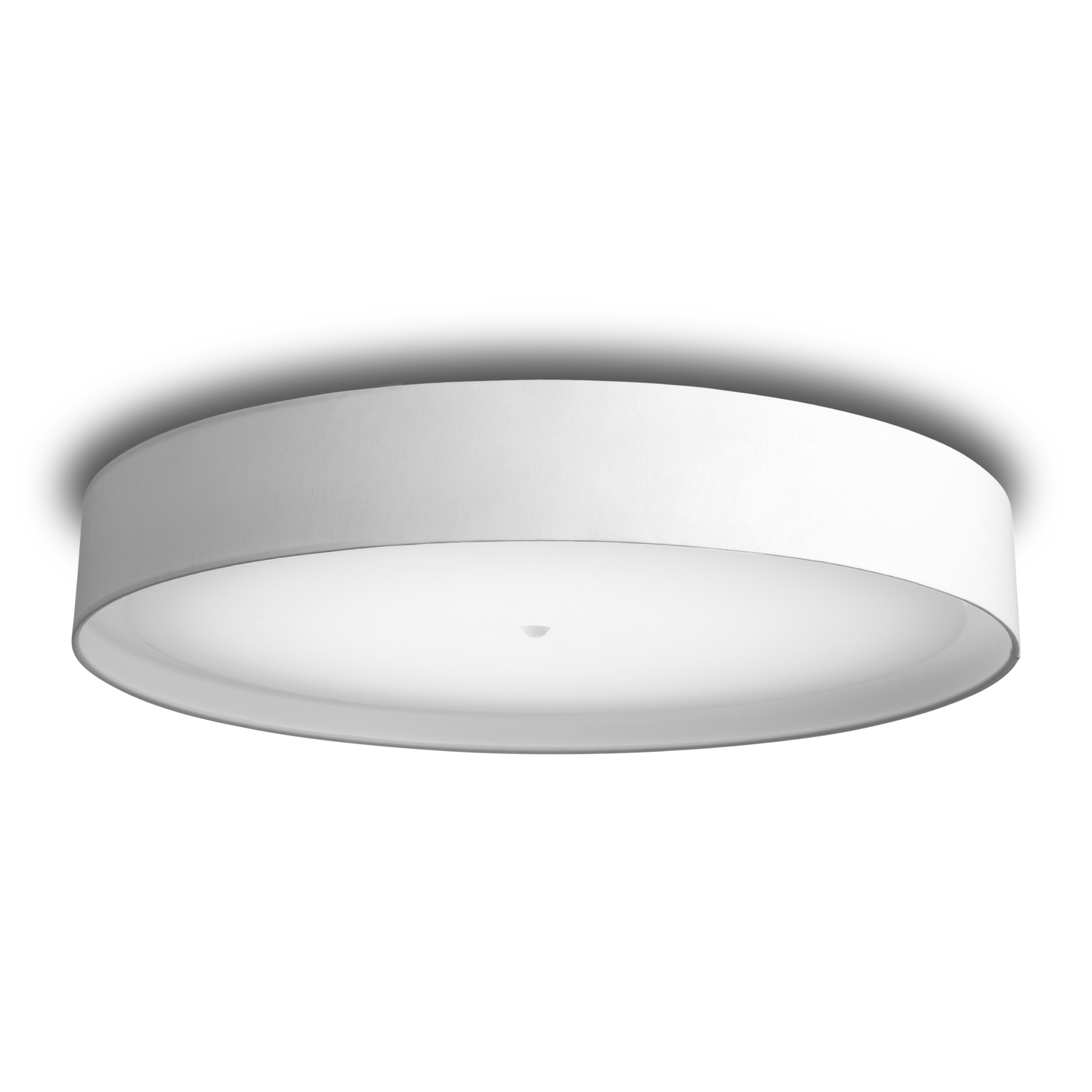

Nevalux aluna connect PIR C630 4K
ELDAS® no. 221440
Price: Please log in to see prices
Light colour
Diameter
Intelligence
Connect LS (light sensor)
Connect PIR (motion and light sensor)
Mounting
Pendant mounting
Ceiling mounting
- Timeless simple textile lamp in 3 different sizes
- Available in ceiling and pendant versions
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- Connect version available with light sensor (LS) or with motion detector and light sensor (PIR)
- For universal use for illumination of offices, schools, traffic zones, etc.
- Very high quality workmanship from Swiss manufacturing
- Sophisticated thermal management for long service life
- Variants with adjustable light color (Tunable White) to emulate the natural course of daylight
- Fabric shade can be ordered in any color
Identification
Manufacturer
Nevalux
Variants
Light colour
4000K
Diameter
Ø630mm - 6100lm
Intelligence
Connect PIR (motion and light sensor)
Mounting
Ceiling mounting
Dimensions
Dimensions Ø × H
630 x 118 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
51 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360°
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Presence range
4 x 4 m (16 m²)
Nevalux sensor technology
Smartlink, BT SIG Mesh
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
6100 lm (Down 5250, Up 850)
Beam angle
105°
Luminaire luminous efficacy
122 lm/W
Glare value
UGR < 21
Lifetime
LED lifespan (25 °C)
70000 h
Settings
DALI dimming
Yes
With emergency light
No
Direct/indirect ratio separately controllable
No
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Steel
Cover material
Acrylic glass opal
Mounting type
Ceiling / wall surface-mounted
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E
