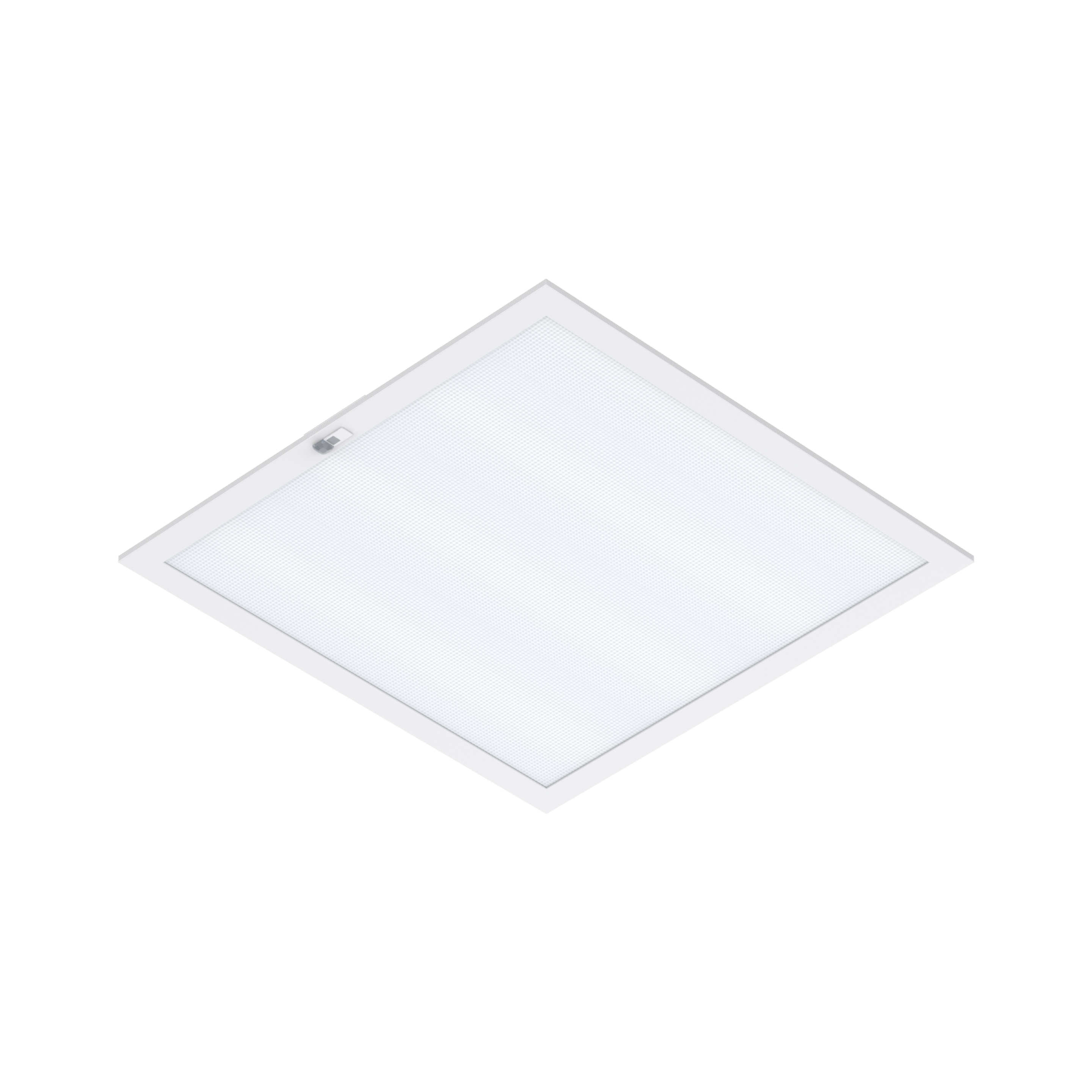

Nevalux anele connect C595
ELDAS® no. 221567
Price: Please log in to see prices
Version
595 mm
620 mm
Intelligence
DALI without intelligence
Connect incl. light control
Identification
Manufacturer
Nevalux
Variants
Version
595 mm
Intelligence
Connect incl. light control
Dimensions
Dimensions L × W × H
595 x 595 x 8.5 mm (Einbautiefe: 40 mm)
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
33 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360°
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Mounting height
< 10 m
Presence range
4 x 4 m (16 m²)
Nevalux sensor technology
Smartlink, BT SIG Mesh
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
3960 lm
Beam angle
90°
Luminaire luminous efficacy
120 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
No
With program-controlled lighting control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
In-ceiling installation
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E
