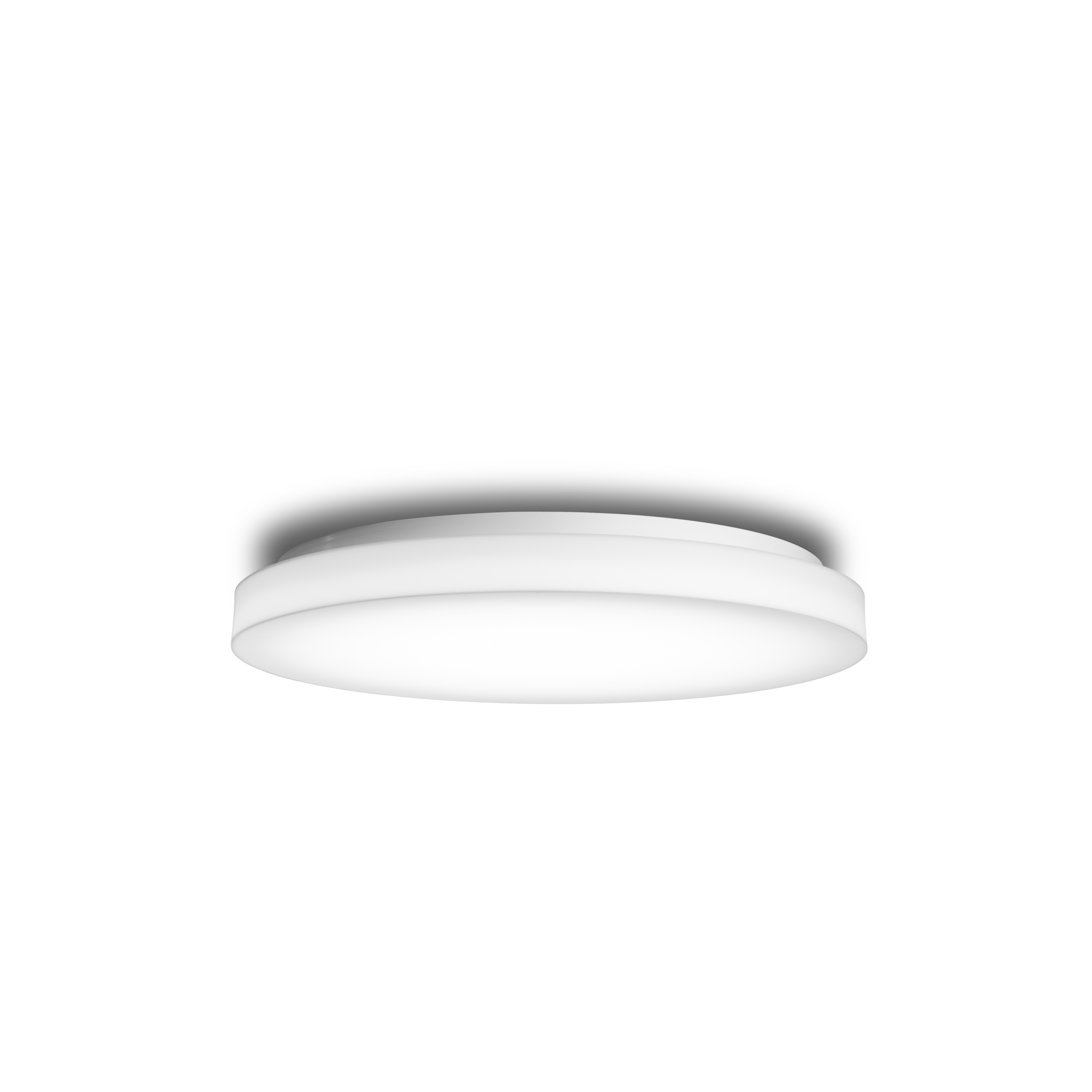

Nevalux ayana connect LS C570 3K
ELDAS® no. 222008
Price: Please log in to see prices
Light colour
Diameter
Intelligence
Mounting
Pendant mounting
Ceiling mounting
Identification
Manufacturer
Nevalux
Variants
Light colour
3000K
Diameter
Ø570mm - 6100lm
Intelligence
Connect LS (light sensor)
Mounting
Ceiling mounting
Dimensions
Dimensions Ø × H
570 x 95 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
51 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
Nevalux sensor technology
Smartlink, BT SIG Mesh
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
6100 lm (Down 5250, Up 850)
Beam angle
105°
Luminaire luminous efficacy
122 lm/W
Glare value
UGR < 21
Lifetime
LED lifespan (25 °C)
70000 h
Settings
DALI dimming
Yes
With emergency light
No
Direct/indirect ratio separately controllable
No
With program-controlled lighting control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Steel
Cover material
Acrylic glass opal
Mounting type
Ceiling / wall surface-mounted
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E
