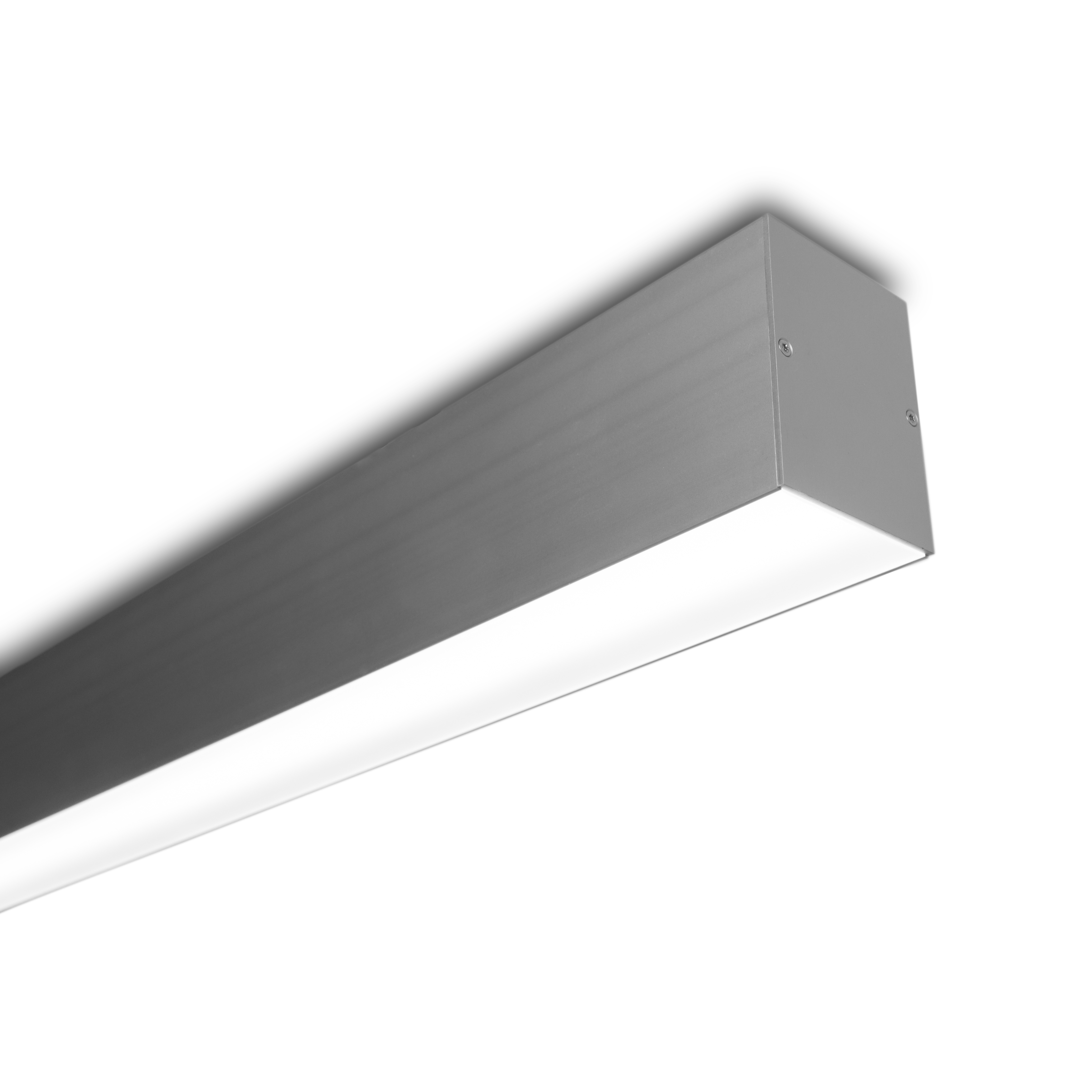

Nevalux elani C3200 TW
ELDAS® no. 221143
Price: Please log in to see prices
Light colour
Version
Colour
Aluminium
white
Identification
Manufacturer
Nevalux
Variants
Light colour
Tunable White 2700K - 5600K
Version
3140mm - 8792lm
Dimensions
Dimensions L × W × H
3140 x 60 x 80 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
78,5 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
Nevalux sensor technology
DALI 2
With light sensor
No
Lighting technology
Colour temperature
3000...5600 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
Yes, LED-System
Luminous flux
8792 lm
Beam angle
105°
Luminaire luminous efficacy
112 lm/W
Glare value
UGR < 24
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
-20...45 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Mounting type
Ceiling / wall surface-mounted
Colour
Aluminium
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E
