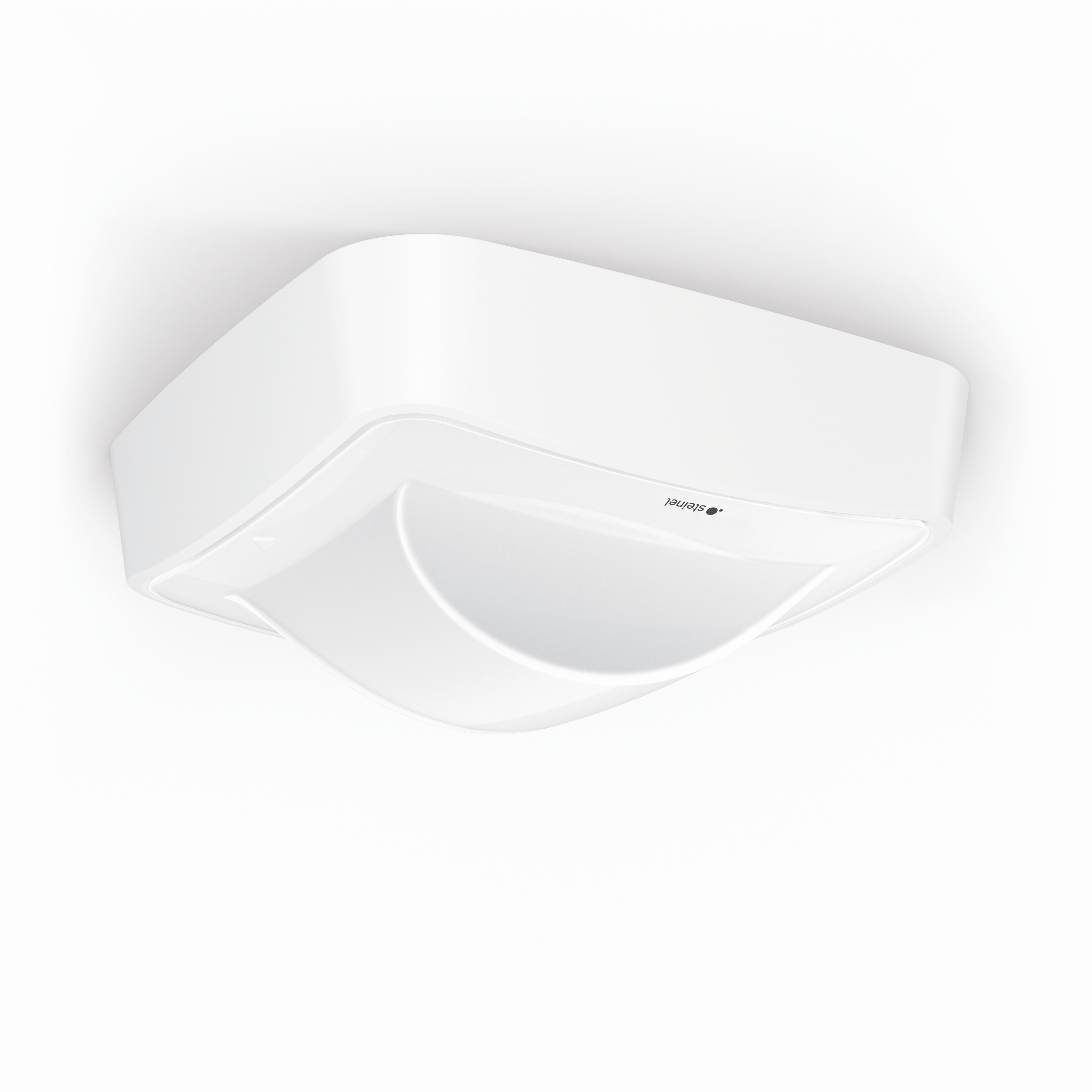

Nevalux Hallway DALI-2 Input Device - Aufputz
ELDAS® no. 535 932 608
EAN-No. 4007841 064549
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
DALI-2 Application Controller
230V COM1
KNX
IP (REST API, MQTT, BacNet)
230V COM2
DALI-2 Input Device
Bluetooth Input Device
Colour
White
Black
Mounting type
- UV-resistant plastic
Identification
Version
Presence detector
Dimensions
Dimensions L × W × H
62 x 123 x 123 mm
Electrical
Mains connection
12 – 23 V
Supply voltage detail
DALI bus
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
Bluetooth\nDALI bus
With bus coupler
Yes
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
Yes
Settings
Twilight switch
Yes
Base light function
No
Main light adjustable
No
Settings via
Bluetooth\nBus
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
Indoors
corridor / aisle
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
DALI-2
