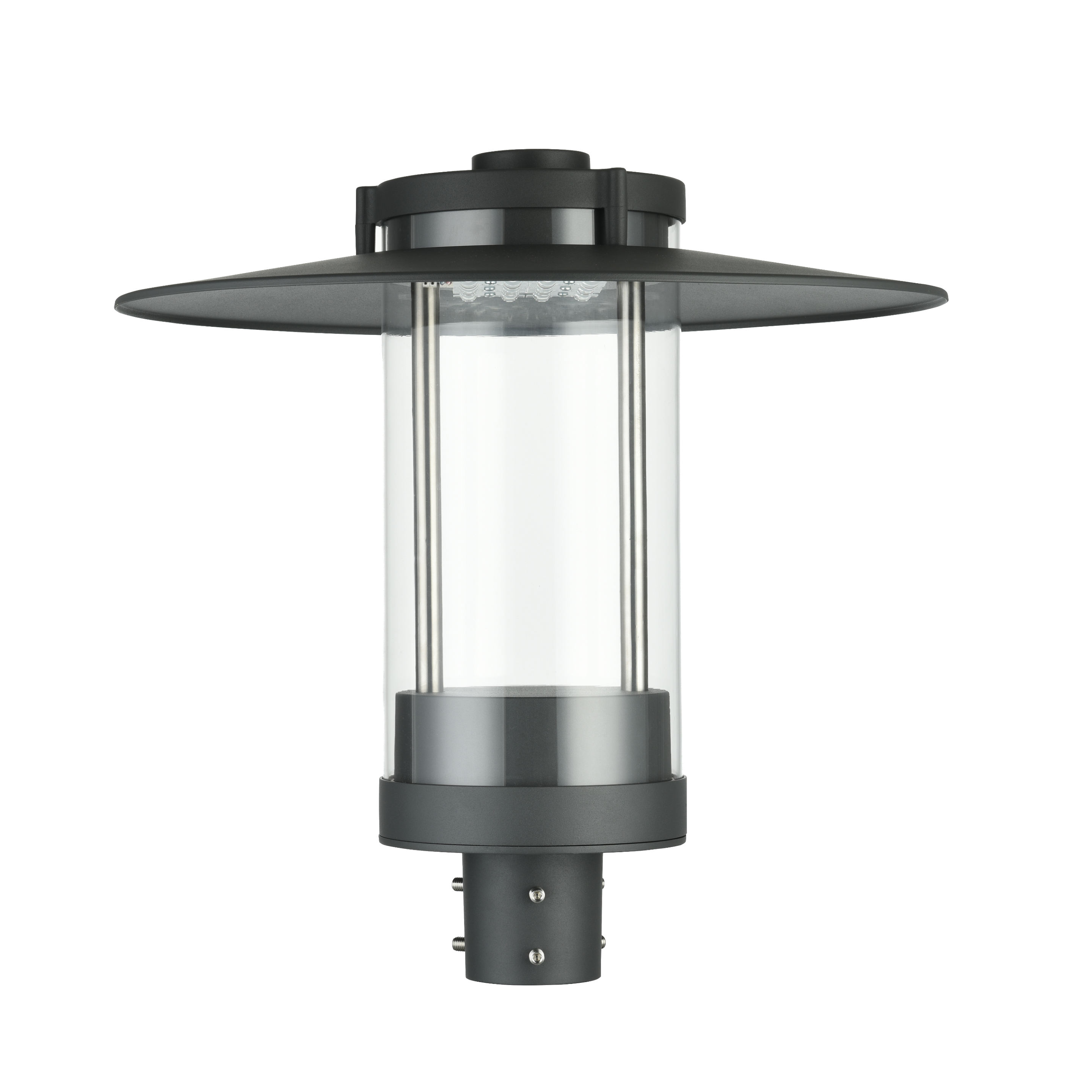

Nevalux iFux City Park Pole Connect 53W 3K Master GPS
ELDAS® no. 221467
Price: Please log in to see prices
Version
Master
Master GPS
- The iFux City Park Pole luminaire is a timeless street light of the latest generation. It has an adjustable brightness for the main and orientation light as well as a built-in motion detector. Thanks to the integrated radio communication, an intelligent network with several lights can be easily set up. In conjunction with the neighbor function, the light precedes the user. Old luminaires can be replaced without rewiring. Variable candelabra diameters ensure universal use.
Identification
Variant
Wide beam
Manufacturer
Nevalux
Variants
Version
Master GPS
Dimensions
Dimensions L × W × H
550 x 550 mm
Suitable for pole-top diameter
48...76 mm
Electrical
Mains connection
90...264 VAC / 47 – 63 Hz
Power
53 W
Power factor
0.9200
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
100°
Tangential range
10 m
Nevalux sensor technology
E-Save
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
3000...3000 K
Colour rendering index
70-79
Luminous flux
7526 lm
Beam angle
Medium
Luminaire luminous efficacy
142 lm/W
Lifetime
LED lifespan (25 °C)
100000 h
Settings
DALI dimming
Yes
With program-controlled lighting control
Yes, incl. GPS
Housing & material
Impact resistance
IK10
Protection class (IP)
IP66
Protection class
II
Ambient temperature
-30...55 °C
Housing material
Aluminium
Cover material
Clear glass
Mounting type
Column Post-top
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
With connection cable
Yes
Certificates & EPREL
EPREL energy efficiency class
A++, A+, A (LED)
