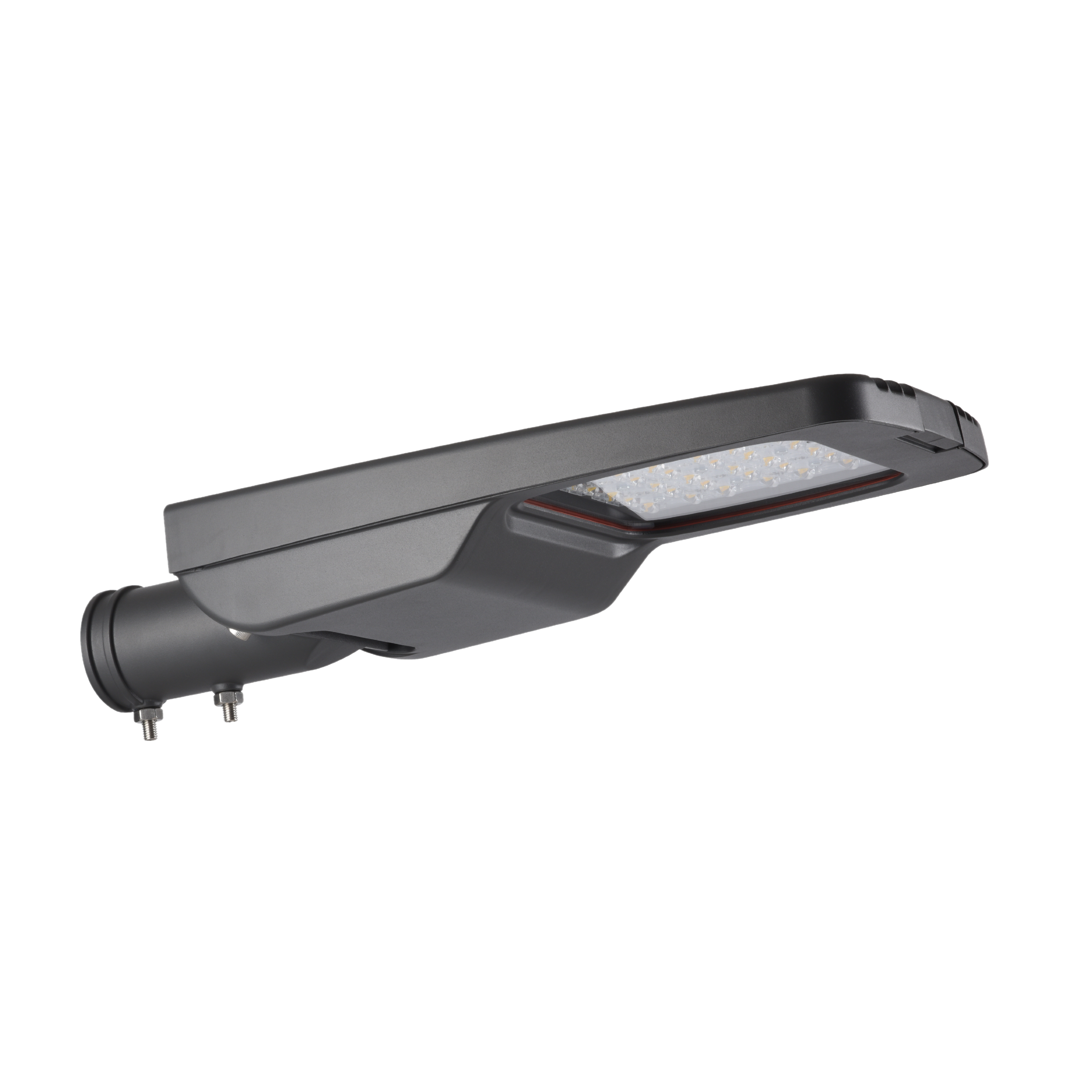

Nevalux iFux CityStreet4 60W DN10 3K
ELDAS® no. 221188
Price: Please log in to see prices
Optics
DN10 for narrow streets and large spacings
DM10 for wide streets
Luminous flux
3235lm / 28W
7140lm / 60W
- The iFux CityStreet 4 luminaire is an intelligent and functional street light of the latest generation. It convinces by very good corrosion protection and best maintenance characteristics. Variable candelabra diameters ensure universal use.
Identification
Variant
Narrow beam DN10, 60W
Manufacturer
Nevalux
Variants
Optics
DN10 for narrow streets and large spacings
Luminous flux
7140lm / 60W
Dimensions
Dimensions L × W × H
458 x 240 x 100 mm
Suitable for pole-top diameter
48...76 mm
Electrical
Mains connection
90...264 VAC / 47 – 63 Hz
Power
60 W
Power factor
0.9200
Sensor technology
With motion detector
No
Nevalux sensor technology
E-Save
With light sensor
No
Connectivity
With radio network control
No
Lighting technology
Colour temperature
3000...3000 K
Colour rendering index
70-79
Luminous flux
8520 lm
Beam angle
Narrow
Luminaire luminous efficacy
142 lm/W
Lifetime
LED lifespan (25 °C)
100000 h
Settings
DALI dimming
Yes
With program-controlled lighting control
No
Housing & material
Impact resistance
IK09
Protection class (IP)
IP66
Protection class
II
Ambient temperature
-30...55 °C
Housing material
Aluminium
Cover material
Clear glass
Mounting type
Column Post-top/side-entry
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
With connection cable
Yes
Certificates & EPREL
EPREL energy efficiency class
A++, A+, A (LED)
