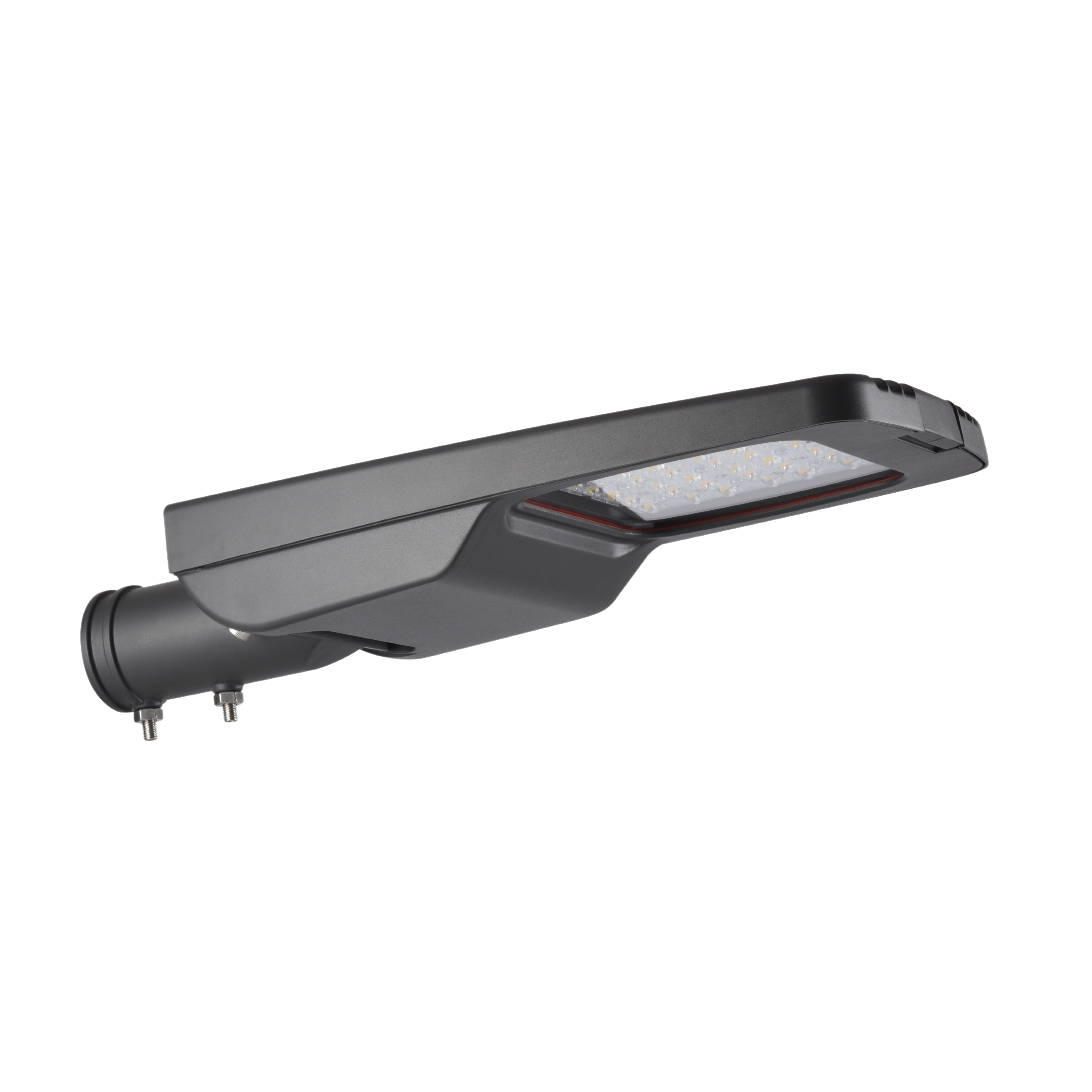

Nevalux iFux CityStreet4 Connect 28W DM10 3K Master
ELDAS® no. 221189
Price: Please log in to see prices
Version
Master
Master GPS
Optics
DN10 for narrow streets and large spacings
DM10 for wide streets
Luminous flux
3235lm / 28W
7140lm / 60W
- The iFux CityStreet 4 luminaire is an intelligent and functional street light of the latest generation. It convinces by very good corrosion protection and best maintenance characteristics. It has an adjustable brightness for the main and orientation light as well as a built-in motion detector. Thanks to the integrated radio communication, an intelligent network with several lights can be easily set up. In conjunction with the neighbor function, the light precedes the user. Old luminaires can be replaced without rewiring. Variable candelabra diameters ensure universal use.
Identification
Variant
Wide beam DM10, 28W
Manufacturer
Nevalux
Variants
Version
Master
Optics
DM10 for wide streets
Luminous flux
3235lm / 28W
Dimensions
Dimensions L × W × H
458 x 240 x 100 mm
Suitable for pole-top diameter
48...76 mm
Electrical
Mains connection
90...264 VAC / 47 – 63 Hz
Power
28 W
Power factor
0.9200
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
100°
Tangential range
10 m
Nevalux sensor technology
E-Save
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
3000...3000 K
Colour rendering index
70-79
Luminous flux
3976 lm
Beam angle
Medium
Luminaire luminous efficacy
142 lm/W
Lifetime
LED lifespan (25 °C)
100000 h
Settings
DALI dimming
Yes
With program-controlled lighting control
Yes
Housing & material
Impact resistance
IK09
Protection class (IP)
IP66
Protection class
II
Ambient temperature
-30...55 °C
Housing material
Aluminium
Cover material
Clear glass
Mounting type
Column Post-top/side-entry
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
With connection cable
Yes
Certificates & EPREL
EPREL energy efficiency class
A++, A+, A (LED)
