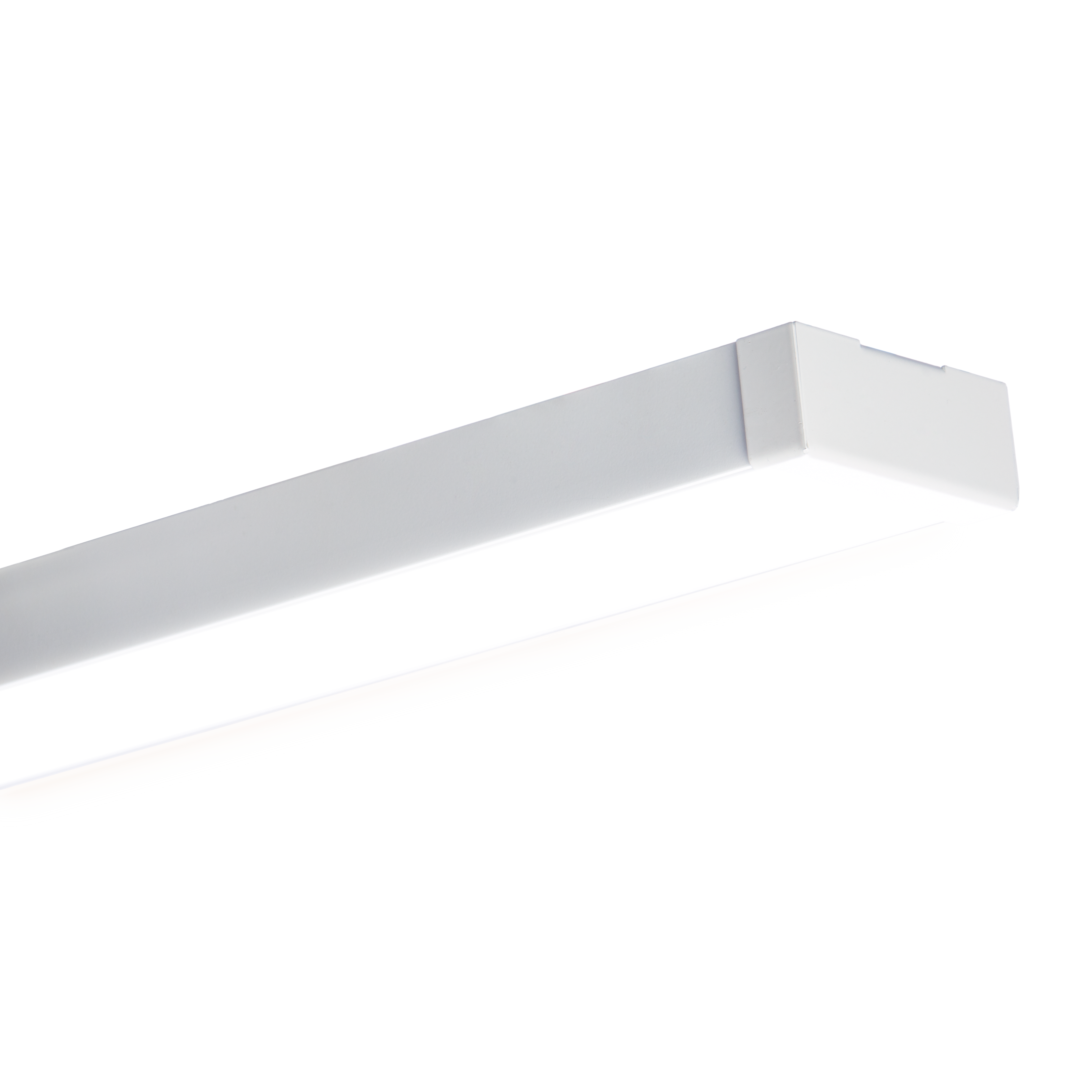

Nevalux imani B1200 4K DALI
ELDAS® no. 221474
Price: Please log in to see prices
Intelligence
DALI without intelligence
Connect incl. light control
Luminous flux
High Output HO
Medium
Length
1225 mm
1525 mm
- The universal trunking insert imani from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation including existing through-wiring. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market.
Identification
Manufacturer
Nevalux
Variants
Intelligence
DALI without intelligence
Luminous flux
Medium
Length
1225 mm
Dimensions
Dimensions L × W × H
1225 x 65 x 30 mm
PU1 net weight
1.4000
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
41 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
340 mA
Maximum number of luminaires per circuit breaker
C10: 21x, C13: 28x, C16: 36x, C20: 45x, B10: 13x , B13: 17x, B16: 22x, B20: 27x
Sensor technology
With motion detector
No
Nevalux sensor technology
DALI 2
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
4880 lm
Beam angle
105°
Luminaire luminous efficacy
119 lm/W
Glare value
UGR < 24
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP40
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Diffusor opal
Mounting type
Use in continuous row
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E
