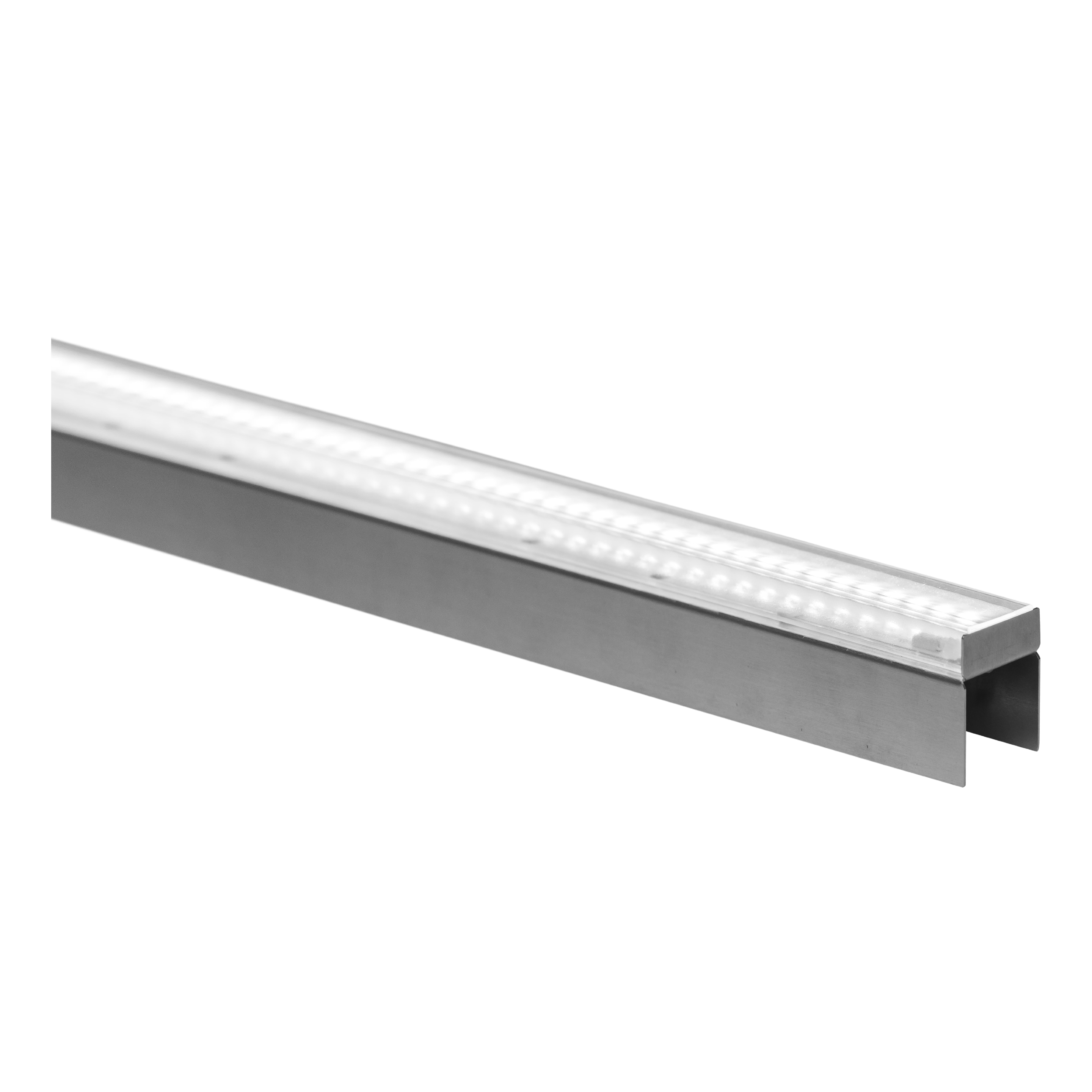

Nevalux LED Insert BT1200 3K ON-OFF 60°
ELDAS® no. 221281
Price: Please log in to see prices
Light colour
Version
DALI
ON-OFF
Optics
Luminous flux
High Output HO
Medium
- The linear LED inserts are designed for the professional replacement of conventional T5 or T8 fluorescent tubes. Thanks to comparable space requirements and magnetic mounting, they can be installed quickly and easily in older luminaires of various designs. Only LED drivers, LED modules and lenses from quality manufacturers are installed in the luminaire inserts. This achieves very good efficiency classes with outstanding quality and durability. The LED inserts from nevalux are often used for refurbishing luminaires in gymnasiums and warehouses, but also in offices and traffic zones.
Identification
Variant
Gear tray, narrow beam 60°
Manufacturer
Nevalux
Variants
Light colour
3000K
Version
ON-OFF
Optics
Narrow beam 60°
Luminous flux
Medium
Length
1141 mm
Dimensions
Dimensions L × W × H
1141 x 38 x 47 mm
Electrical
Mains connection
220...240 V / 50 – 60 Hz
Power
29.3 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
300 mA
Sensor technology
With motion detector
No
Nevalux sensor technology
On / Off
Lighting technology
Colour temperature
3000 K
Colour rendering index
80-89
Illuminant
LED
Luminous flux
4739 lm
Beam angle
60°
Luminaire luminous efficacy
162 lm/W
Lifetime
LED lifespan (25 °C)
72000 h
Settings
DALI dimming
No
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-25...55 °C
Housing material
Aluminum
Cover material
PMMA
Mounting type
lighting insert
Colour
Aluminum
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
C
