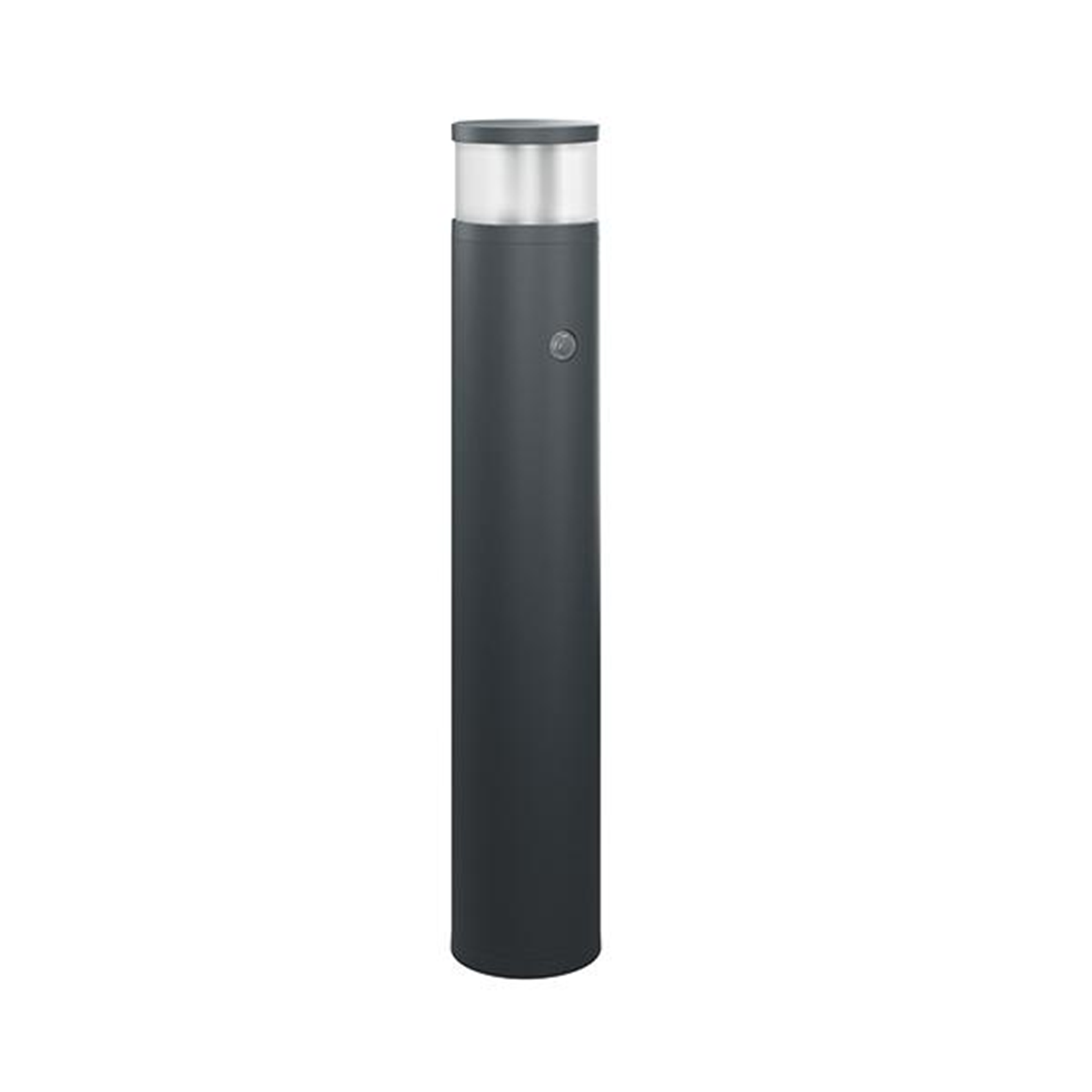

Nevalux Mesoma Master GPS
ELDAS® no. 221384
Price: Please log in to see prices
Version
Slave
Master GPS
- Intelligent bollard luminaire for exciting outdoor lighting solutions
- Built-in lighting control including motion detection, orientation light and neighbor function (for master and slave luminaires)
- Master luminaires additionally include GPS for precise time control and light measurement for the local lighting network
- Optionally available with an additional PIR sensor and 180° coverage for targeted limitation of light output.
- Wireless networking by radio
- High-quality, noble workmanship with glare-free illumination
- Shock and vandal proof
Identification
Manufacturer
Nevalux
Variants
Version
Master GPS
Dimensions
Dimensions Ø × H
170 x 940 mm
Electrical
Mains connection
220...240 V / 50 – 60 Hz
Power
16 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
100°
Tangential range
5 m
Nevalux sensor technology
E-Save
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
3000...3000 K
Colour rendering index
80-89
Illuminant
LED
Luminous flux
1030 lm
Beam angle
159°
Luminaire luminous efficacy
64 lm/W
Lifetime
LED lifespan (25 °C)
70000 h
Settings
DALI dimming
Yes
With program-controlled lighting control
Yes, incl. GPS
Housing & material
Impact resistance
IK09
Protection class (IP)
IP65
Protection class
I
Ambient temperature
-20...40 °C
Housing material
Aluminum
Cover material
Plastic transparent
Mounting type
Free standing floor
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
G
