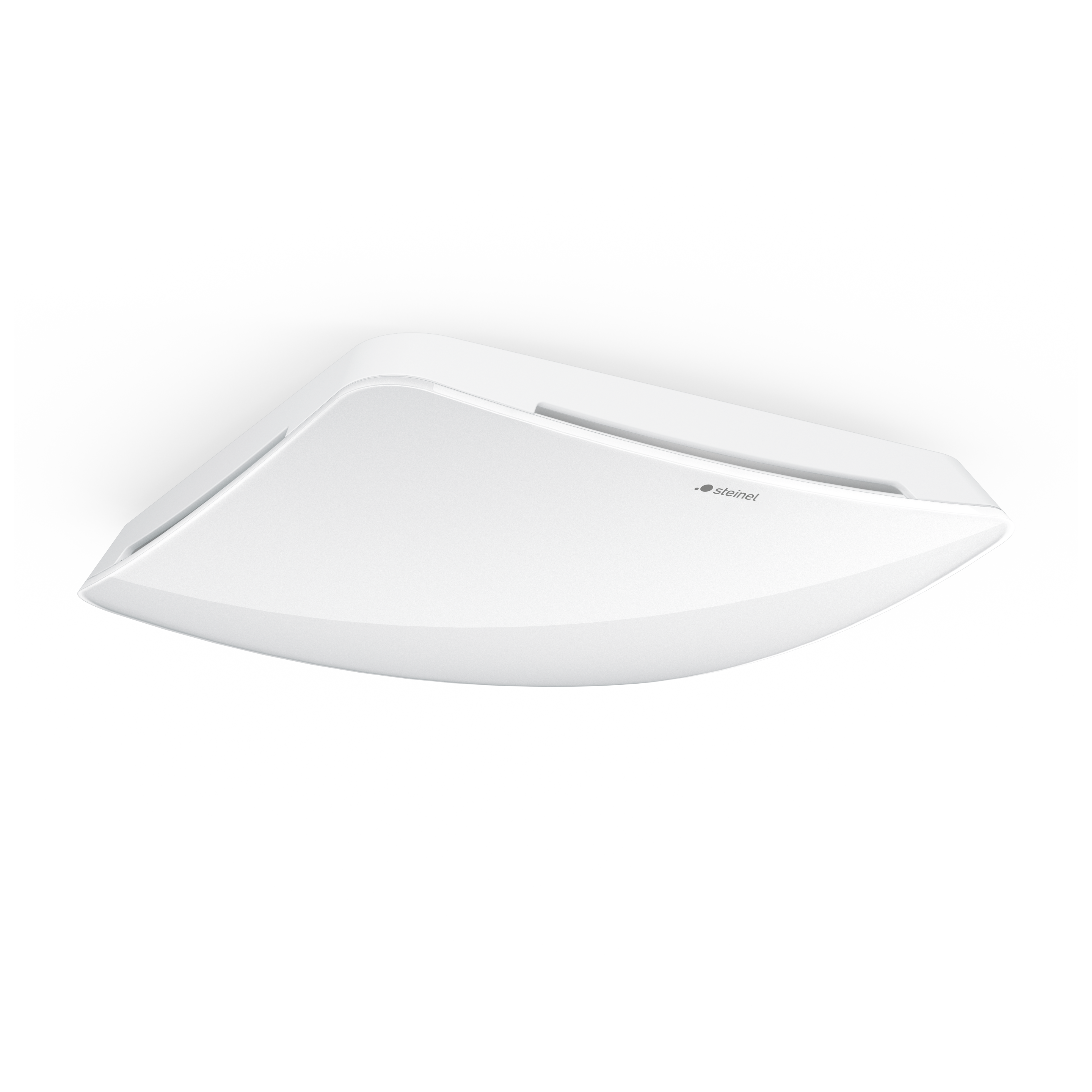

Nevalux Multisensor Air KNX
EAN-No. 4007841056346
ELDAS® no. 4007841056346
Price: Please log in to see prices
- UV-resistant plastic
Identification
Version
Other
Manufacturer
Nevalux
E-number
535938801
Variants
Version
KNX
Mounting type
Flush-mounted
Dimensions
Dimensions L × W × H
33 x 123 x 123 mm
Electrical
Mains connection
30 V
Own consumption
0,5 W
Supply voltage detail
KNX bus
Sensor technology
Max. mounting height
4,00 m
Sensor technology
Multisensor
With motion detector
No
Mounting height
4,00 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/master\nMaster/slave
Networking via
KNX bus
KNX functions
Comfort\nCO2\nLight level\nHVAC output\nAir pressure\nHumidity output\nDewpoint\nTemperature output\nVOC\nPhoto-cell controller\nLogic gate
With bus coupler
Yes
Lighting technology
Soft light start
Yes
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Base light function
Yes
Main light adjustable
No
Settings via
ETS software\nBluetooth\nBus
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
from 0 up to 40 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
classroom\nlecture hall\none-person office\nopen-plan office\nconference room / meeting room\nhotel room\ncare room\nduty room\nrecreation room\nsports hall\nreception / lobby\nIndoors
Colour
white
RAL colour
9016
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
