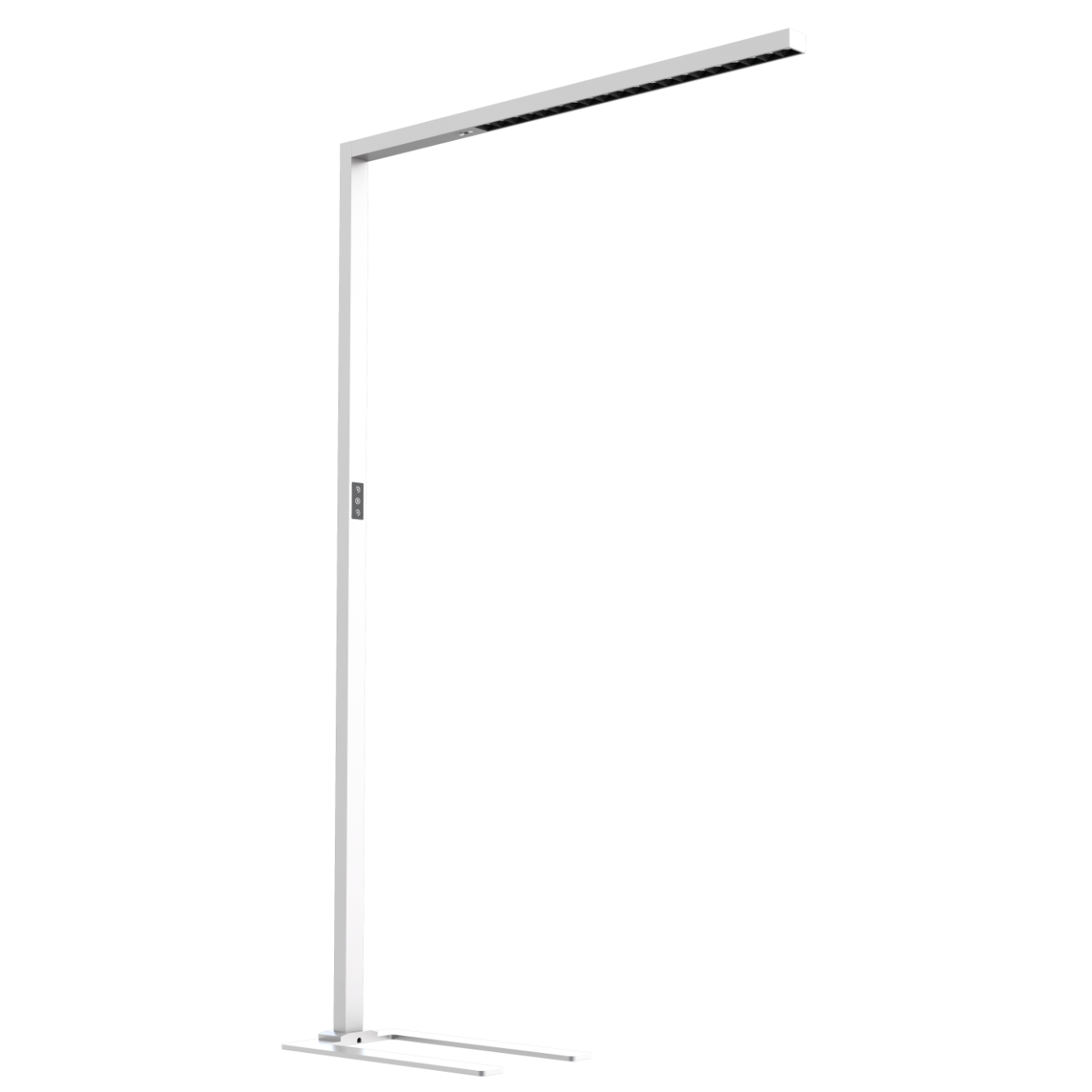

Nevalux nayo SN TW
ELDAS® no. 220604
This product is being replaced by a successor product.
Go to successor product · nayo SN Connect 4K (221486)Intelligence
Connect incl. networkable light control
Classic sensor version
Identification
Successor
221486
Manufacturer
Nevalux
Variants
Intelligence
Classic sensor version
Dimensions
Dimensions L × W × H
1203 x 52 x 1960 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
80 W
Replaceable driver
Yes
LED rated current
450 mA / 1600 mA
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360°
Presence range
Ø 3 m
With light sensor
Yes
Lighting technology
Colour temperature
3000...6000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
8000 lm (Down 2000, Up 6000)
Beam angle
Down 80°, Up 140°
Luminaire luminous efficacy
100 lm/W
Glare value
UGR < 12
Lifetime
LED lifespan (25 °C)
50000 h
Settings
Direct/indirect ratio separately controllable
Yes
With switch
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Darklight Optics
Mounting type
Free standing floor
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F
