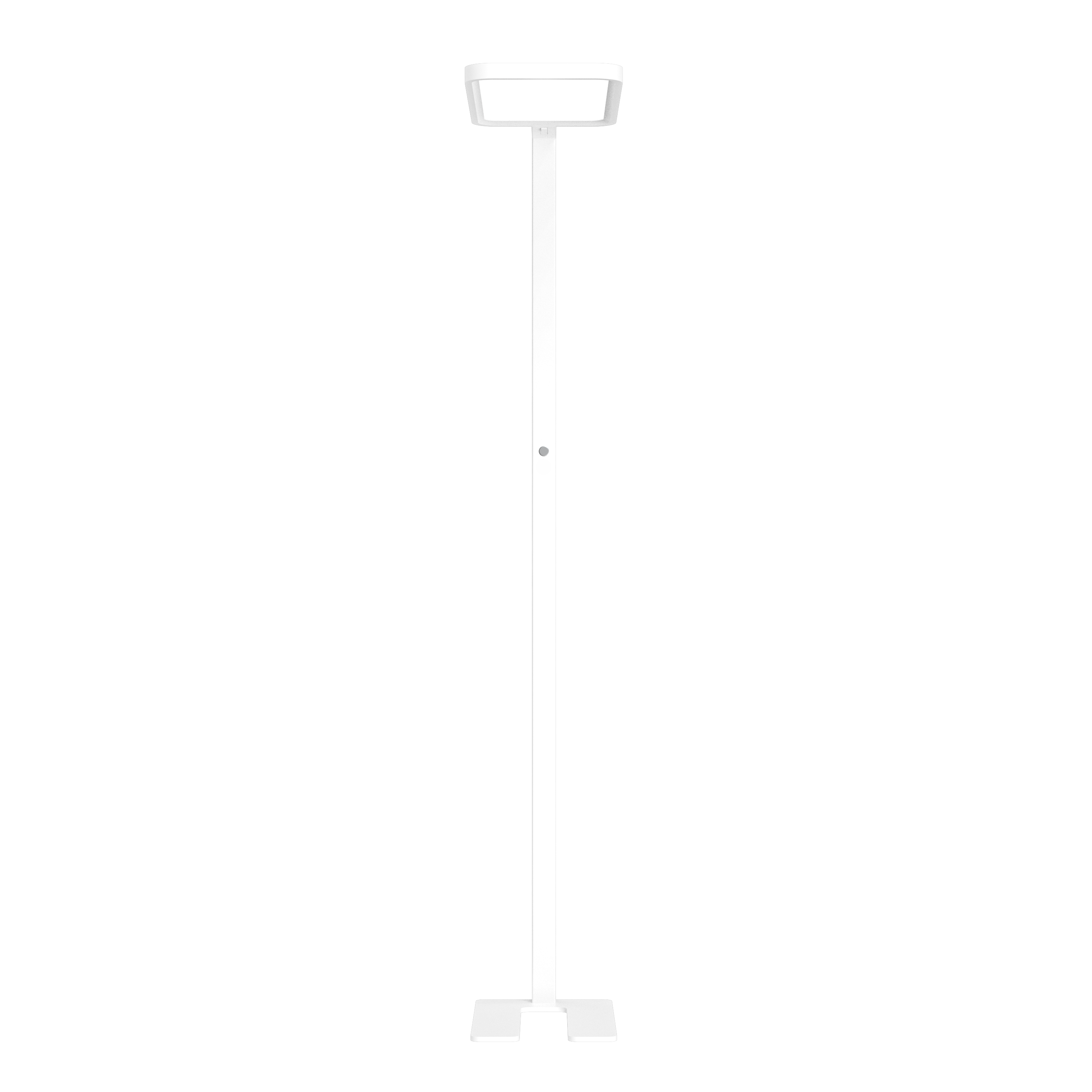

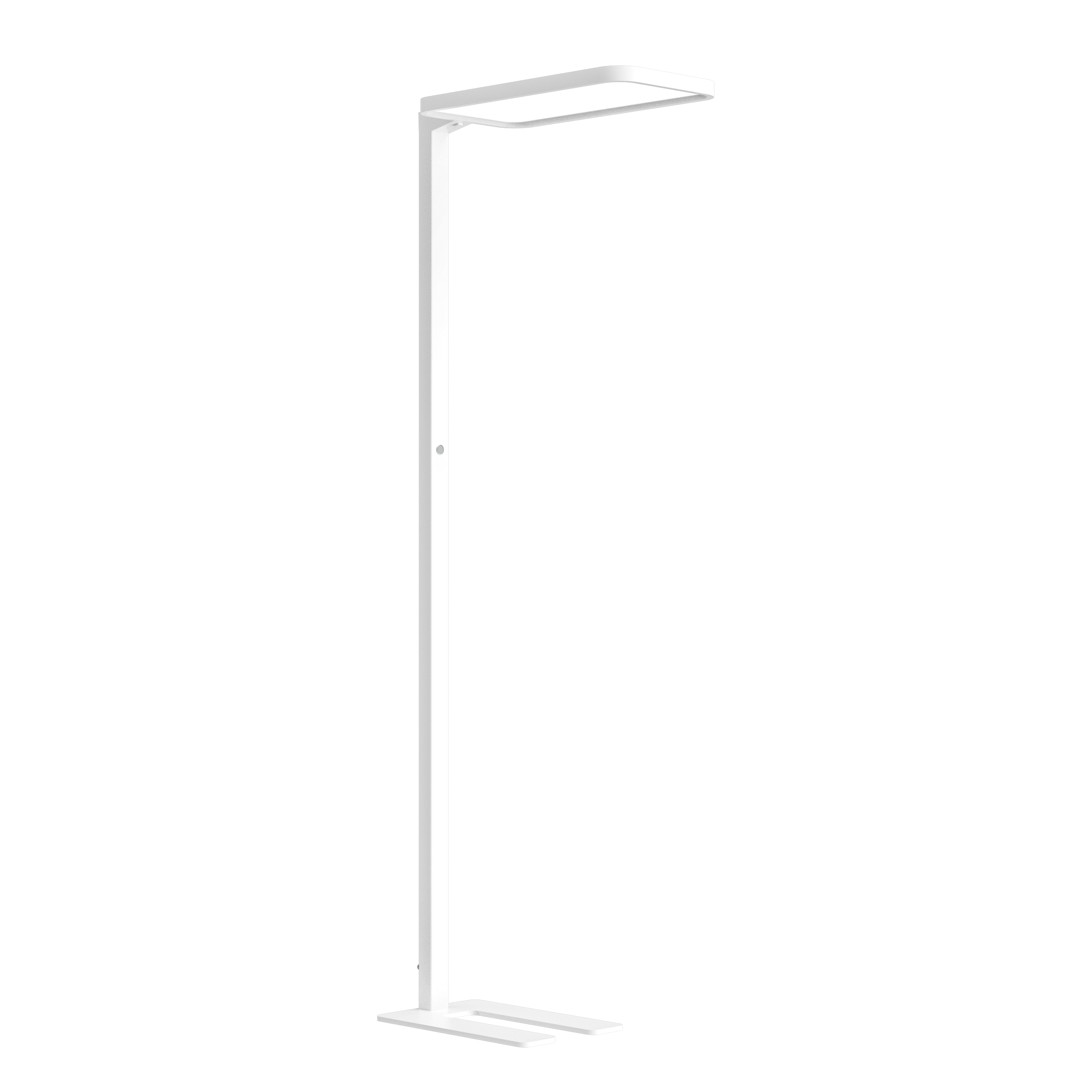

Nevalux nefera S V2 Connect 4K
Product code 221987
Price: Please log in to see prices
Light colour
Neutral white (4000K)
3000...5700 K
Intelligence
Connect incl. networkable light control
Basic sensor version
- For the perfect illumination of one workplace
- Flat design and absolutely homogeneous illumination
- Available as intelligent Connect or as simple sensor variant
- Connect variant with powerful IoT lighting control for next-generation lighting projects (swarm function, grouping, cleaning light, etc.)
- Direct and indirect light distribution
- Very good glare control values (UGR < 18)
- Optionally in a color temperature of 4000K or with manually adjustable color temperature from 3000K to 5700K (CCT)
- High quality finish
- Housing aluminum white
Variants
Luminous flux
10400 lm (Down 3850, Up 6550)
Dimensions
Dimensions L × W × H
726 x 310 x 1954 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
80 W
Replaceable driver
Yes
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Radial range
4 x 4 m (16 m²)
Tangential range
4 x 4 m (16 m²)
Presence range
4 x 4 m (16 m²)
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
10400 lm (Down 3850, Up 6550)
Beam angle
Down 80°, Up 115°
Luminaire luminous efficacy
130 lm/W
Glare value
UGR < 18
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
Direct/indirect ratio separately controllable
No
With program-controlled lighting control
Yes
Constant light output control
Yes
With switch
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
Free standing floor
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
D
