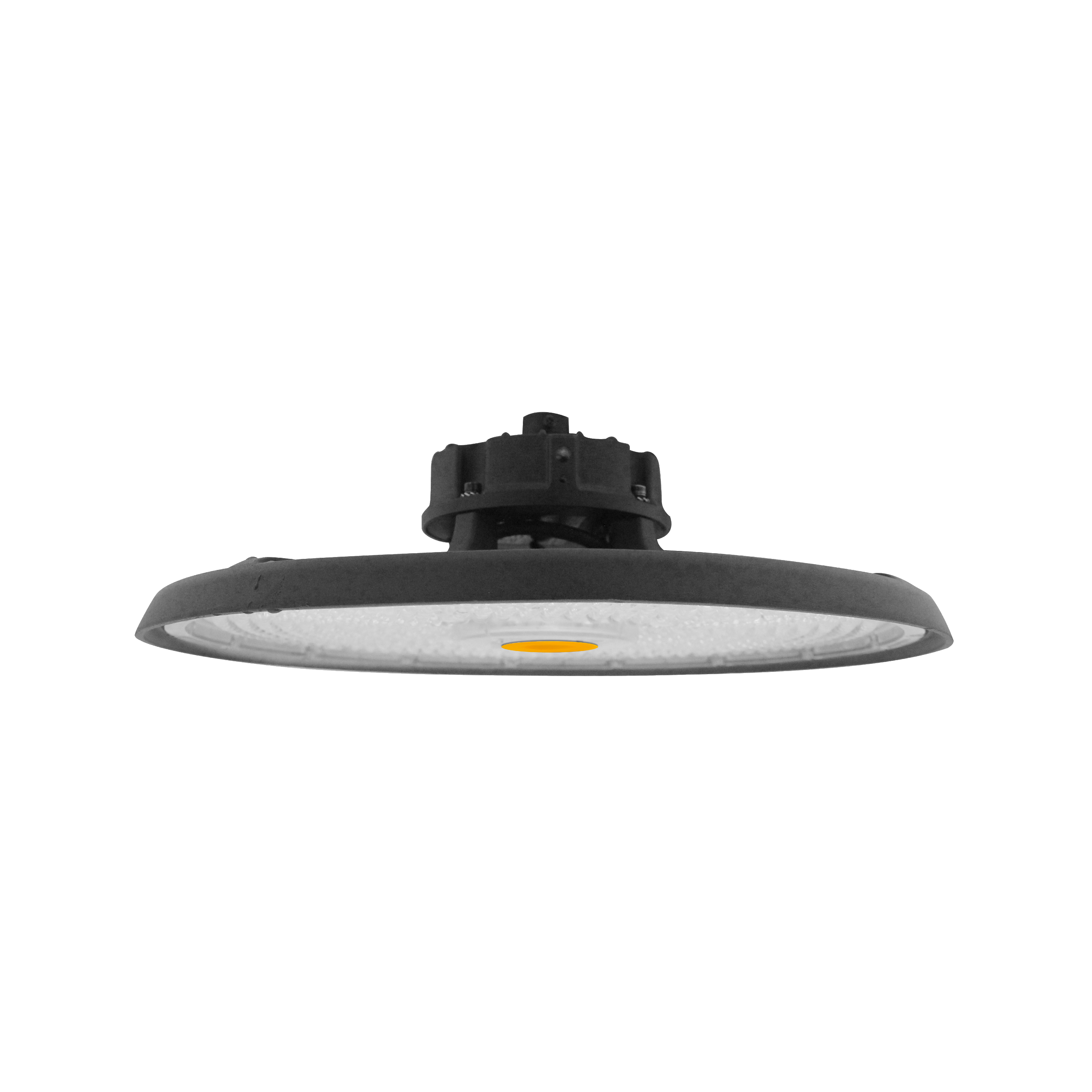

Nevalux nyota C400 4K 90
ELDAS® no. 221585
Price: Please log in to see prices
Version
Connect incl. light control
DALI without intelligence
- The powerful high-bay luminaire nevalux nyota is designed for the illumination of rooms with high ceilings. With its 32,000 lumens, this luminaire is the ideal choice for all types of industrial, exhibition and logistics halls. Thanks to the DALI driver integrated as standard, the light intensity can be ideally adapted to the respective conditions. The IP65 water jet protection combined with the IK09 shock resistance rating make this luminaire almost indestructible.
Identification
Manufacturer
Nevalux
Variants
Version
DALI without intelligence
Dimensions
Dimensions Ø × H
400 x 137 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
200 W
Replaceable driver
Yes
Maximum number of luminaires per circuit breaker
C10: 5x, C13: 6x, C16: 8x, C25: 12x, B10: 3x, B13: 4x, B16: 5x, B25: 7x
Sensor technology
With motion detector
No
Nevalux sensor technology
DALI 2
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
32000 lm
Beam angle
90°
Luminaire luminous efficacy
160 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Housing & material
Impact resistance
IK09
Protection class (IP)
IP65
Protection class
I
Ambient temperature
-20...50 °C
Housing material
Steel
Cover material
Lens transparent
Mounting type
Ceiling / Wall / Pendant
Colour
Black
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
C
