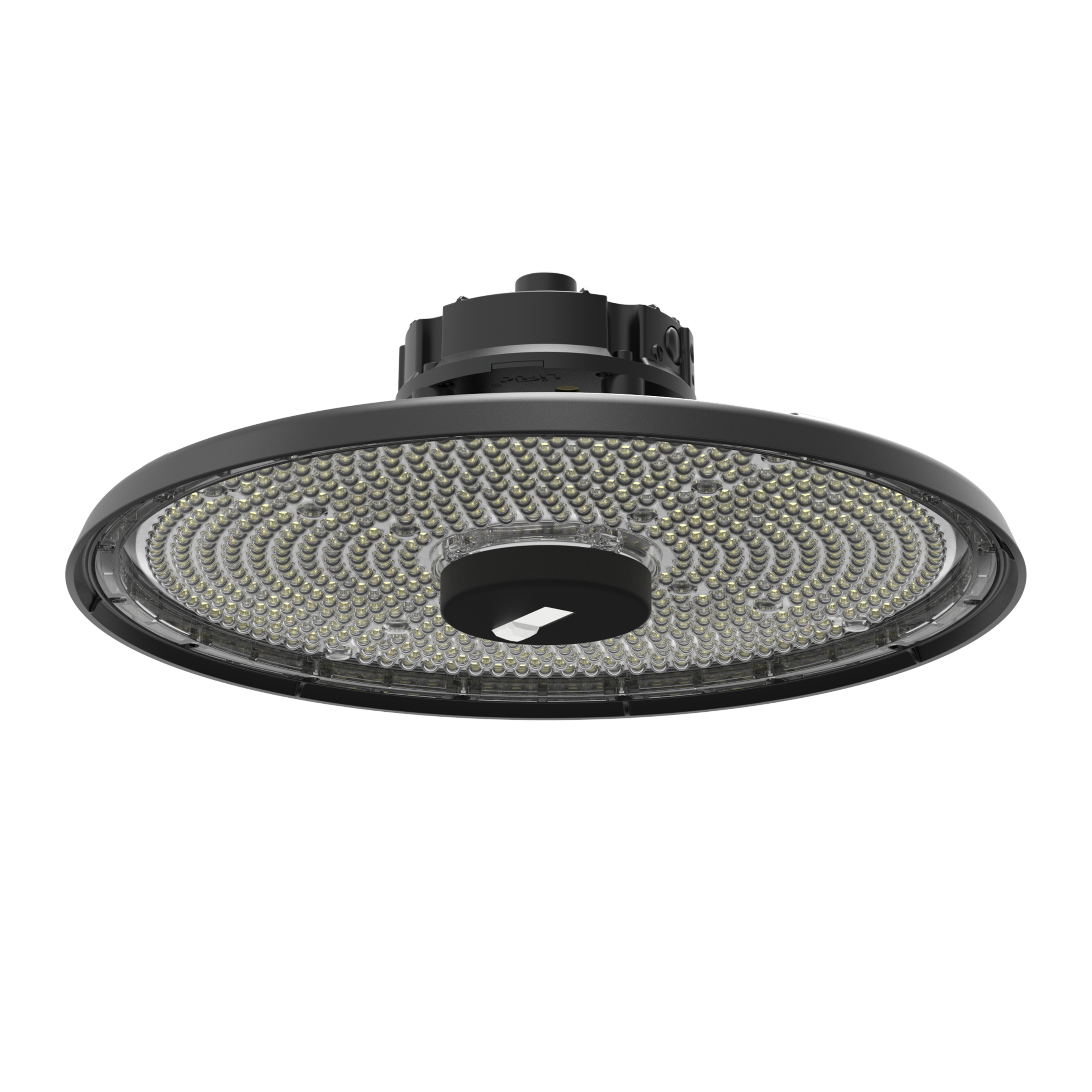

Nevalux nyota connect C400 4K 120
ELDAS® no. 221515
This product is being replaced by a successor product.
Go to successor product · nyota connect C400 4K 90 (221516)- The intelligent high bay luminaire nyota from nevalux makes the refurbishment of large industrial, logistics and exhibition halls child's play. Old spotlights can easily be replaced by new luminaires. This creates the most modern lighting management system of today. During commissioning, groups are formed, follow-up times are defined and the brightness for constant light control is set. Energy savings of more than 80% compared to old technologies are the order of the day. The IP65 jet water protection in combination with the IK09 shock resistance rating make this luminaire almost indestructible.
Identification
Successor
221516
Manufacturer
Nevalux
Dimensions
Dimensions Ø × H
400 x 166 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
200 W
Replaceable driver
Yes
Maximum number of luminaires per circuit breaker
C10: 5x, C13: 6x, C16: 8x, C25: 12x, B10: 3x, B13: 4x, B16: 5x, B25: 7x
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360°
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Mounting height
< 10 m
Presence range
4 x 4 m (16 m²)
Nevalux sensor technology
Smartlink, BT SIG Mesh
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
32000 lm
Beam angle
120°
Luminaire luminous efficacy
160 lm/W
Glare value
UGR < 30
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
With program-controlled lighting control
Yes
Housing & material
Impact resistance
IK09
Protection class (IP)
IP65
Protection class
I
Ambient temperature
-20...50 °C
Housing material
Steel
Cover material
Diffusor opal
Mounting type
Ceiling / Wall / Pendant
Colour
Black
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
C
