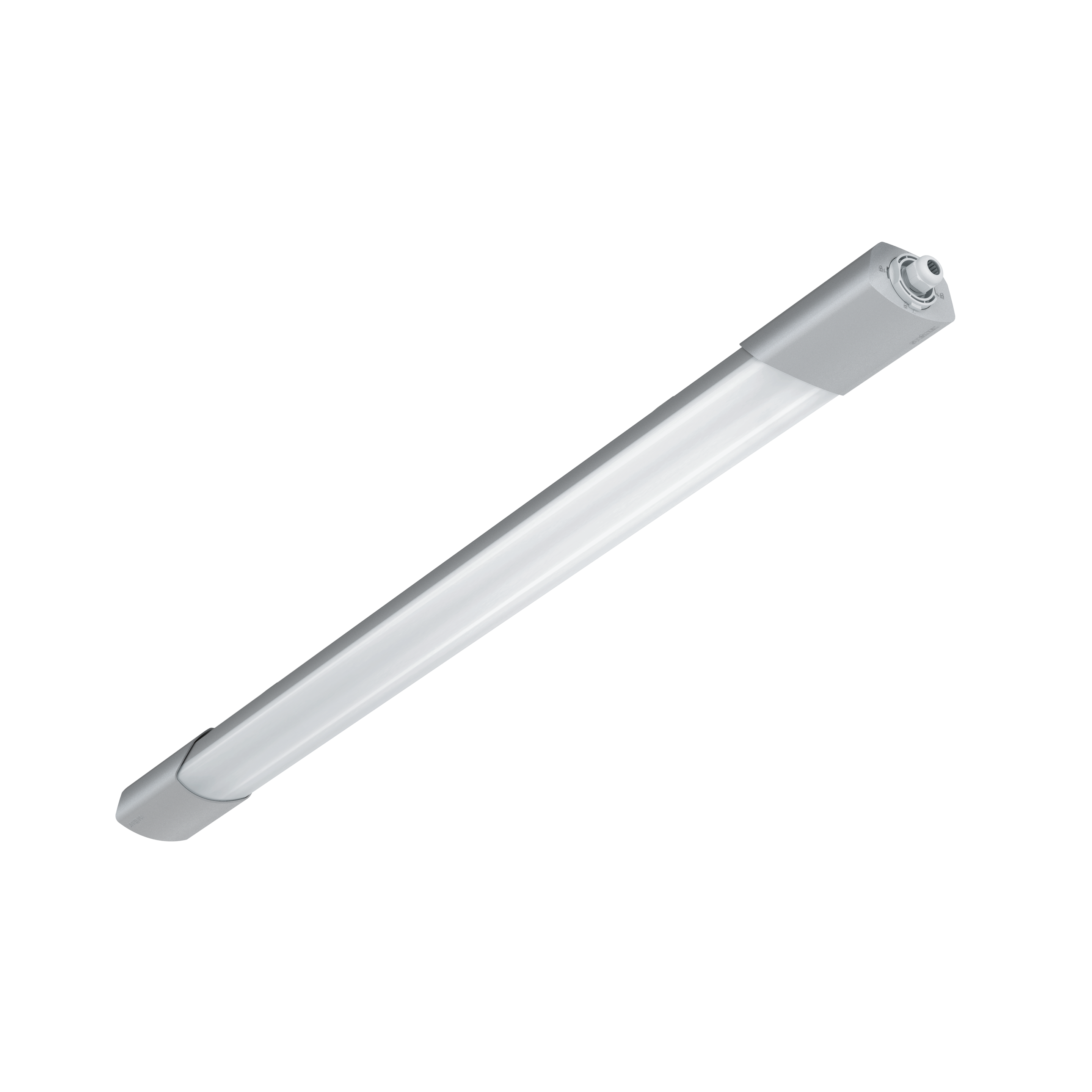

Nevalux RS PRO 5100 SC mit Bewegungsmelder & Bluetooth Verso
ELDAS® no. 941 006 359
Product code 221392
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Dimensions
RS PRO 5150 Length 1500mm
RS PRO 5100 Length 1370mm
- Including STEINEL LED system
- Interconnectable and adjustable via Bluetooth
- Impact-resistant material rated to IK07
- Optional basic lighting level 10 - 50 %
- Optional main light level 50 - 100%
- Adjustable mounts for easy installation
Dimensions
Dimensions L × W × H
1370 x 87 x 58 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
31 W
Own consumption
0,41 W
Sensor technology
Max. mounting height
3,50 m
Sensor technology
High frequency
Transmission power
< 1 mW
With motion detector
Yes
Detection angle
360 °
Opening angle
160 °
Electronic scalability
Yes
Mounting height
3,5 m
Connectivity
Networking
Yes
Lighting technology
Measured luminous flux 360°
4250 lm
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, LED lamp
Illuminant
LED cannot be replaced
LED cooling system
Passive Thermo Control
Lifetime
LED lifetime max. °C
60000 h
LED lifetime L70B50 25°C
> 60000 h
Luminous flux decline per LM80
L80B10
Settings
Twilight setting
2 – 2000 lx
Time setting
5 sec – 60 min
Base light function
Yes
Base light function time
1-60 min
Main light adjustable
10 - 100 %
Settings via
Bluetooth
Base light function in percent
10 – 100 %
Base light function percent from
10 %
Housing & material
Impact resistance
IK07
Protection class (IP)
IP66
Protection class
II
Ambient temperature
-20 – 40 °C
Housing material
Plastic
Cover material
Plastic, structured
Colour
grey
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
Certificates
DEKRA
EPREL category
Surrounded product with integrated light source
