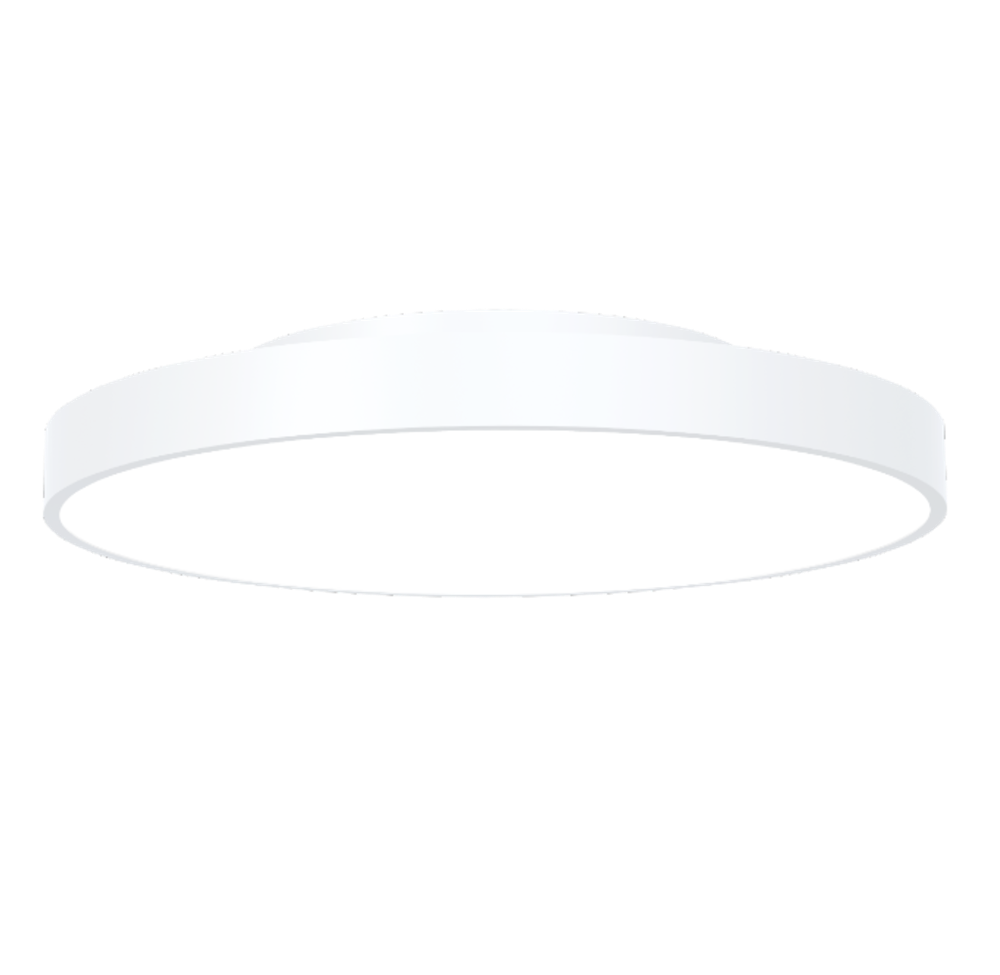

Nevalux zwena connect HF C600 3K
ELDAS® no. 222051
Price: Please log in to see prices
Light colour
Warm white (3000K)
Neutral white (4000K)
Intelligence
Identification
Manufacturer
Nevalux
Variants
Light colour
3000K
Version
600mm
Intelligence
Connect HF (motion and light sensor)
Dimensions
Dimensions Ø × H
600 x 82 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
48 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
1300 mA
Sensor technology
Sensor technology
High frequency
With motion detector
Yes
Detection angle
360°
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 8 m (50 m²)
Mounting height
< 4 m
Nevalux sensor technology
Smartlink, BT SIG Mesh
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
5250 lm (Down 3500, Up 1750)
Beam angle
Down 95°, Up 100°
Luminaire luminous efficacy
109 lm/W
Glare value
UGR < 18
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Direct/indirect ratio separately controllable
No
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
Ceiling / wall surface-mounted
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E
