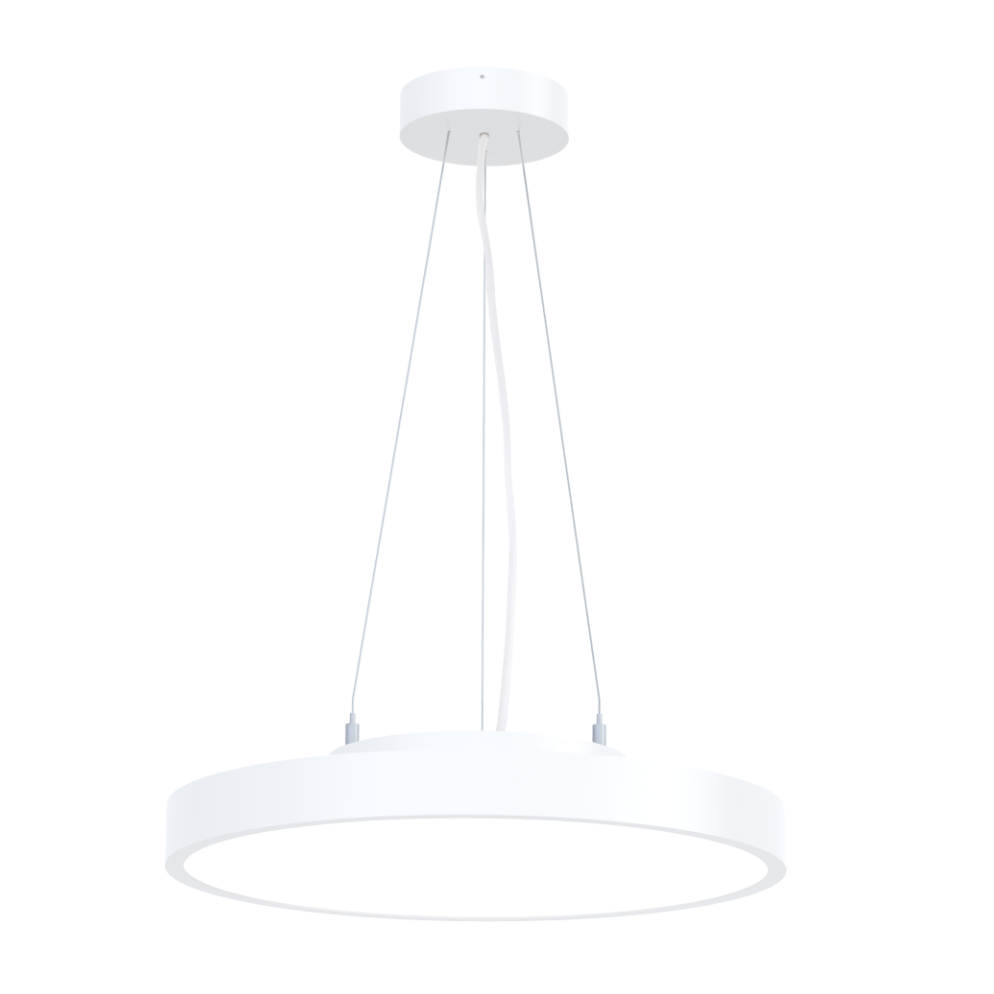

Nevalux zwena connect LS P350 3K
ELDAS® no. 221550
This product is being replaced by a successor product.
Go to successor product · zwena connect HF P350 3K (222057)Light colour
Warm white (3000K)
Neutral white (4000K)
Intelligence
- For universal use for illumination of offices, schools, traffic zones, etc.
- Optionally as an intelligent Connect version with or without motion sensor, or as a conventional DALI luminaire
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- High quality finish
- Direct and indirect light distribution
Identification
Successor
222057
Manufacturer
Nevalux
Variants
Light colour
3000K
Version
350mm
Intelligence
Connect LS (light sensor)
Dimensions
Dimensions Ø × H
350 x 82 mm
Suspension length
1500 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
18 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
450 mA
Sensor technology
With motion detector
No
Nevalux sensor technology
Smartlink, BT SIG Mesh
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
1700 lm (Down 1200, Up 500)
Beam angle
Down 95°, Up 100°
Luminaire luminous efficacy
94 lm/W
Glare value
UGR < 18
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Direct/indirect ratio separately controllable
No
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
Ceiling pendant
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F
