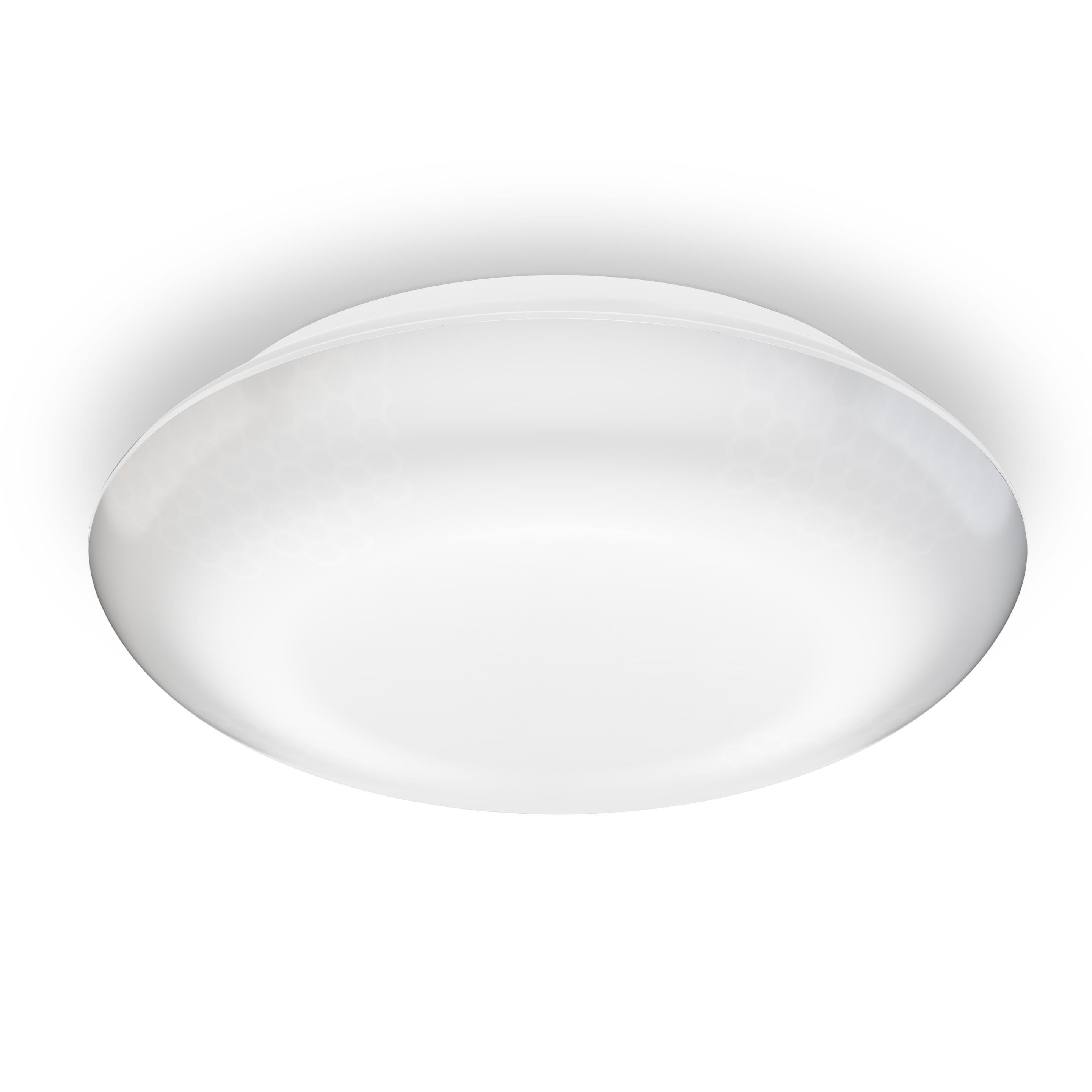

Steinel DL Vario Quattro PRO S Neutral white white

EAN-No. 4007841068196

ELDAS® no. 068196

Light colour

3000K Warm white 4000K Neutral white

The LED ceiling light with precise detection. The four infrared sensors can be mechanically adjusted to cover any distance from 2 to 8 m. 360° all-round detection is ideally suited for optimum adjustment to the local situation, e.g. carports and porches. The light diffuser also acts as the sensor lens - a patented world first. The ceiling light provides 1430 lm of illumination at an output of 14 W and can be mounted at heights of up to 6 m, including a convenient basic light level function (10%) at twilight. The DL Vario Quattro PRO S can easily connected to the network via cable (up to 10 lights). Available in neutral white (4000 K) and warm white (3000 K) colour temperature. Due to the reliability and sensitivity of the sensor, we advise against stacked, multi-storey installations.

Identification

Manufacturer Steinel

E-number 941002739

Variants

Light colour 4000K Neutral white

Dimensions

Dimensions Ø × H 310 x 69 mm

PU1 net weight 0.8900

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 14 W

Switching output 1 resistive 500 W

Fluorescent lamps ECG 500 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 500 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 500 VA

LED lamps < 2 W 16 W

LED lamps > 2 W < 8 W 64 W

LED lamps > 8 W 64 W

Capacitive load in µF 88 µF

Own consumption 0,5 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 8 m in 4 directions (90° in each)

Radial range 4 x 4 m (16 m²)

Tangential range 16 x 16 m (256 m²)

Mounting height 2,00 – 6,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Networking via Cable

Lighting technology

Measured luminous flux 360° 1430 lm

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 30 Min.

Base light function Yes

Base light function time 10/30 min, all night

Settings via Potentiometers

With remote control No

Twilight setting teach No

Base light function in percent 10 %

Base light function percent from 10.0000

Housing & material

Impact resistance IK07

Protection class (IP) IP54

Protection class II

Ambient temperature from -20 up to 35 °C

Housing material Plastic

Cover material Plastic, structured

Mounting location ceiling

Application location Outdoors

Mounting type Surface wiring

Material Plastic

Application room corridor / aisle function room / ancillary room stairwell outdoors front door courtyard & driveway Indoors

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA EMC

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

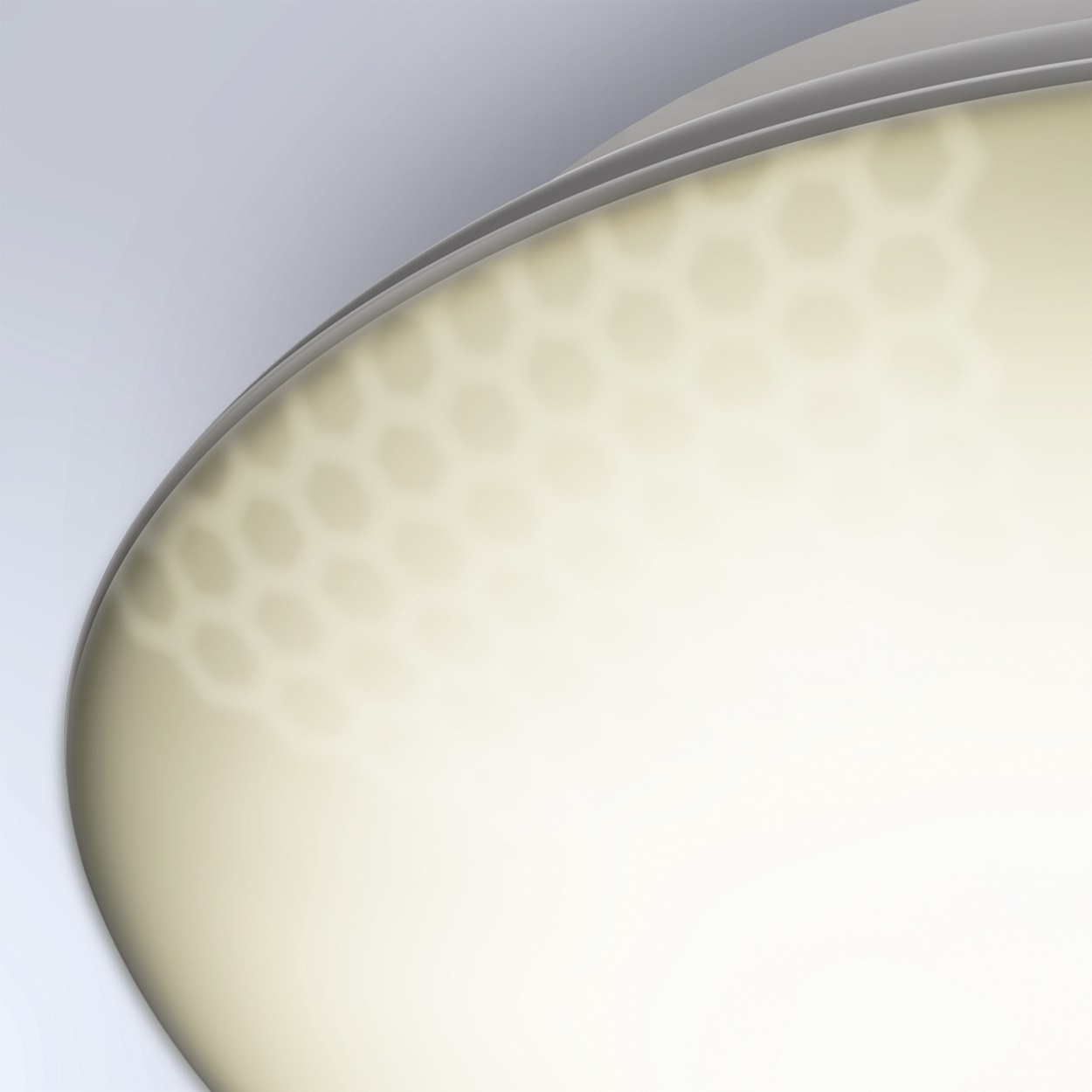

Integrated sensor lenses

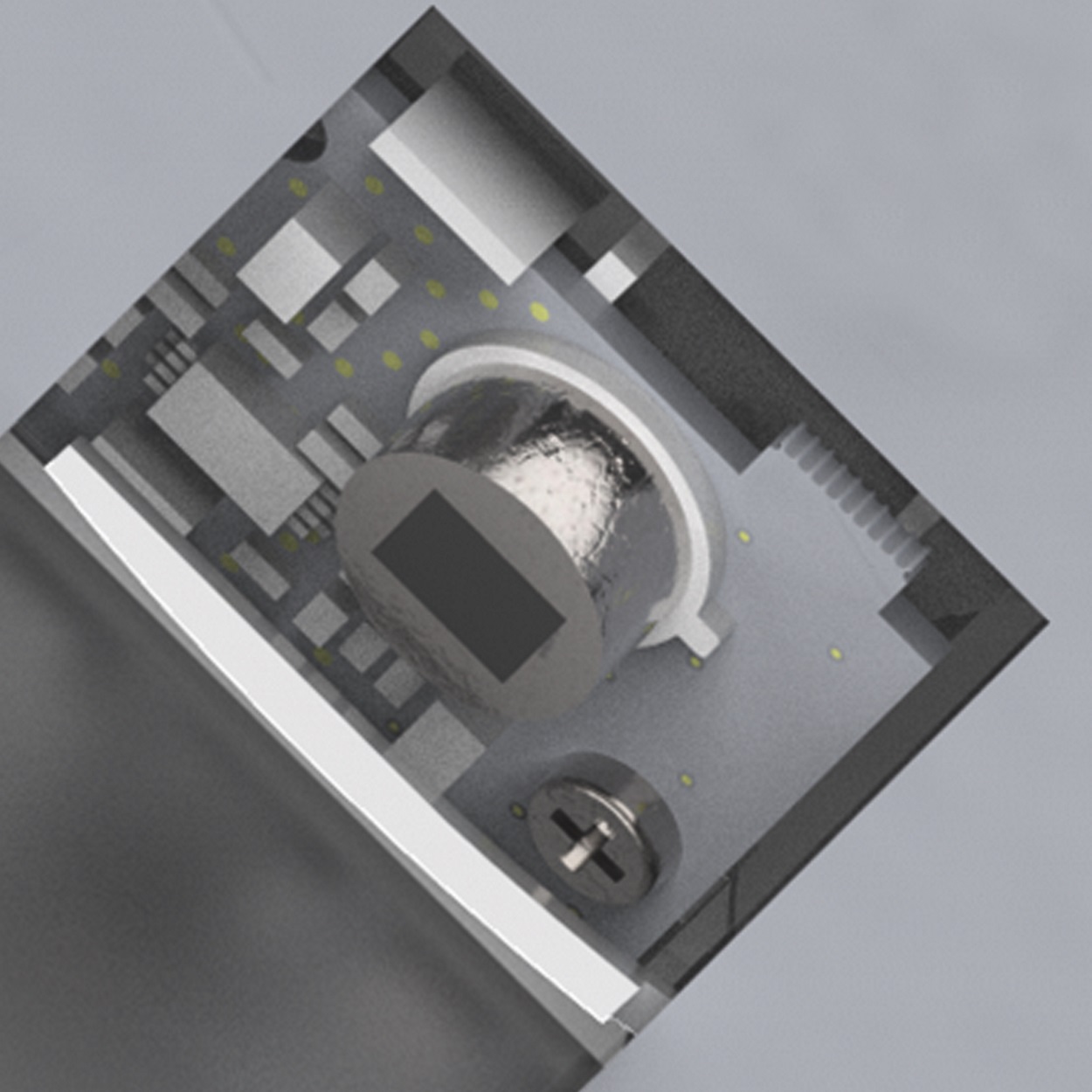

4 infrared sensors adjustable in every direction

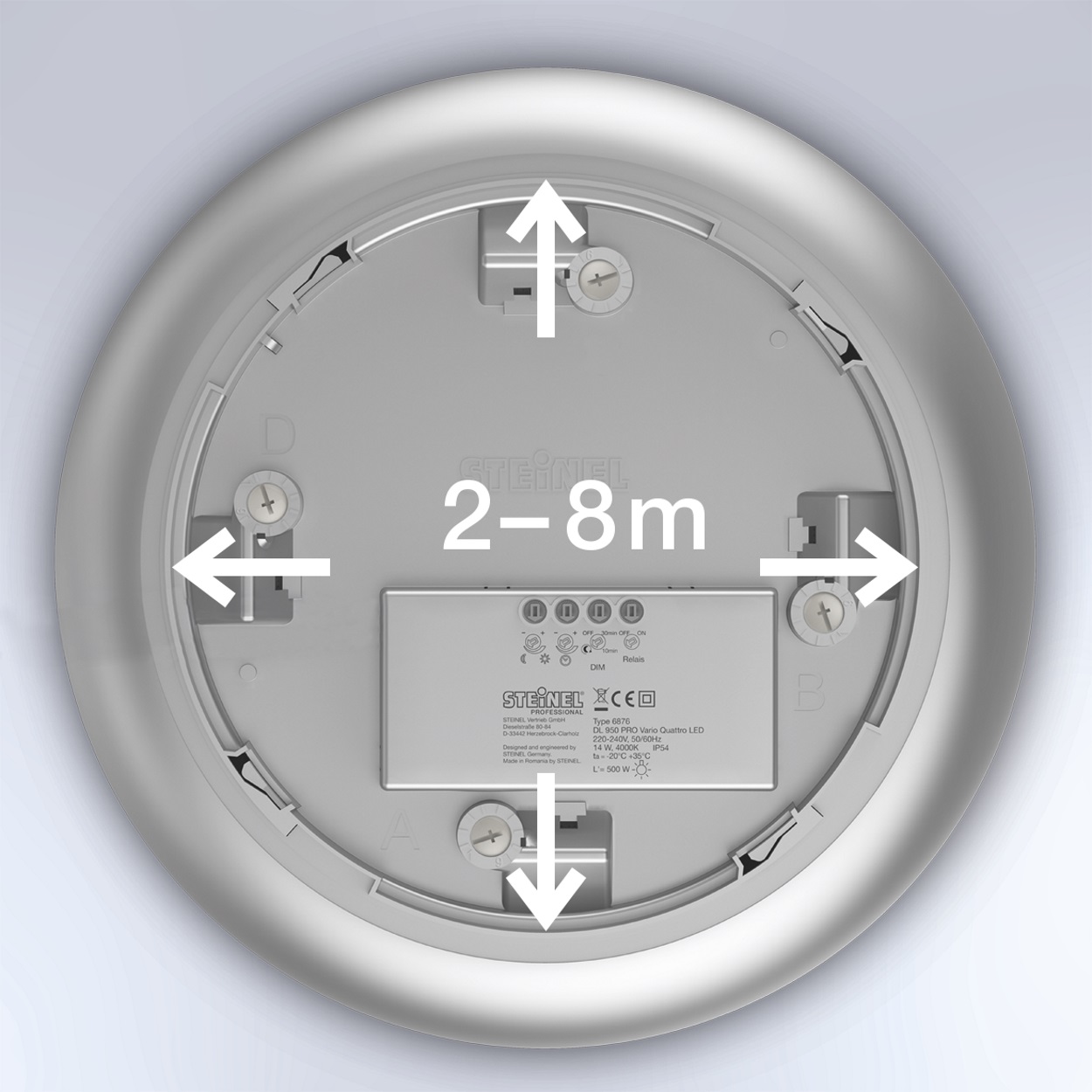

Reach adjusts in 4directions

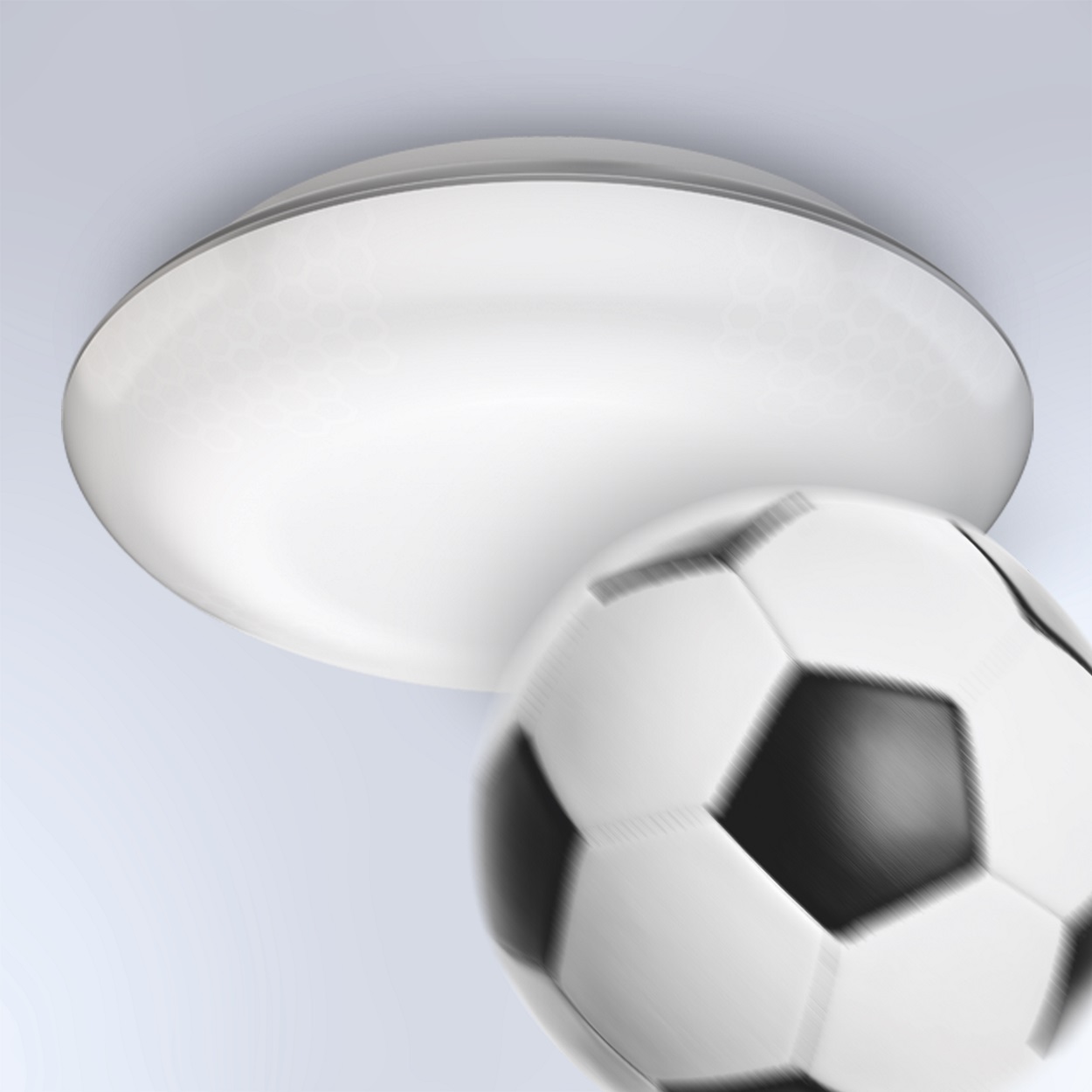

Impact-resistant material rated to IK07

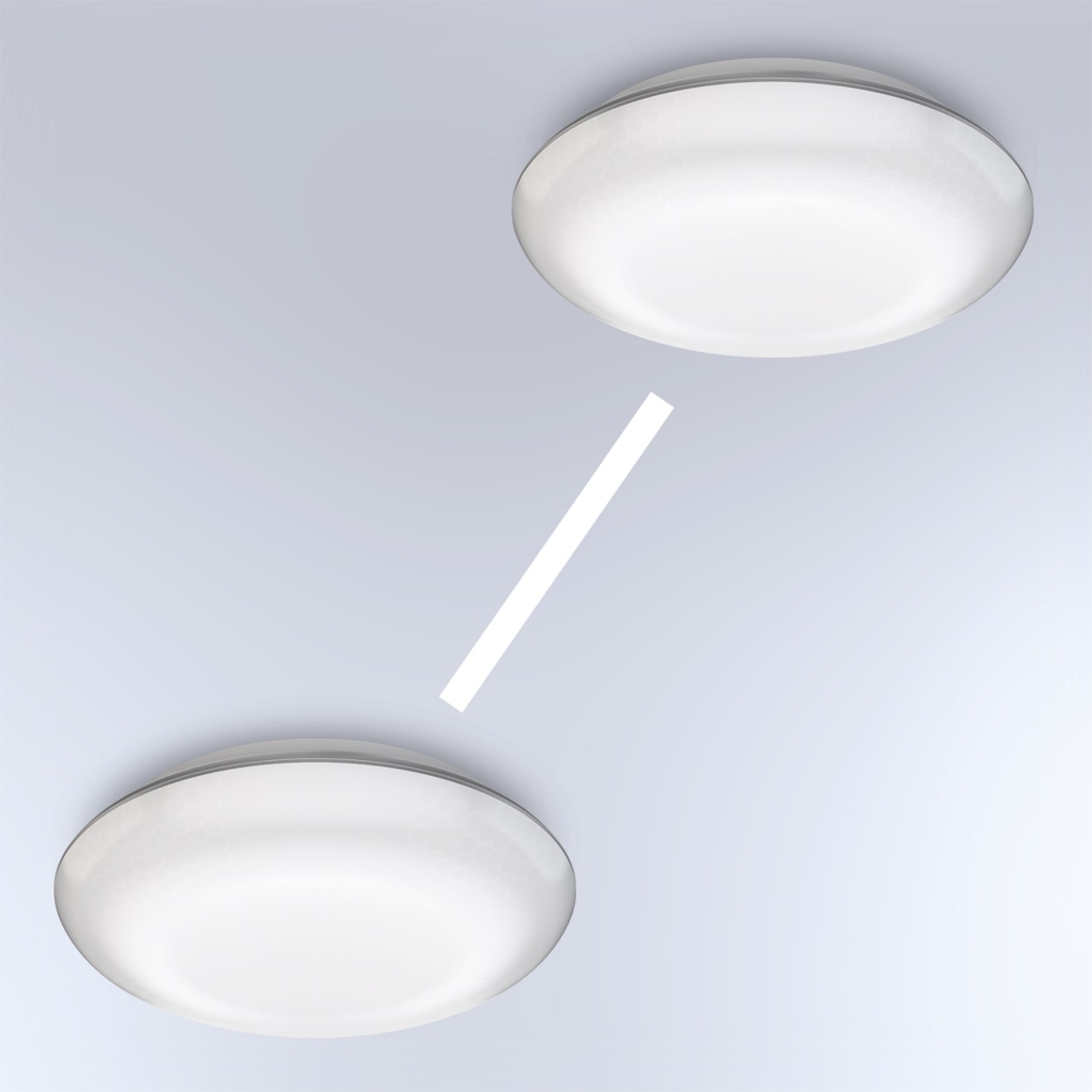

Interconnectable by cable (maximum of 10 units)

Technical drawing

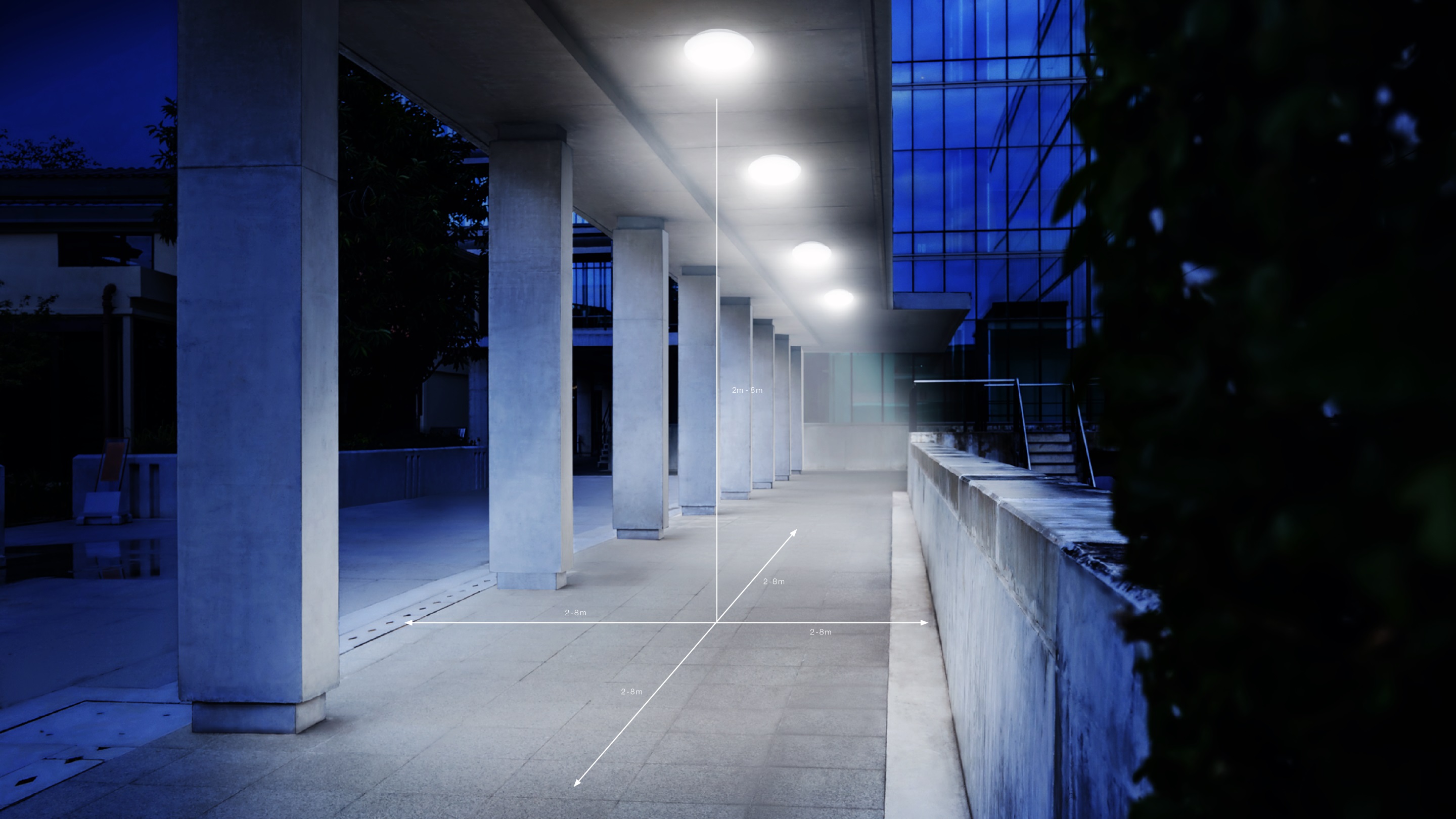

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet LDT file (light distribution)
