Transform your property into a showcase. The modern, sleek design brings a very special mood to gardens, driveways or paths. The GL 60 S SensorLight can tell if anyone is there and slowly switches the light on in a way that's kind on the eyes. Just as with the L 260 S, it also incorporates the innovative LED lamp. It provides lighting filled with atmosphere and automatically switches itself off again after a pre-selected time. 360° coverage without blind spots, incidentally, is unique. Your neighbours will be amazed.
- Floor and path luminaire with motion detector with high-quality stainless steel base and opal glass
- Perfect complement to the L 260 S outdoor light
- Automatic light thanks to 360 ° Infrared sensor with up to 12 m detection of movement
- Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light
- Incl. E27 LED bulb with warm white light (3000 K) with 781 lm at 9,78 W
- Incl. mounting accessories - plastic-free packaging
Identification
Manufacturer
Steinel
E-number
924370079
Variants
Colour
Stainless steel
Dimensions
PU1 net weight
3.9210
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
9,78 W
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
30 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 12 m (113 m²)
Tangential range
Ø 24 m (452 m²)
Connectivity
Networking
No
Slave mode adjustable
No
Lighting technology
Measured luminous flux 360°
781 lm
Efficiency
79,9 lm/W
Colour temperature
3000 K
LED colour deviation
SDCM6
Colour rendering index
80-89
With illuminant
Yes
Illuminant
LED can be replaced
Base
E27
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable, 4h
Lifetime
LED lifetime max. °C
25000 h
LED lifetime L70B50 25°C
> 20000 h
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Base light function
Yes
Settings via
Potentiometers
With remote control
No
Base light function in percent
10 – 50 %
Base light function percent from
10.0000
Base light function percent to
50.0000
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
from -20 up to 50 °C
Housing material
Stainless steel
Cover material
Glass opal
Cover material (scope of delivery)
shrouds
Mounting location
Stand mounted
Application location
Outdoors
Mounting type
Surface wiring
Application room
outdoors
all round the building
garden
terrace / balcony
courtyard & driveway
Colour
Silver
Scope of delivery & warranty
Manufacturer warranty
3 years
House number sheet included
No
Certificates & EPREL
EPREL category
Surrounded product with separate light source (e.g. E27)
Cross-/up-selling
Accessories
26628,12228,12196

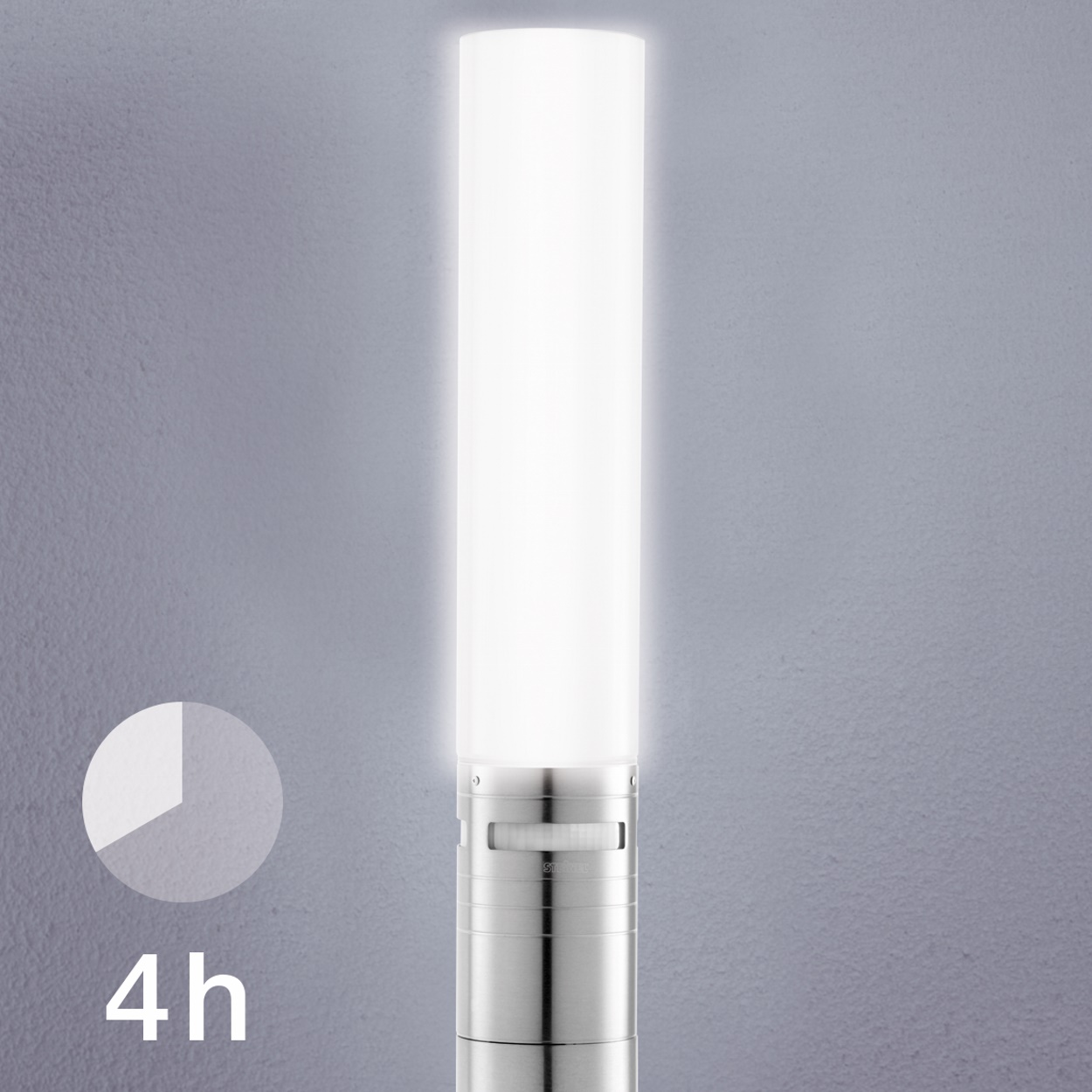

4-hour manual override (optional)

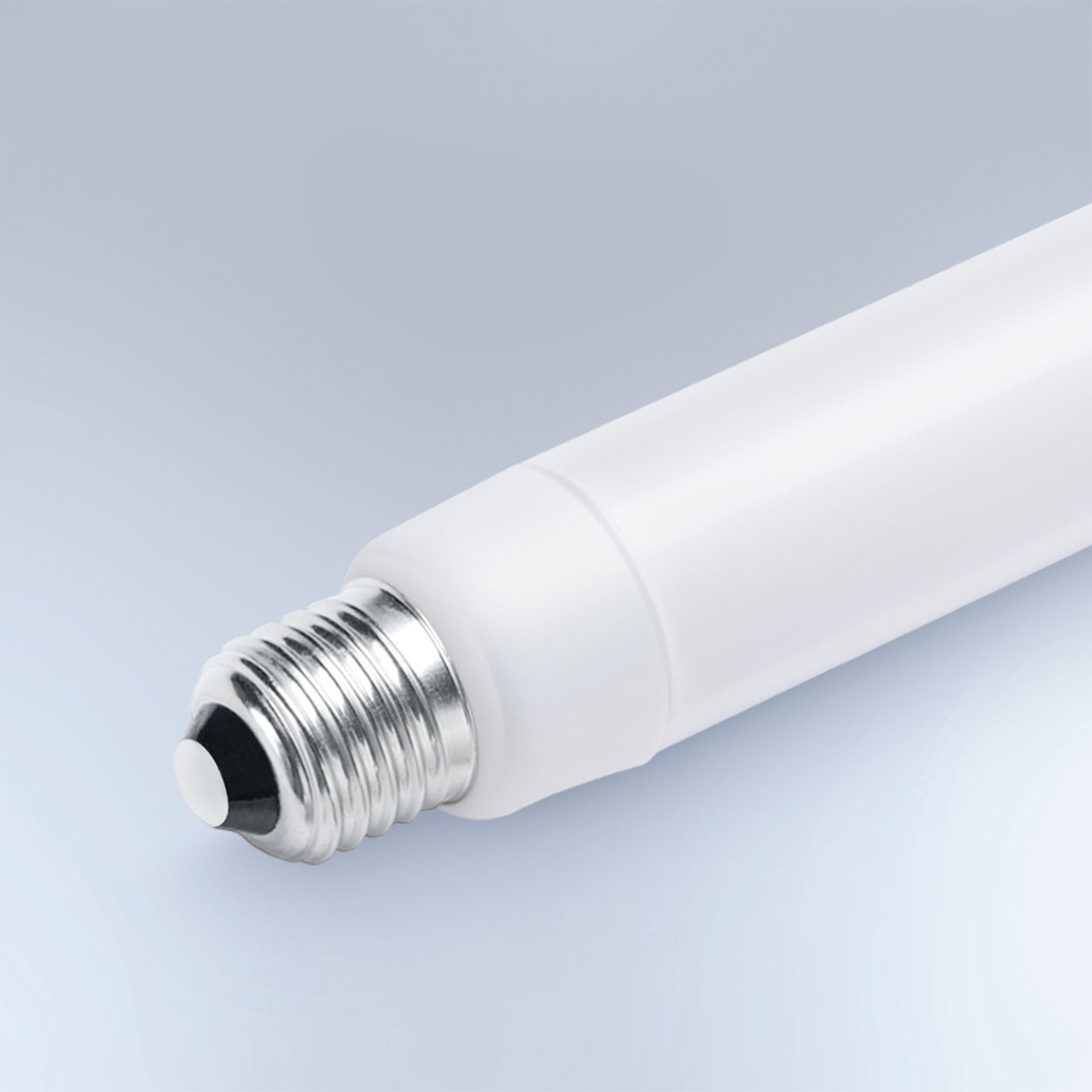

Including innovative LED lamp

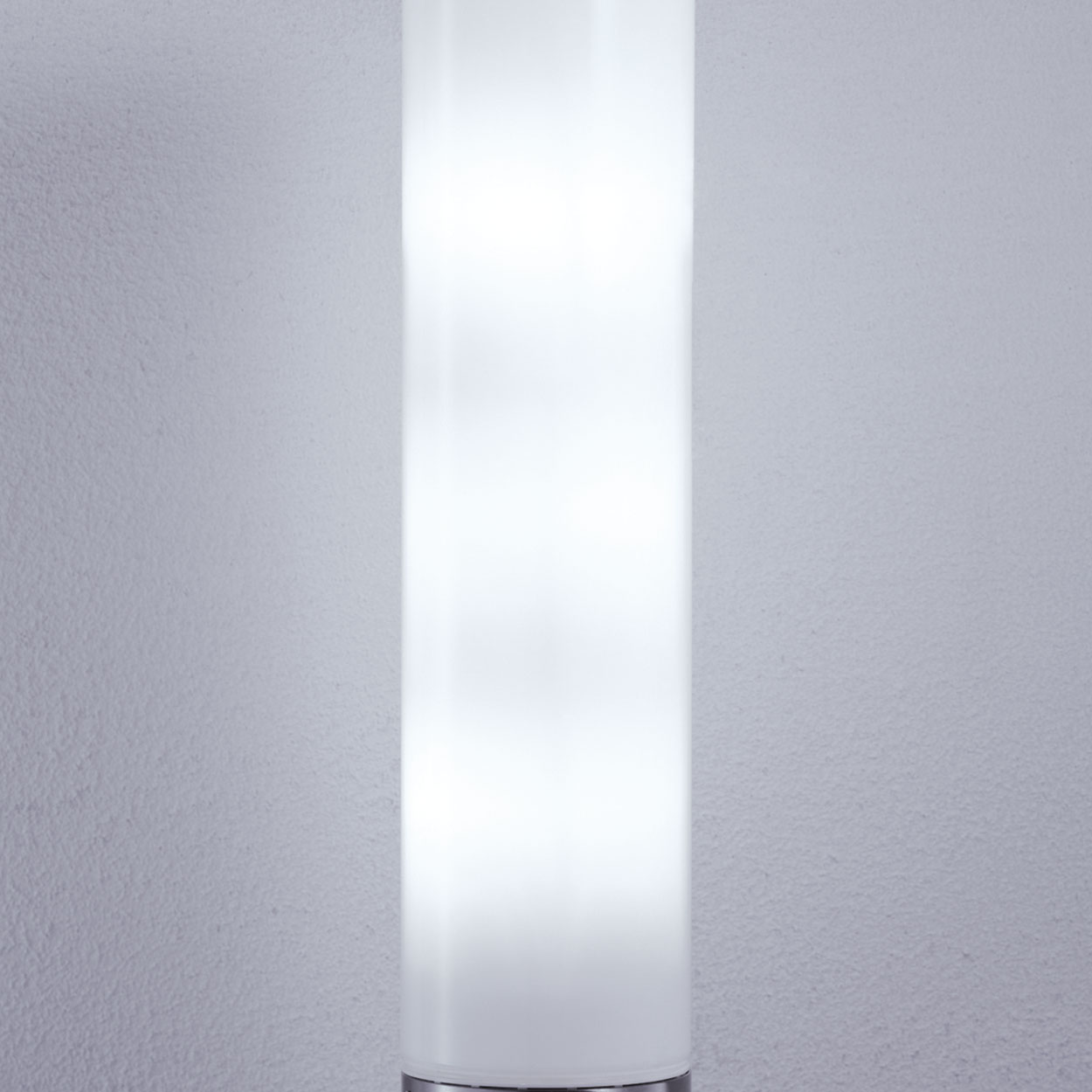

Optional basic lighting level 0 - 50 %

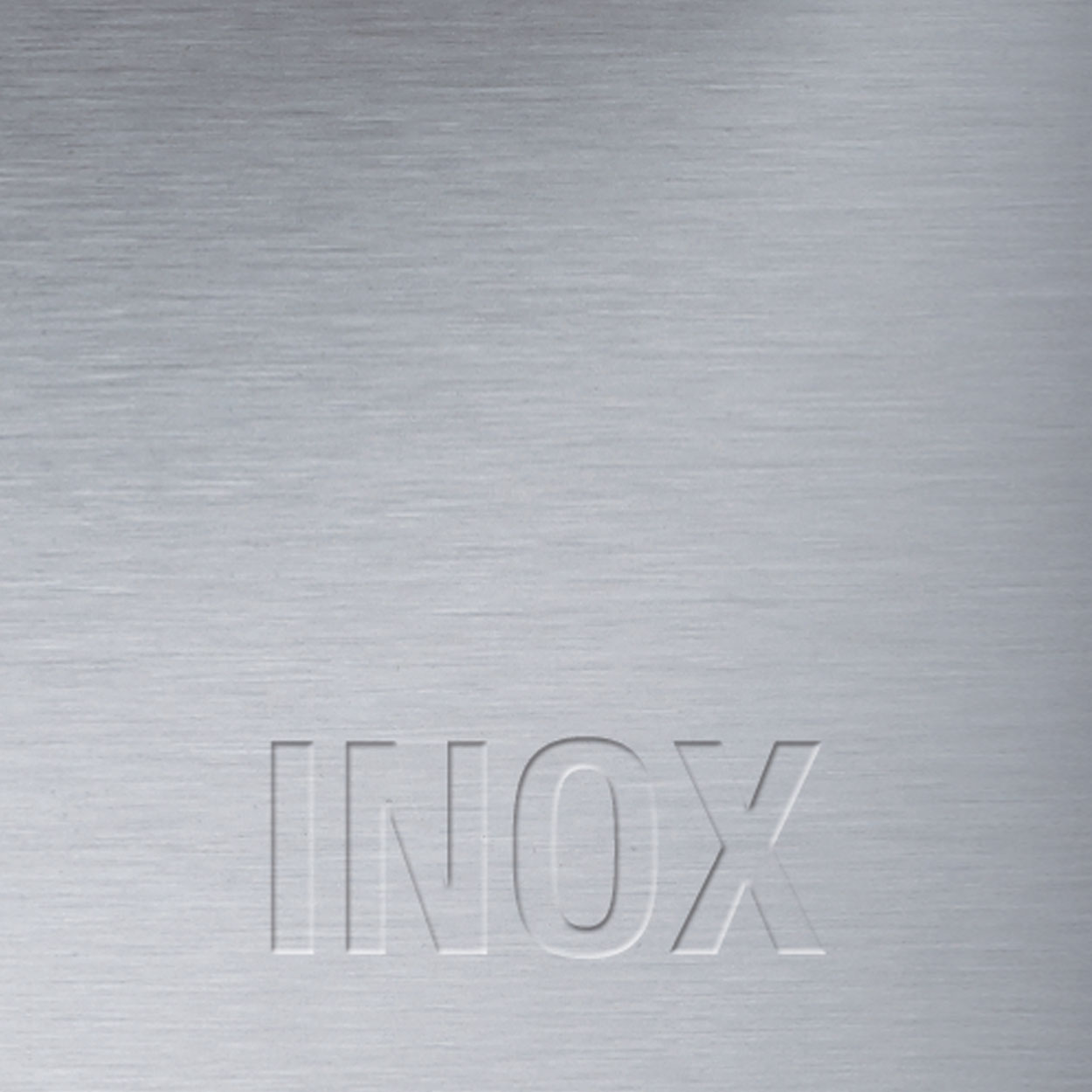

High-quality stainless steel

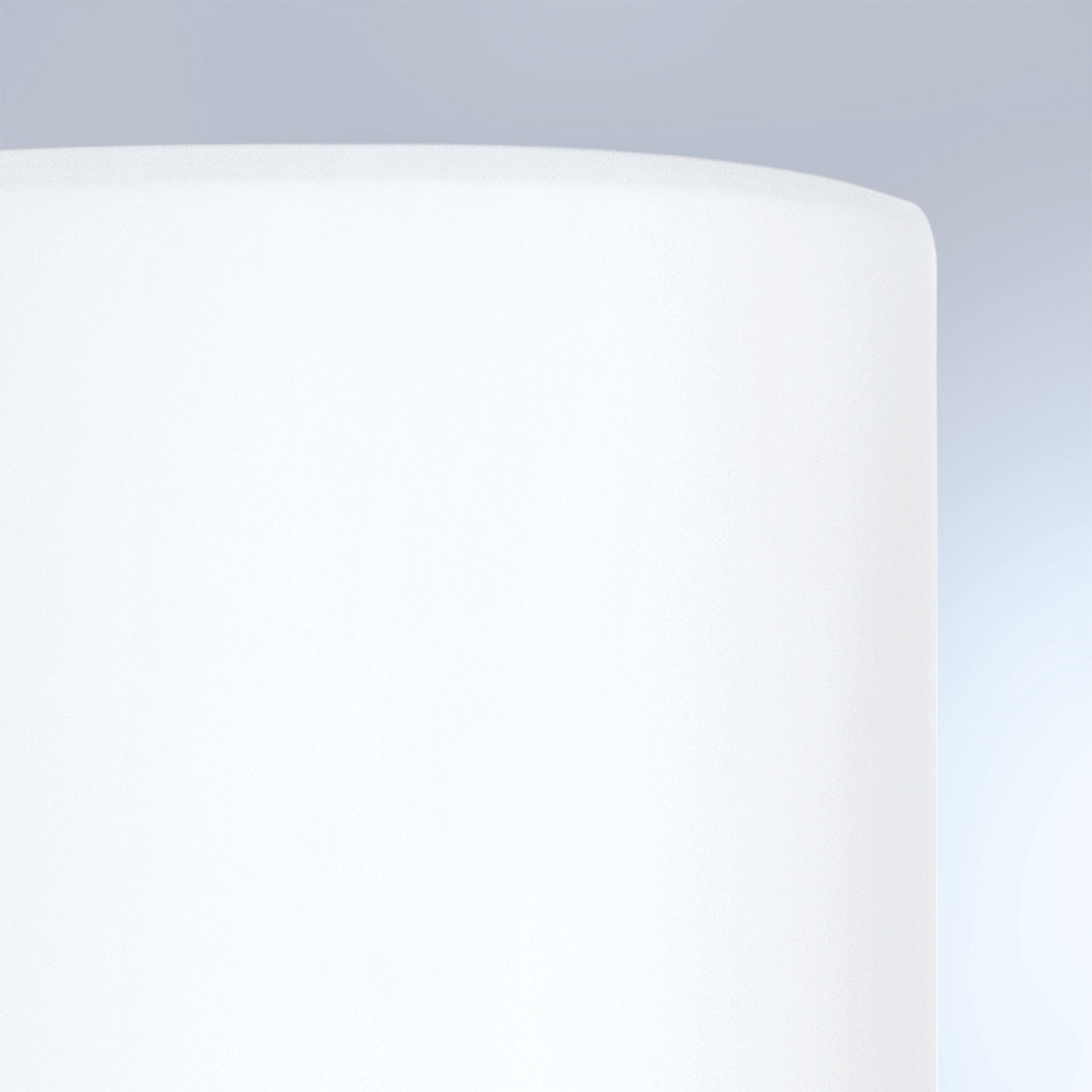

High-quality opal glass shade
Technical drawings

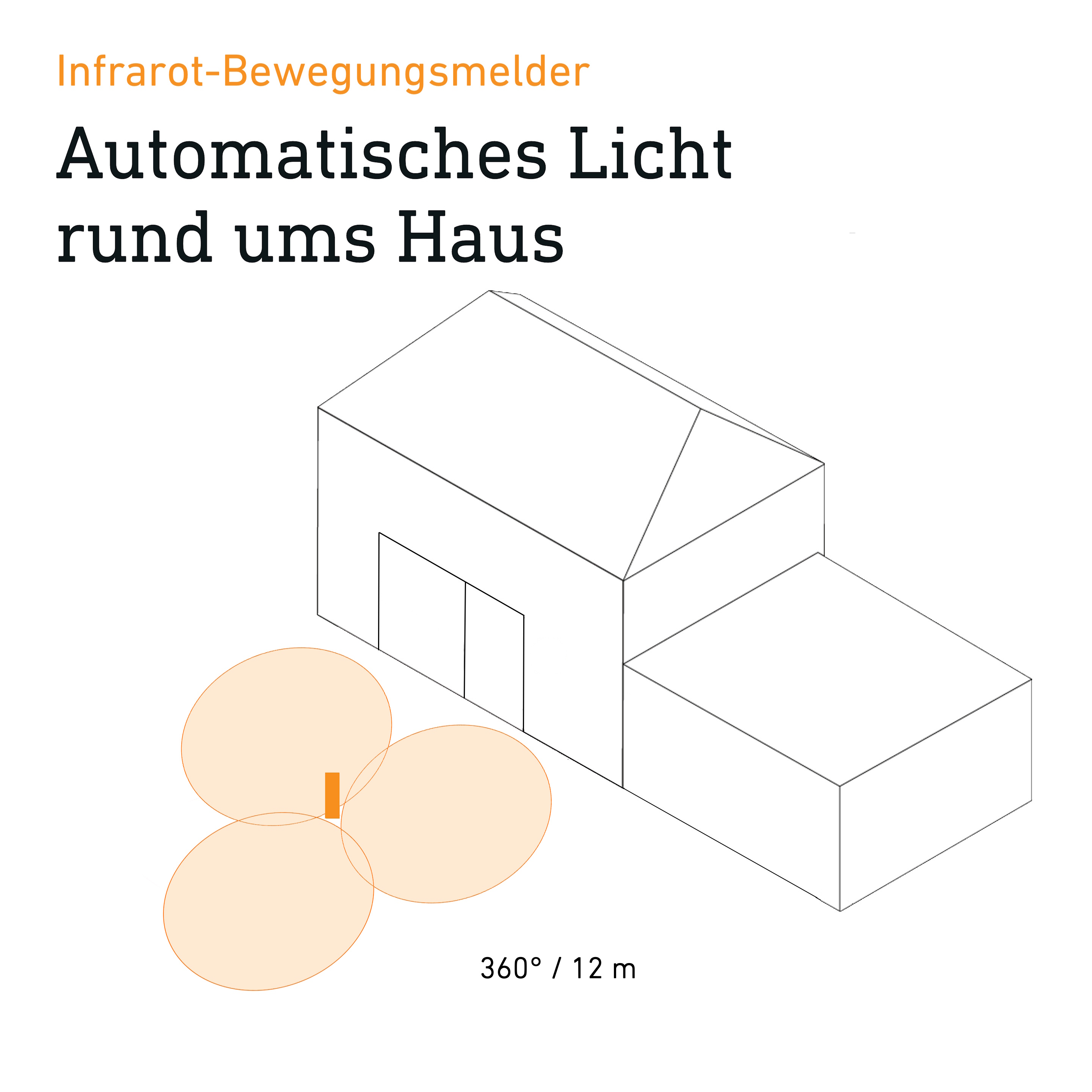

Sensor detection areas
Wiring diagram 1
Circuit diagram
