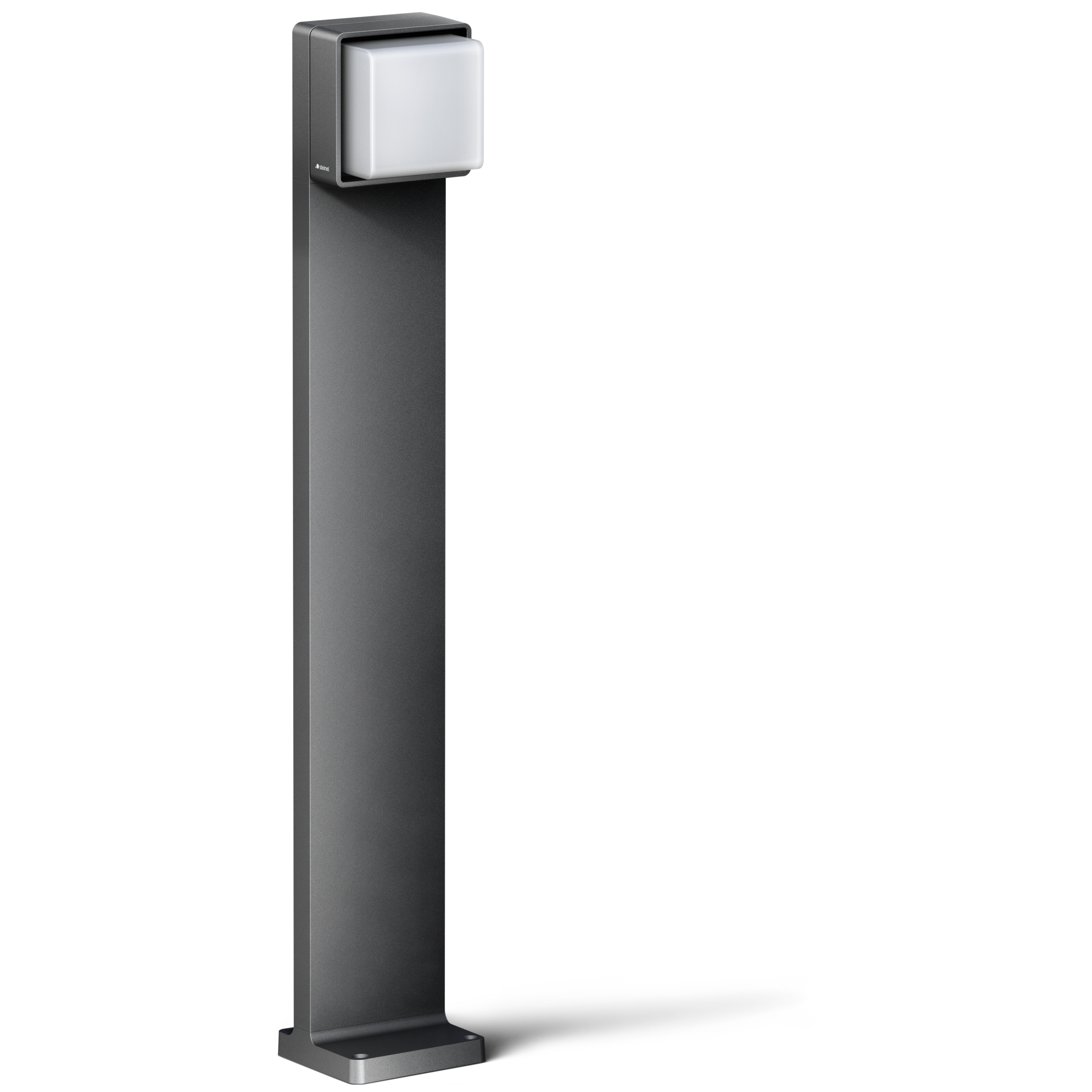

Steinel GL 85 SC 900 with motion detector

Steinel GL 85 SC 900 with motion detector

EAN-No. 4007841078683 · ELDAS® no. 078683

Steinel Bluetooth Mesh

Steinel GL 85 SC 900 with motion detector

EAN-No. 4007841078683

ELDAS® no. 078683

Price: Please log in to see prices

Version

Height

60cm 90cm

The elegant GL 85 SC aluminium bollard lamp from the Cube Pro range is a sure-footed and, above all, stylish companion for use as a night-light along any path at home. With its simple cube design, the light offering 3000 K and 655 lm sets attractive design and lighting accents – and thus skilfully enhances outdoor areas of modern, architecturally sophisticated residential complexes in particular. Commissioning, setting up and networking are impressively simple and quick thanks to Bluetooth Mesh combined with the free STEINEL Connect app. The invisible high-frequency sensor with a 160° detection angle has a radius of up to 5 m and can be digitally adjusted quickly and precisely. Thanks to wireless Bluetooth networking featuring an interconnected group function, paths and driveways can be lined with visionary light and thus illuminated safely and to suit all needs. The high-quality outdoor light features a soft light start, basic light (10-100%) and dimmable main light (10-100%), and allows for customised and energy-saving lighting scenarios. With heights of 60 cm and 90 cm, there are two sizes to choose from. This attractive bollard and path light is also available without a sensor. The foot and upright are both available as spare parts.

Identification

Manufacturer Steinel
E-number 941775059

Variants

Version Sensor
Height 90cm

Dimensions

Dimensions L × W × H 136 x 136 x 900 mm
PU1 net weight 2.8560

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9 W

Sensor technology

Sensor technology iHF (intelligent high-frequency technology)
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 160 °
Opening angle 160 °
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Range detail Detection zone adjustable on 3 axes
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Type of networking Master/slave
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 655 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
Soft light start Yes
Continuous light selectable, 4h

Lifetime

LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L70B50

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 10s-60 min Brightness-controlled OFF
Main light adjustable 10 - 100 %
Functions Motions sensor Neighbouring group function
Settings via App Bluetooth Mesh Smartphone
With remote control No
Twilight setting teach Yes
Base light function in percent 10 – 100 %
Base light function percent from 10.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location Stand mounted
Application location Outdoors
Mounting type Other
Material Aluminium
Application room outdoors garden

Scope of delivery & warranty

Manufacturer warranty 5 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Spare parts 25541,25543
Accessories 27098,27099

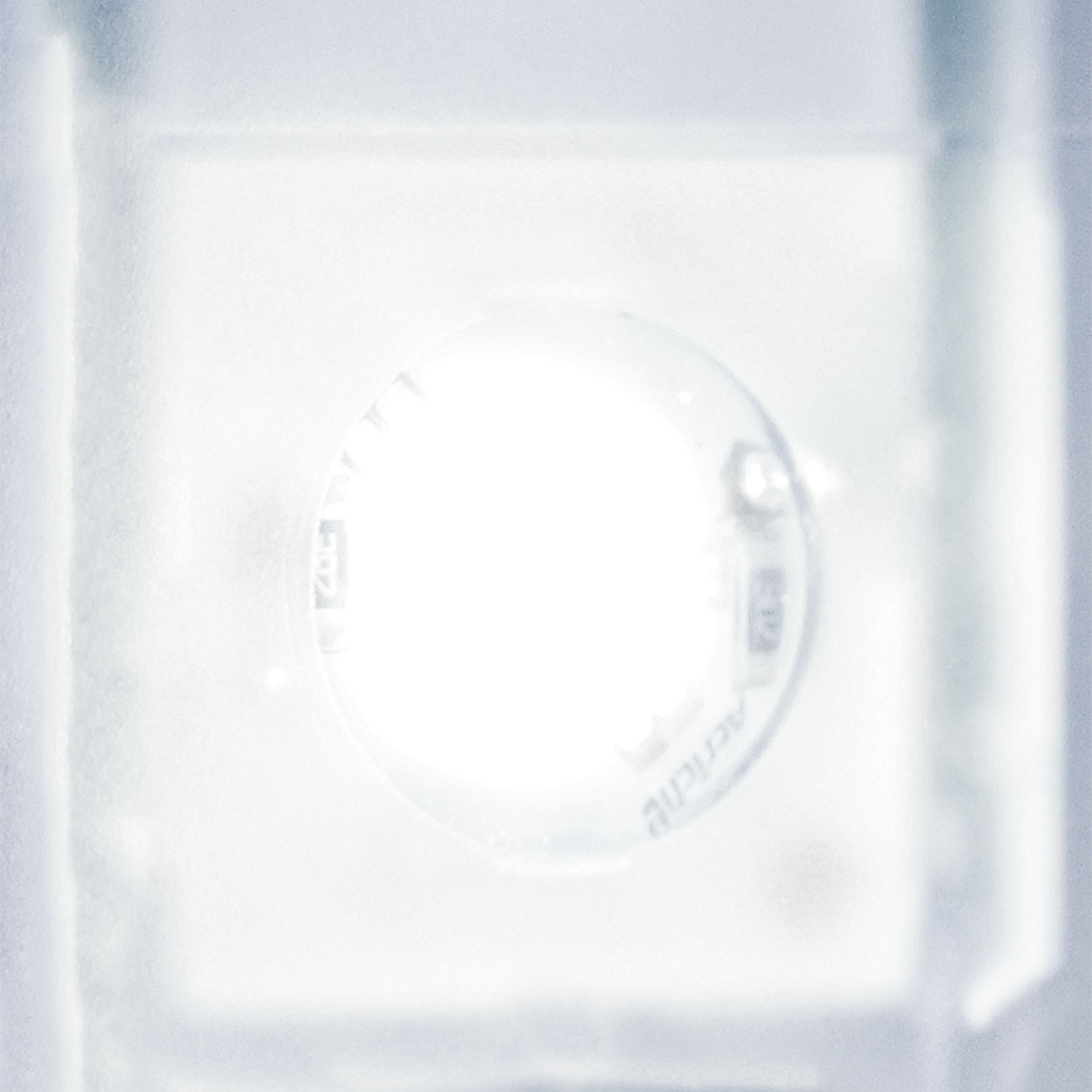

Including STEINEL LED system

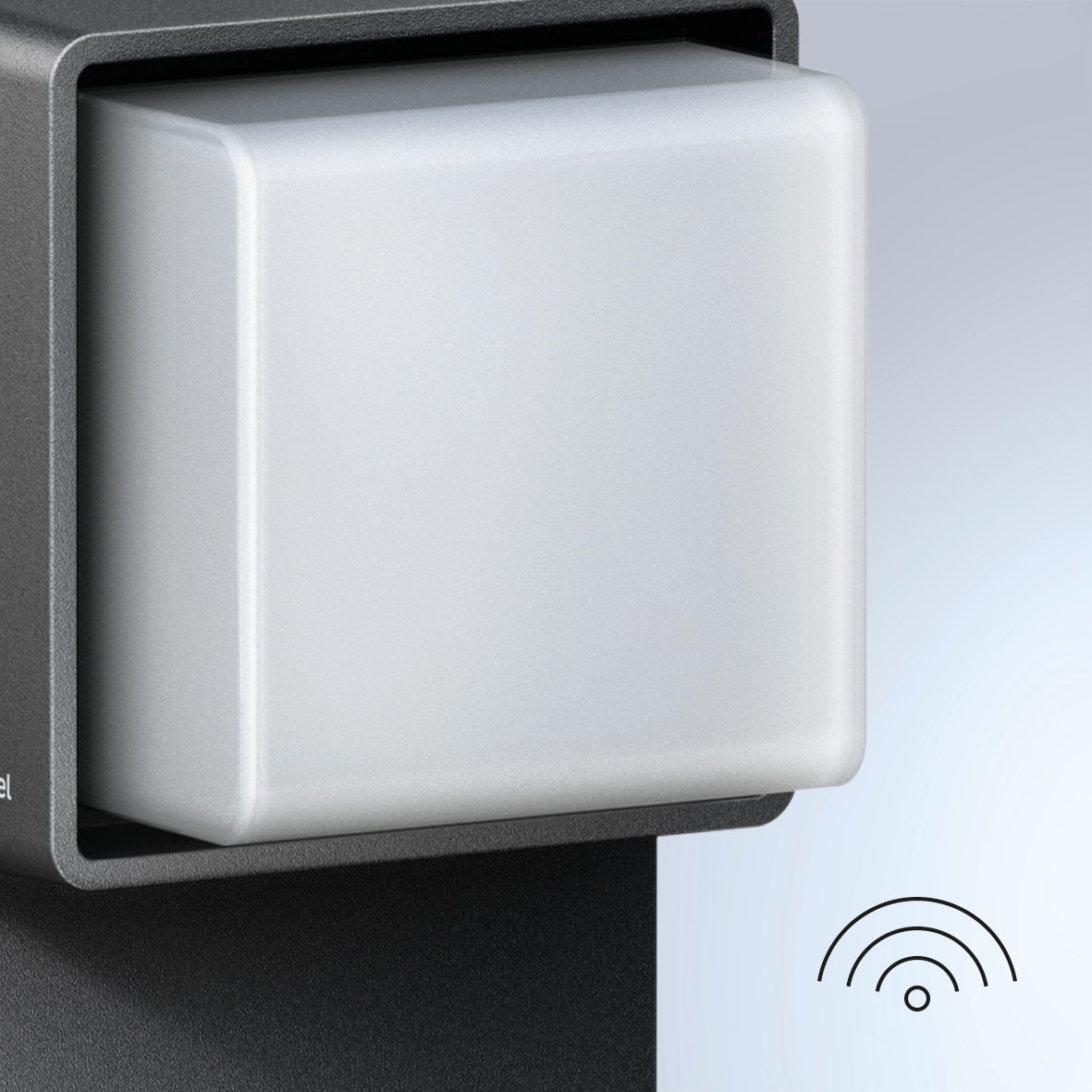

Concealed iHF sensor

Intelligent soft light start

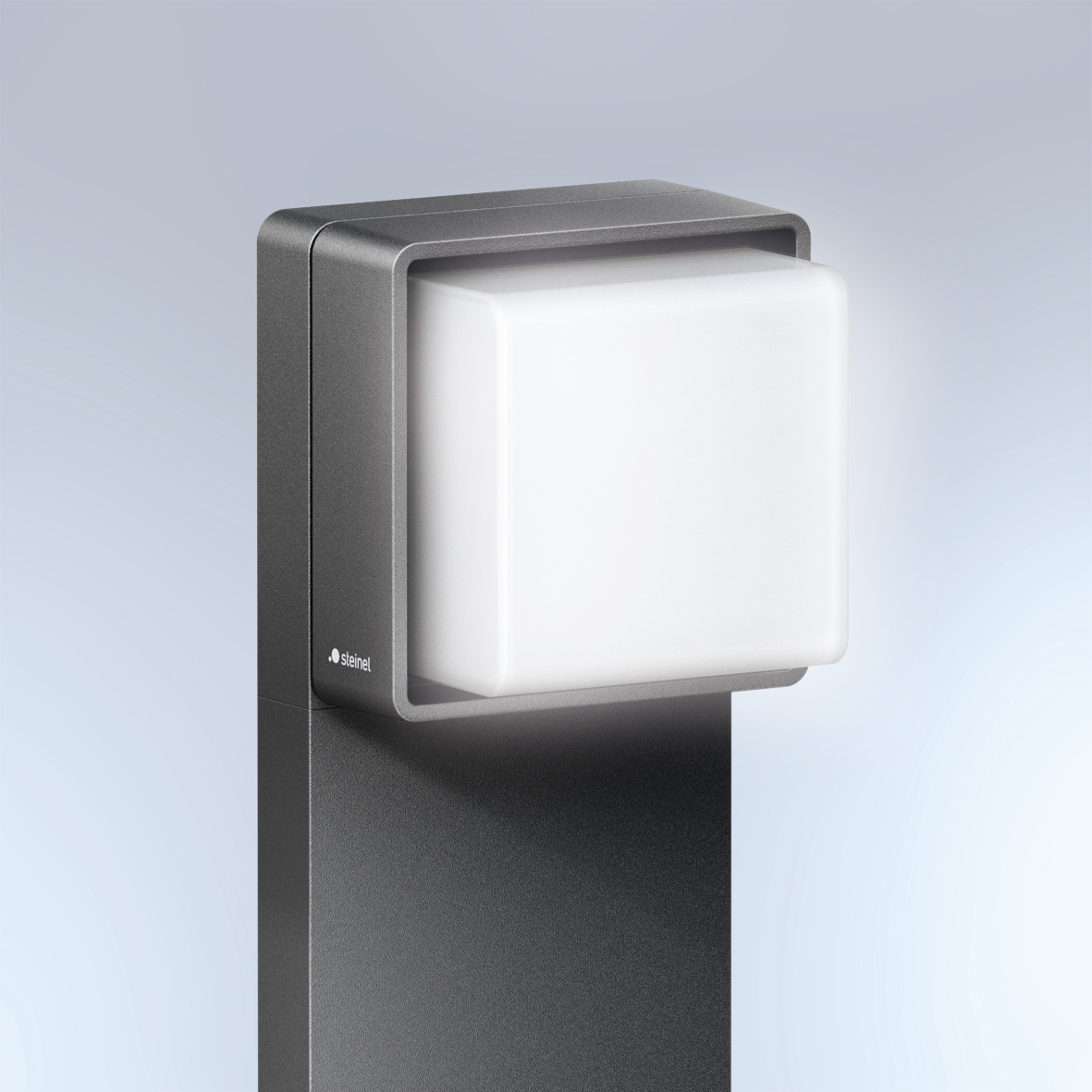

Optional basic lighting level 10 - 100 %

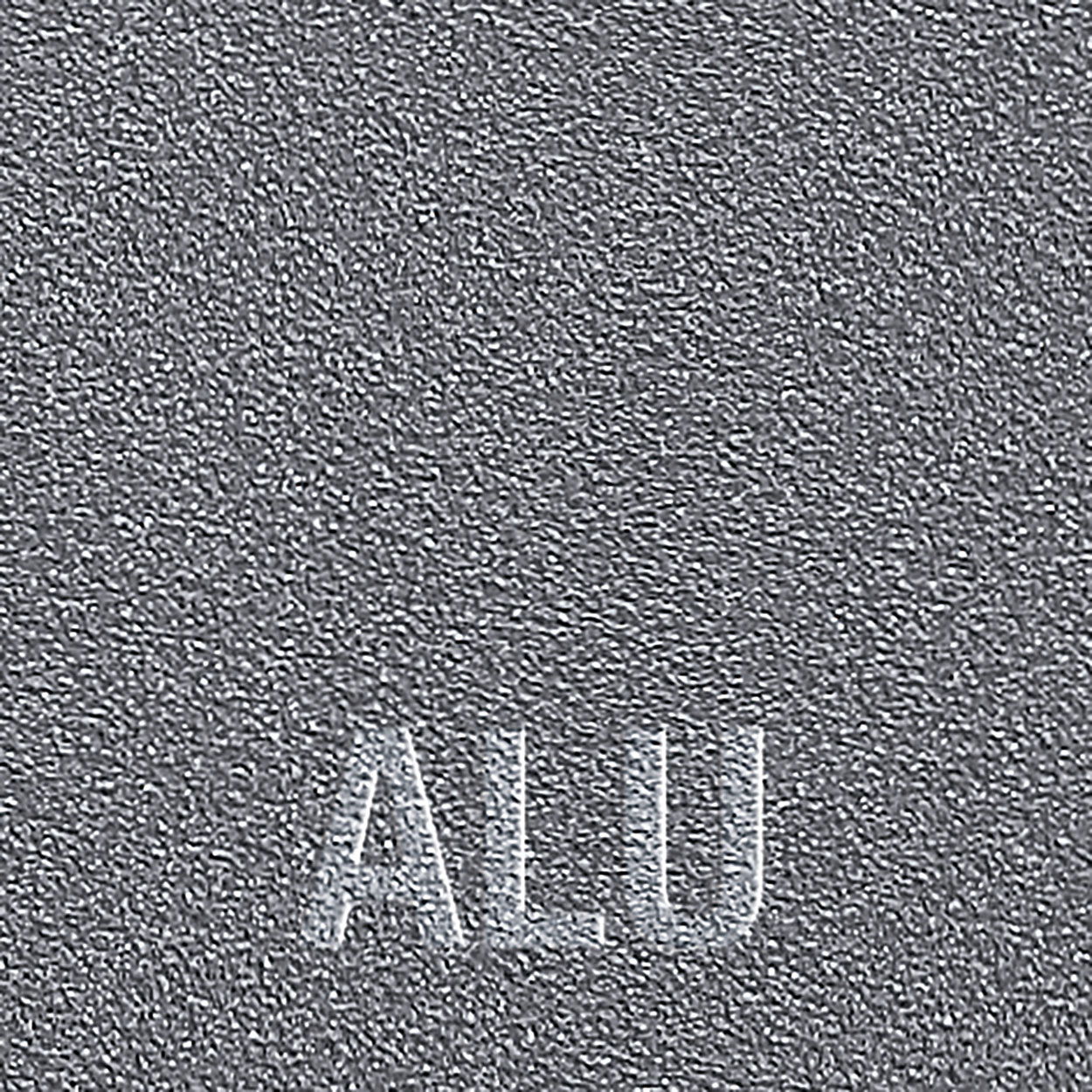

High-quality aluminium

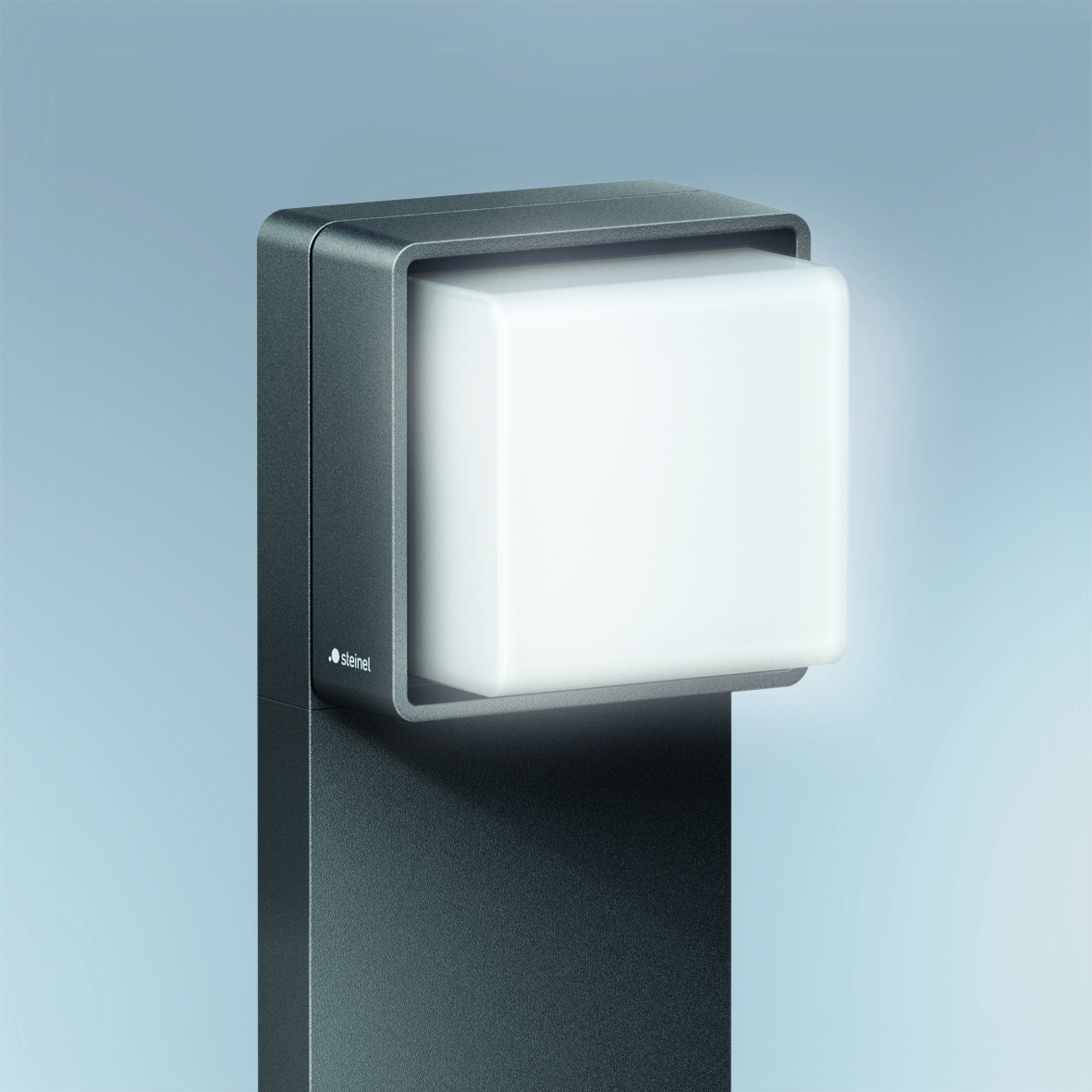

Continuous light individually switchable (optional)

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth
