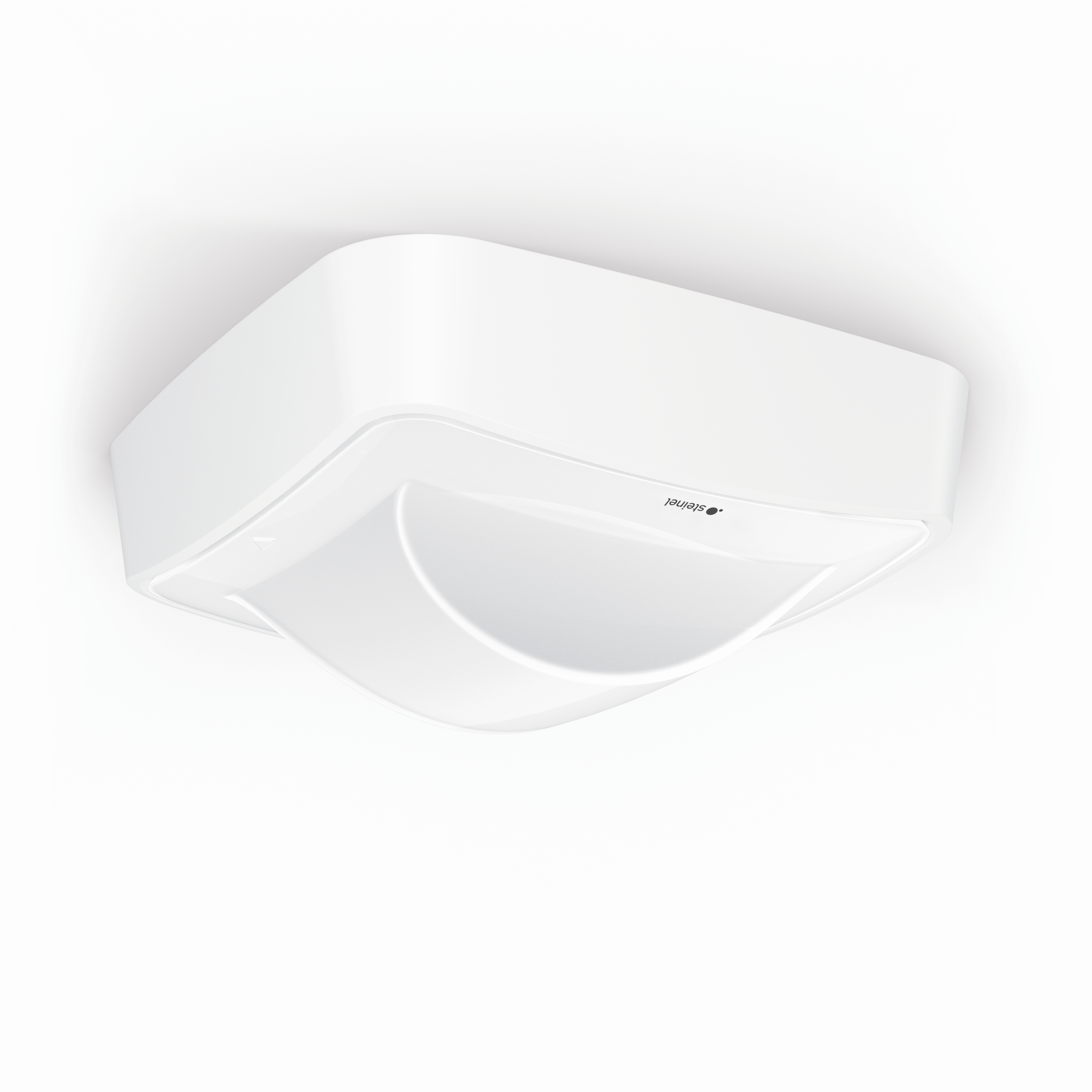

Steinel Hallway KNX - Surface wiring
EAN-No. 4007841079079
ELDAS® no. 079079
Price: Please log in to see prices

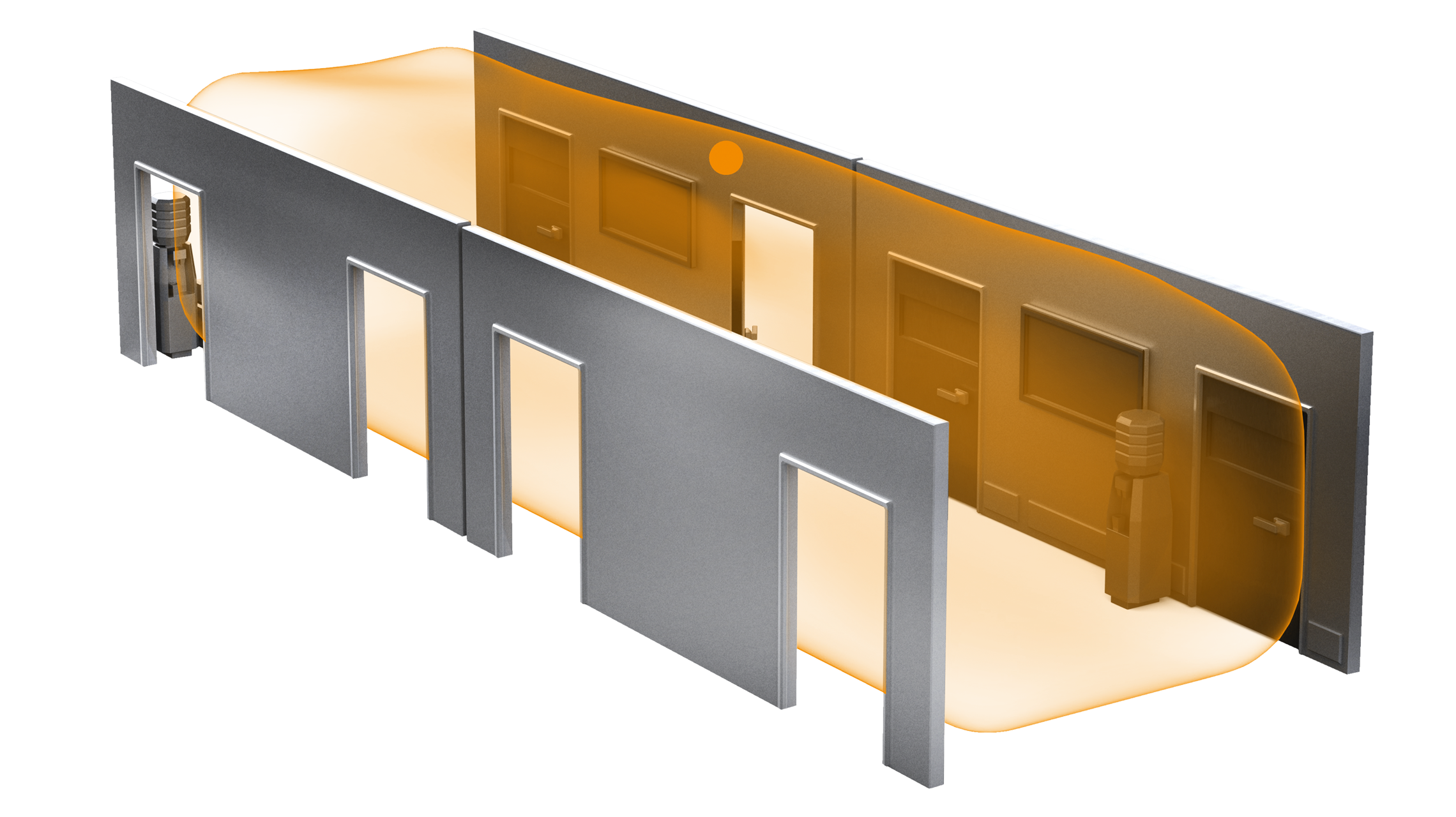

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.
Identification
Version
Presence detector
Manufacturer
Steinel
E-number
535931908
Dimensions
Dimensions L × W × H
62 x 123 x 123 mm
PU1 net weight
0.2650
Electrical
Mains connection
30 V
Own consumption
0,7 W
Supply voltage detail
KNX bus
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2 – 4 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/master
Master/slave
Networking via
KNX bus
KNX functions
Comfort
Photo-cell controller
Individual pyro evaluation
Basic light level function
Light level
HVAC output
Constant-lighting control
Light output 4x
Presence output
Day / night function
Dewpoint
Logic gate
Humidity output
Temperature output
With bus coupler
Yes
Lighting technology
Soft light start
Yes
Continuous light
selectable
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Time setting
10 s – 1092 Min.
Base light function
Yes
Main light adjustable
0 - 100 %
Settings via
ETS software
Bluetooth
Bus
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -25 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
Indoors
corridor / aisle
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Texts & marketing
KNX description
https://pim.steinel.de/admin/ImageServer.php?ID=59320a250572@steinel&rand=57ba8587bf7267a0c7bd51a6d512acd1&lang=2&force=true&download=true&omitPreview=true

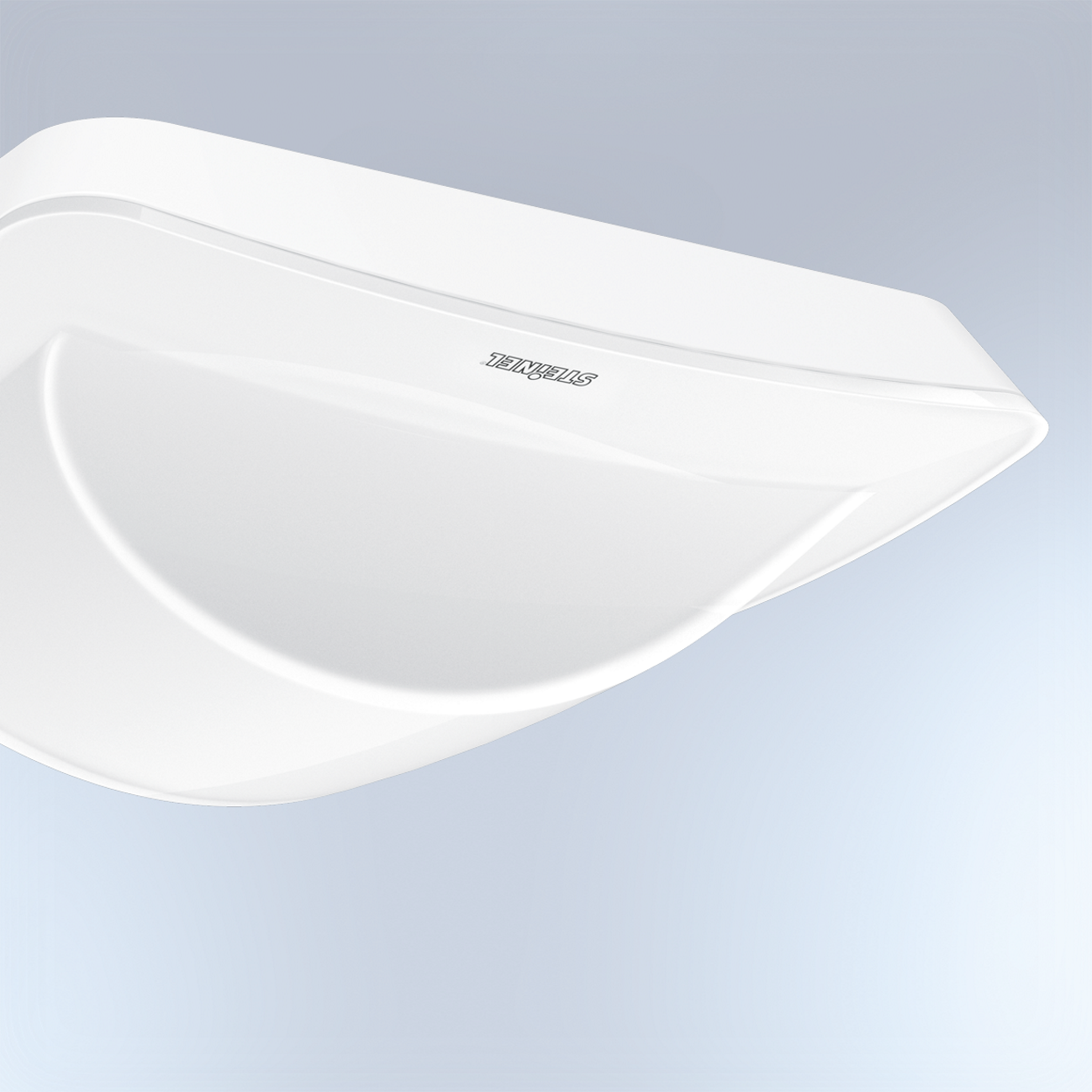

UV resistant material
