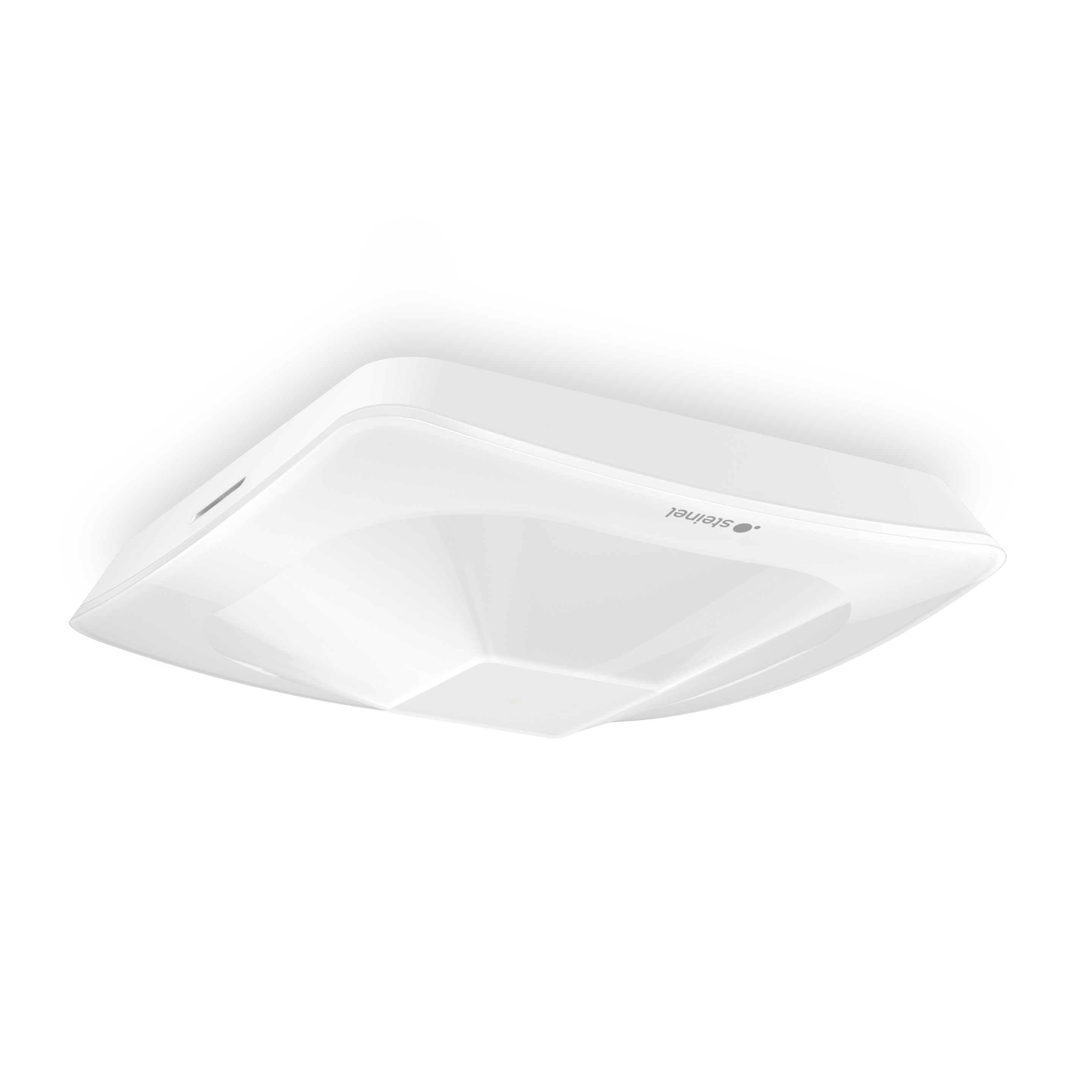

Steinel HF 360-2 KNX - Concealed wiring

EAN-No. 4007841064303

ELDAS® no. 064303

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Evolving from the HF 360, the HF 360-2 is the first product from our new Control PRO 2 range that not only switches light ON and OFF but delivers digital data too. As a result, the HF 360-2 intelligent sensor in the KNX, IP and DALI-2 Input Device bus interfaces additionally measures temperature and humidity. The sensor's enhanced design is geared even more closely towards the modern look of STEINEL True Presence sensors. Conveniently interconnected and adjusted via Bluetooth, the HF 360-2 provides COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX as well as IP interfaces, and it is also available as BT IPD (Slave) version. The discreet surveillance specialist provides reliable 360° HF detection that also penetrates wood, glass and stud walls and comes with a reach of up to 12 m. Suitable for mounting heights of up to 4 m.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535931508

Variants

Version KNX

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 60 x 103 x 103 mm

PU1 net weight 0.1400

Electrical

Mains connection 30 V

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,50 – 4,00 m

Optimal mounting height 2,8 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Comfort Photo-cell controller Individual pyro evaluation Basic light level function Light level HVAC output Constant-lighting control Light output 4x Humidity output Presence output Day / night function Dewpoint Temperature output Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 10 s – 1092 Min.

Base light function Yes

Main light adjustable 0 - 100 %

Settings via ETS software Bluetooth Bus

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room function room / ancillary room kitchenette stairwell WC / washroom Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing

KNX description https://pim.steinel.de/admin/ImageServer.php?ID=59320a250572@steinel&rand=57ba8587bf7267a0c7bd51a6d512acd1&lang=2&force=true&download=true&omitPreview=true

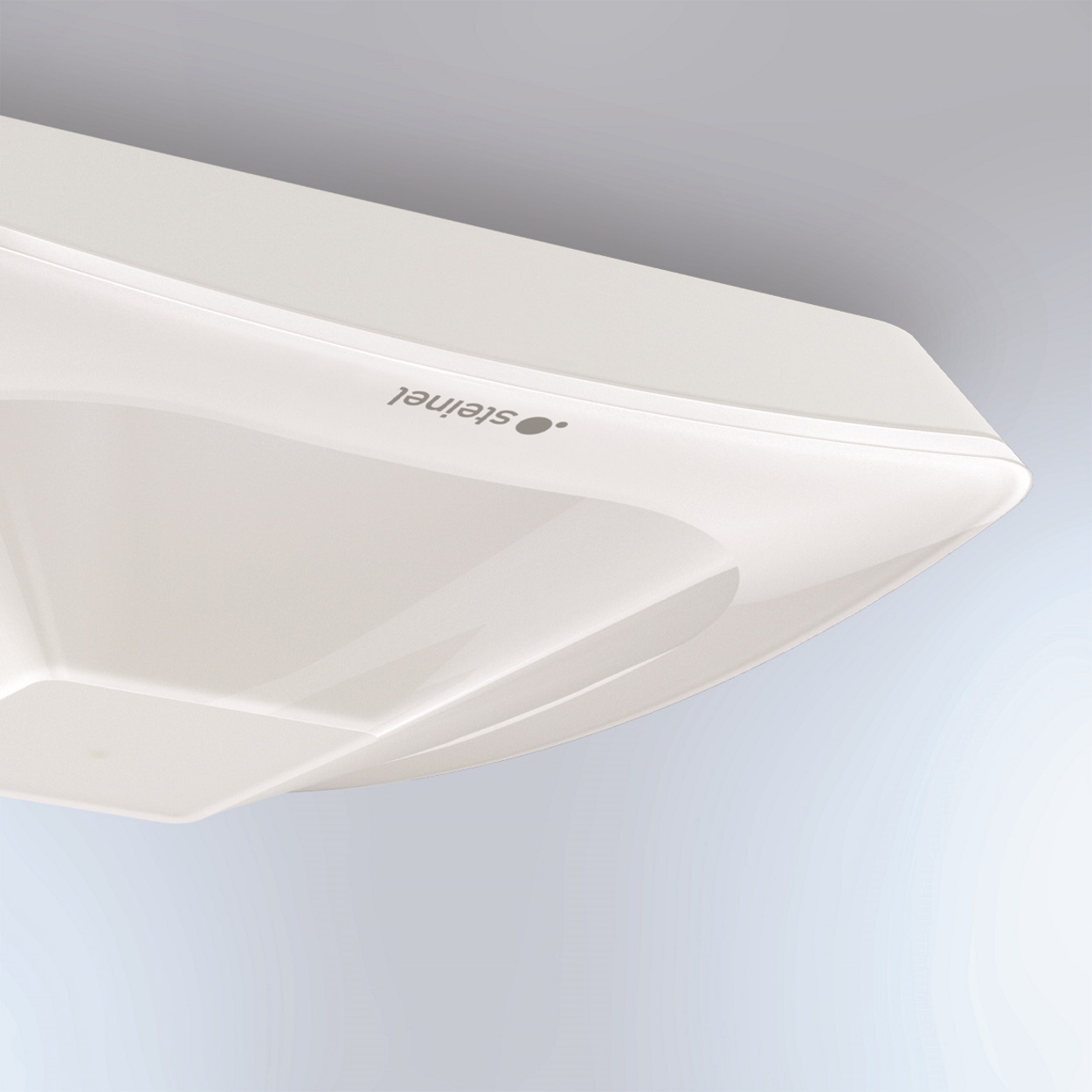

UV-resistant plastic
