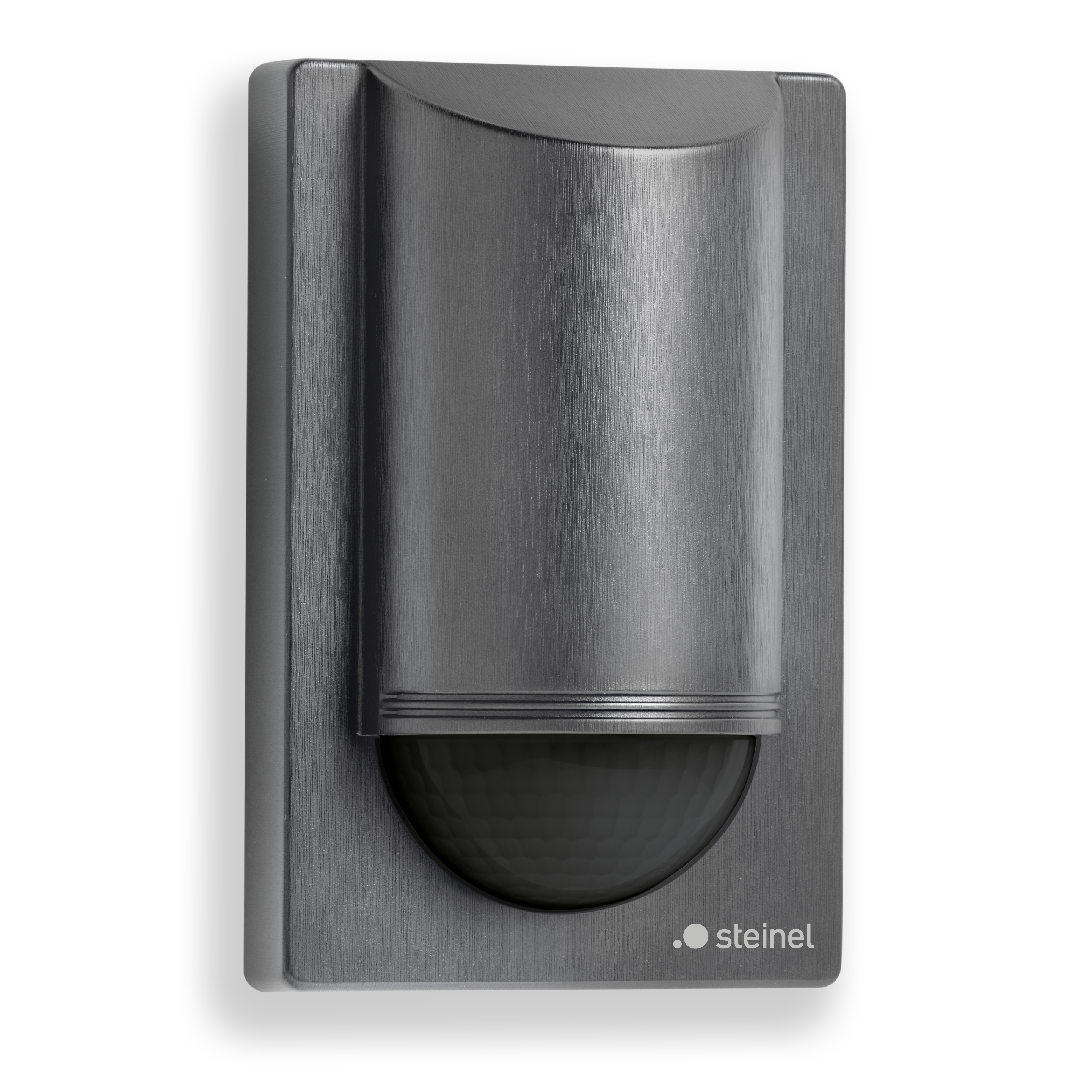

Steinel IS 2180 ECO Anthracite
EAN-No. 4007841064907
ELDAS® no. 064907
Price: Please log in to see prices
The ideal choice for watching over areas of up to 200 m². Not only impressing with top-class sensor technology as well, this one also pleases the eye with its modern design that fits perfectly into the overall picture on contemporary architecture. No exception here either: flexibility in adjusting coverage angle and reach.
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535949250
Variants
Colour
Anthracite
Dimensions
Dimensions L × W × H
55 x 78 x 120 mm
PU1 net weight
0.1210
Electrical
Mains connection
230 V / 50 Hz
Power
2000 W
Switching output 1 resistive
2000 W
Fluorescent lamps ECG
350 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
900 VA
Fluorescent lamps parallel-compensated
500 VA
Switching output 1 low-voltage halogen lamps
1000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
175 W
LED lamps > 8 W
350 W
Capacitive load in µF
132 µF
Own consumption
0,5 W
Switching output 1 potential-free
No
Maximum inrush current
110 A
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 1.5 m (4 m²) / r = 3 m (14 m²)
Tangential range
r = 5 m (39 m²) / r = 12 m (226 m²)
Switching zones
508 switching zones
Mounting height
1,8 – 4 m
Optimal mounting height
2 m
Nevalux sensor technology
On / Off
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
10 s – 15 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Cover material (scope of delivery)
shrouds
Mounting location
wall
corner
Application location
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
outdoors
front door
all round the building
terrace / balcony
courtyard & driveway
Colour
Anthracite
RAL colour
7016
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Media & files
Wiring diagram 3 text
Connection using two-circuit switch for manual and automatic operation
Wiring diagram 4 text
Connection of 4-fold push-button coupler to DALI2 APC
Certificates & EPREL
Certificates
VDE

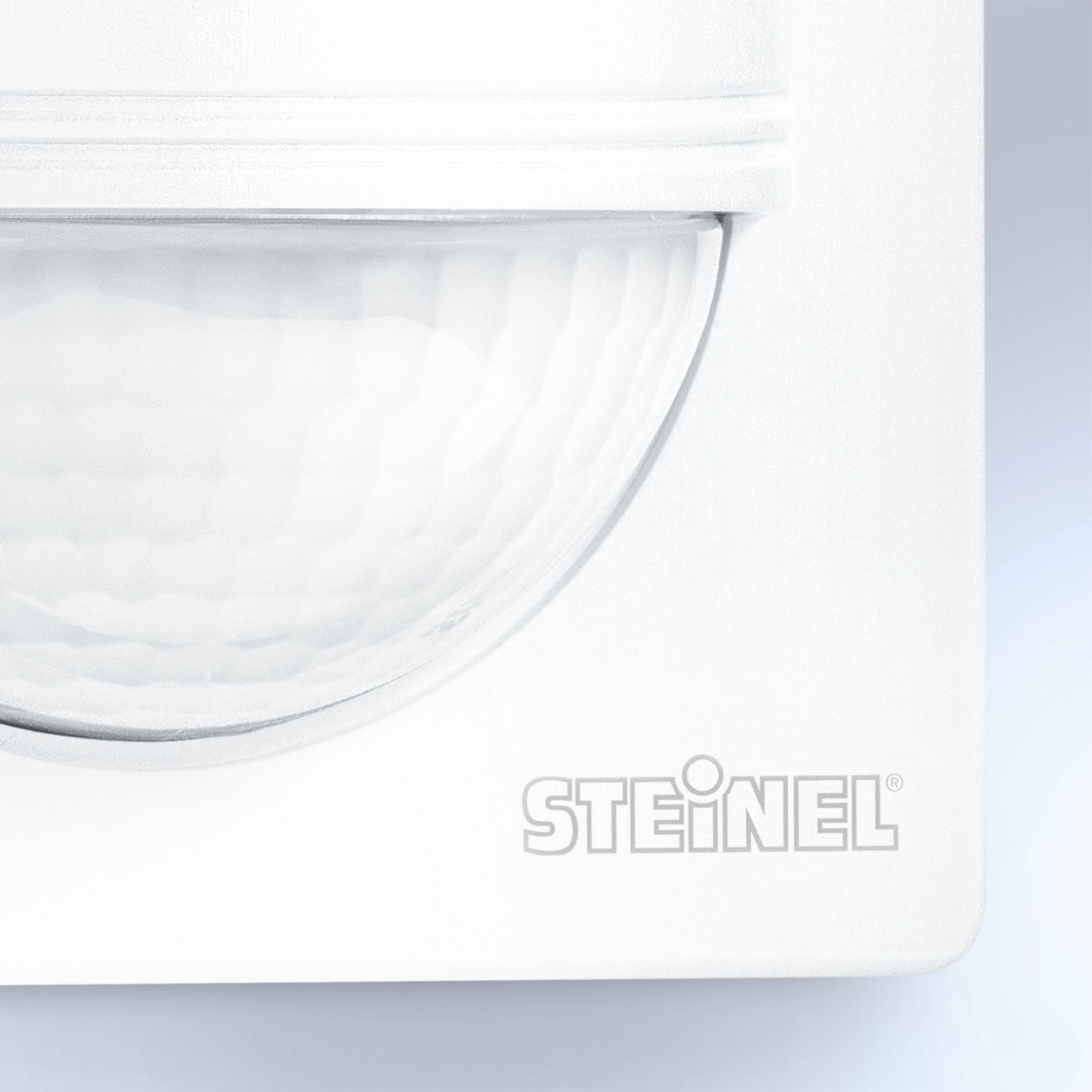

UV-resistant plastic

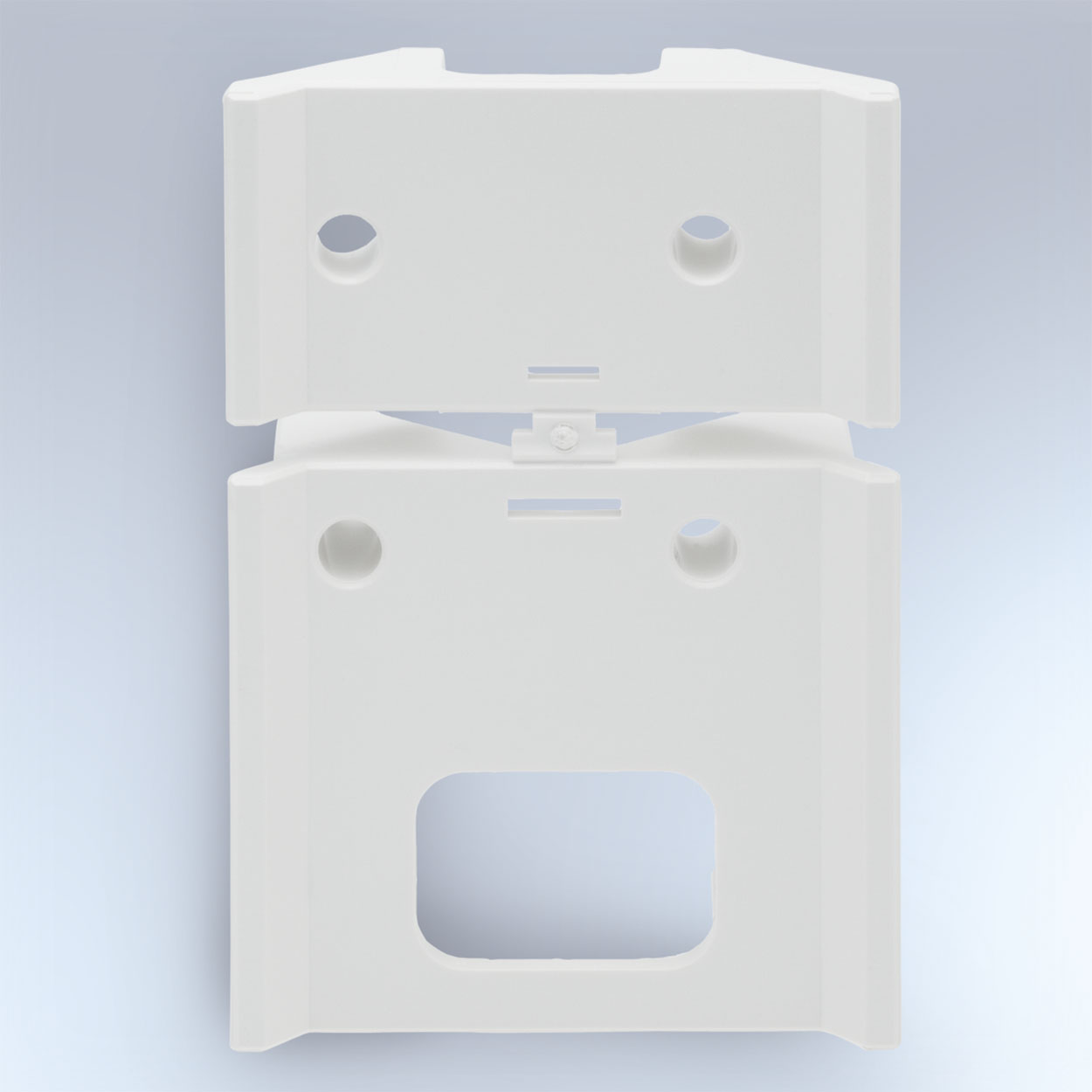

Optional corner wall mount bracket
Technical drawing
Sensor detection range
Wiring diagram 1
Light without neutral conductor
Wiring diagram 2
Light with neutral conductor
