At night or when it's getting dark, you can rely in full on the IS 240 DUO. We have fitted the motion detector with two highly sensitive infrared detectors so it can monitor large areas for you. Mounting the detector on an outside corner gives you an added advantage: reliable, uninterrupted coverage of an area in front of two building walls. Why install two sensors if the job can be done by one? The corner wall mount bracket is included.
- Infrared motion detector with 240° detection angle and up to 12 m detection range

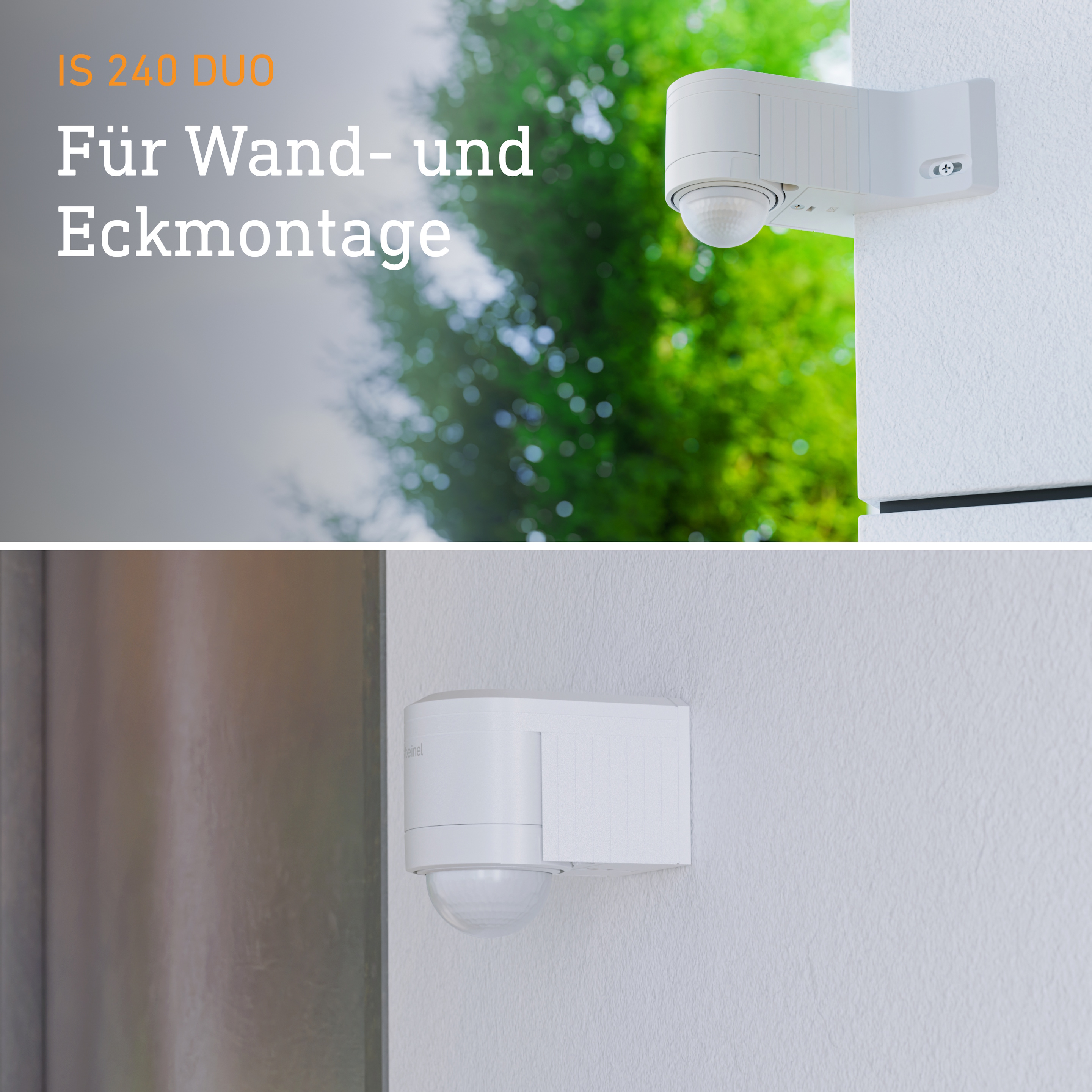

- For wall or corner mounting (incl. corner wall bracket) indoors and outdoors (IP 54), for reliable and uninterrupted surveillance of an area in front of two house walls
- Simple and flat design, made of UV-resistant plastic for a long service life
- Sensor can be swivelled horizontally by 160°, incl. cover plates for exact adjustment of the detection area
- Stepless adjustment of time (10 sec. - 15 min.) and switch-on brightness (2-2000 lux)
- Reliably switches any light source with a total of max. 1000 W switching load (LED light sources max. 350 W/50 pcs.)
- Incl. mounting accessories - plastic-free packaging
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535997000
Dimensions
Dimensions L × W × H
100 x 60 x 90 mm
PU1 net weight
0.2210
Electrical
Mains connection
230 V / 50 Hz
Power
1000 W
Switching output 1 resistive
1000 W
Fluorescent lamps ECG
350 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
500 VA
Fluorescent lamps parallel-compensated
5000 VA
Switching output 1 low-voltage halogen lamps
1000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
175 W
LED lamps > 8 W
350 W
Capacitive load in µF
132 µF
Maximum inrush current
200 A
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
Detection angle
240 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 5 m (52 m²)
Tangential range
r = 12 m (302 m²)
Switching zones
276 switching zones
Mounting height
1,80 – 4,00 m
Optimal mounting height
2 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
10 s – 15 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Protection class
II
Ambient temperature
from -20 up to 50 °C
Mounting location
wall
corner
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
outdoors
front door
all round the building
terrace / balcony
courtyard & driveway
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
3 years
Corner wall bracket included
Yes
Media & files
Wiring diagram 3 text
Connection using two-circuit switch for manual and automatic operation
Wiring diagram 4 text
Circuit diagram Connection via a changeover switch for continuous and automatic operation
Cross-/up-selling
Accessories
12182

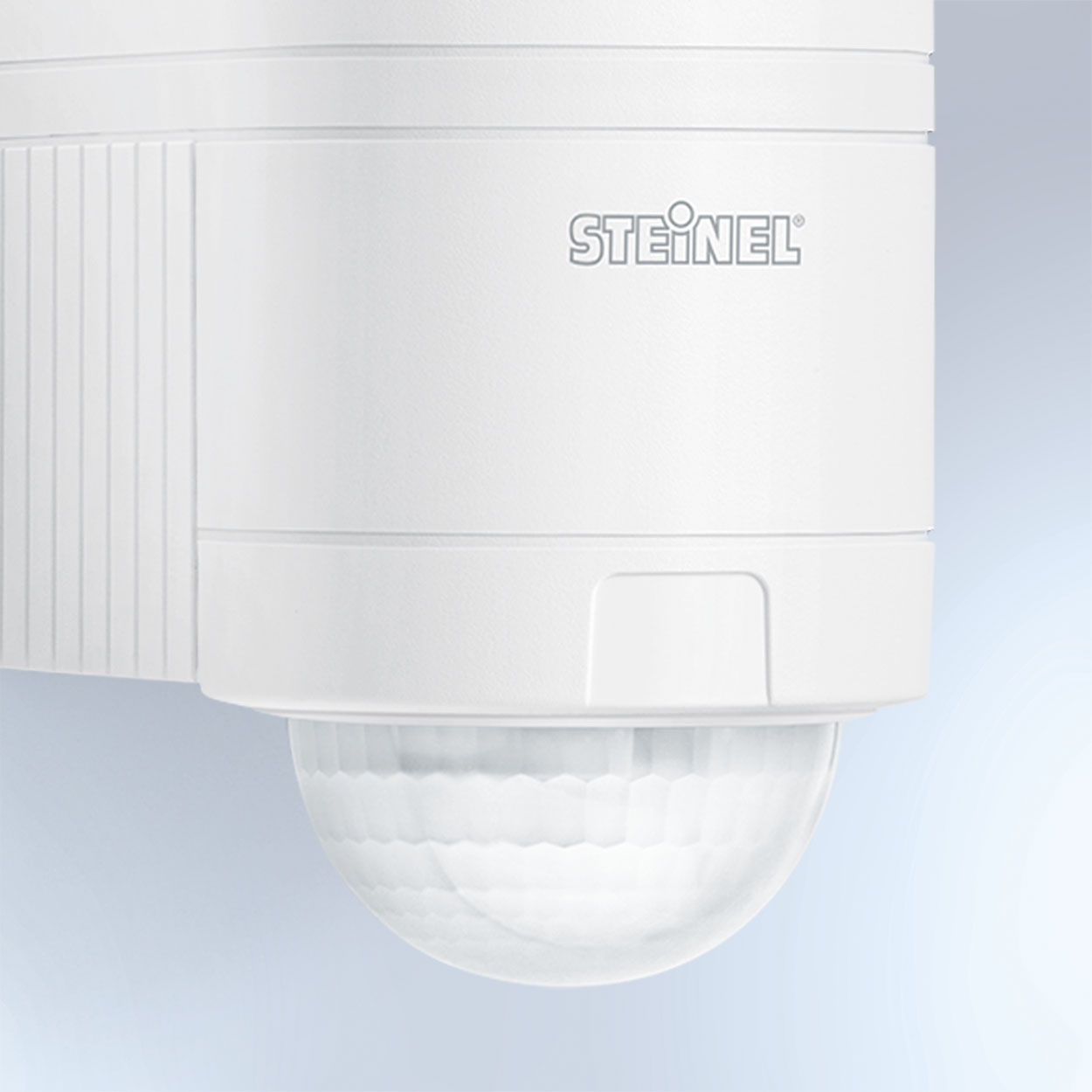

UV-resistant plastic

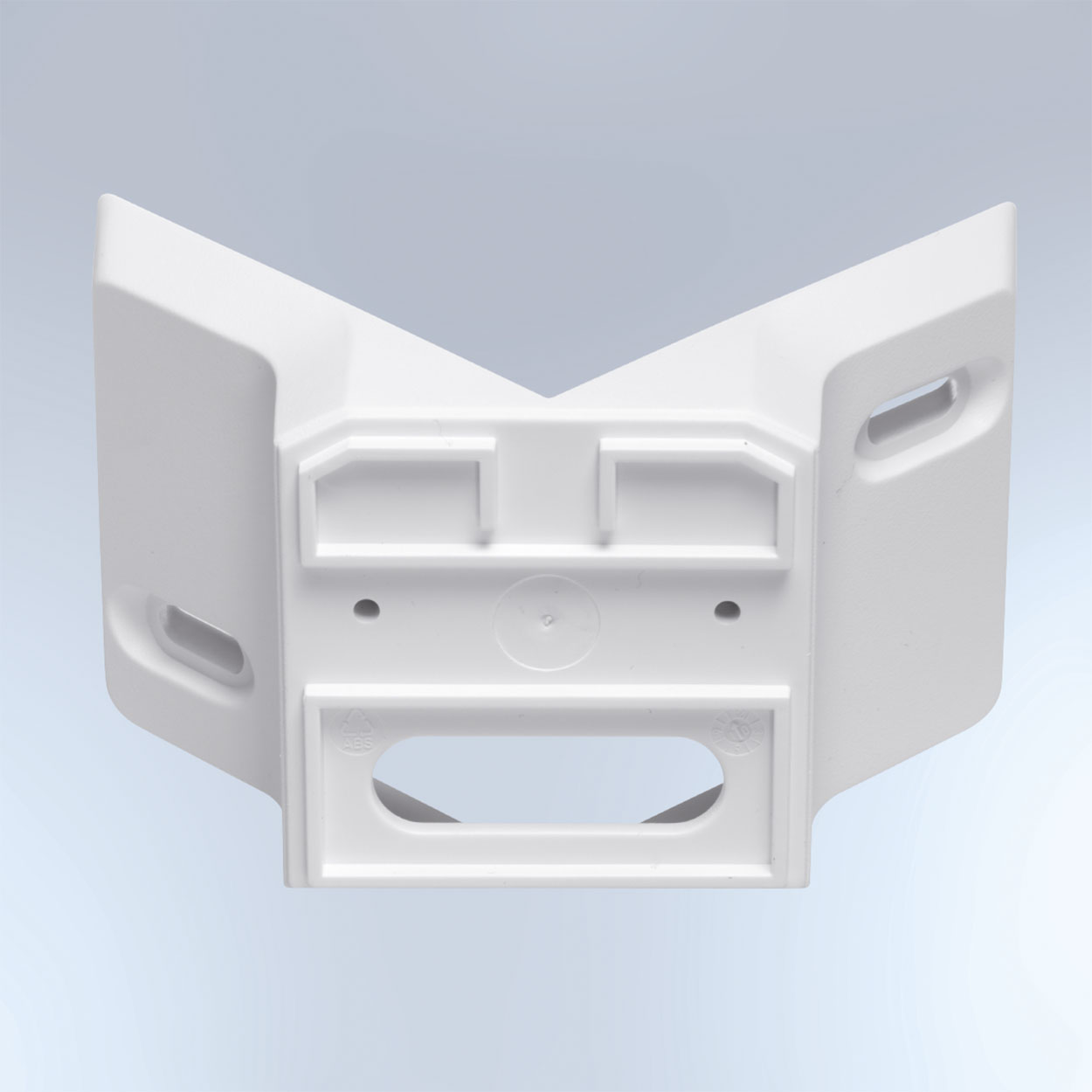

Including corner wall mount
Technical drawing

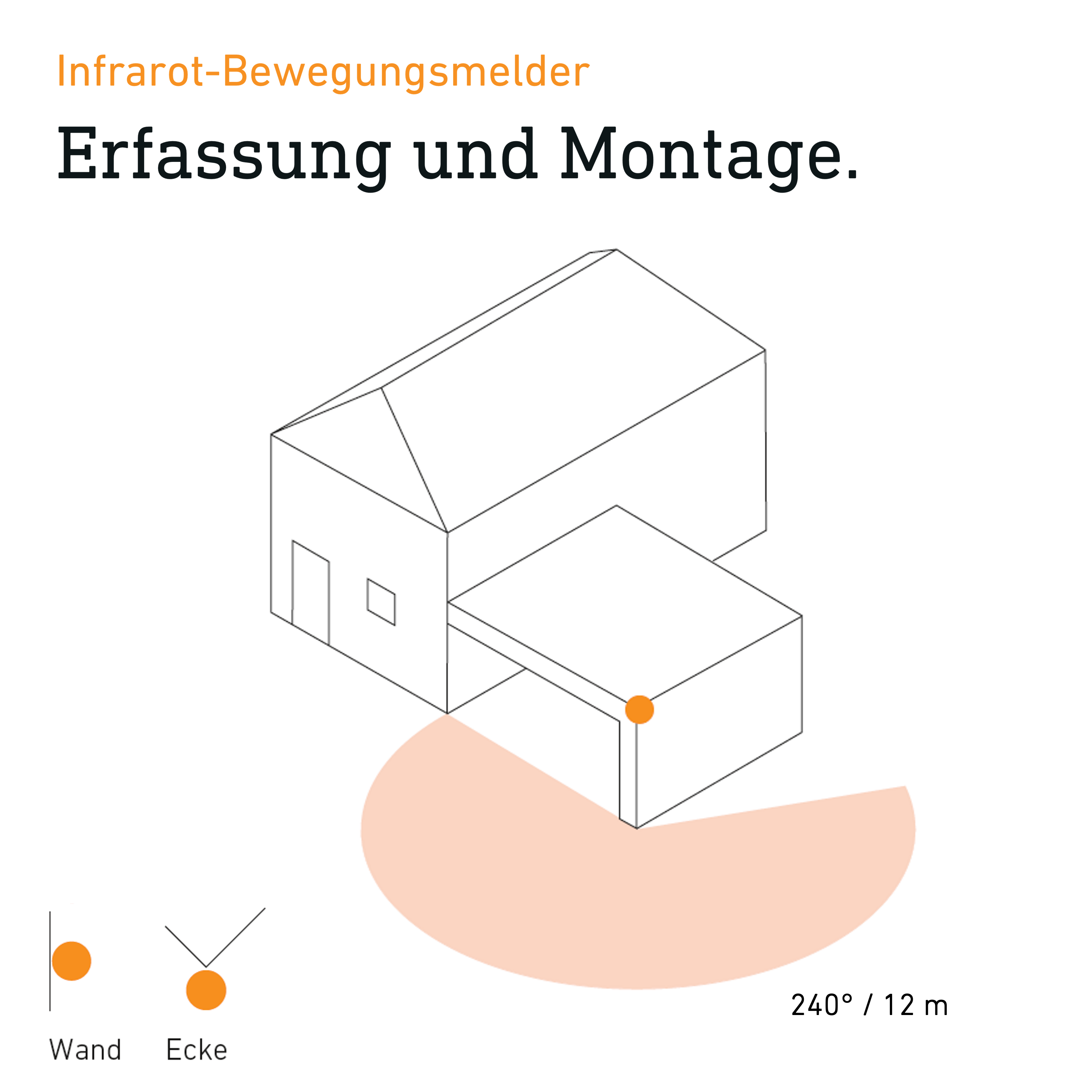

Sensor detection areas
Wiring diagram 1
Light without neutral conductor
Wiring diagram 2
Light with neutral conductor
