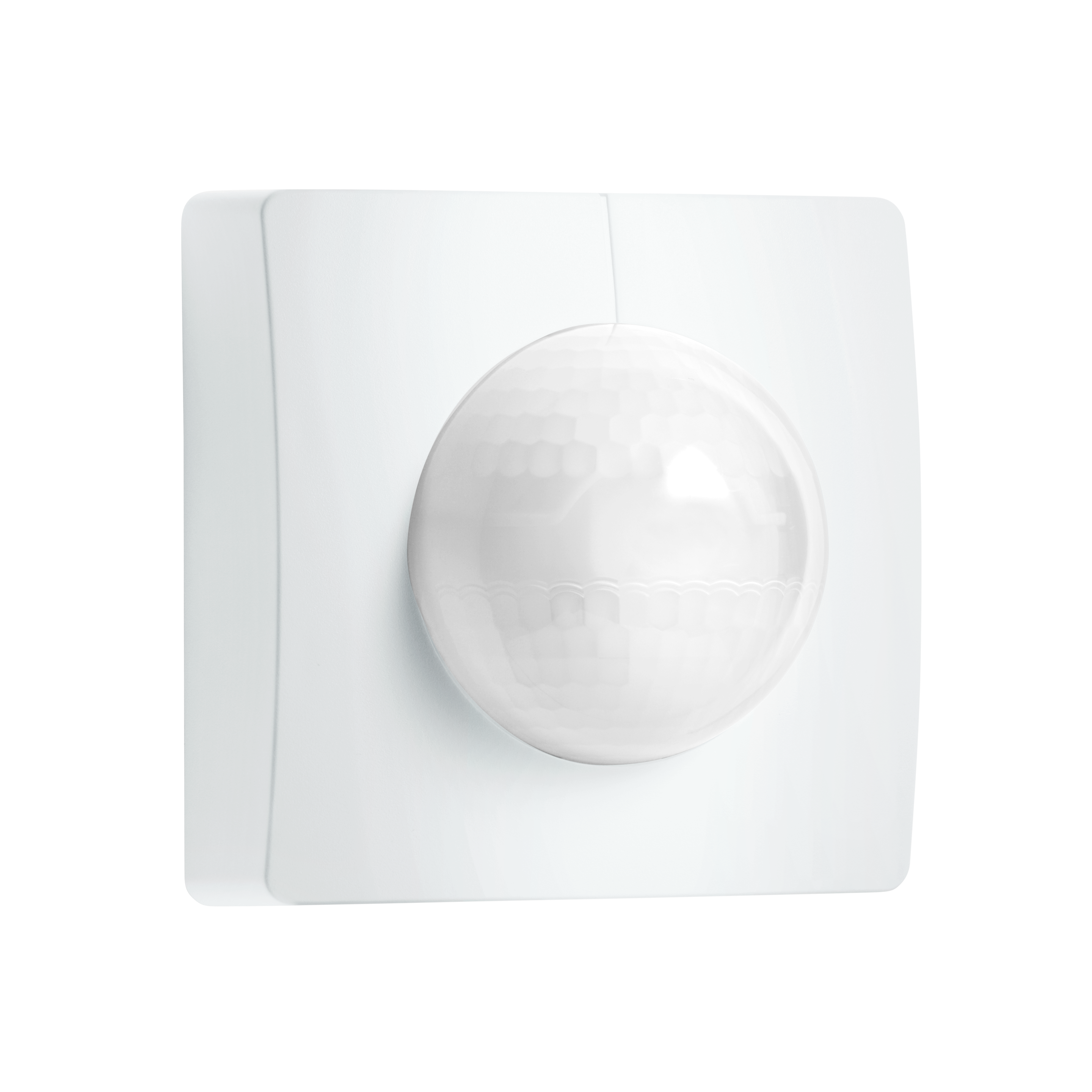

Steinel IS 3180 COM1 - surface, sq.

EAN-No. 4007841009113

ELDAS® no. 009113

These sensors are the perfect choice when it comes to protecting industrial and business premises and making them secure. So it is important to have far-sighted guards that instantly respond to any movement. The IS 3180 is made for the job. The IP 54 rating reliably protects its inner values: featuring top-calibre components such as two precision modular pyro sensors and multi-lens, it watches over almost every last inch of areas measuring a good 500 m². The concealed installation sensor that combines everything that's important to electrical fitters and security personnel.

Identification

Version Motion detectors

Manufacturer Steinel

E-number 535940860

Variants

Version COM1

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

PU1 net weight 0.1760

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8.0000

Maximum inrush current 110 A

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²) / r = 4 m (25 m²)

Tangential range r = 6 m (57 m²) / r = 20 m (628 m²)

Switching zones 448 switching zones

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Nevalux sensor technology On / Off

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Networking quantity

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Manual ON / ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

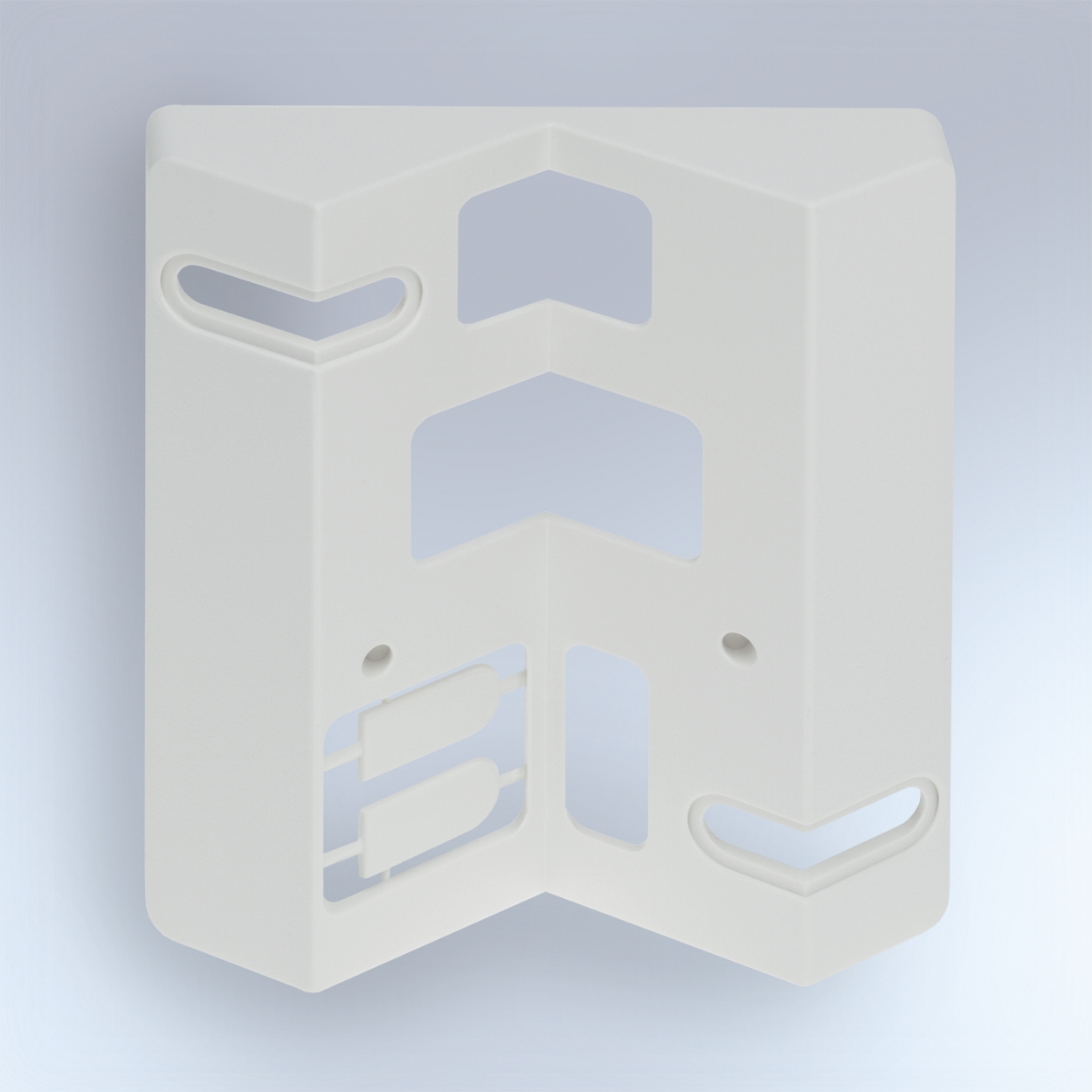

Mounting location wall corner

Application location Outdoors Indoors

Mounting type Surface wiring

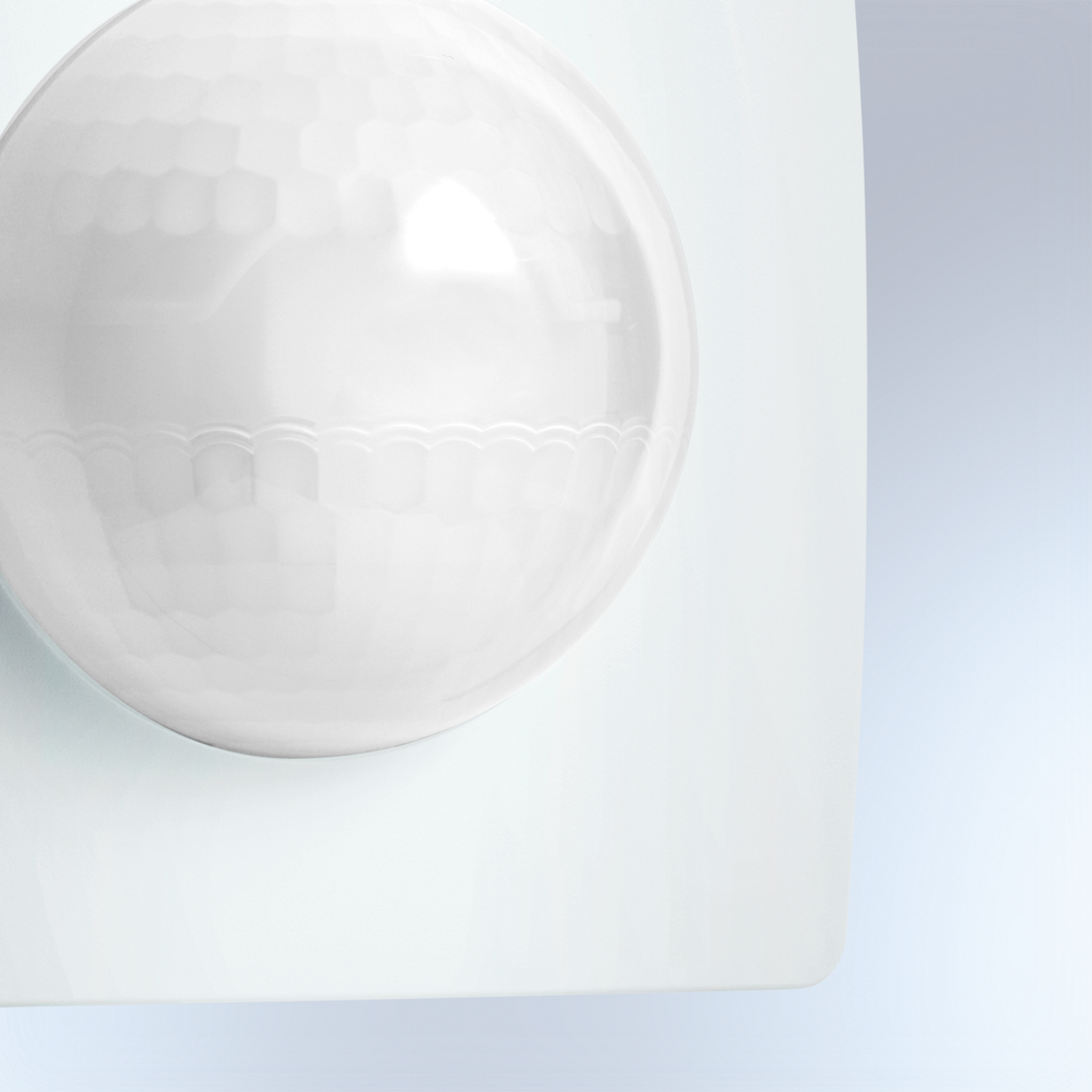

Material Plastic

Application room corridor / aisle function room / ancillary room stairwell multi-storey / underground car park outdoors all round the building courtyard & driveway Indoors

Colour white

RAL colour 9003
