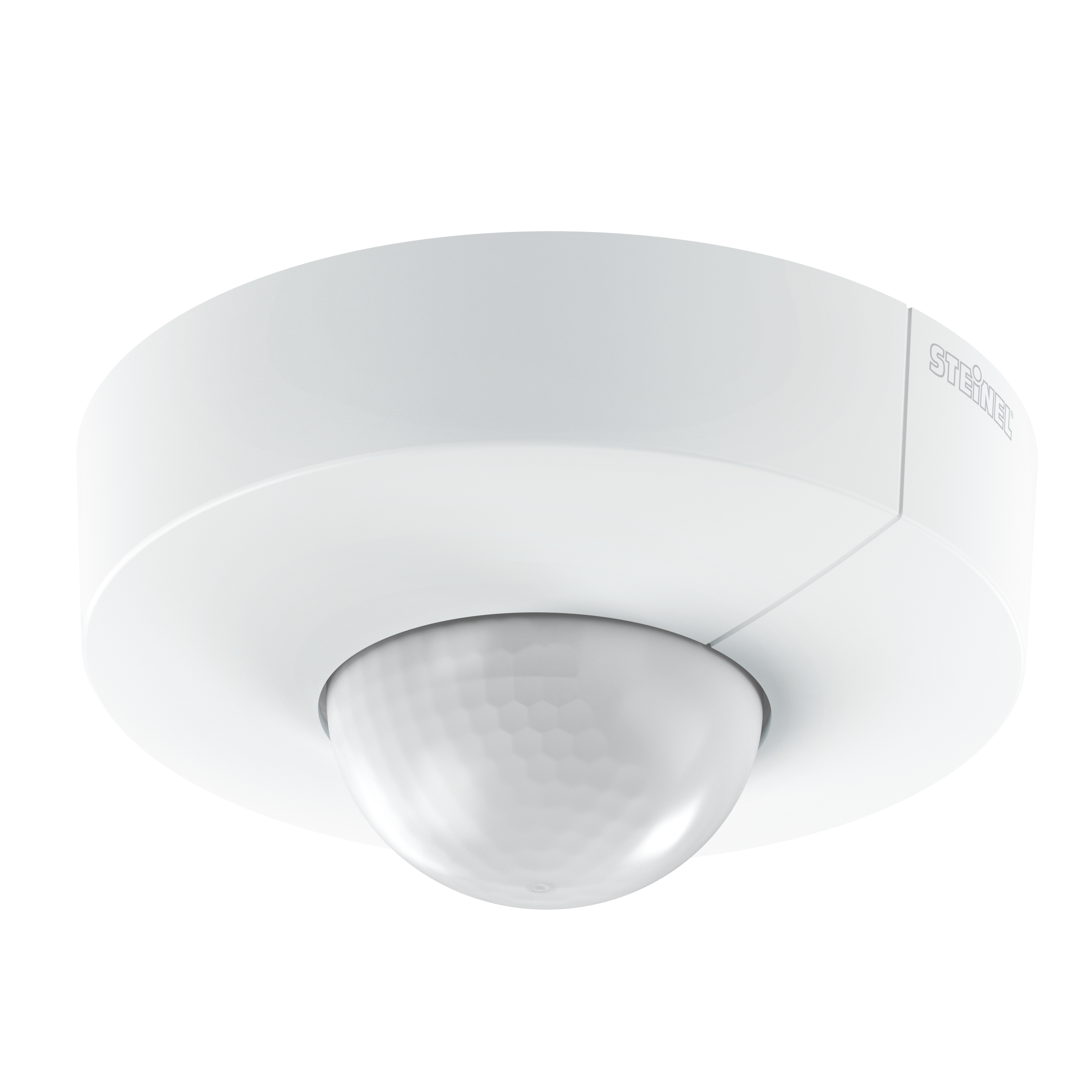

Steinel IS 345 COM1 - surface, rd.

EAN-No. 4007841033798

ELDAS® no. 033798

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Mounting type

Flush-mounted Surface-mounted

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.

Identification

Version Motion detectors

Manufacturer Steinel

E-number 535941160

Variants

Version COM1

Mounting type Surface-mounted

Mounting height Mounting height 2.5 to 4 metres

Shape Round

Dimensions

Dimensions Ø × H 126 x 65 mm

PU1 net weight 0.1830

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8.0000

Maximum inrush current 110 A

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 12 x 6 m (72 m²)

Tangential range 23 x 6 m (138 m²)

Switching zones 280 switching zones

Mounting height 2,50 – 5,00 m

Optimal mounting height 2,8 m

Nevalux sensor technology On / Off

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Networking quantity

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Manual ON / ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Outdoors Indoors

Mounting type Surface wiring

Material Plastic

Application room corridor / aisle multi-storey / underground car park outdoors Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Media & files

Wiring diagram 3 text Connection using two-circuit switch for manual and automatic operation

Wiring diagram 4 text Circuit diagram Connection via a changeover switch for continuous and automatic operation

Cross-/up-selling

Accessories 12367,13686,21695

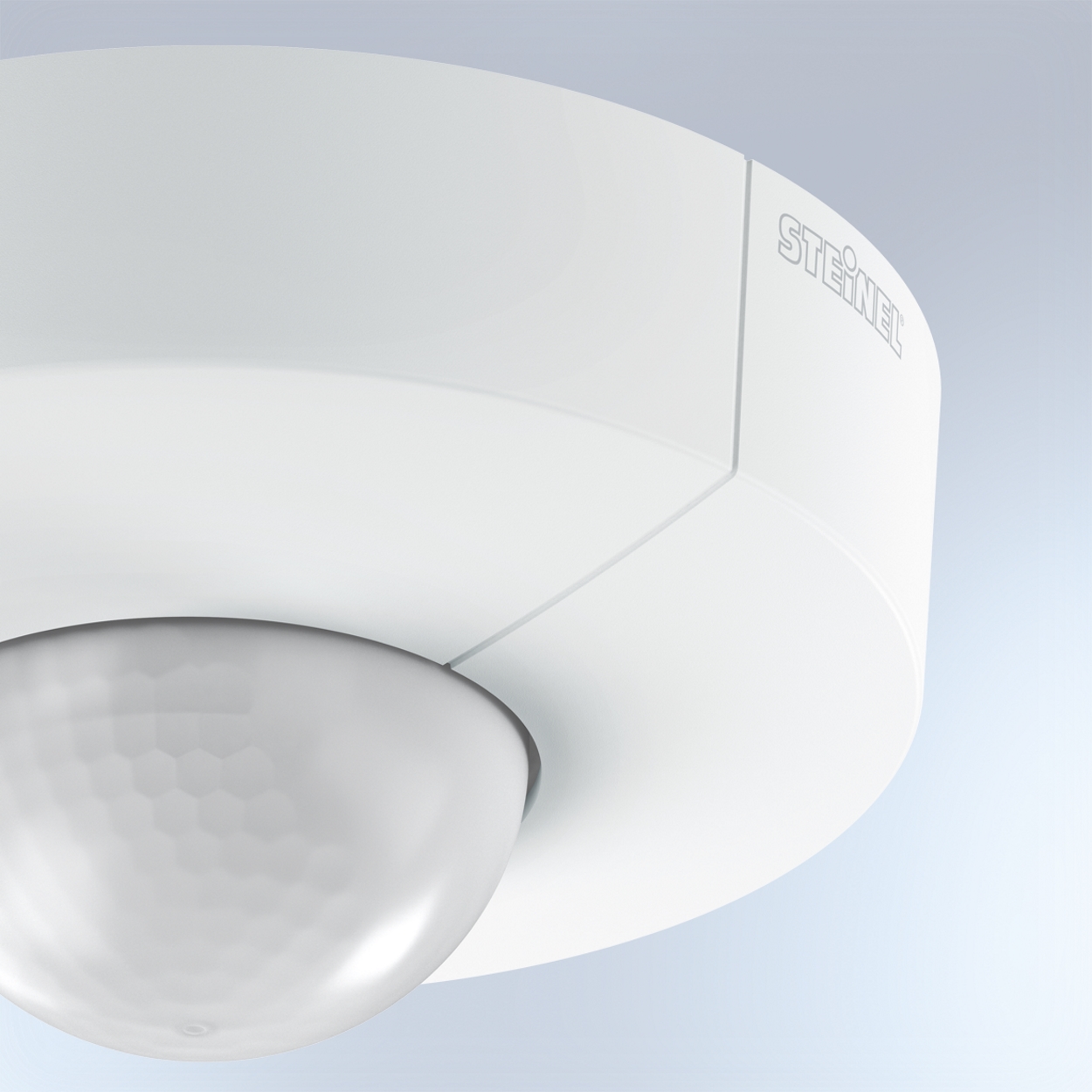

UV-resistant plastic

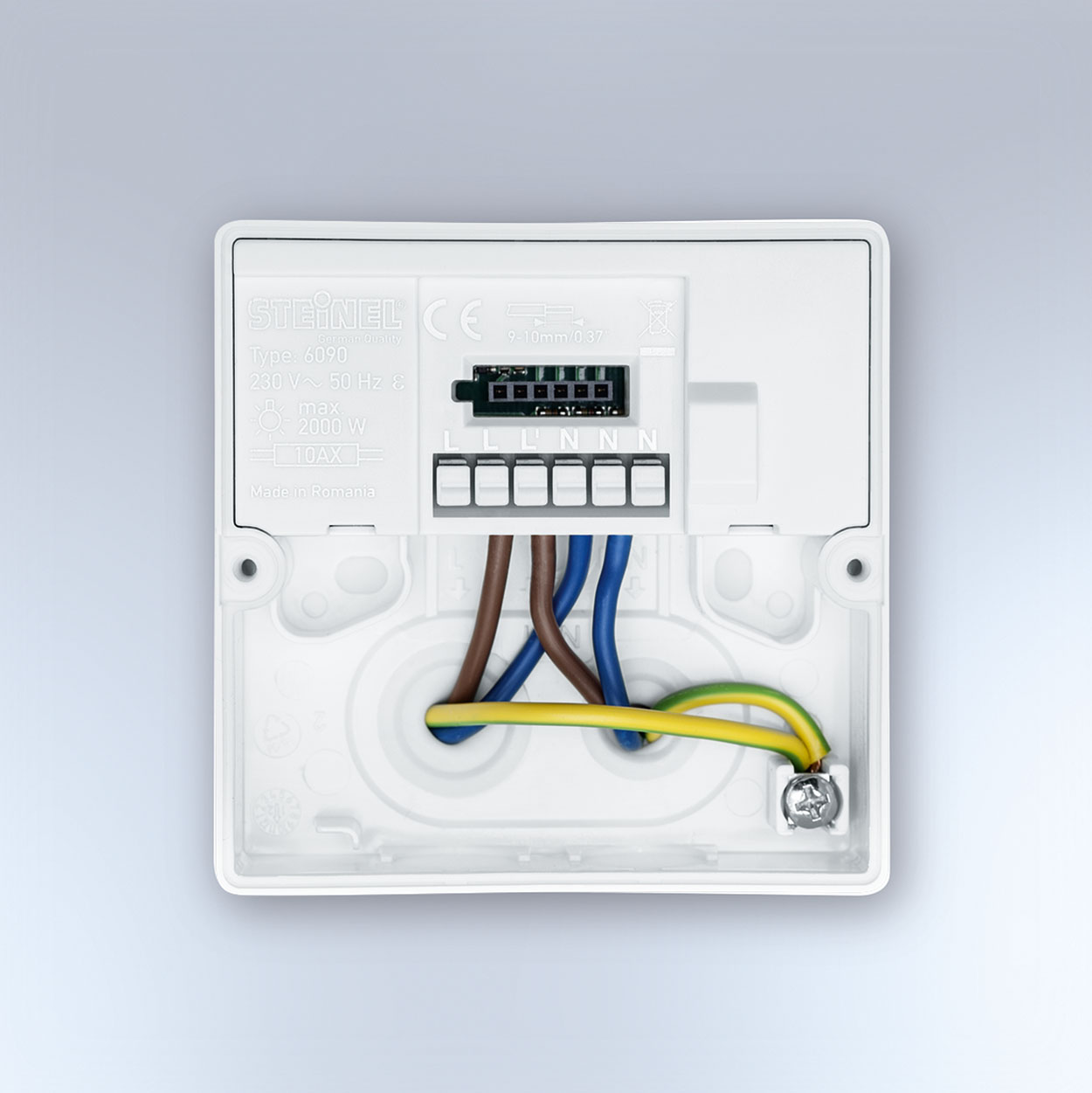

Large terminal compartment
