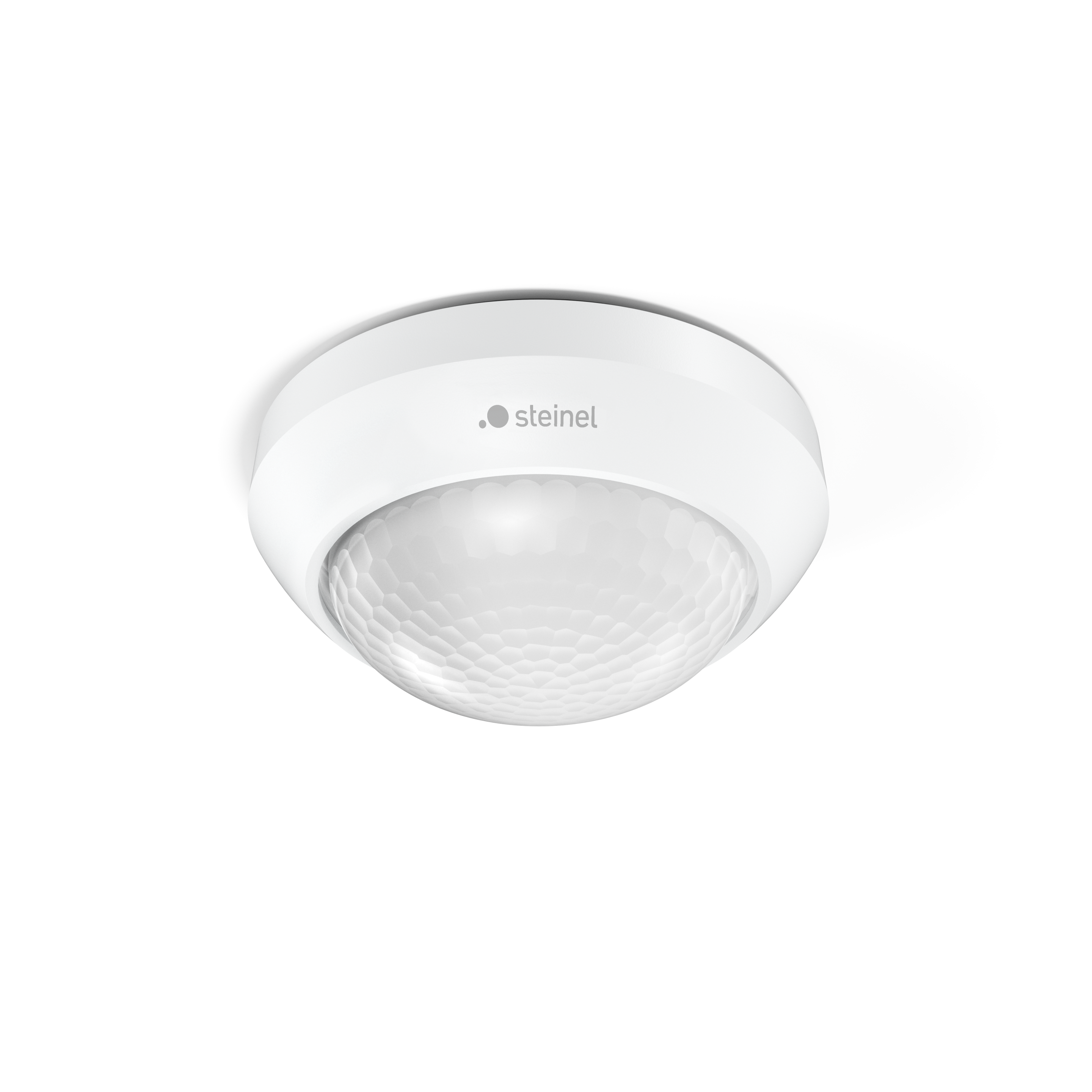

The infrared ceiling sensor that satisfies all demands and is really simple to install. Simply genius: Sophisticated technology that is installed and configured in just a few steps thanks to a clever installation concept. Thanks to its three pyro sensors, the infrared surface-mounted sensor has an impressive 360° angle of coverage and a range of up to 12 metres. The detection zone can be set to any requirement by fitting shrouds. The IS 360-3 is available in black and white.
- Infrared motion detector with 360° detection angle and up to Ø 24 m detection range
- For surface ceiling mounting indoors and outdoors (IP 54), ideal for monitoring large covered areas up to 6m high
- Sophisticated design: sensor lens in housing colour, made of UV-resistant plastic for a long service life
- 5 integrated pyro sensors for gapless detection, incl. cover panels for exact adjustment of the detection area
- Stepless adjustment of time (5 sec. - 15 min.) and switch-on brightness (2-1000 lux)
- Reliably switches any light source with a total of max. 2000 W switching load (LED light sources max. 400 W/50 pcs.)
- Incl. mounting accessories - plastic-free packaging
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535942700
Dimensions
Dimensions Ø × H
121 x 57 mm
PU1 net weight
0.1770
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
2000 W
Switching output 1 resistive
2000 W
Fluorescent lamps ECG
400 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
900 VA
Fluorescent lamps parallel-compensated
400 VA
Switching output 1 low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
200 W
LED lamps > 8 W
400 W
Capacitive load in µF
176 µF
Maximum inrush current
200 A
Sensor technology
Max. mounting height
6,00 m
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 6 m (28 m²)
Tangential range
Ø 24 m (452 m²)
Switching zones
972 switching zones
Mounting height
2,50 – 6,00 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable, 4h
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
5 s – 15 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Protection class
II
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Outdoors
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
outdoors
all round the building
Indoors
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
3 years
Corner wall bracket included
No
Media & files
Wiring diagram 3 text
Connection using two-circuit switch for manual and automatic operation
Wiring diagram 4 text
Circuit diagram Connection via a changeover switch for continuous and automatic operation

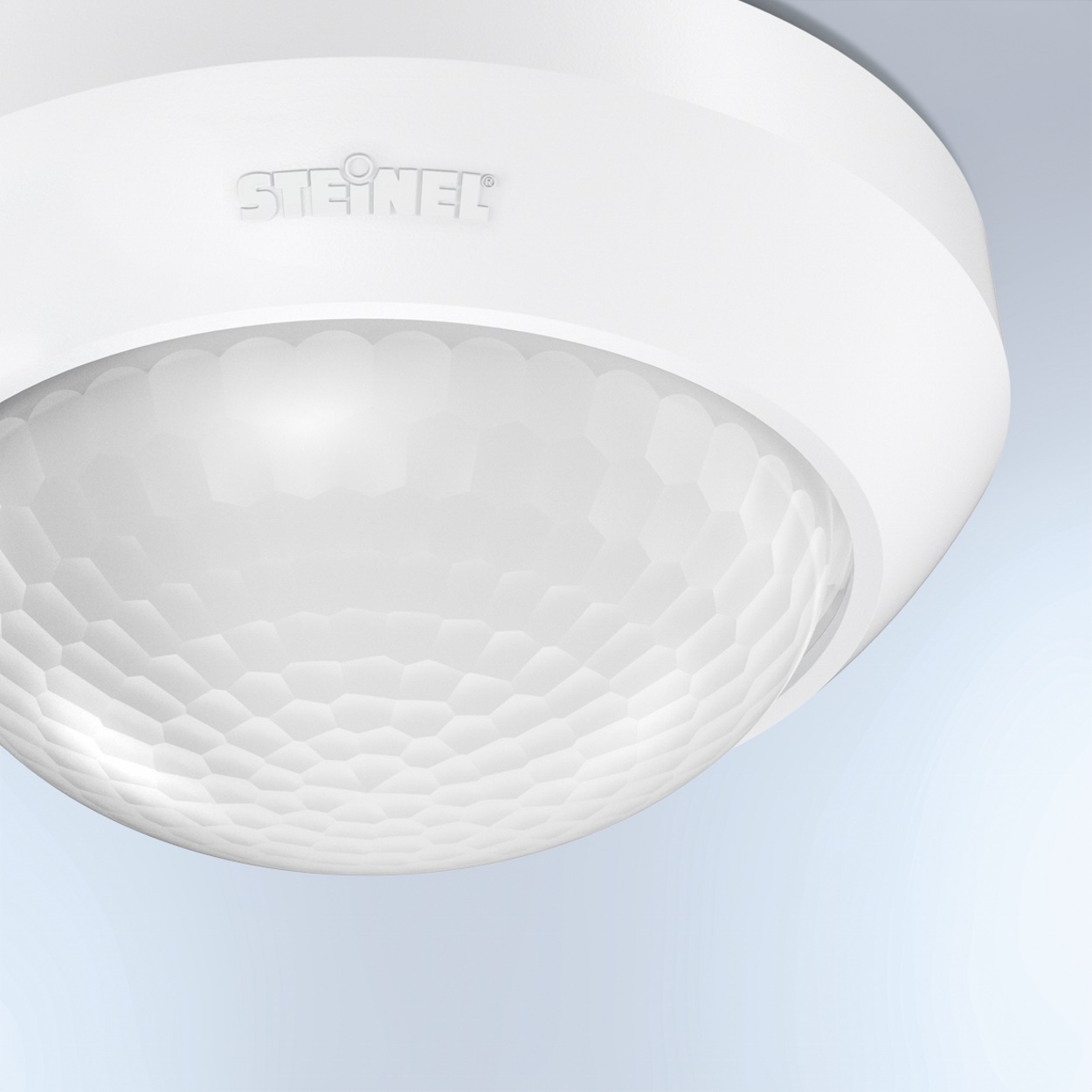

UV-resistant plastic
Technical drawing

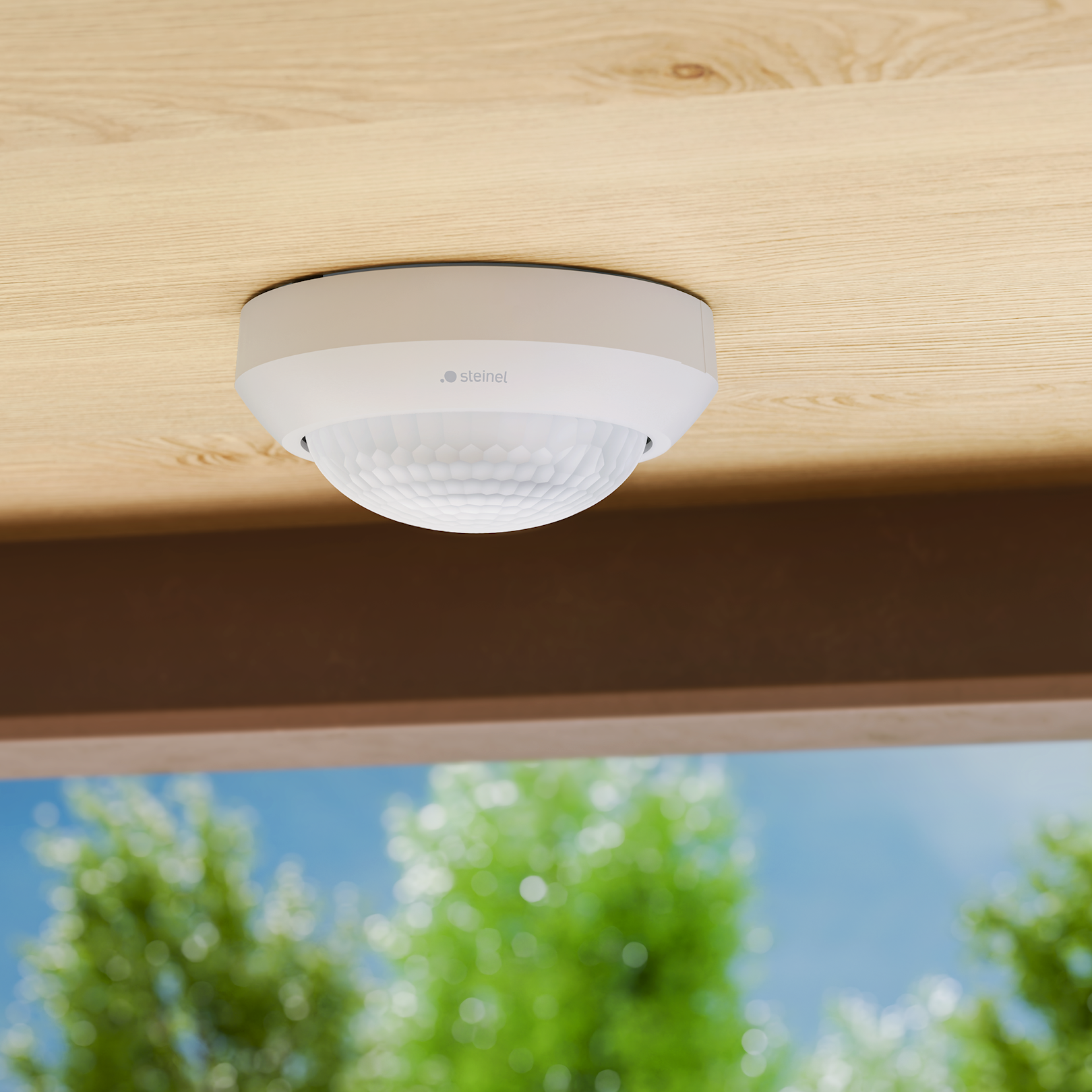

Sensor detection range
Wiring diagram 1
Light without neutral conductor
Wiring diagram 2
Light with neutral conductor
