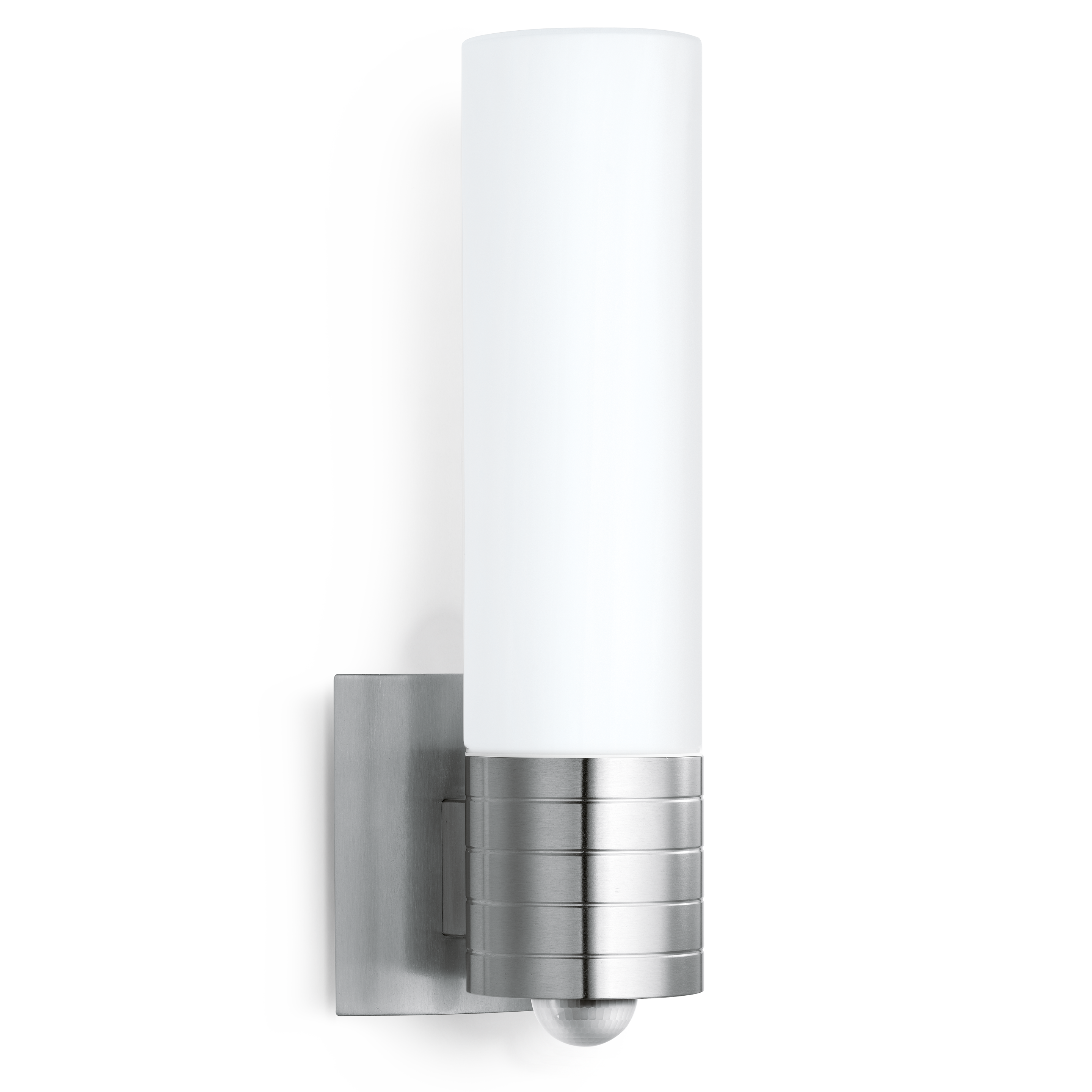

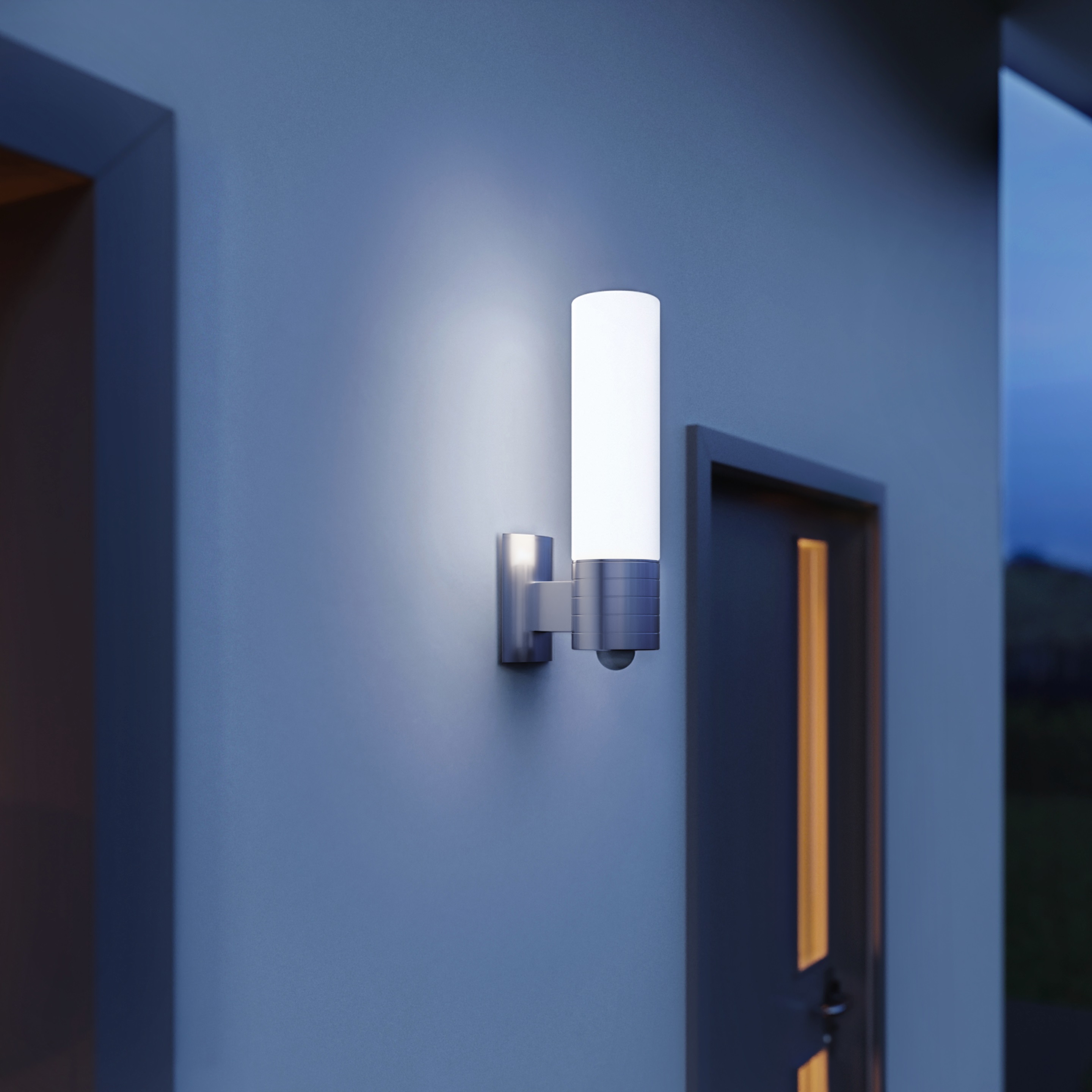

The L 260 S designer outdoor SensorLight is not only perfect in form and function but also a matching addition to the GL 60 S outdoor SensorLight. The LED lamp evenly illuminates the glass shade. Convenience, safety and energy efficiency from one and the same light? We make it possible. The light is incredibly easy to install and the function settings on the product are easy to understand too. Automatically and gentle on the eyes, it slowly switches the light on and off again. All by itself.
- Outdoor light with motion detector with high-quality stainless steel base and opal glass
- Perfect complement to the GL 60 S floor and path luminaire

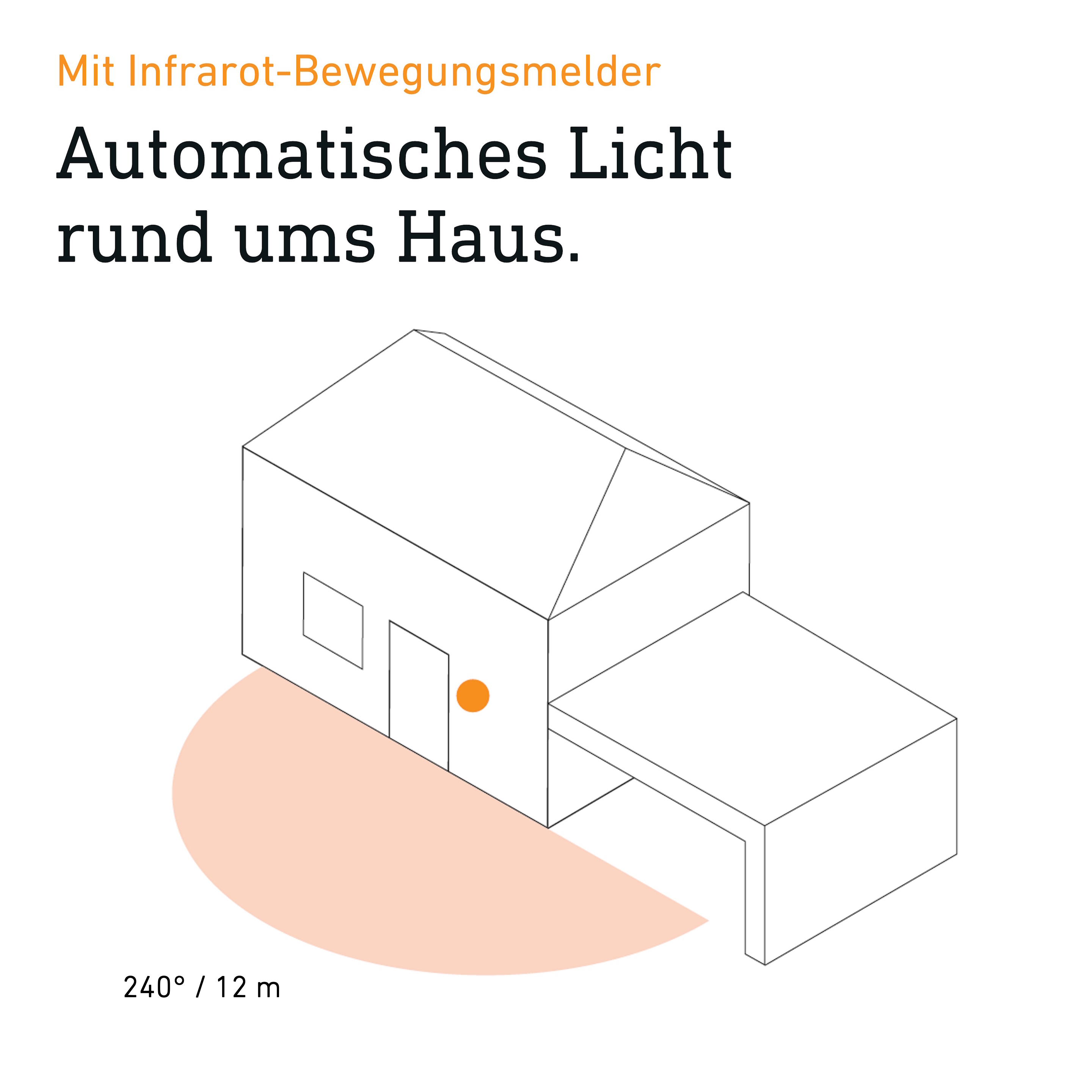

- Automatic light thanks to 240 ° Infrared sensor with up to 12 m detection of movement
- Functions: pleasant soft light start, 4 hours continuous light
- Incl. E27 LED bulb with warm white light (3000 K) with 703 lm at 9,87 W
- Incl. mounting accessories - plastic-free packaging
Identification
Manufacturer
Steinel
E-number
924354079
Variants
Colour
Stainless steel
Dimensions
Dimensions L × W × H
177 x 102 x 426 mm
PU1 net weight
1.7360
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
9,87 W
Sensor technology
Max. mounting height
6,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
240 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 6 m (75 m²)
Tangential range
r = 12 m (302 m²)
Mounting height
1,80 – 6,00 m
Optimal mounting height
2 m
Connectivity
Networking
No
Slave mode adjustable
No
Lighting technology
Measured luminous flux 360°
703 lm
Efficiency
71,2 lm/W
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, LED lamp
Illuminant
LED can be replaced
Base
E27
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable, 4h
Lifetime
LED lifetime max. °C
25000 h
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Base light function
No
Settings via
Potentiometers
With remote control
No
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
I
Ambient temperature
from -20 up to 50 °C
Housing material
Stainless steel
Cover material
Glass opal
Cover material (scope of delivery)
shrouds
Mounting location
wall
Application location
Outdoors
Mounting type
Surface wiring
Application room
outdoors
front door
all round the building
terrace / balcony
courtyard & driveway
Colour
Silver
Scope of delivery & warranty
Manufacturer warranty
3 years
Certificates & EPREL
EPREL category
Surrounded product with separate light source (e.g. E27)
Cross-/up-selling
Accessories
26627,12231
Intelligent soft light start

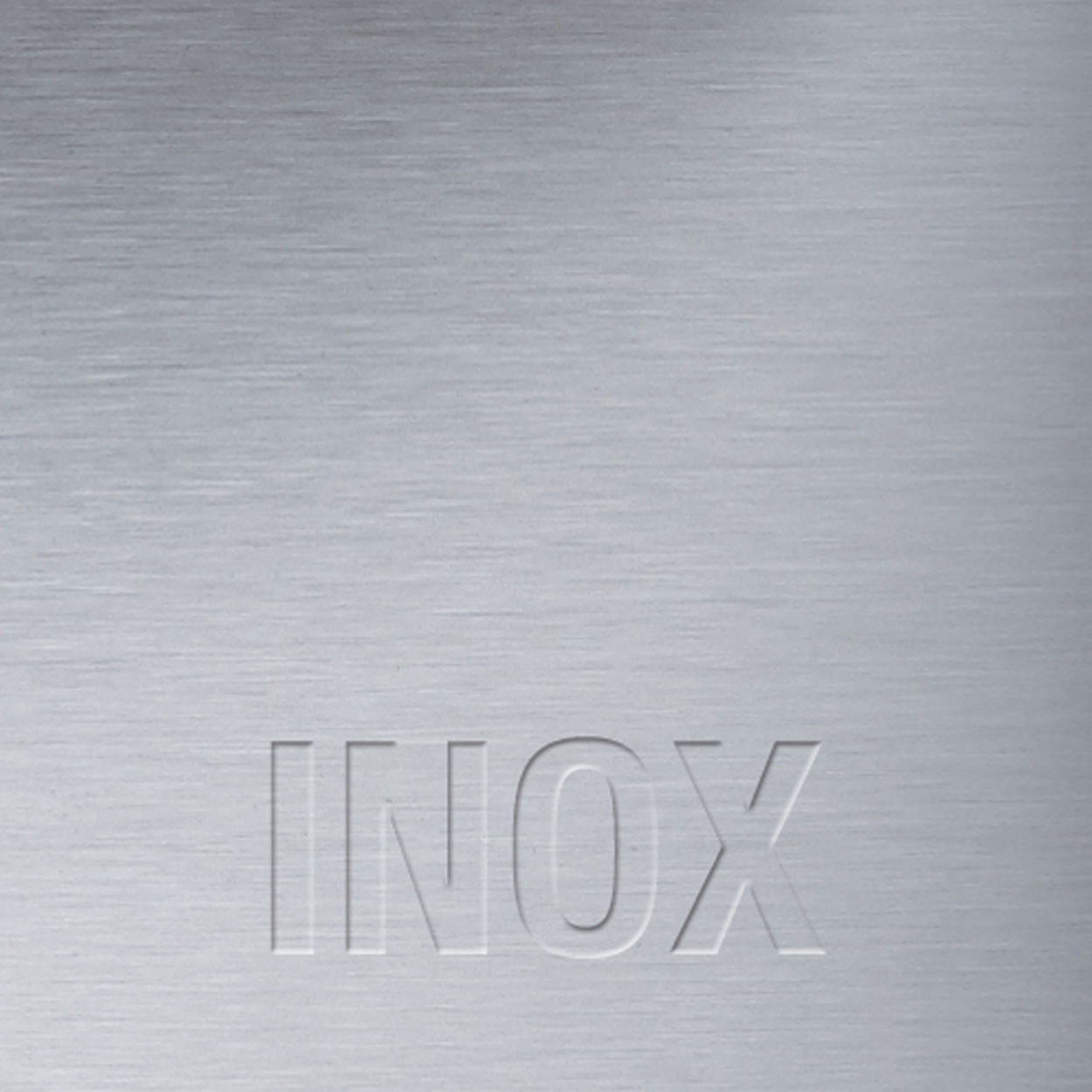

High-quality stainless steel

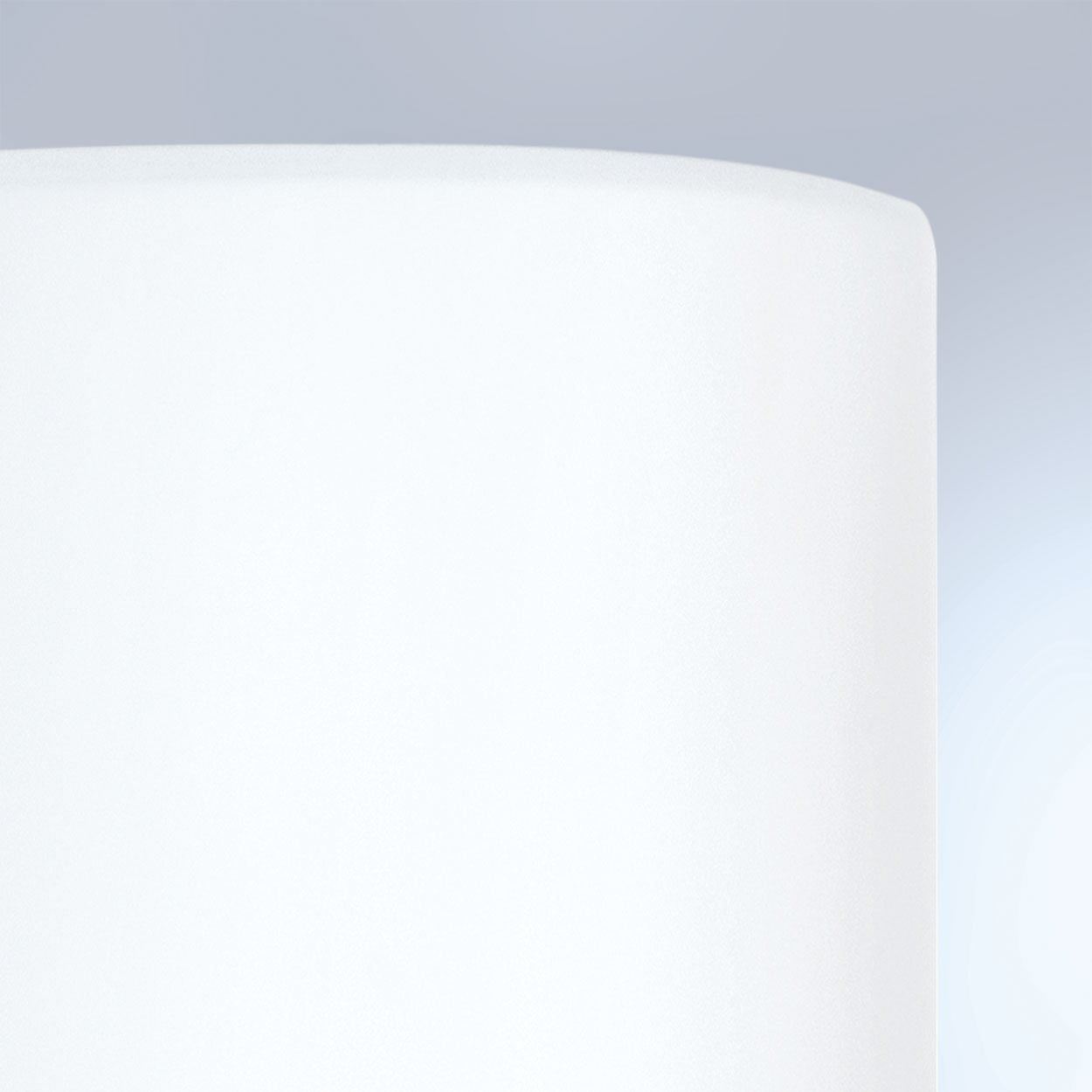

High-quality opal glass shade

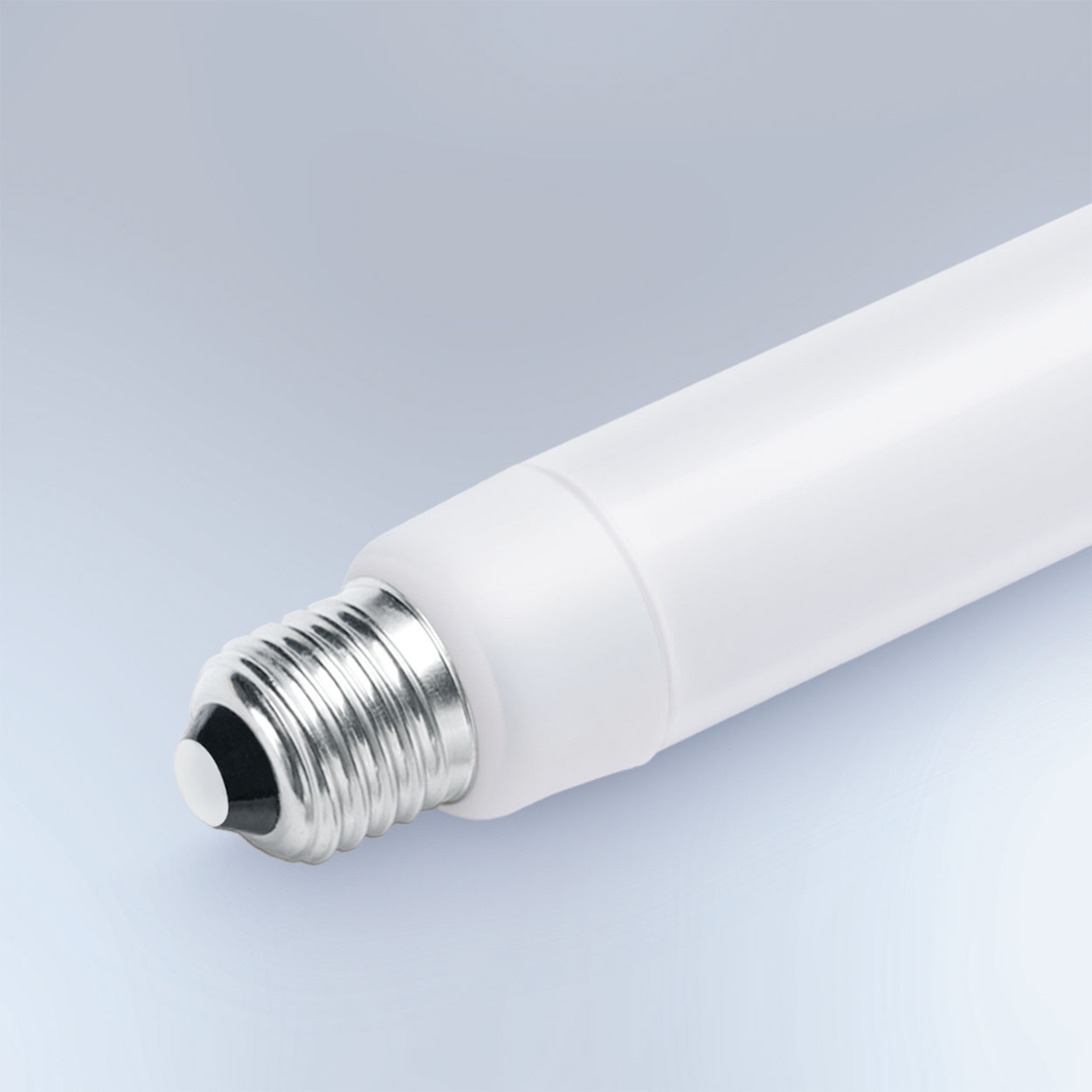

Including innovative LED lamp

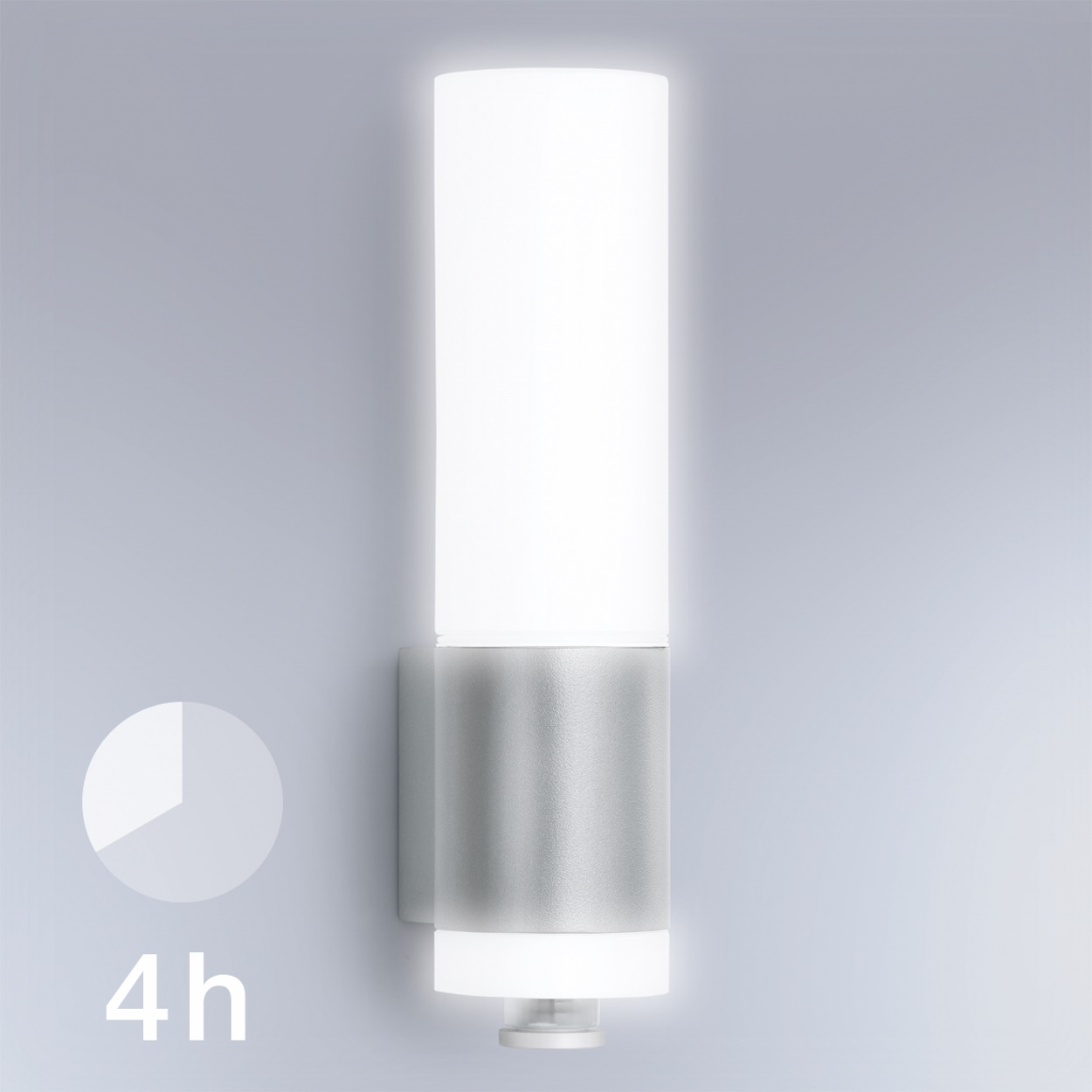

4-hour manual override (optional)
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
