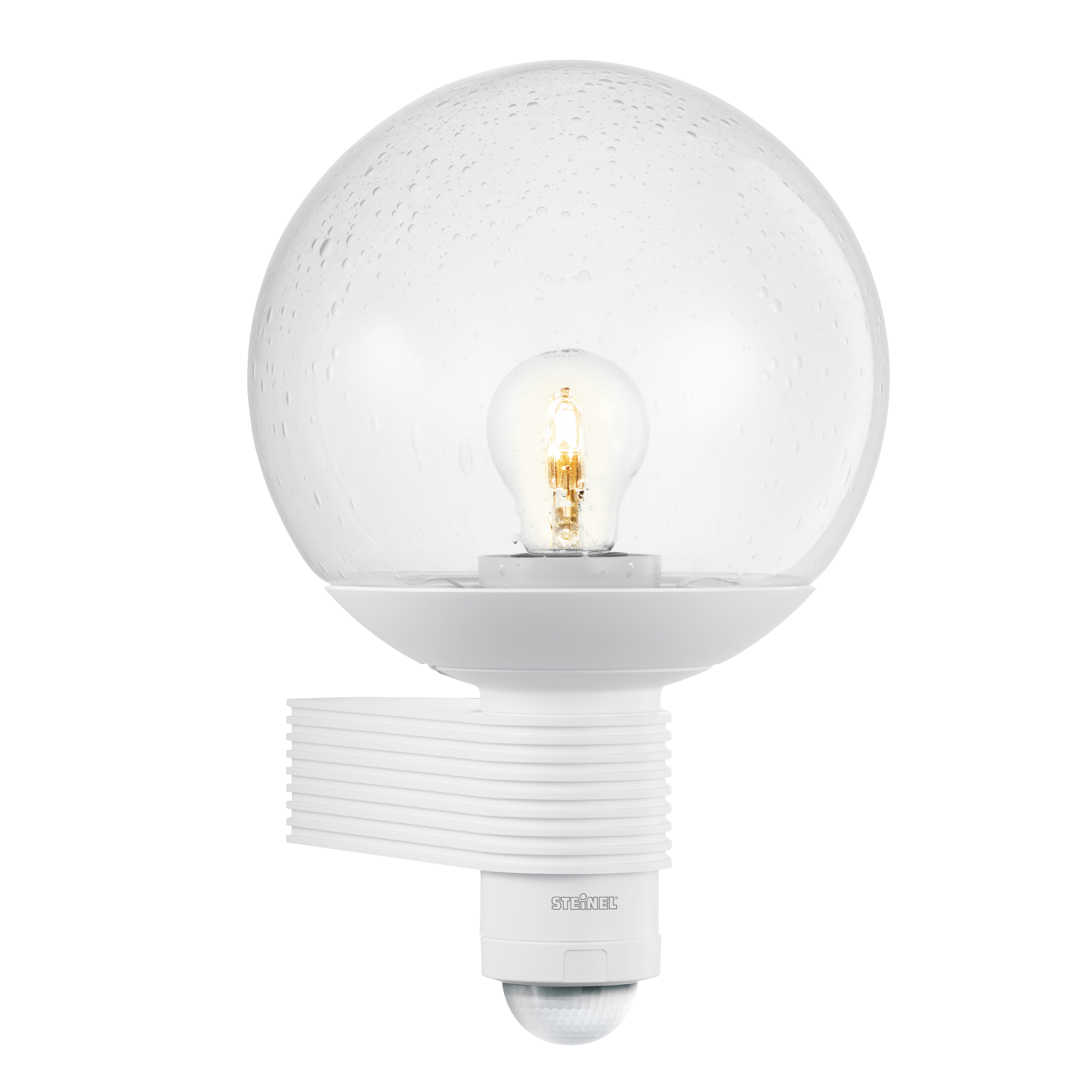

Steinel L 400 S white

EAN-No. 4007841611118

ELDAS® no. 611118

Colour

White Black

There are some shapes you simply can't improve. Like the light with the classic globe shade. It has been one of the favourite choices among home-owners for decades. That's not likely to change much in future either. Because STEINEL has upgraded this classic light design with cutting-edge sensor technology for a bright tomorrow too. Also particularly attractive is the transparent opal glass with decorative bubble effect. The L 400 S shares its design with the L 410 S outdoor SensorLight. The only difference being: the matt-finish opal glass shade that gives the light more of a serene and understated look.

Identification

Manufacturer Steinel

E-number 924360019

Variants

Colour White

Dimensions

Dimensions L × W × H 250 x 215 x 336 mm

PU1 net weight 1.0310

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 60 W

Own consumption 0,8 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 240 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (19 m²)

Tangential range r = 12 m (302 m²)

Mounting height 1,80 – 6,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start Yes

Continuous light selectable, 4h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Settings via Potentiometers

With remote control No

Base light function in percent 0 – 50 %

Base light function percent from 0.0000

Base light function percent to 50.0000

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Plastic

Cover material Glass transparent

Cover material (scope of delivery) shrouds

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room outdoors front door all round the building terrace / balcony courtyard & driveway

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Cross-/up-selling

Spare parts 12241

Accessories 12173

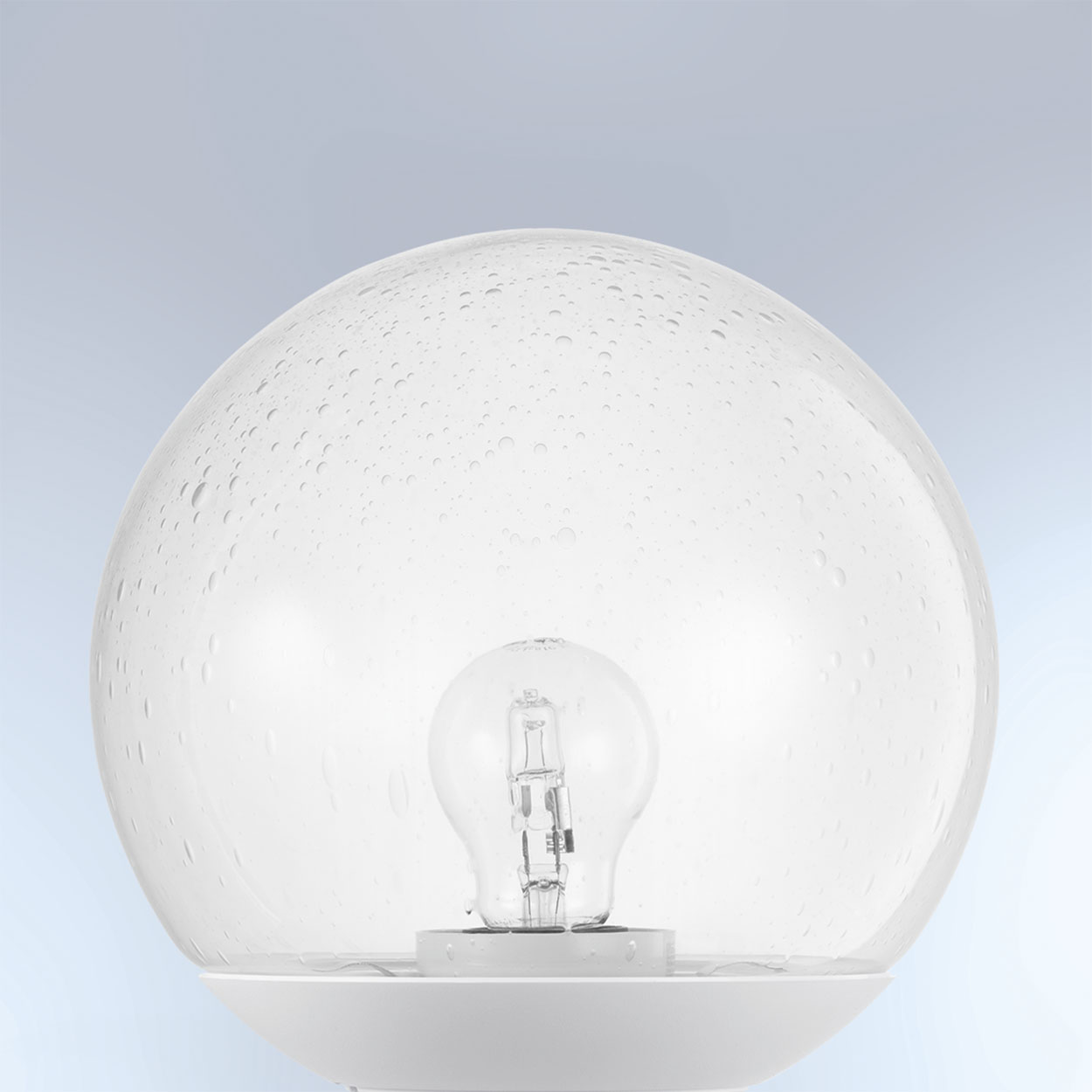

Crystal glass shade

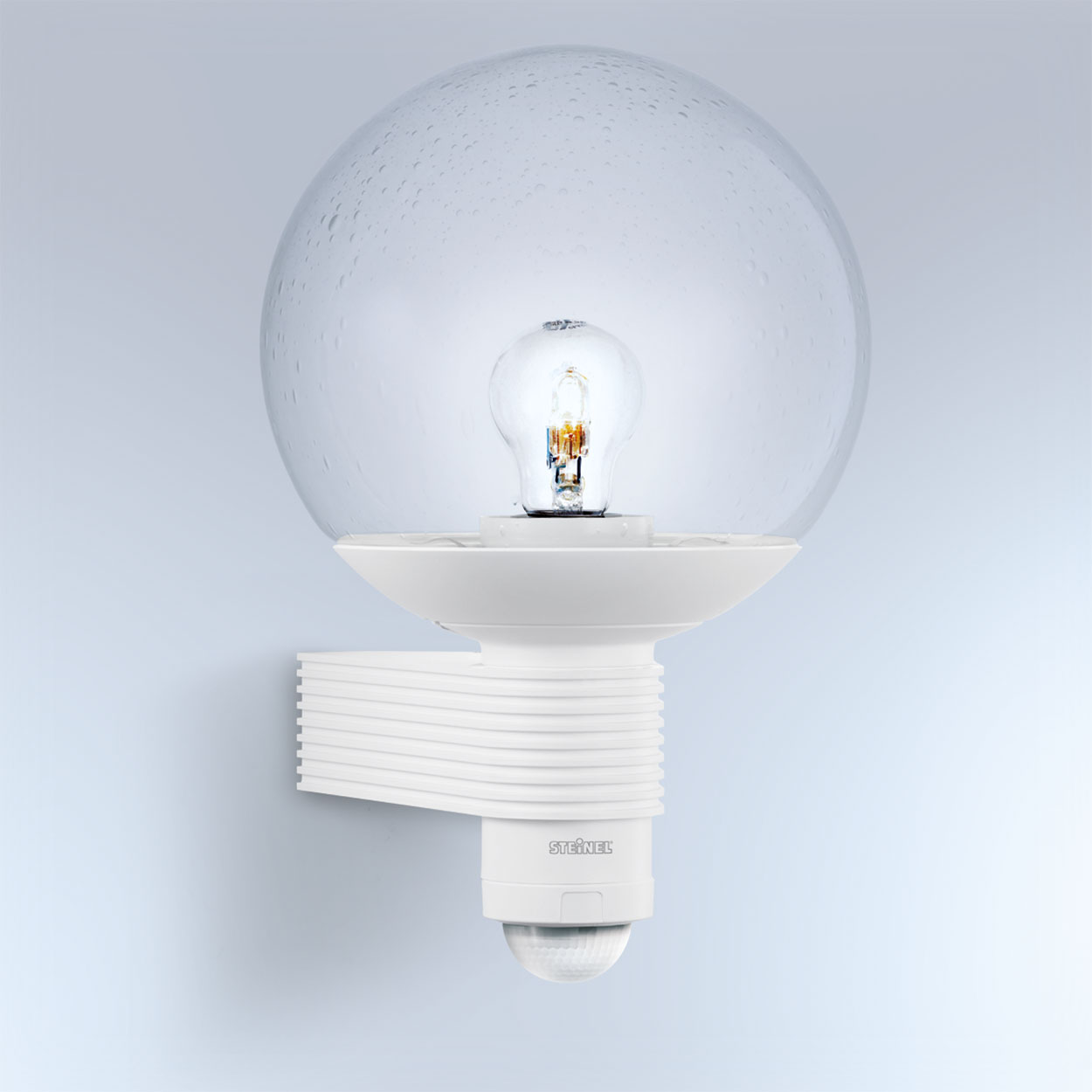

Optional basic lighting level 0 - 50 %

UV-resistant plastic

Technical drawing

Sensor detection areas

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Data sheet Declaration of conformity Drilling template LDT file (light distribution)

Corner wall mount 03

Item no. 630416
