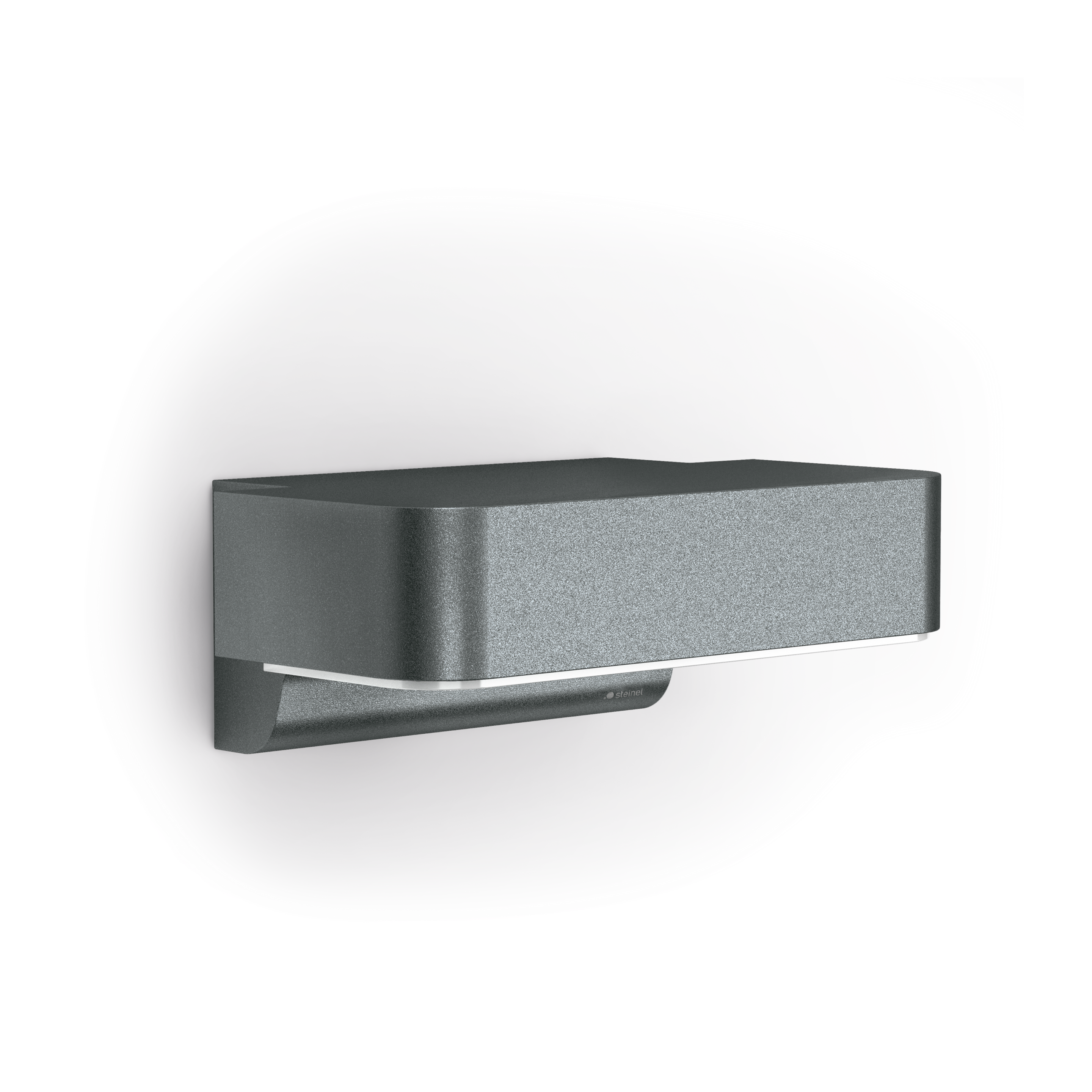

Steinel L 800 SC Anthracite

Steinel L 800 SC Anthracite

EAN-No. 4007841065690 · ELDAS® no. 065690

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads Accessories
Steinel Bluetooth Mesh

Steinel L 800 SC Anthracite

EAN-No. 4007841065690

ELDAS® no. 065690

Price: Please log in to see prices

Version

Without sensor With sensor

Colour

Anthracite Silver

This high-quality designer piece is meticulously thought-through and made with particular care from materials that last. In developing new lights, our products' future value is also important to us. Intelligent technology has a permanency and constancy about it – is brighter, cooler and smarter. For the first time, we have managed to make a light's sensor completely invisible. This result is a highlight LED product for illuminating your home's exterior walls with stunning effect. The Bluetooth-based Connect version can be wirelessly interconnected and set and controlled via app. Groups can also be created and lights designated via app for added convenience.

  • Outdoor light with motion detector and effective downward lighting (downlight)
  • Elegant and modern design with high-quality aluminium housing

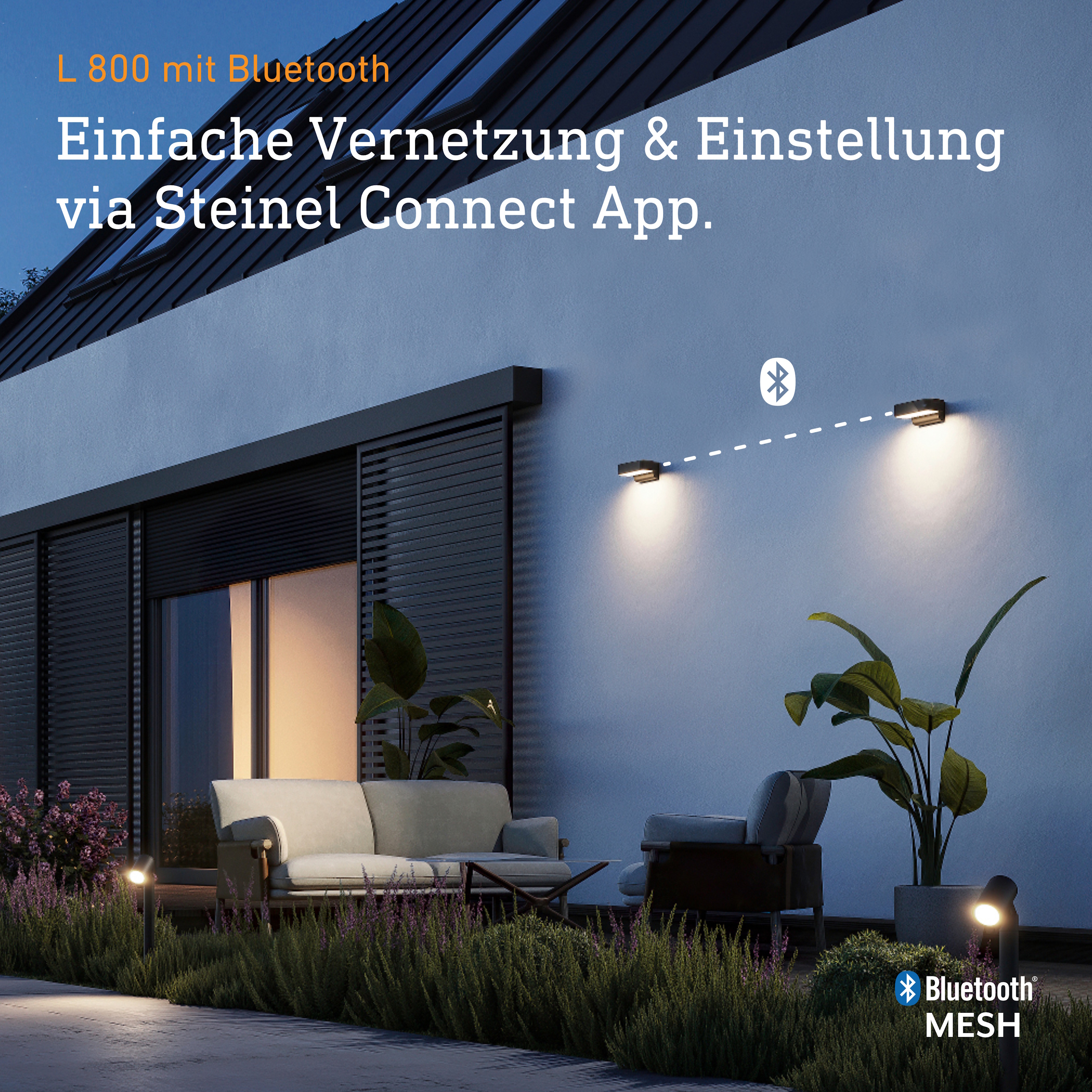

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App
  • Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
  • Functions: adjustable basic and main light, pleasant soft light start, continuous light, schedule function
  • Warm white light (3000 K) and long-life 7,5 W LEDs with 466 lm
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941311849

Variants

Light colour 3000 K
Version With sensor
Colour Anthracite
House number plate Without

Dimensions

Dimensions L × W × H 146 x 230 x 88 mm
PU1 net weight 0.9140

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 7,5 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology iHF (intelligent high-frequency technology)
Transmission power < 1 mW
With motion detector Yes
Detection angle 160 °
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Range detail Detection zone adjustable on 2 axes
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)
Transmission range 30 m
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Type of networking Master/master Master/slave
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 466 lm
Colour temperature 3000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Active and Passive Thermo Control
Soft light start Yes
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time OFF Brightness-controlled 10 sec - 60 min
Main light adjustable 10 - 100 %
Functions Motions sensor
Settings via App Bluetooth Mesh
With remote control No
Base light function in percent 10 – 100 %
Base light function percent from 10.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room garden front door courtyard & driveway all round the building terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

Certificates TSU
EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 28871

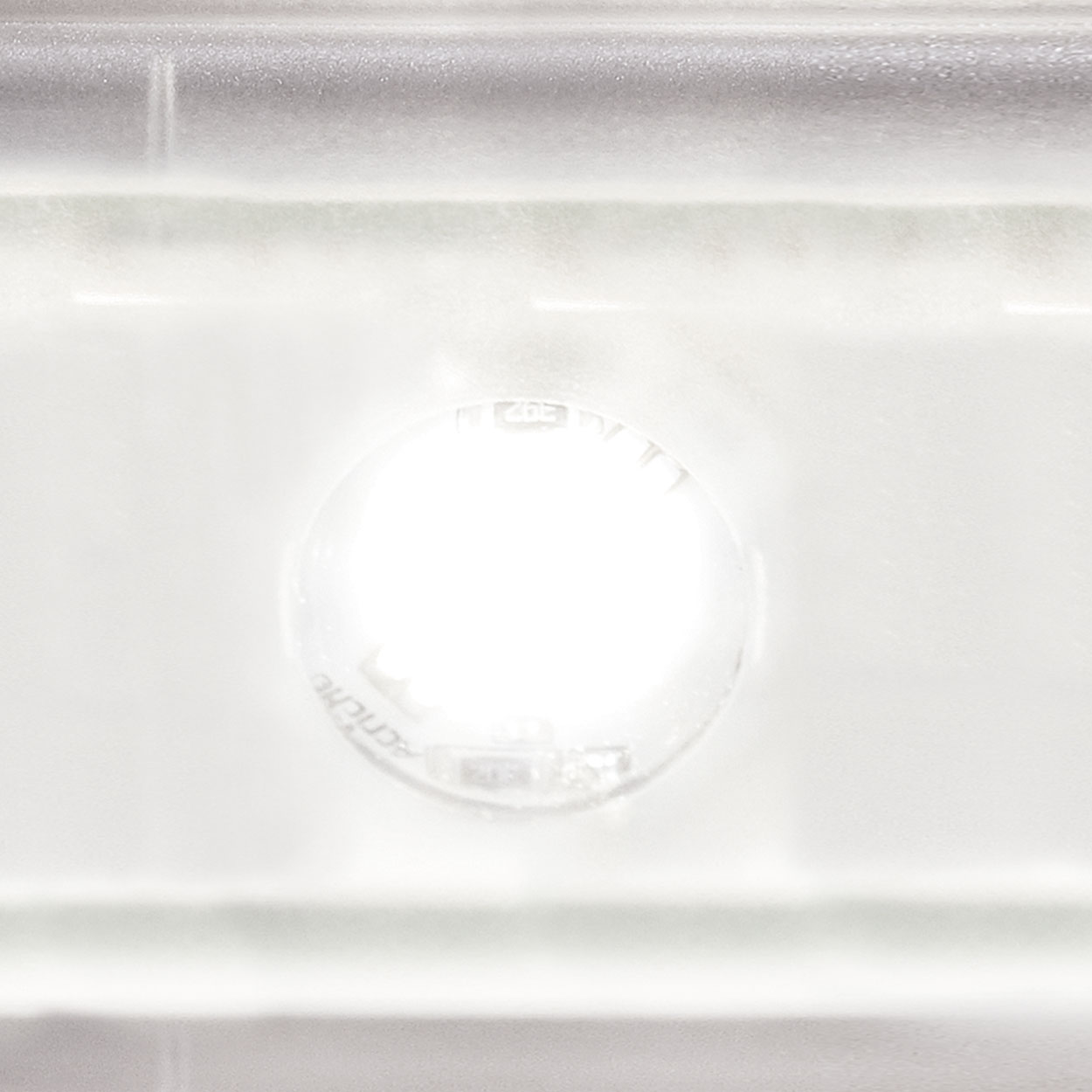

Including STEINEL LED system

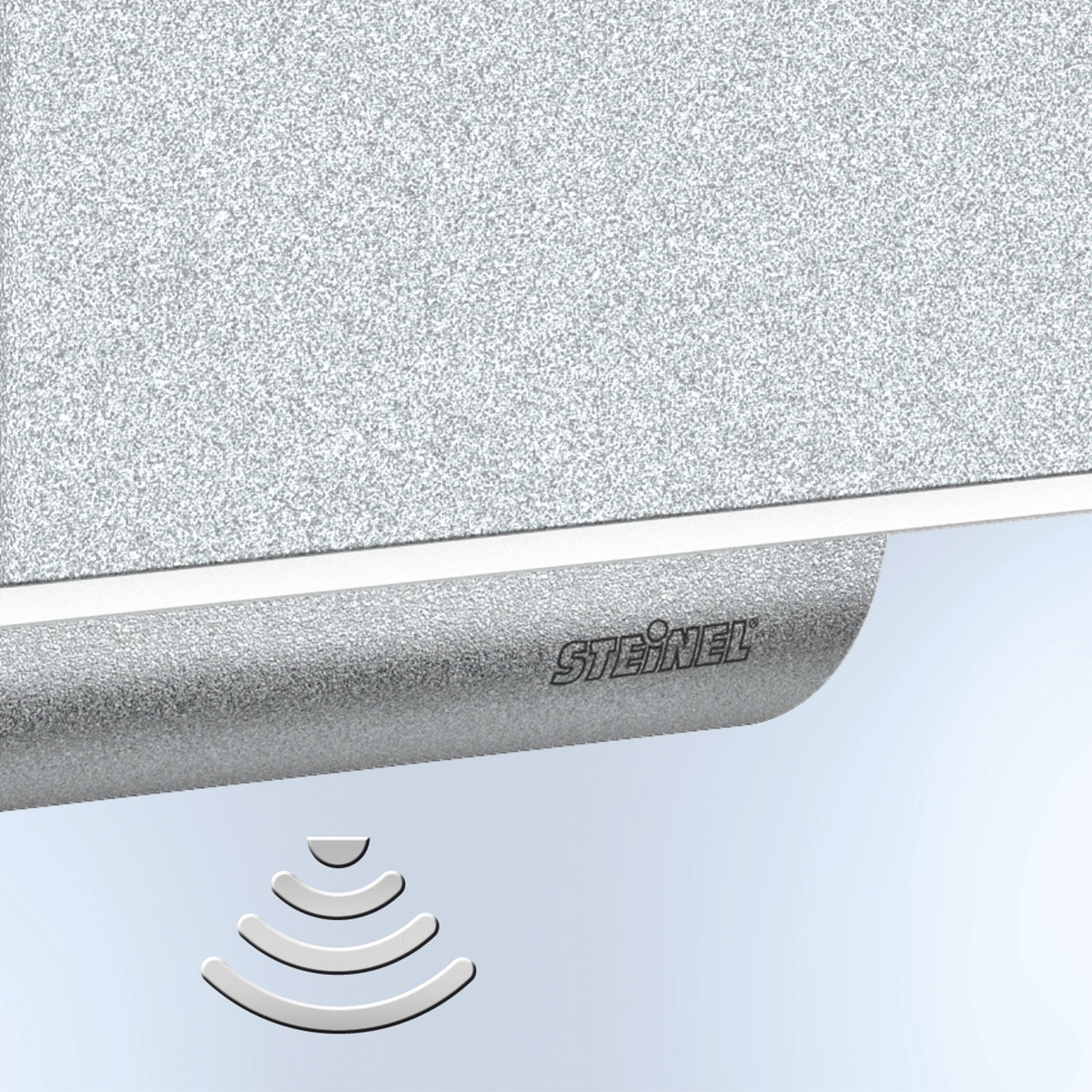

Concealed iHF sensor

Intelligent soft light start

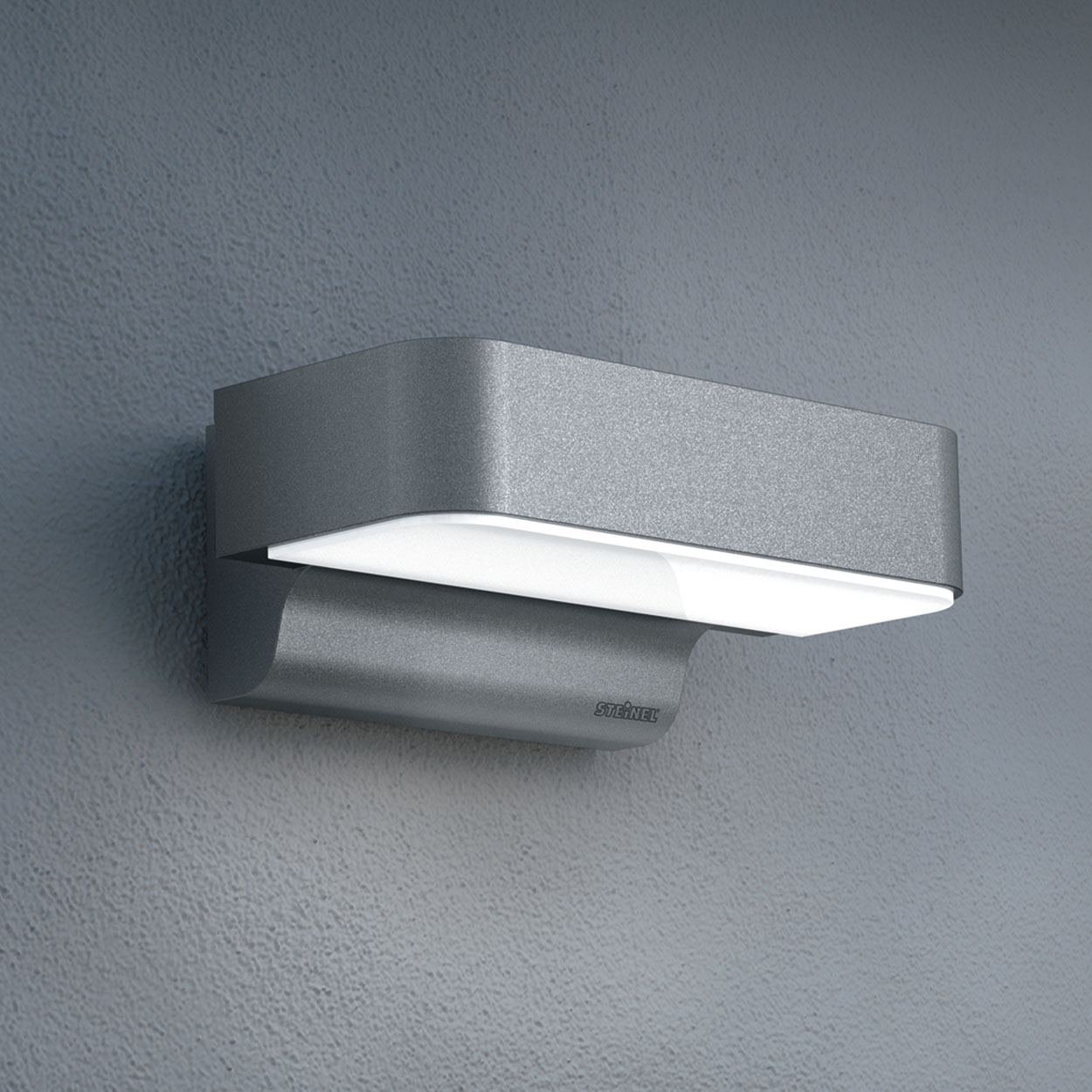

Optional basic lighting level 10 - 100 %

High-quality aluminium

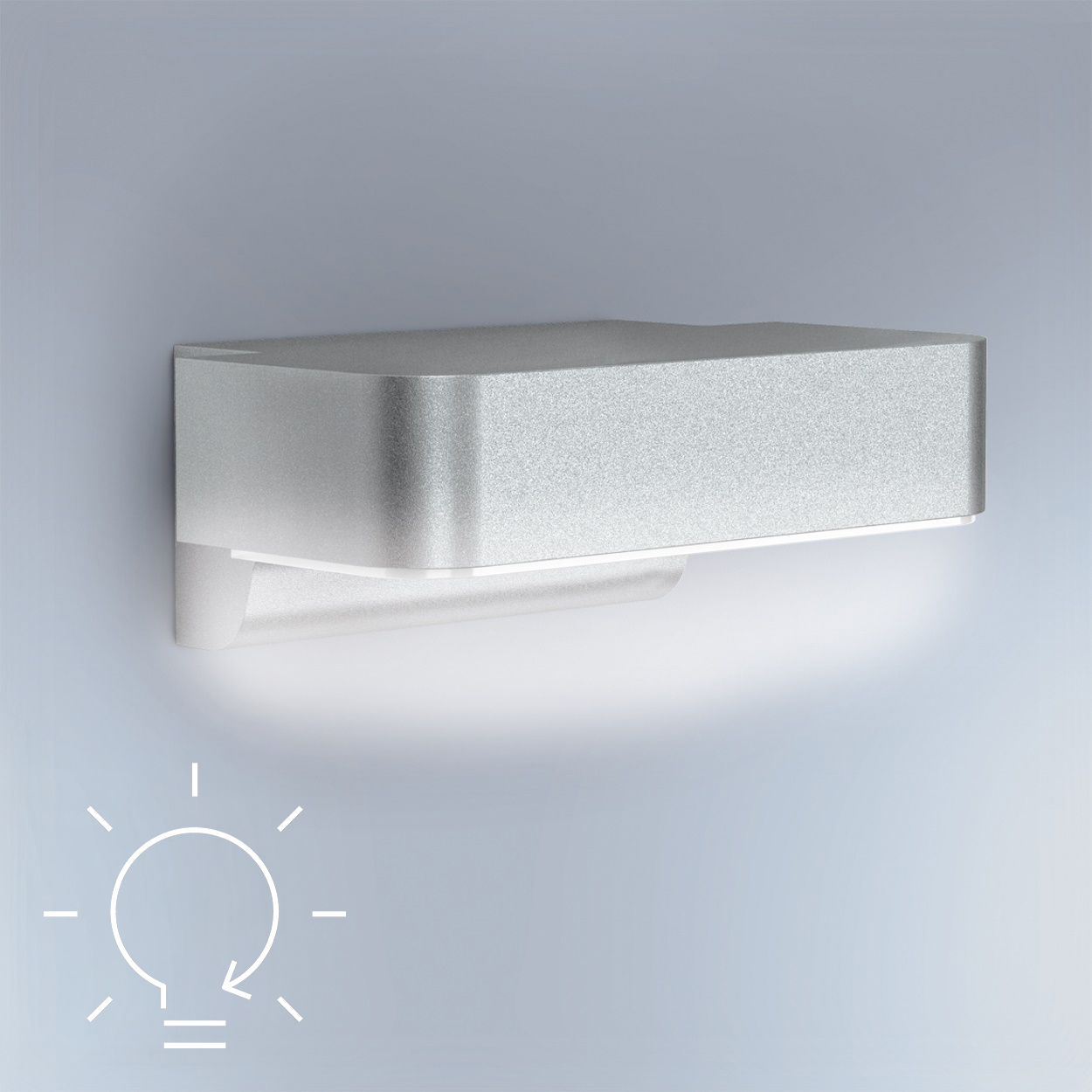

Continuous light individually switchable (optional)

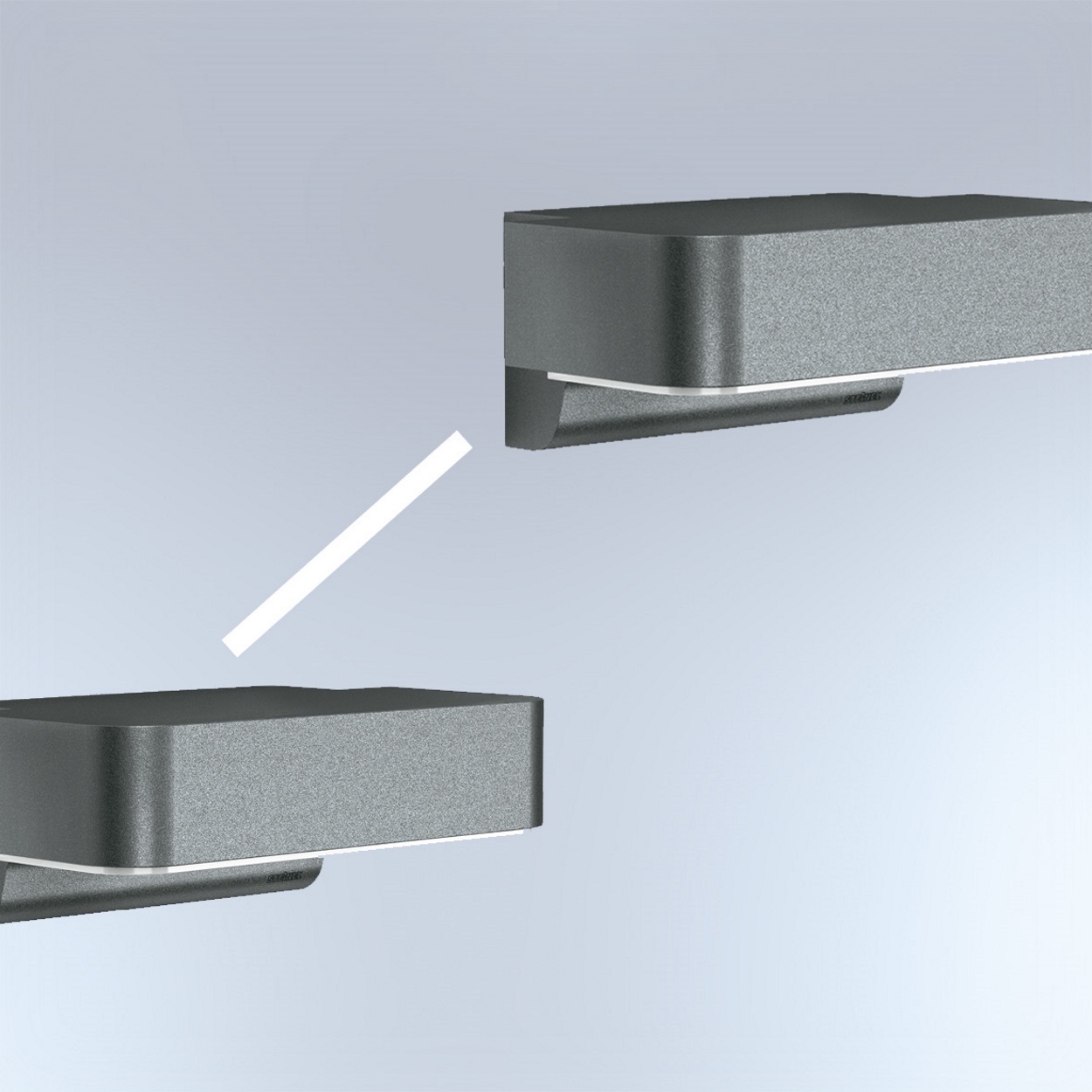

Interconnectable and adjustable via Bluetooth Mesh

Technical drawing

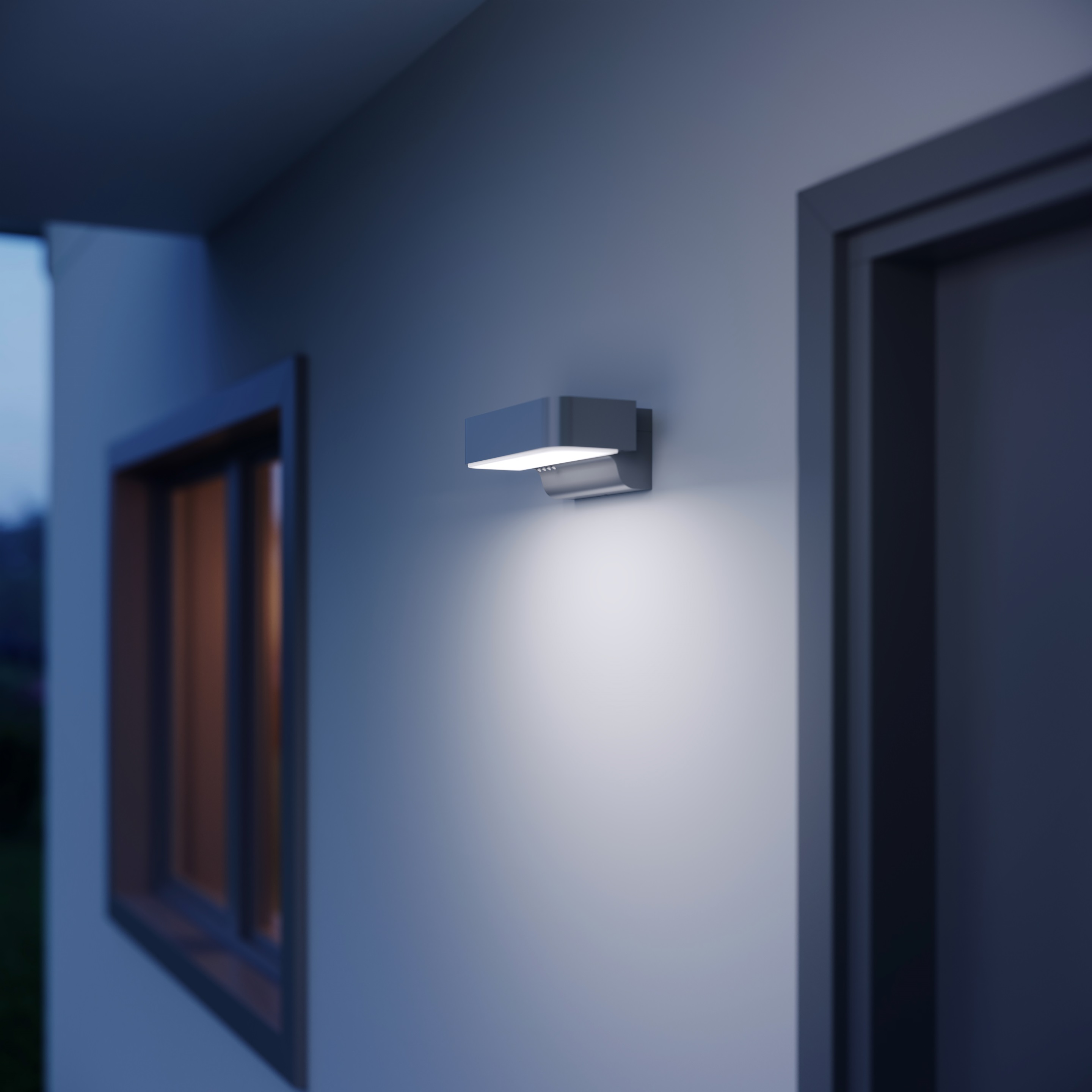

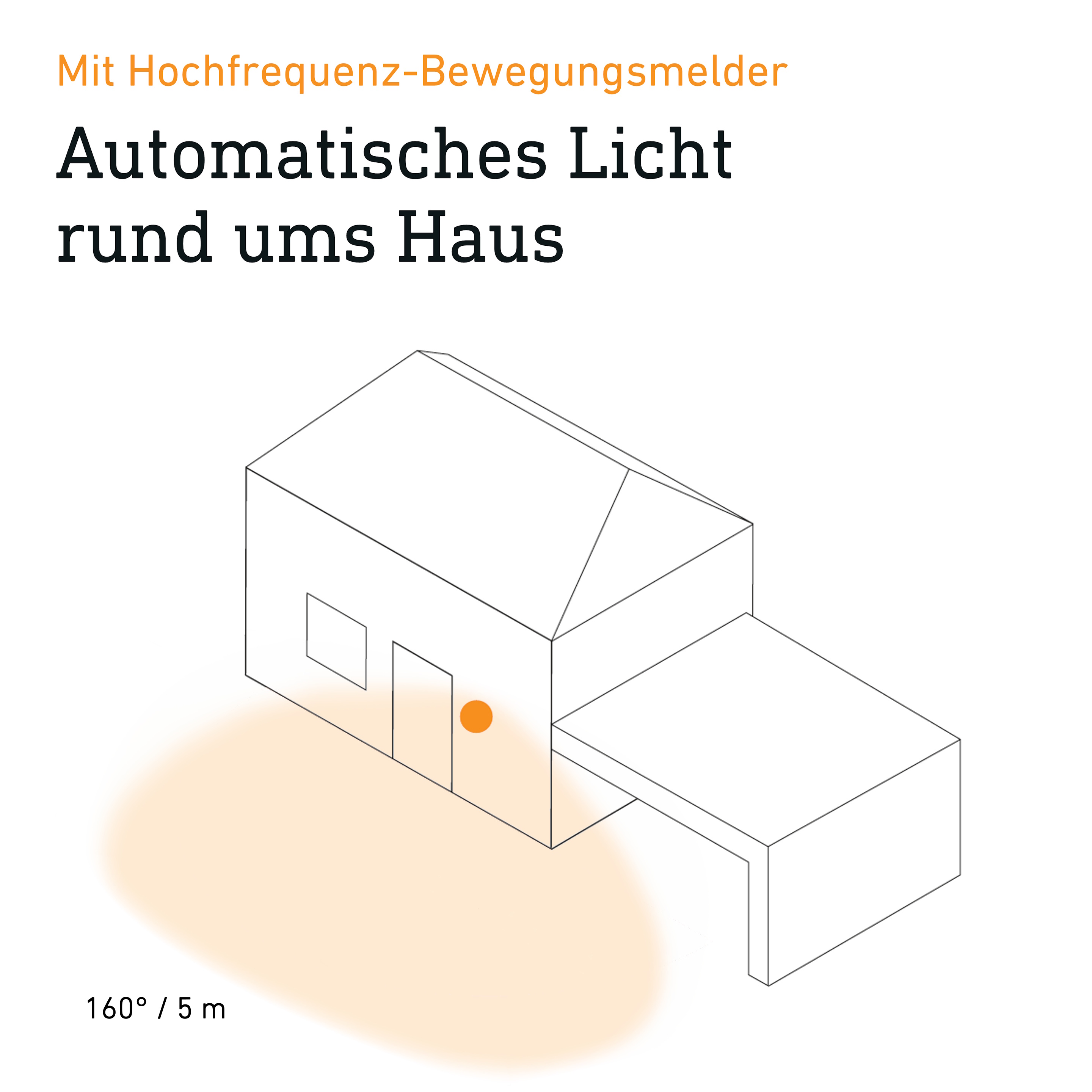

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth
