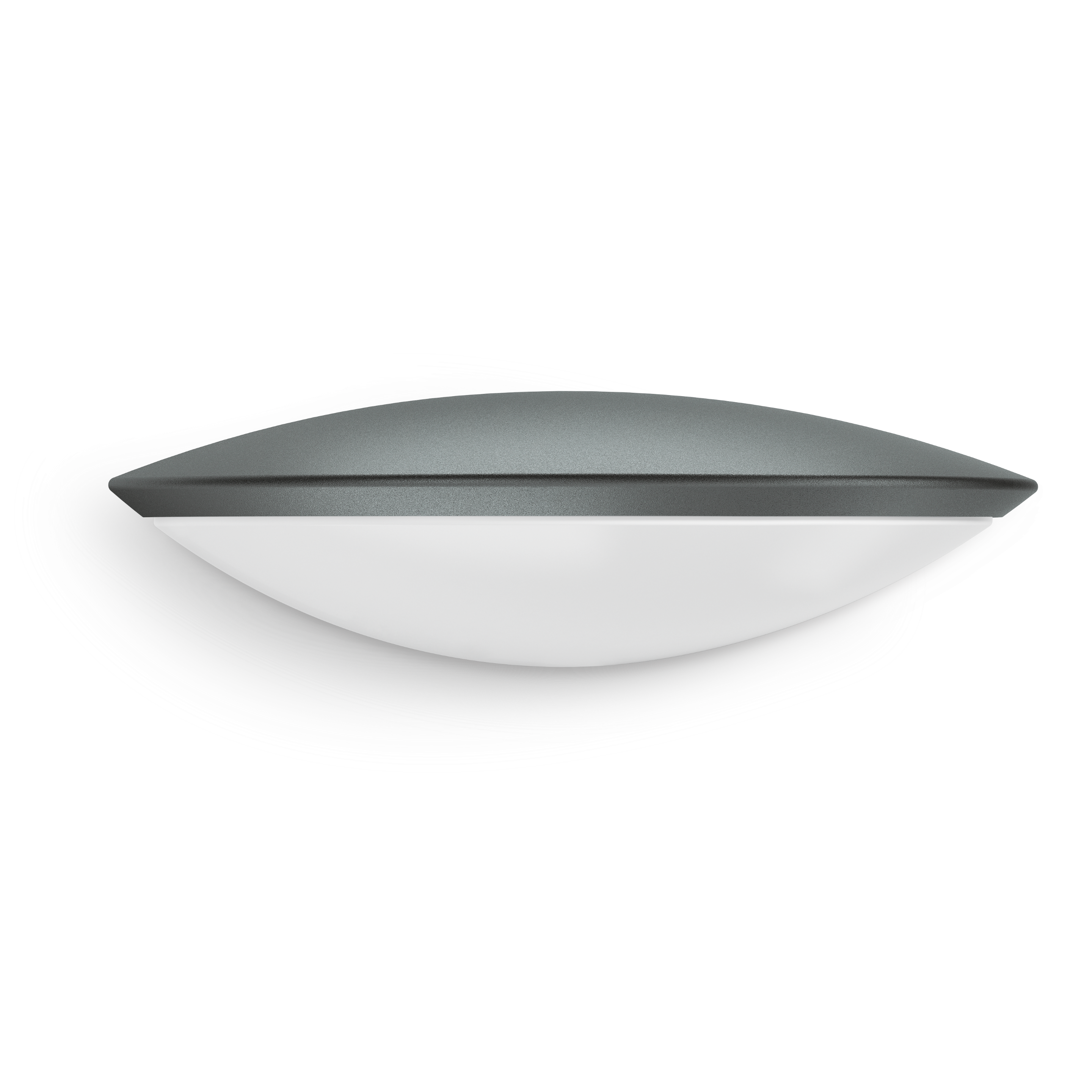

Steinel L 825 SC Anthracite

EAN-No. 4007841059903

ELDAS® no. 059903

Invisible and perfect. Some like it classic. This is why we have combined the pioneering technology and unique functionality of the iHF series with timeless design. The result – the L L 825 SC – setting off your front door with permanent aesthetic appeal and controllable via app. Needless to say, only when needed: the sensor detects persons approaching from any direction – and can distinguish them from small animals. And it remains completely invisible. With minimal energy consumption and the incredibly long life expectancy of the LEDs, so too are its running costs.

Identification

Manufacturer Steinel

E-number 924362149

Variants

Colour Anthracite

Dimensions

Dimensions L × W × H 157 x 331 x 95 mm

PU1 net weight 0.9630

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,7 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology iHF (intelligent high-frequency technology)

Transmission power < 1 mW

With motion detector Yes

Detection angle 160 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Range detail Detection zone adjustable on 2 axes

Radial range r = 5 m (35 m²)

Tangential range r = 5 m (35 m²)

Transmission range 30 m

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes

Type of networking Master/master

Networking via Bluetooth Mesh

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 707 lm

Colour temperature 3000 K

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Active and Passive Thermo Control

Soft light start Yes

Continuous light individually adjustable via app

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Base light function Yes

Base light function time 10-30 min, all night

Main light adjustable 10 - 100 %

Functions Group parameterisation Manual ON / ON-OFF

With remote control No

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, opal

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room outdoors front door all round the building terrace / balcony courtyard & driveway

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years

House number sheet included No

Certificates & EPREL

Certificates TSU

EPREL category Surrounded product with integrated light source

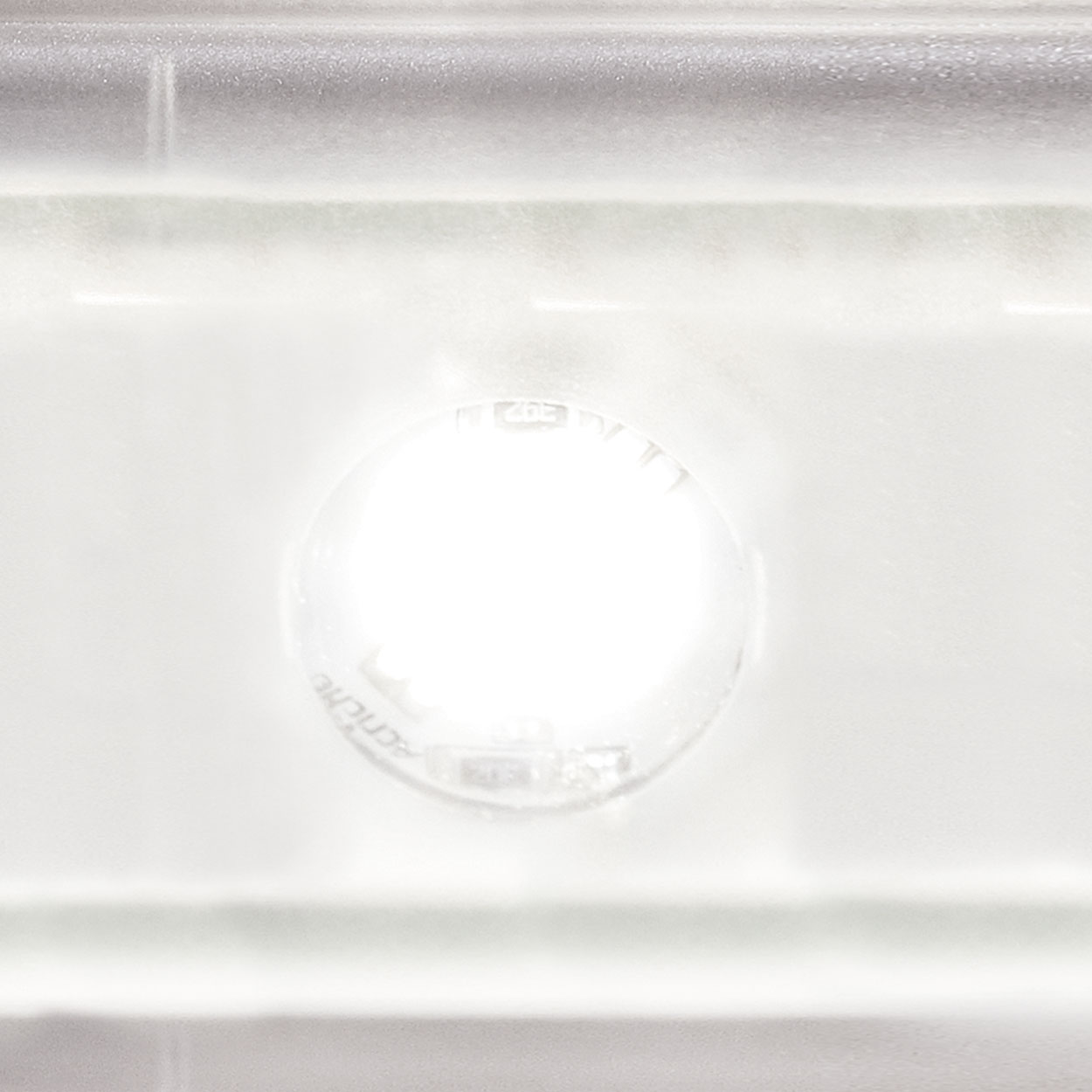

Including STEINEL LED system

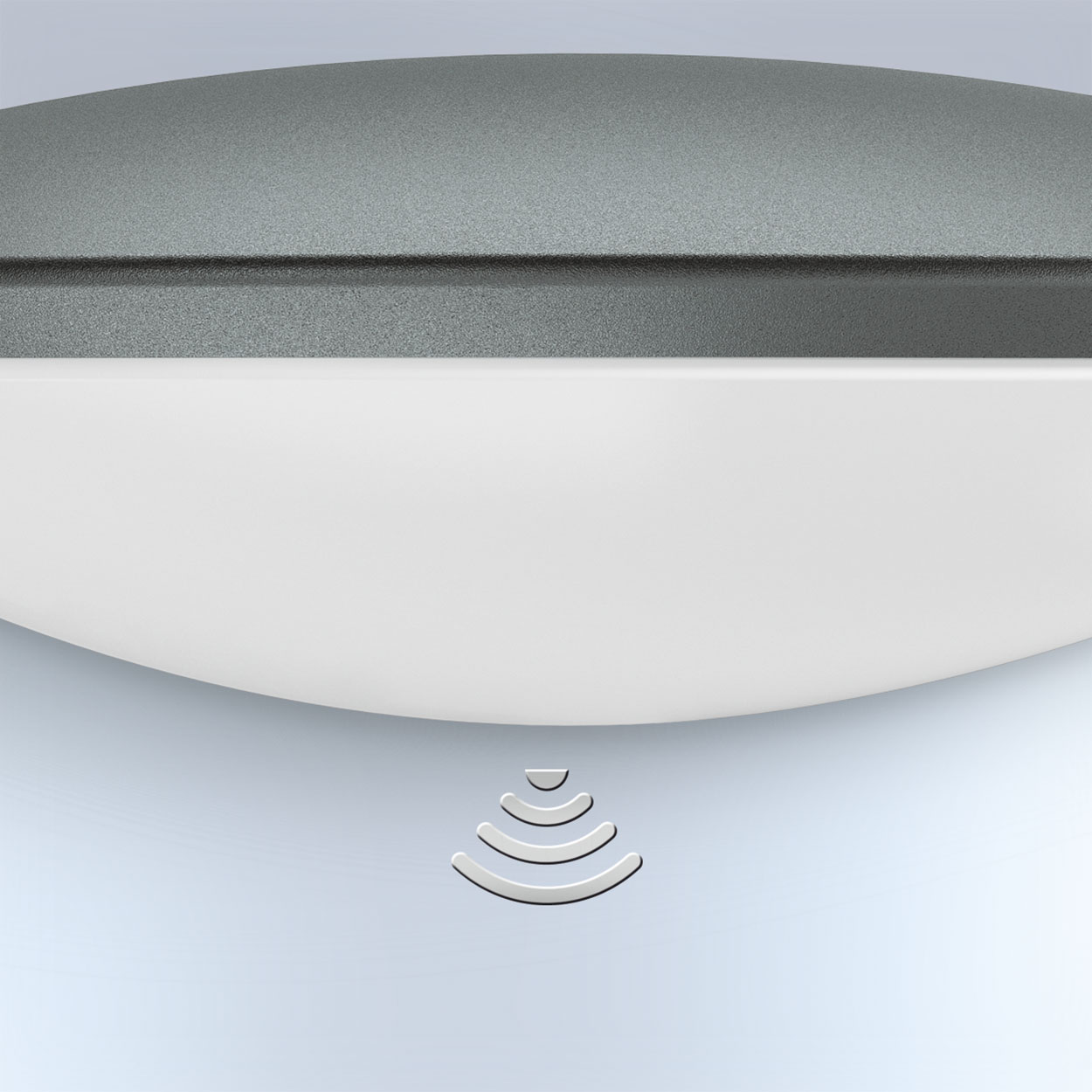

Concealed iHF sensor

Intelligent soft light start

Basic-light function 10 - 50% (via App)

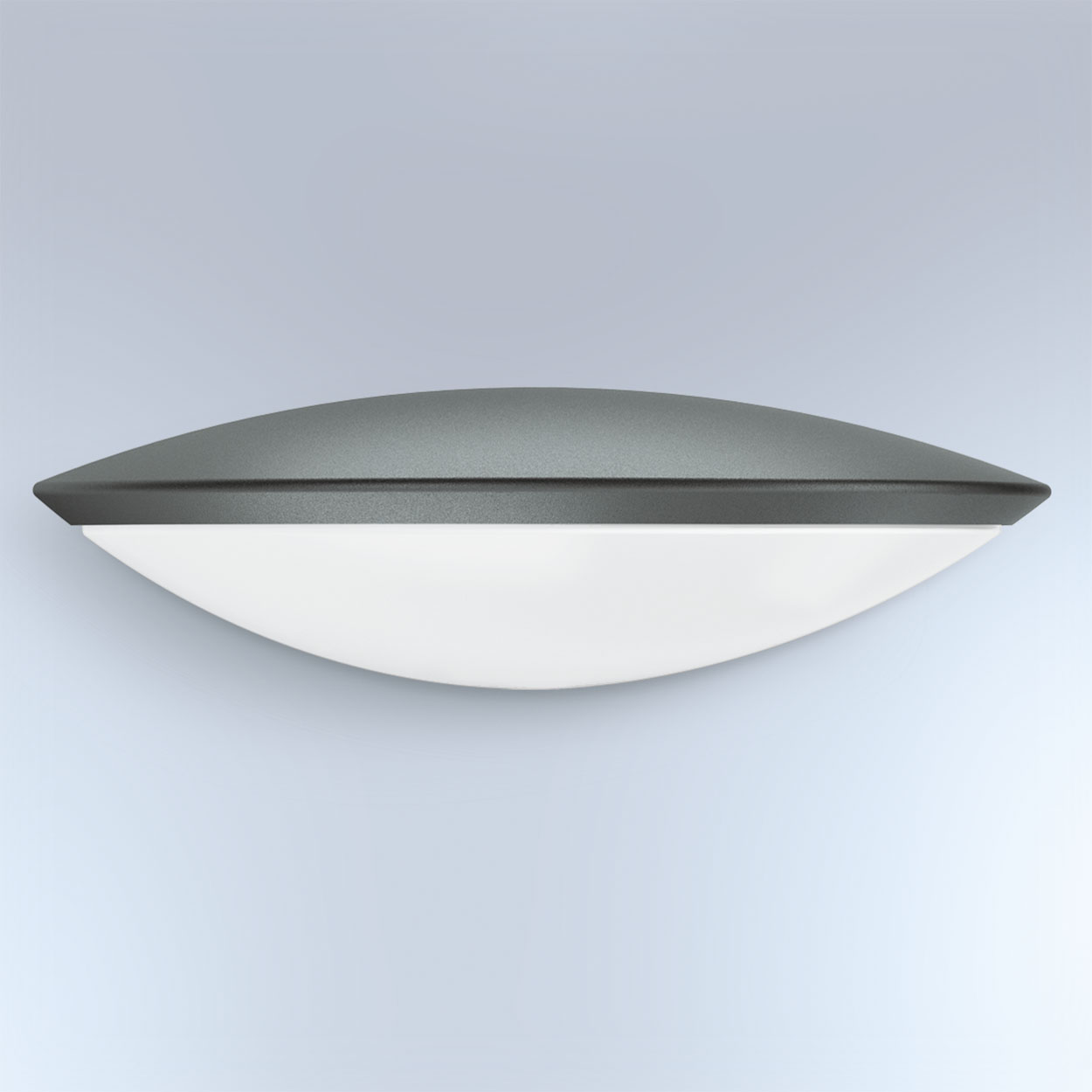

Adjustable main light brightness 10 - 100% (via App)

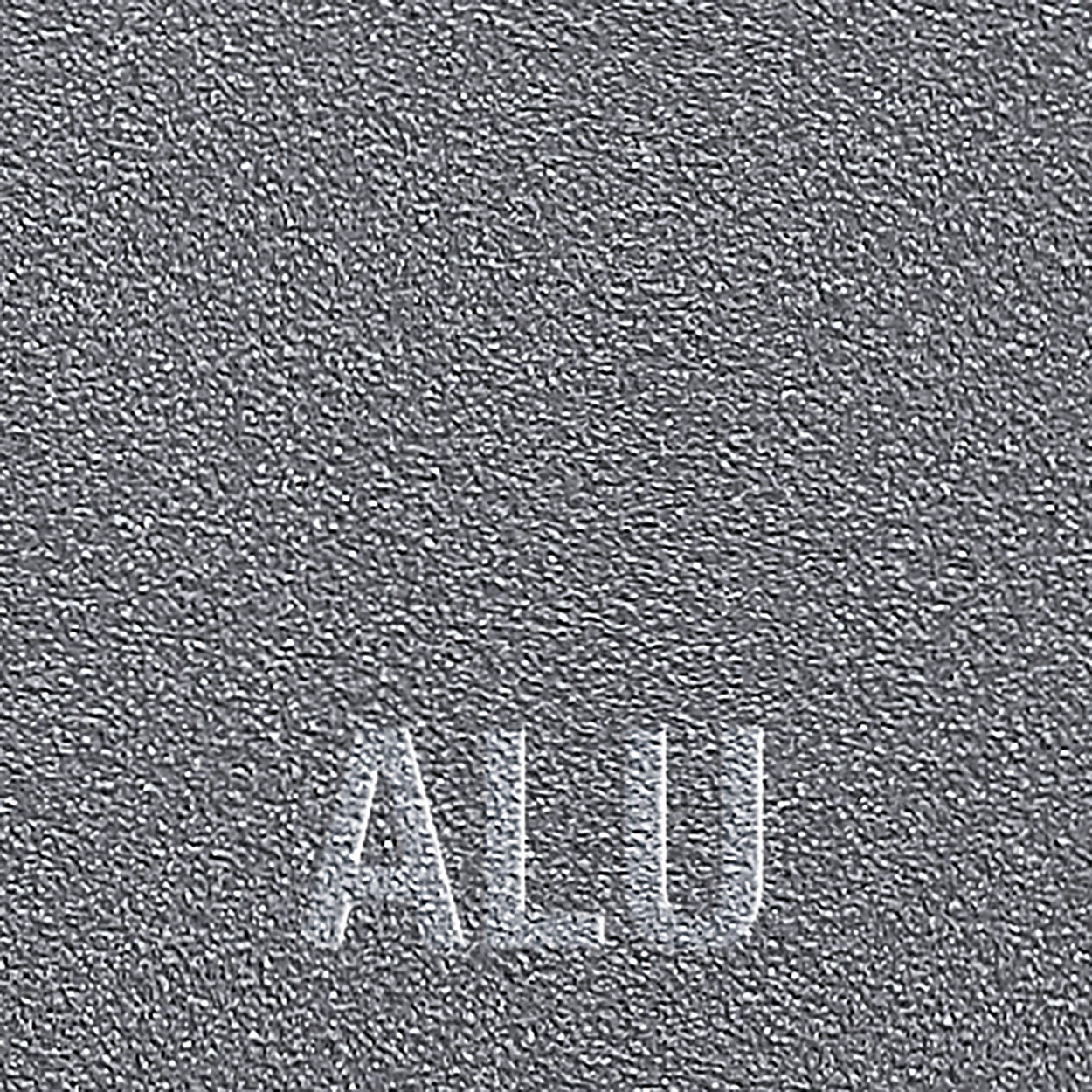

High-quality aluminium trim panel

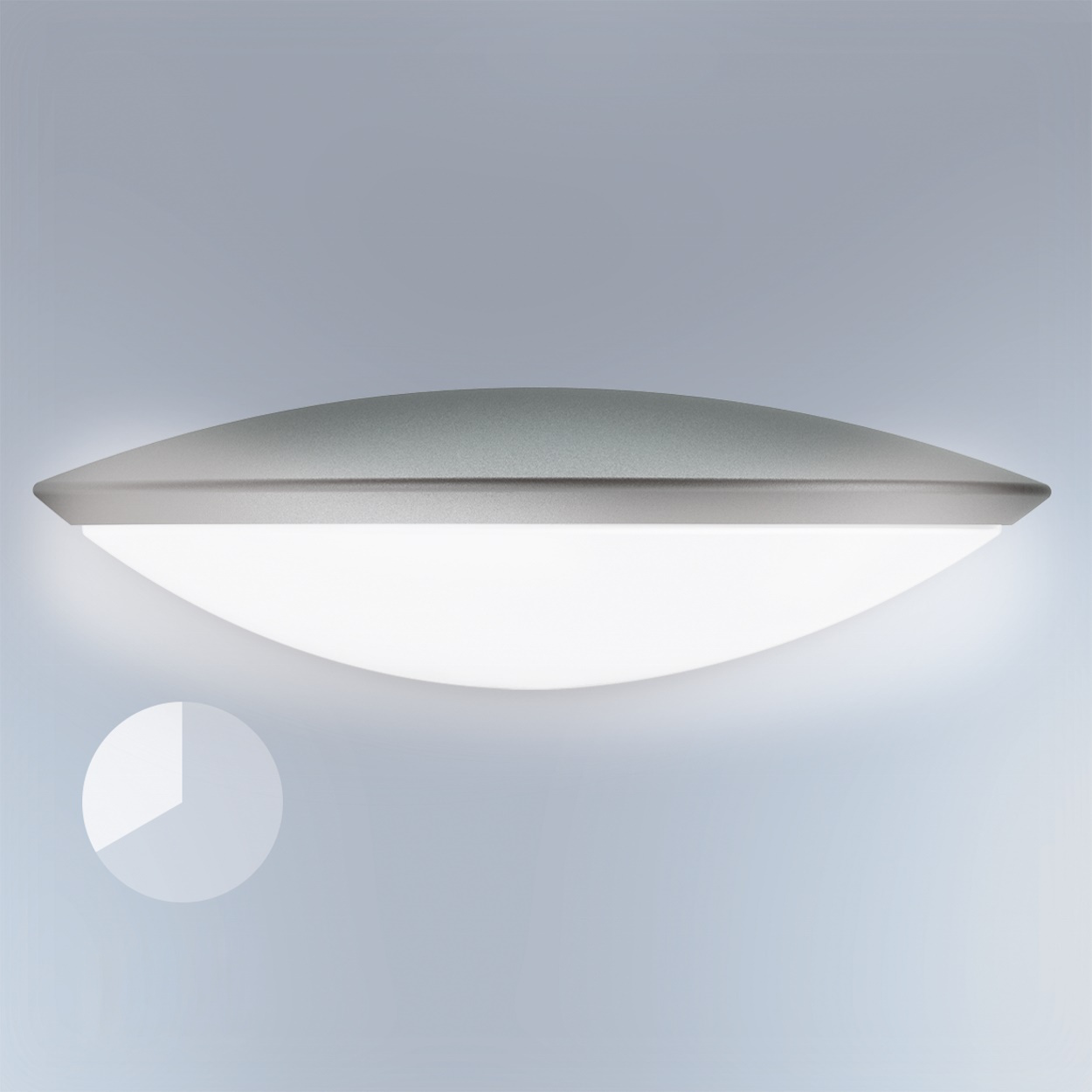

Continuous light individually switchable (optional)

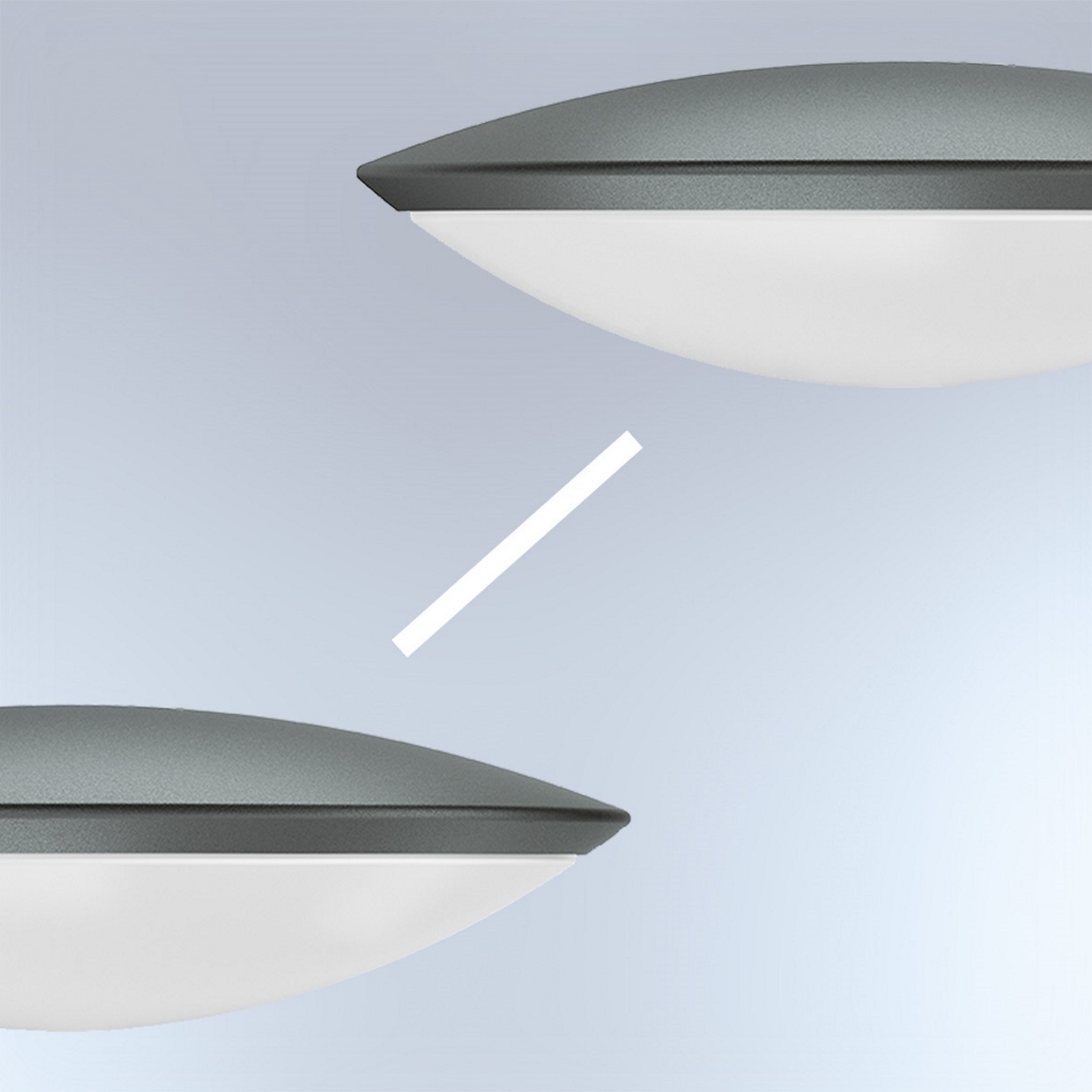

Interconnectable and adjustable via Bluetooth

Technical drawing

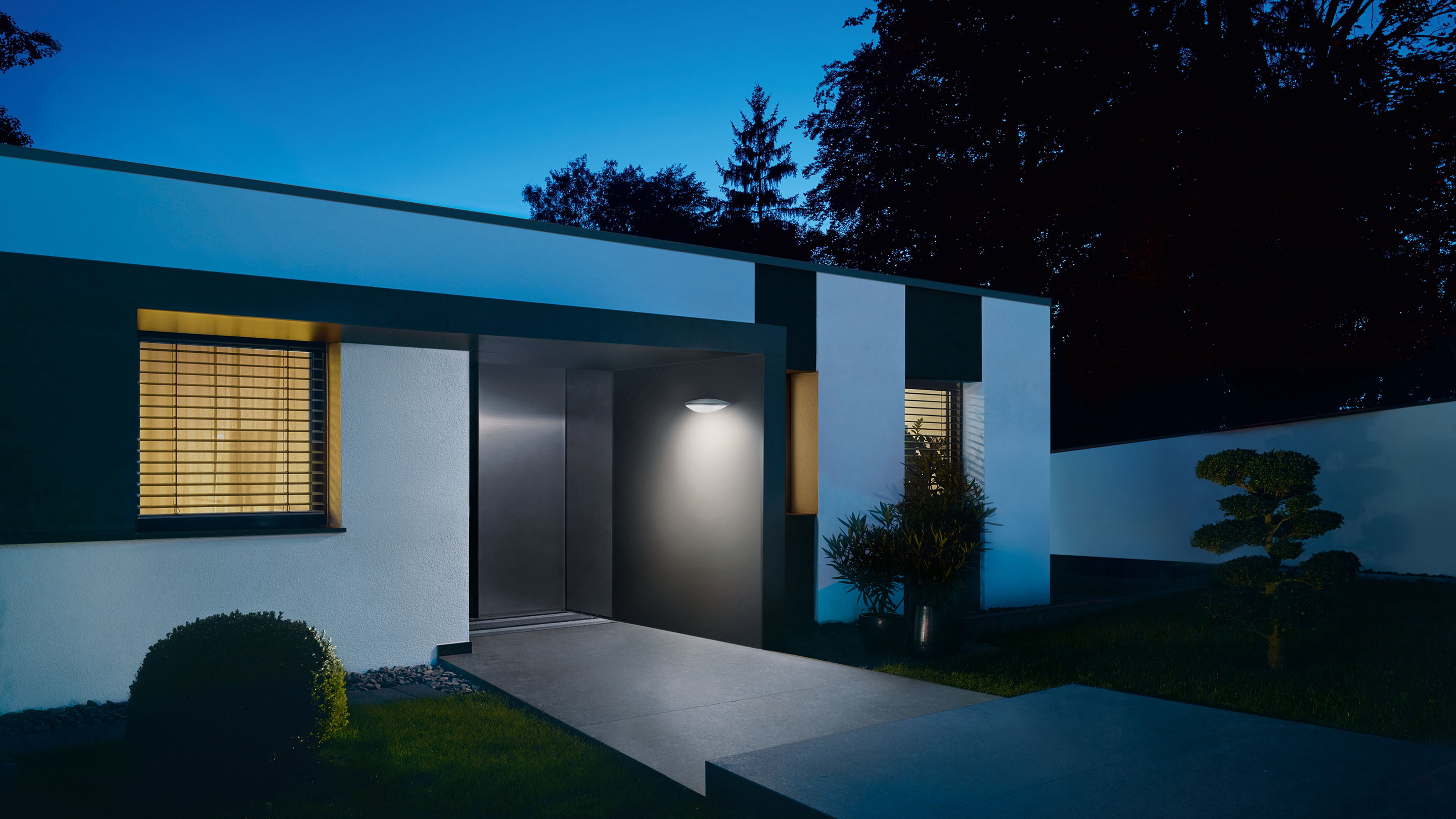

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet Declaration of conformity LDT file (light distribution)
