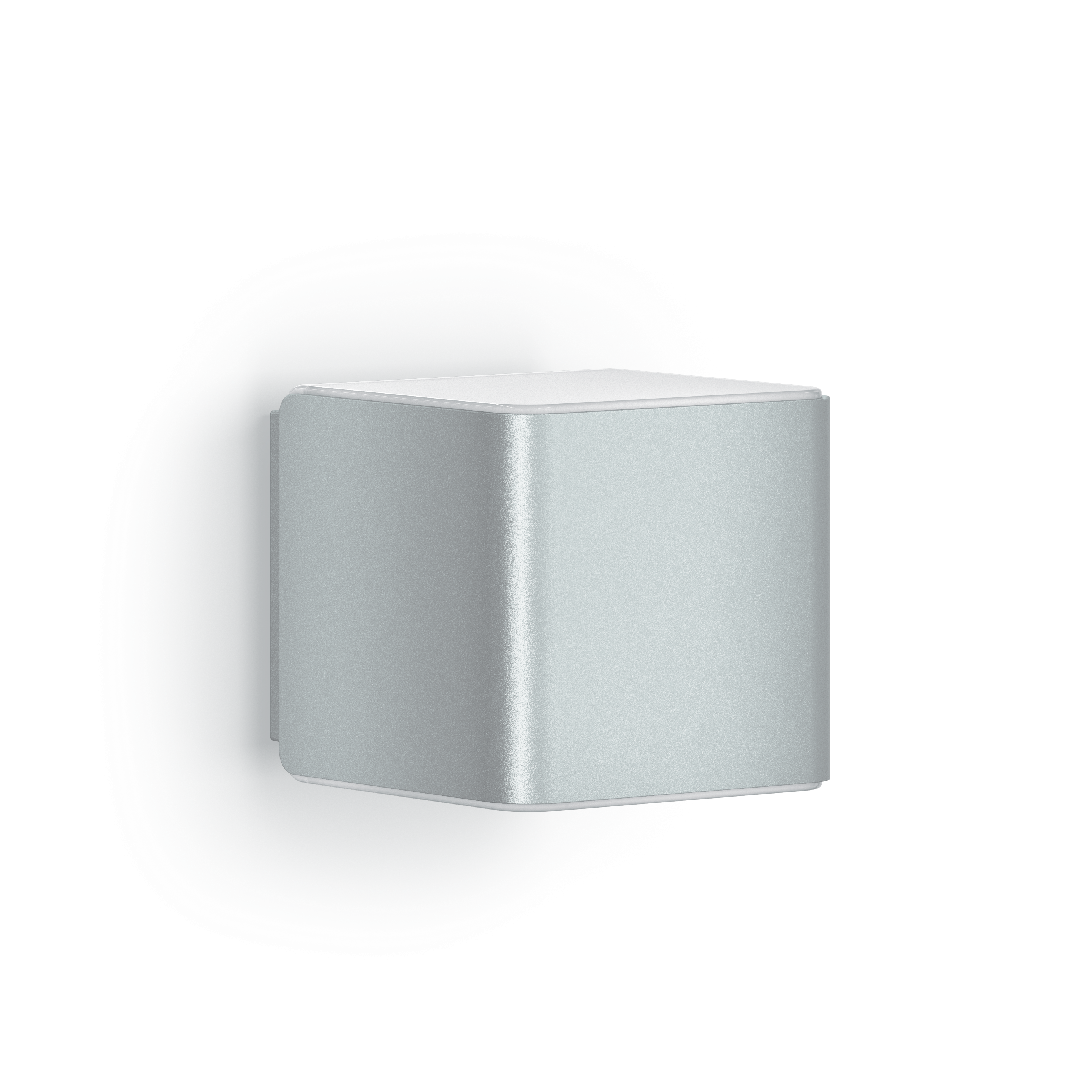

Steinel L 840 SC Silver

Steinel L 840 SC Silver

EAN-No. 4007841055547 · ELDAS® no. 055547

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads Videos Accessories
Steinel Bluetooth Mesh

Steinel L 840 SC Silver

EAN-No. 4007841055547

ELDAS® no. 055547

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

Without sensor Sensor

Colour

Anthracite Silver

Light output

Up-Down-Front-Side Up-Down-Front Up-Down

The wall lights refine any facade. They are true gems. And a strong piece of technology. The digital outdoor lights do not just satisfy the highest demands on design. Their inner values are also impressive. For example, the concealed 160° iHF sensor which, with a reach of 5 m, is tuned only to human movement patterns. All other movements, such as cats or leaves in the wind, are professionally ignored. The wall lights illuminate with warm-white light (3000 K) and are available in three design options with various light patterns. With soft light start, night light (10–100%), main light (10–100%), permanent light and scheduling function. Available in anthracite and silver.

  • Outdoor light with motion detector and effective lighting upwards and downwards (Up- & Downlight)
  • Elegant and modern design in cube format made of UV-resistant material

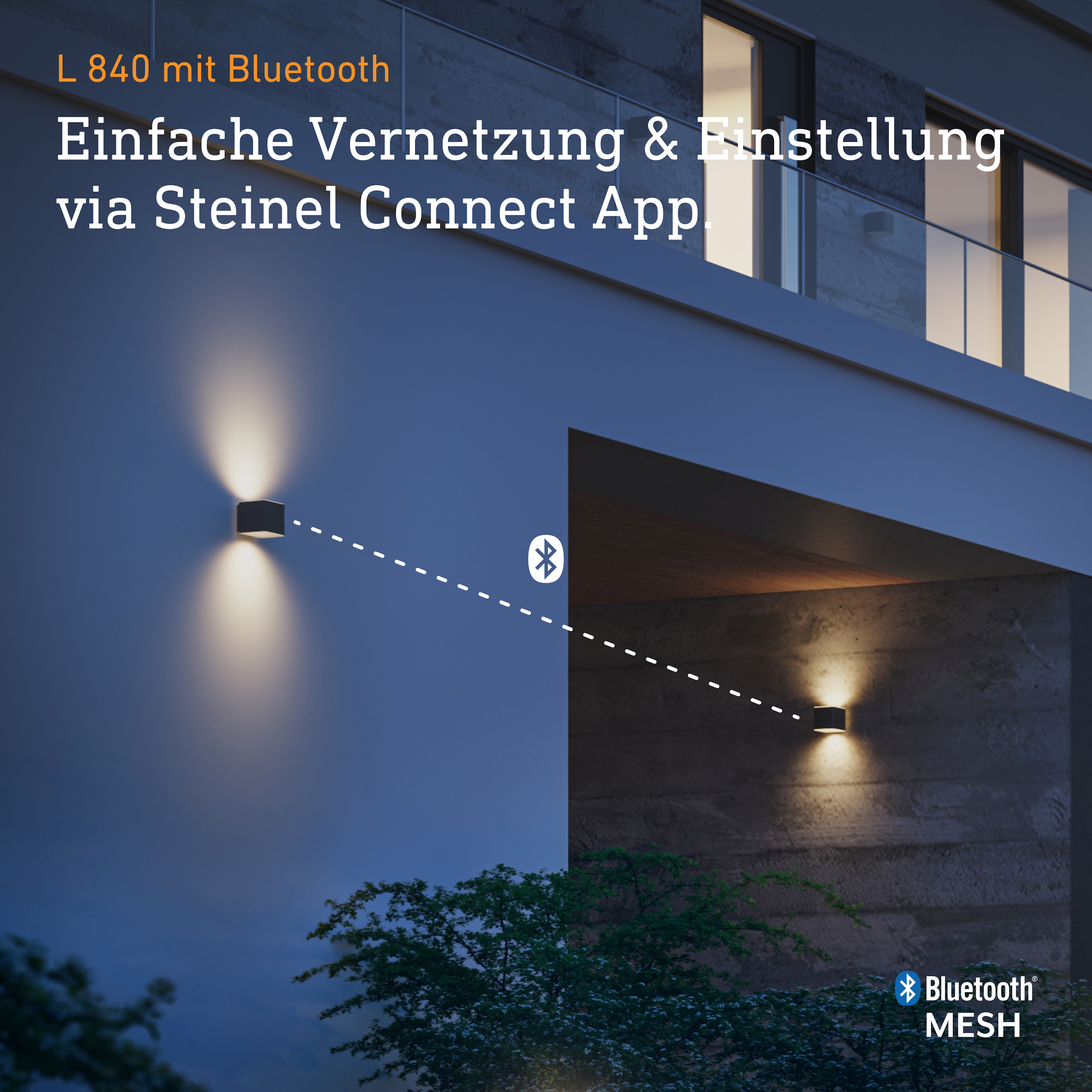

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

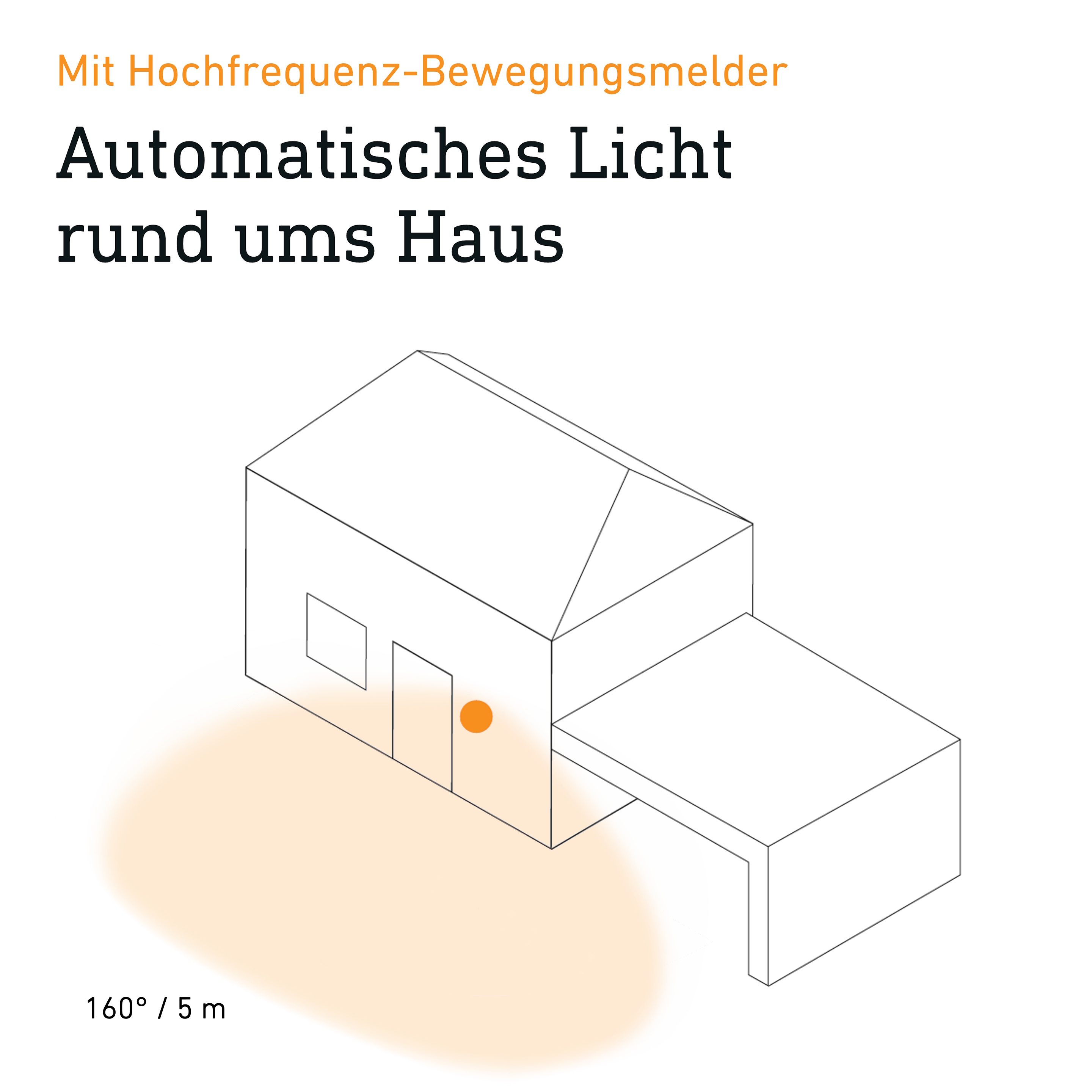

  • Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
  • Functions: adjustable basic and main light, pleasant soft light start, continuous light, scheduling function
  • Warm white light (3000 K) and long-life 9,1 W LEDs with 319 lm
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941200079

Variants

Version Sensor
Colour Silver
Light output Up-Down-Front-Side

Dimensions

Dimensions L × W × H 134 x 110 x 110 mm
PU1 net weight 0.4840

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,1 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology iHF (intelligent high-frequency technology)
With motion detector Yes
Detection angle 160 °
Opening angle 160 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability Yes
Range detail Detection zone adjustable on 2 axes
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 319 lm
Colour temperature 3000 K
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 10 sec - 60 min
Main light adjustable 0 - 100 %
Functions Motions sensor Selecting programmed lighting scenarios Night economy mode Lighting scenario
Settings via Bluetooth Mesh App Smartphone Tablet
With remote control No
Twilight setting teach Yes
Base light function in percent 0 – 100 %
Base light function percent from 0.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room outdoors garden front door courtyard & driveway all round the building terrace / balcony
Colour Silver

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 28871

Intelligent soft light start

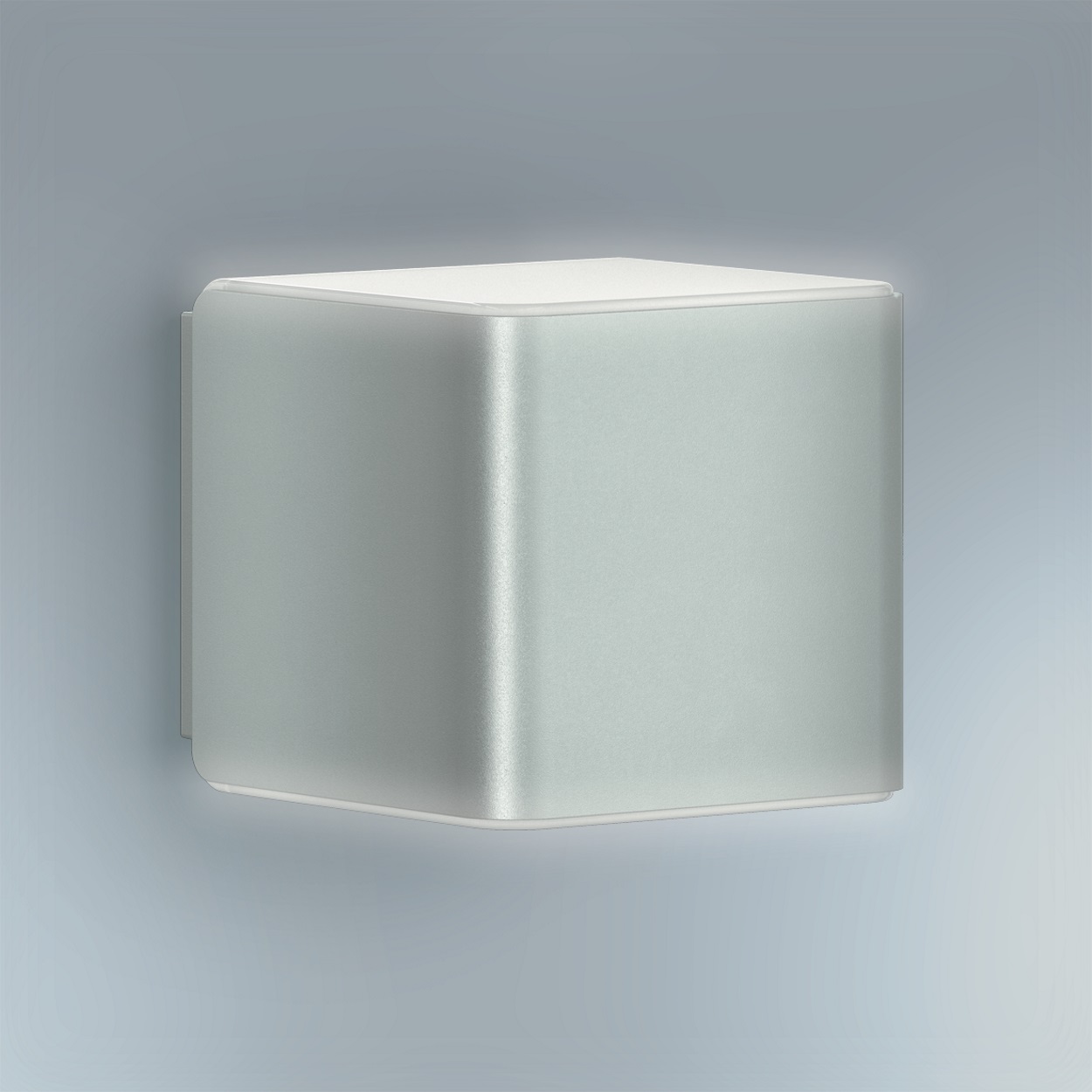

Adjustable main and basic light brighness (10 - 100%)

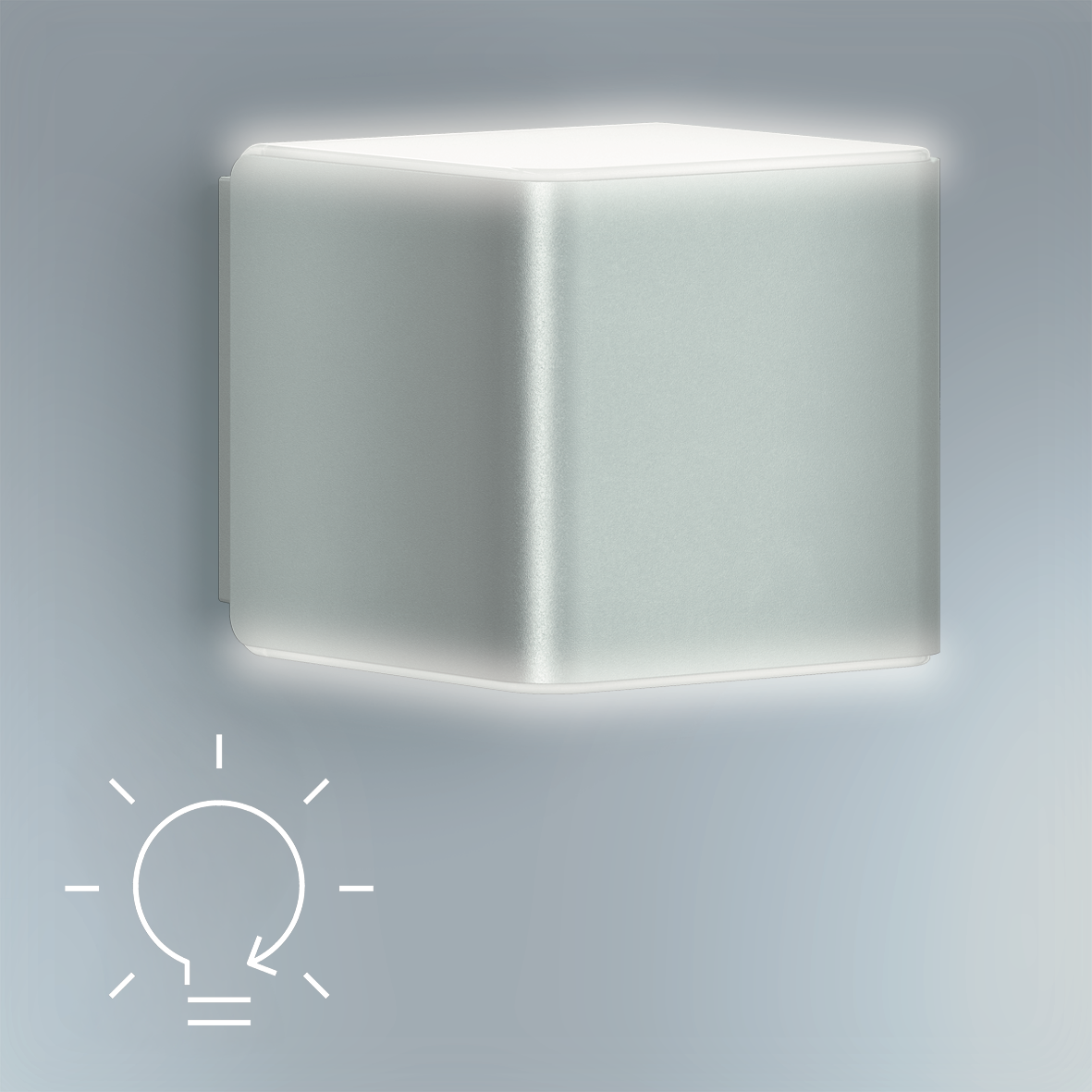

Continuous light individually switchable (optional)

UV resistant material

Technical drawing

Sensor detection areas

Wiring diagram 1

Master/slave interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
