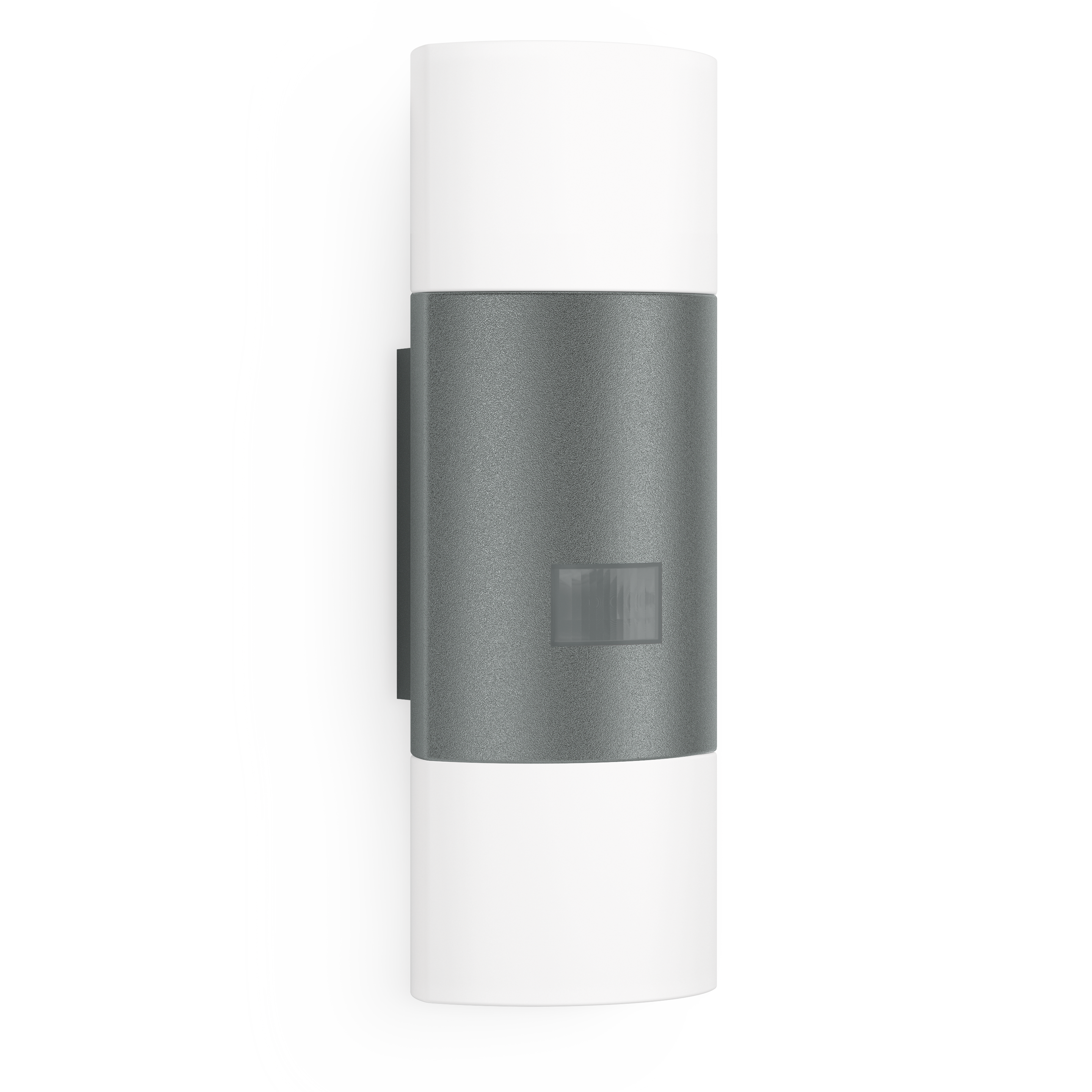

Steinel L 910 S Anthracite

EAN-No. 4007841576202

ELDAS® no. 576202

Version

Without sensor Sensor

Colour

Anthracite Silver

Same technology, even more effective: if you are looking for somewhat more ambient light on the outside of your home, we can offer you an uplight/downlight solution with the L 910 S that's just as stylish as it is efficient. No-maintenance and low-consumption LEDs give you aesthetically pleasing ambient lighting here too whenever you wish thanks to the reliable IR sensor. And if you interconnect them, they will also switch on and off simultaneously. An effect not only appreciated by admirers of aesthetic style.

Outdoor light with motion detector and effective lighting upwards and downwards (Up- & Downlight)
Elegant and simple design, sensor integrated almost invisibly, with pleasant ambient light on the wall
Several luminaires can be networked by cable for synchronous switching around the house

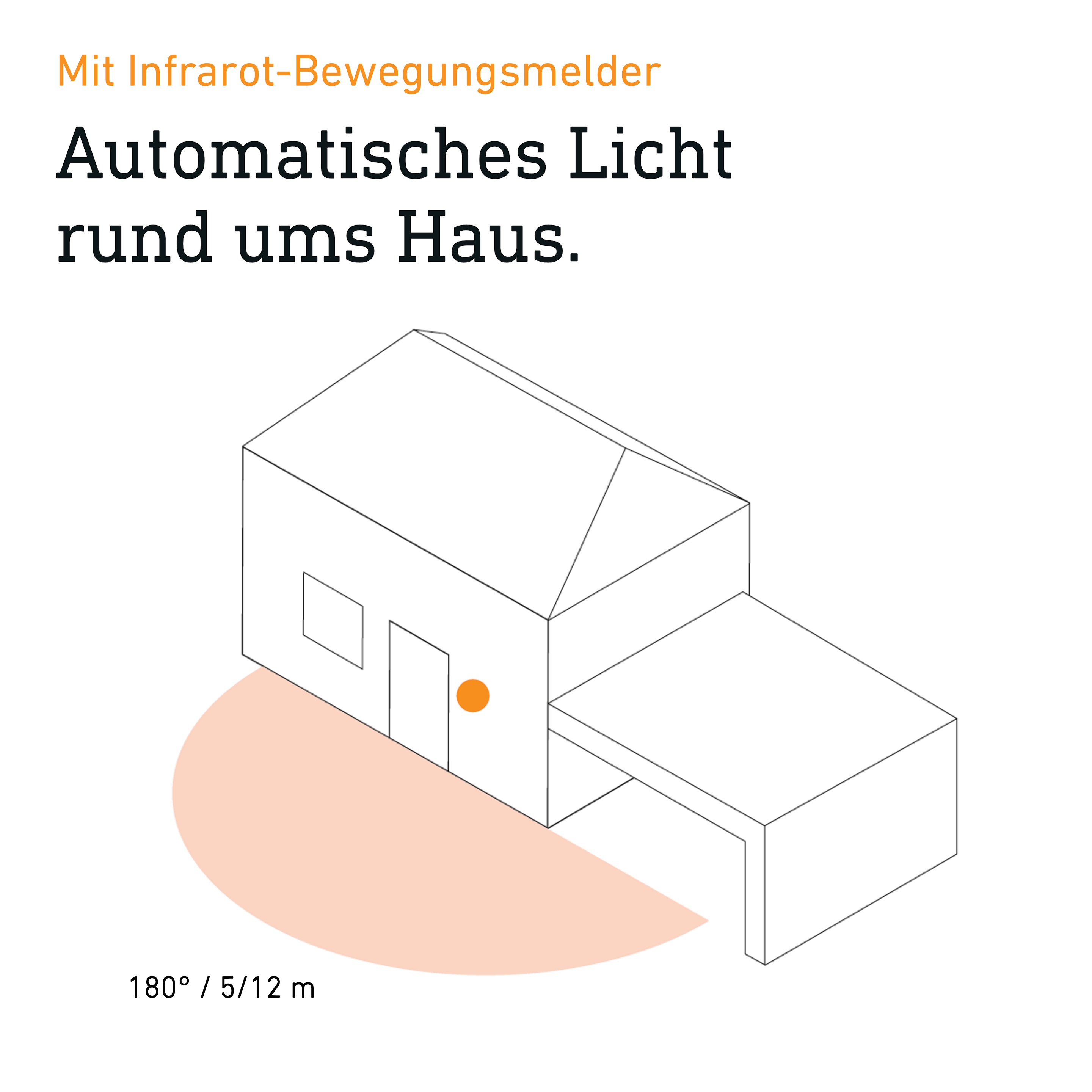

Automatic light thanks to 180 ° Infrared sensor with up to 12 m detection of movement
Functions: adjustable basic light (effect light), night economy mode, pleasant soft light start, 4 hours continuous light
Warm white light (3000 K) and long-life 9,8 W LEDs with 797 lm
Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel

E-number 924364833

Variants

Version Sensor

Colour Anthracite

Dimensions

Dimensions L × W × H 86 x 80 x 235 mm

PU1 net weight 0.7250

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,8 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 2 m (6 m²) / r = 4 m (25 m²)

Tangential range r = 5 m (39 m²) / r = 12 m (226 m²)

Mounting height 1,80 – 2,50 m

Optimal mounting height 2,2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 797 lm

Efficiency 81 lm/W

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index = 82

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Lifetime

LED lifetime L70B50 25°C > 60000 h

Average rated power supply lifetime at 25 °C > 60000 h

Luminous flux decline per LM80 L70B50

Settings

Twilight switch Yes

Twilight setting 2 – 20 lx

Time setting 120 s – 15 Min.

Base light function Yes

Base light function detail LED effect light

Base light function time all/half night

Settings via DIP switches

With remote control No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, opal

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room outdoors front door all round the building terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

Certificates TÜV

EPREL category Surrounded product with integrated light source

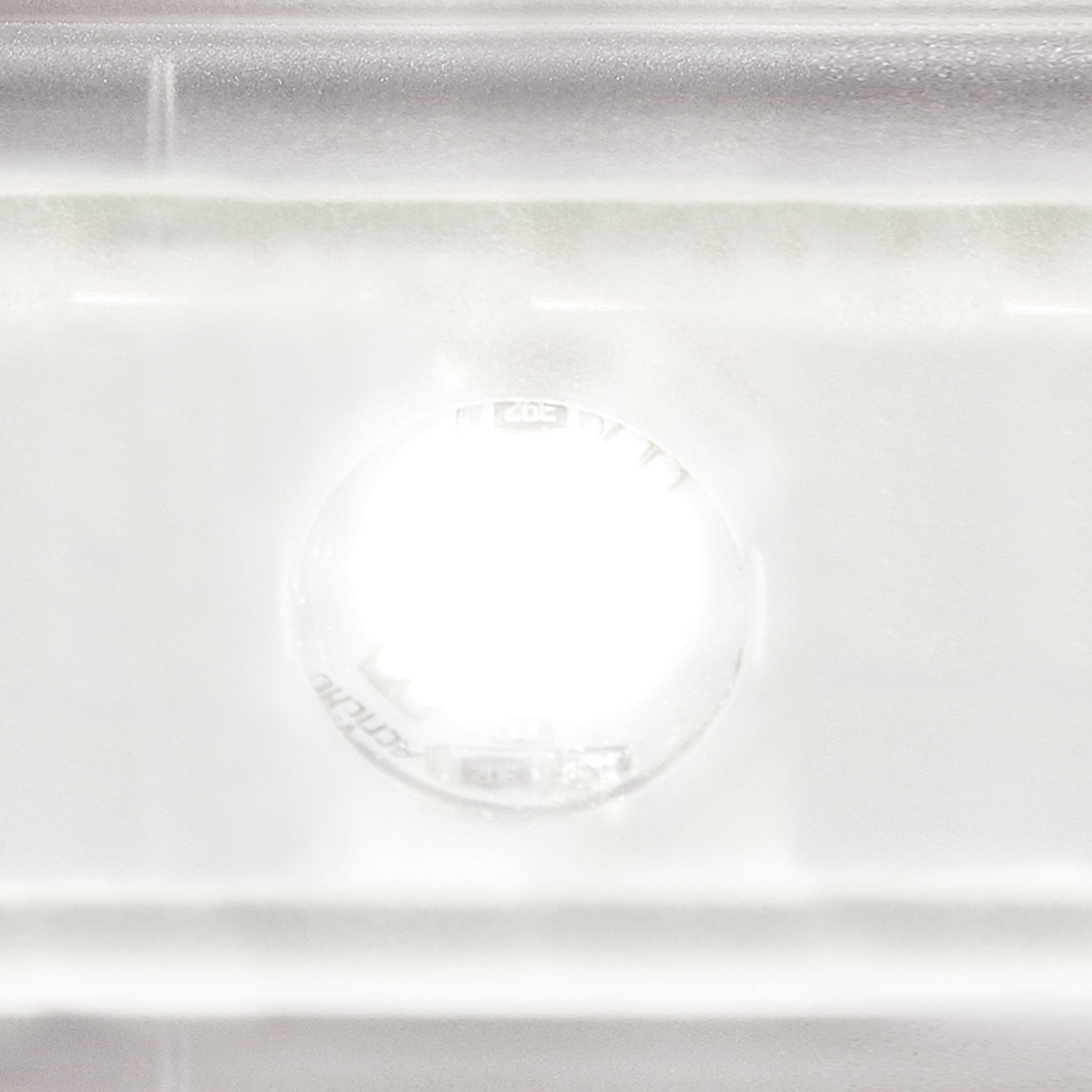

Including STEINEL LED system

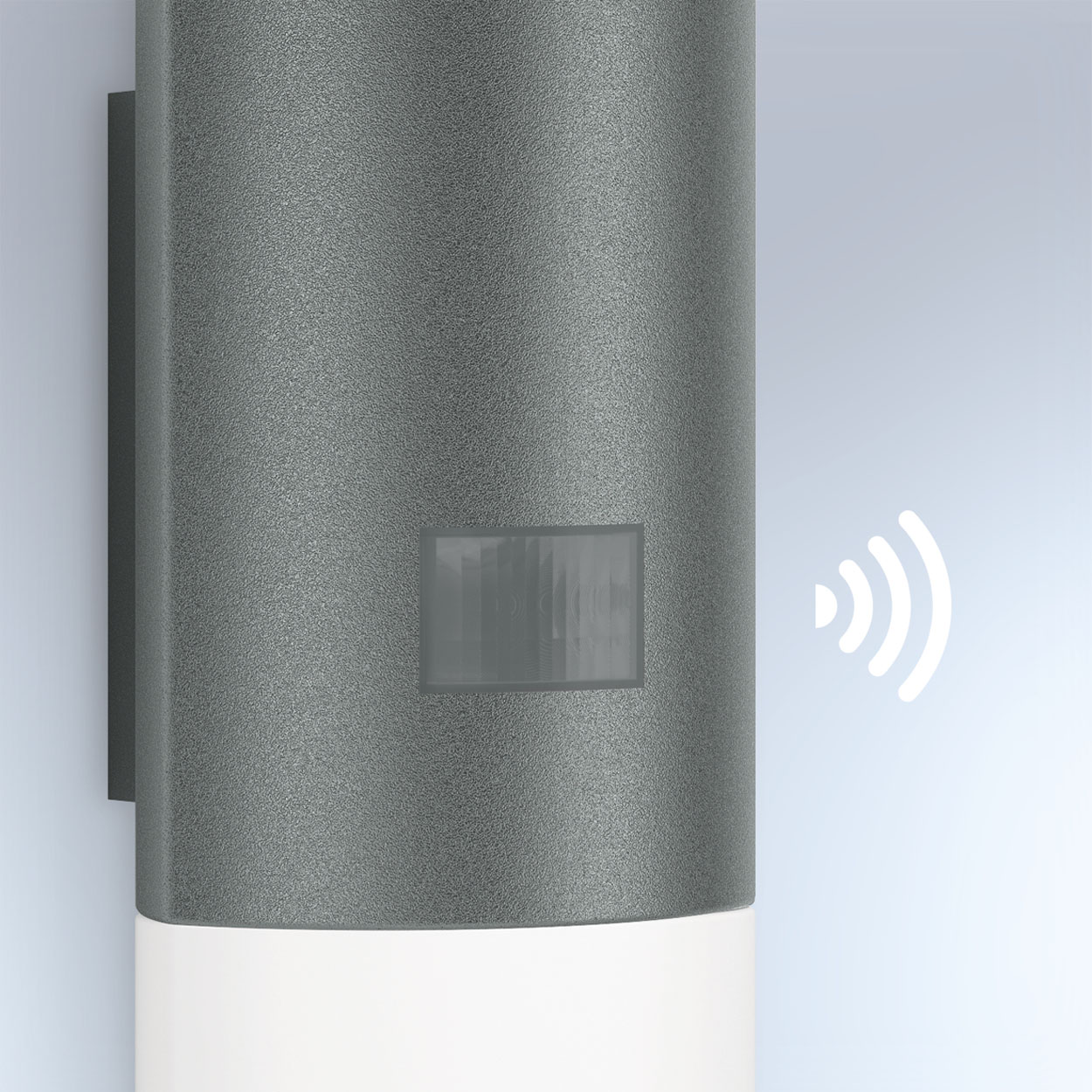

Sensor integrated almost invisibly

Intelligent soft light start

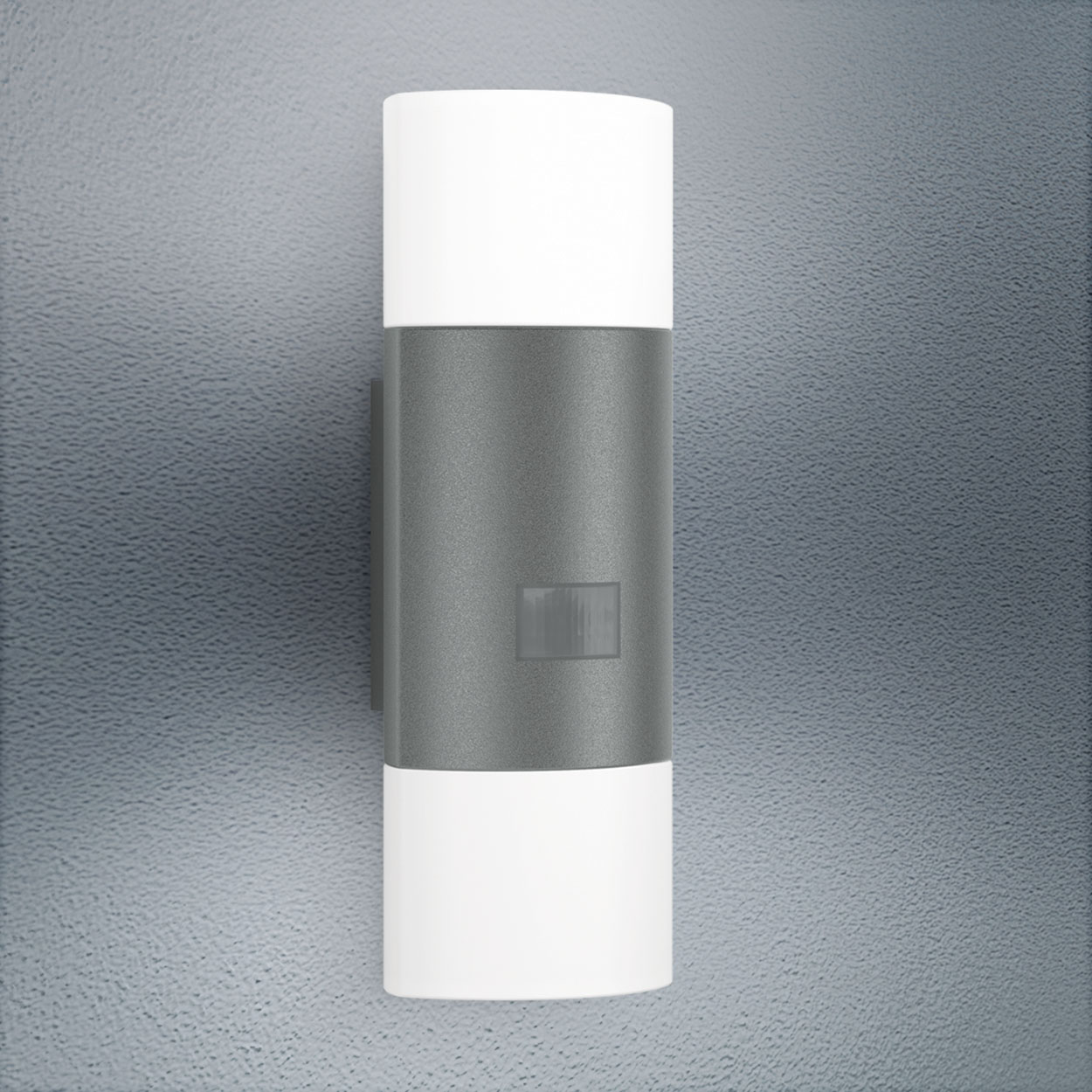

Effect lighting on the wall

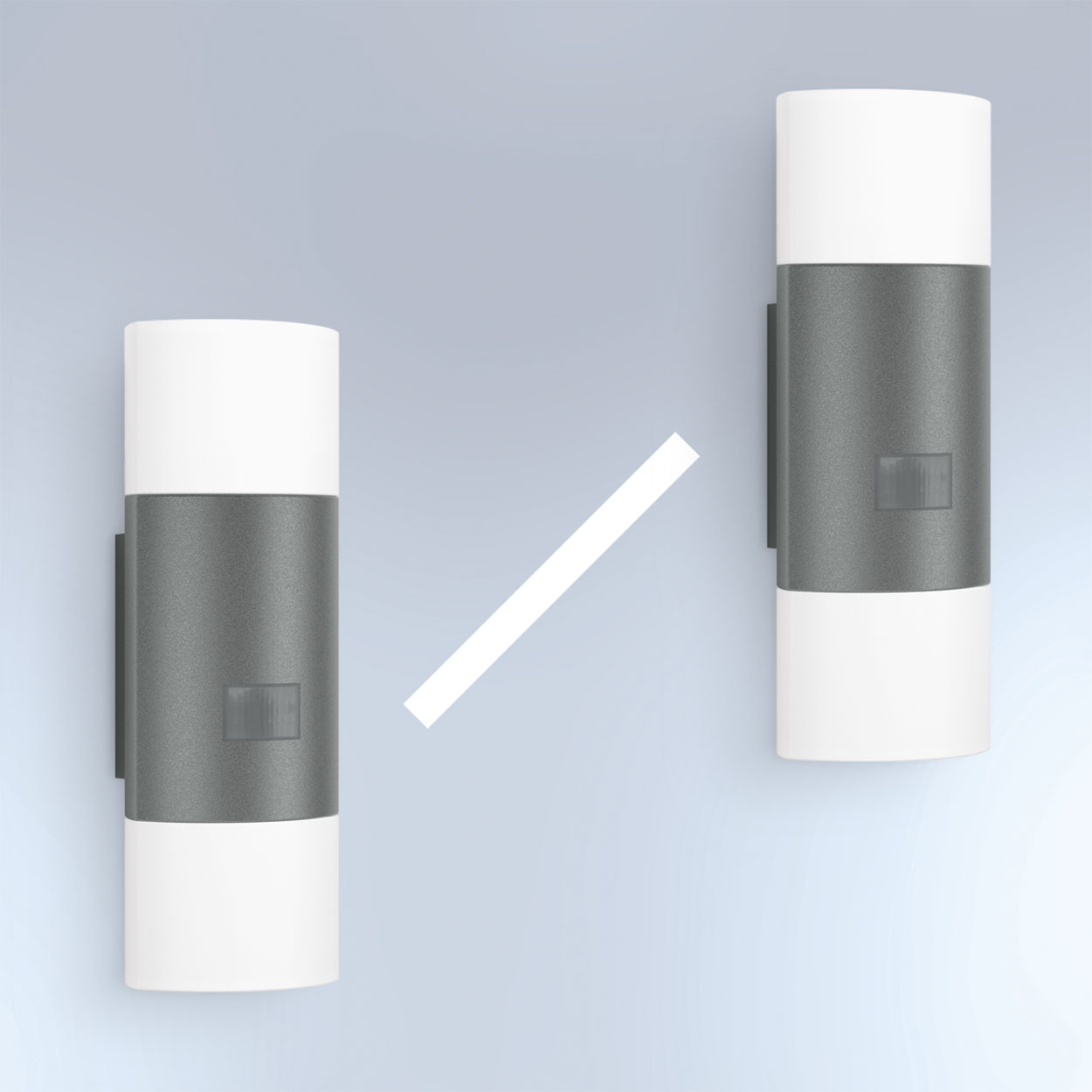

Interconnectable by cable

High-quality aluminium

Setting options protected from the weather and from outside influences

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet Declaration of conformity Drilling template LDT file (light distribution)
