Steinel LS 150 S black

EAN-No. 4007841052546

ELDAS® no. 052546

Price: Please log in to see prices

Colour

White Black

Luminous flux

3120 lm 1760 lm

Sensor

With sensor Without sensor

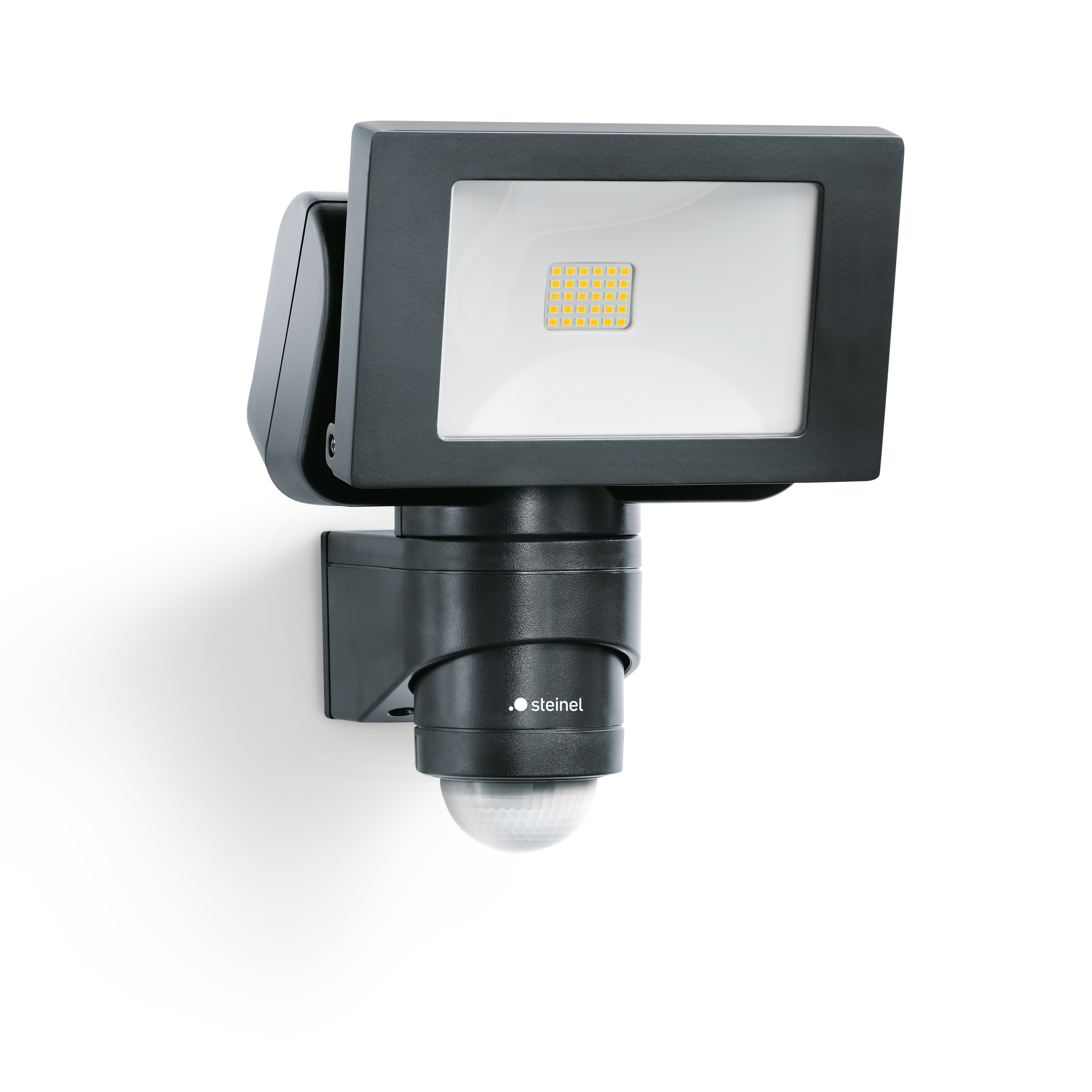

The powerful LS 150 S sensor-switched LED floodlight illuminates large areas around the building with a light output of 1375 lm, making it extremely effective in keeping uninvited guests at bay. With its integrated infrared sensor, this intelligent floodlight reliably illuminates dark spaces with light in a pleasant colour temperature of 4000 K. Using only 14,7 W of power, it also shines in the consumption stakes. As an added bonus, its attractively understated design blends perfectly into any surroundings to provide a look of overall harmony. The robust LED floodlight with aluminium floodlight head is available in black or white.

Spotlight with motion detector with robust aluminium spotlight head and optimum light diffusion thanks to ceramic reflector
Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

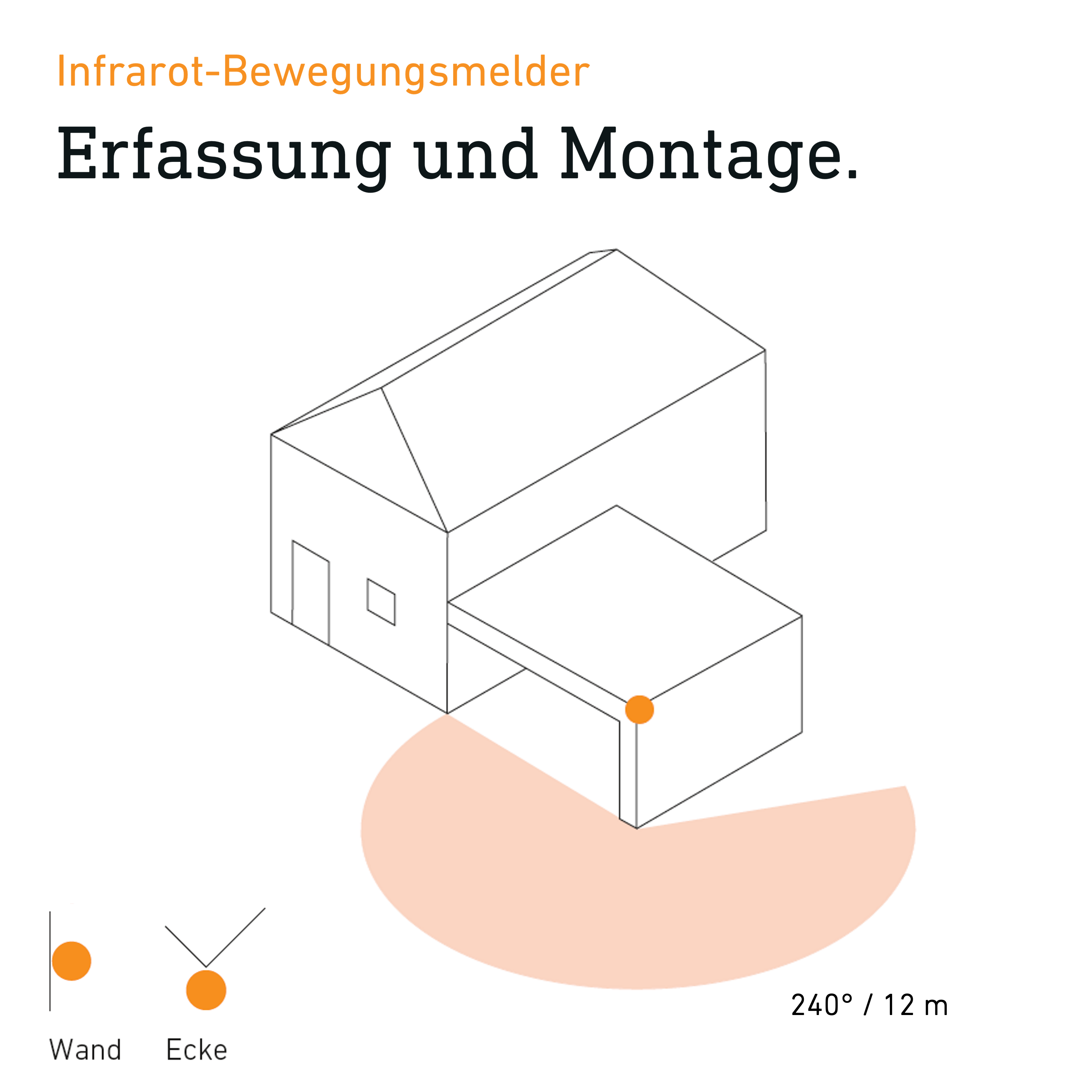

Automatic light thanks to 240 ° Infrared sensor with up to 12 m detection of movement

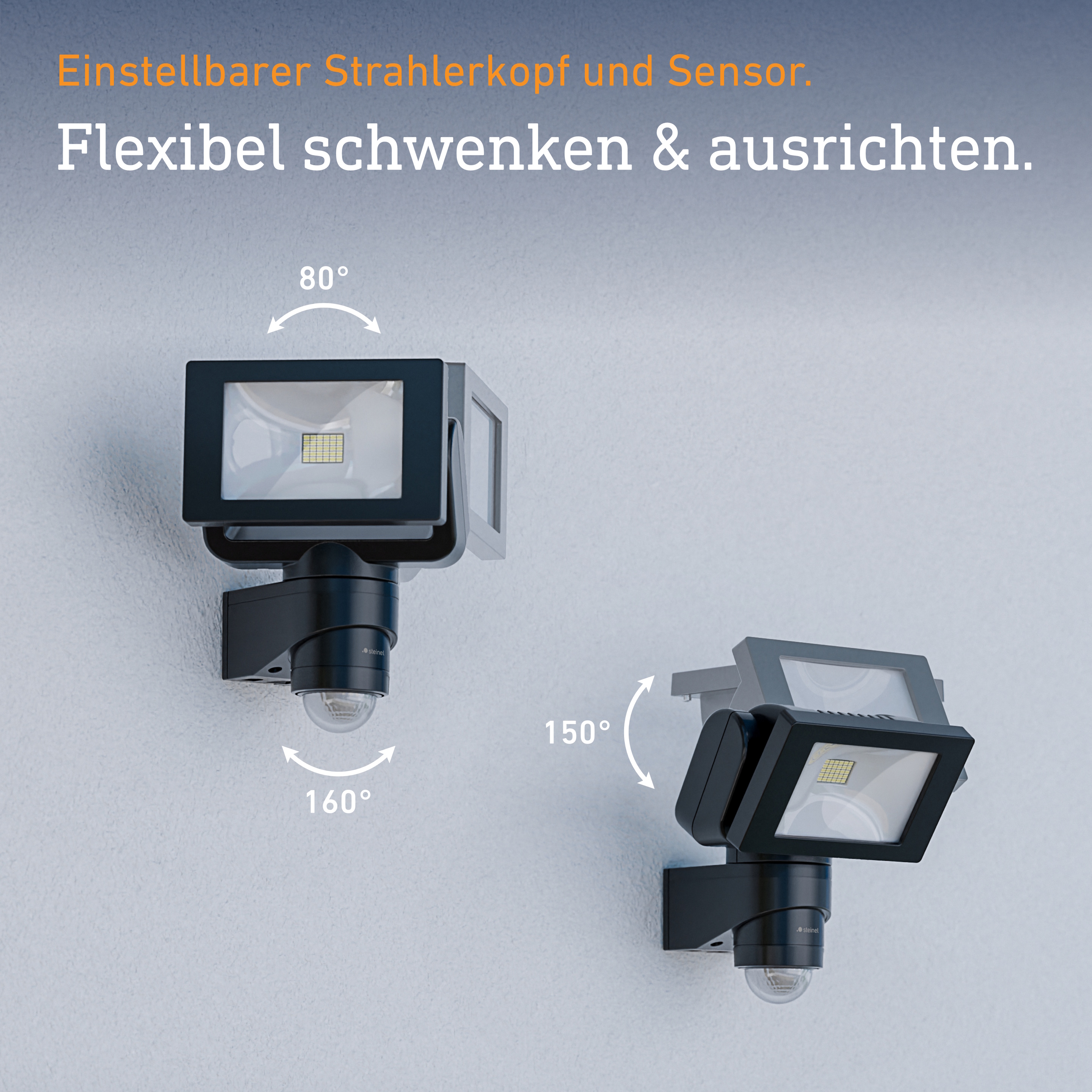

Spotlight head can be swivelled horizontally by 80° and vertically by 150°, sensor can be swivelled horizontally by 160°, incl. covers for exact adjustment of the detection area

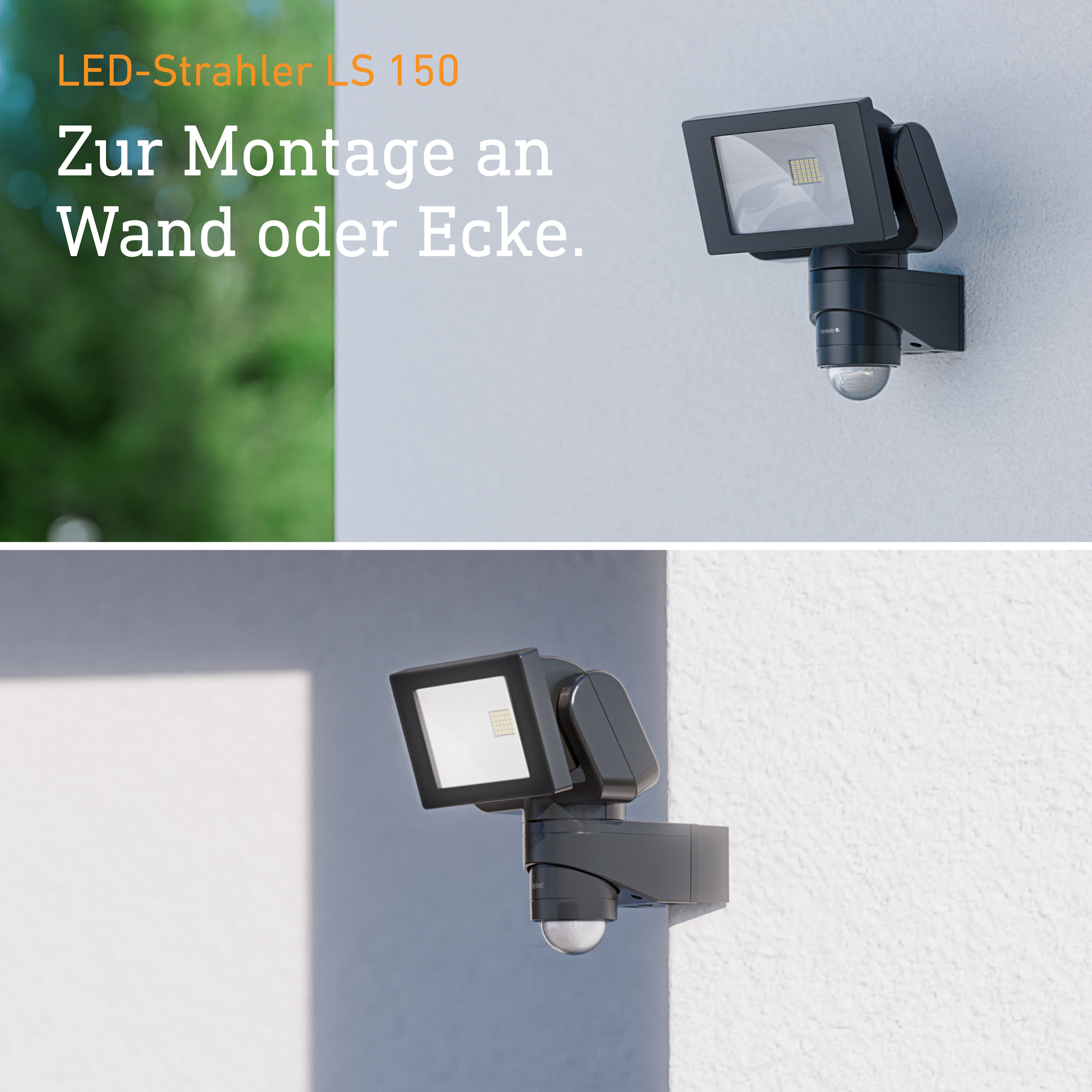

Optional corner wall bracket available for reliable and uninterrupted monitoring of an area in front of two house walls
Neutral white light (4000 K) and long-life 14,7 W LEDs with 1375 lm, with an illumination of max. 150 sqm, max. 4m mounting height
Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel

E-number 924712411

Variants

Colour Black

Luminous flux 1760 lm

Sensor With sensor

Dimensions

Dimensions L × W × H 176 x 155 x 210 mm

PU1 net weight 0.8830

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 14,7 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 240 °

Opening angle 180 °

Sneak-under protection Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3.5 m (26 m²)

Tangential range r = 12 m (302 m²)

Mounting height 1,8 – 4 m

Optimal mounting height 2 m

Nevalux sensor technology On / Off

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 1486 lm

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

Soft light start No

Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime L70B50 25°C > 36000 h

Settings

Twilight setting 2 – 1000 lx

Time setting 10 s – 15 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -10 up to 30 °C

Housing material Aluminium

Cover material Glass transparent

Cover material (scope of delivery) shrouds

Mounting location wall corner

Application location Outdoors

Mounting type Surface wiring

Application room outdoors all round the building courtyard & driveway

Colour black

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class E

EPREL category Light source

Cross-/up-selling

Accessories 12172

Including STEINEL LED system

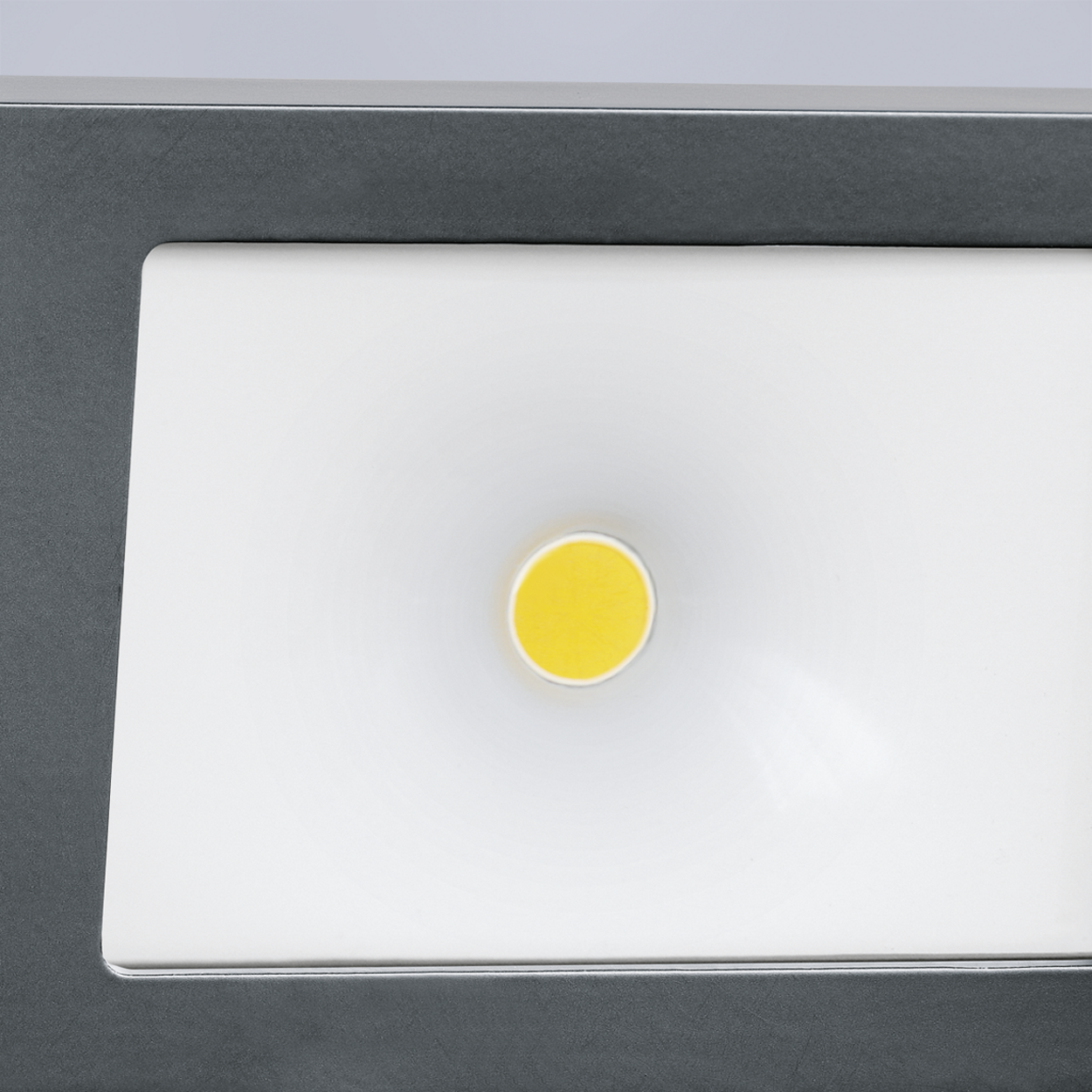

UV-resistant plastic

Colour rendering index Ra ≥80

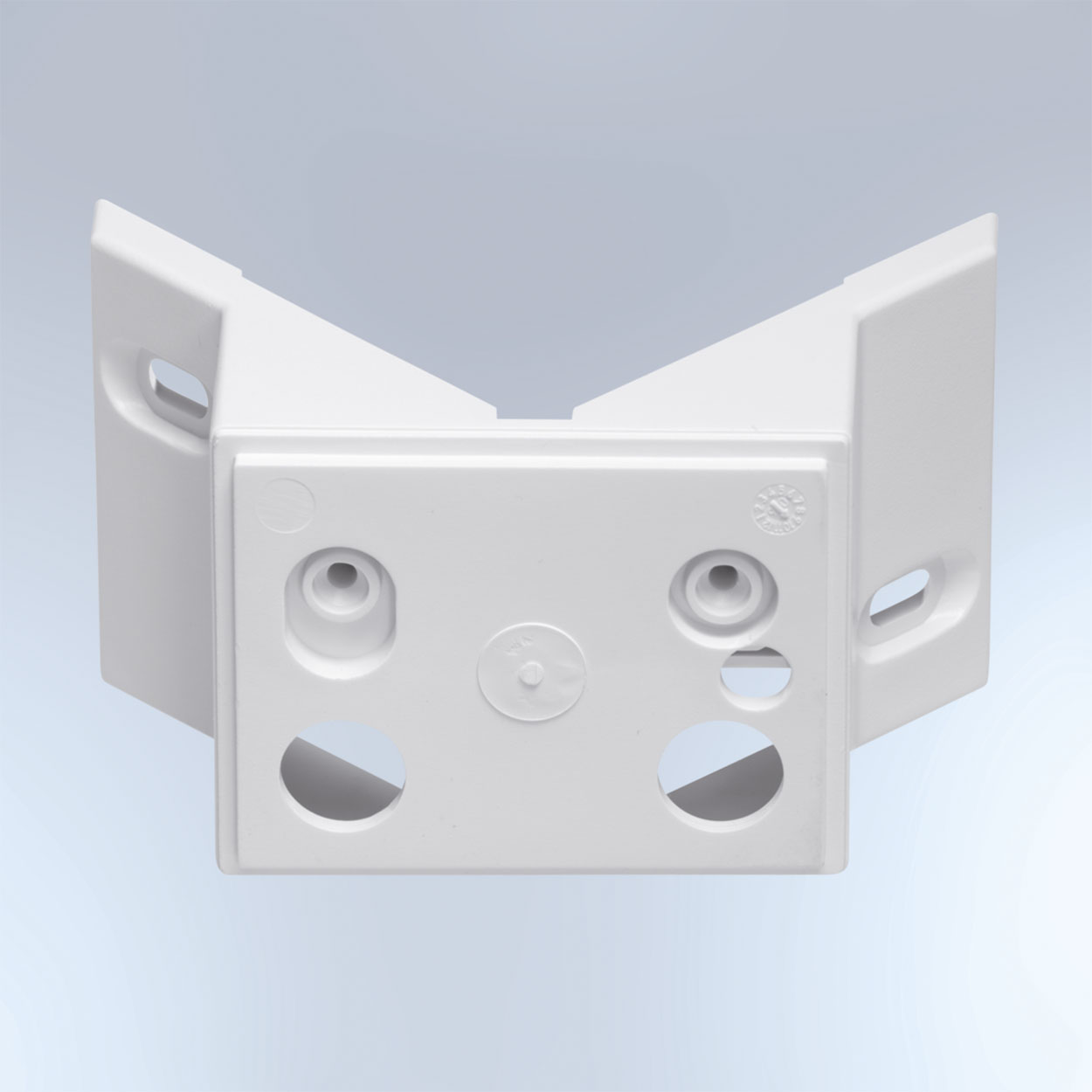

Optional corner wall mount bracket

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram

Data sheet Declaration of conformity Drilling template

Corner wall mount LS 150 S black

Item no. 630560
