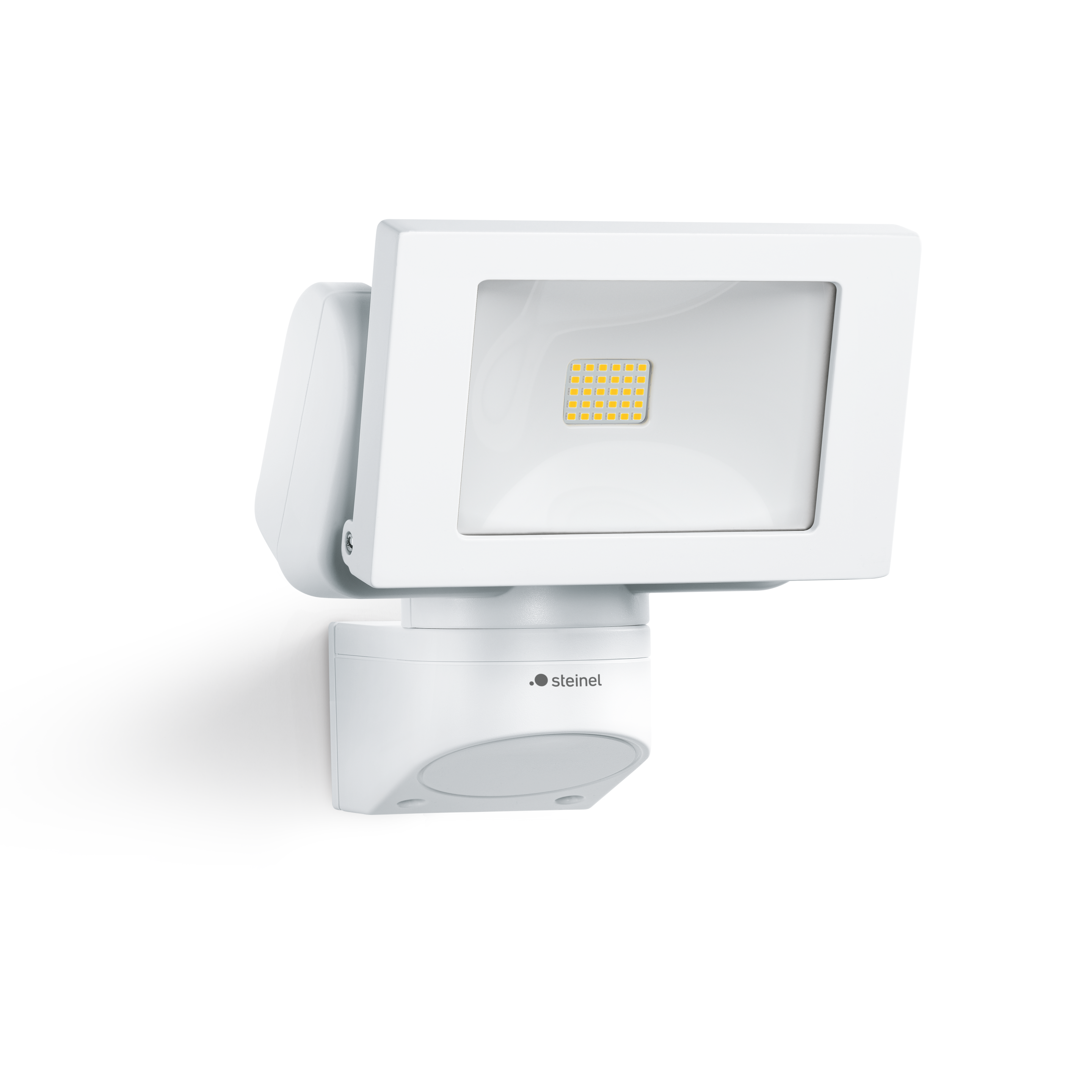

Steinel LS 150 white

Steinel LS 150 white

EAN-No. 4007841069223 · ELDAS® no. 069223

Steinel

Steinel LS 150 white

EAN-No. 4007841069223

ELDAS® no. 069223

Price: Please log in to see prices

Colour

White Black

Luminous flux

3120 lm 1760 lm

Sensor

With sensor Without sensor

With its neutral white light (4,000 K), the LS 150 spotlight (without sensor) provides exceptionally bright moments outdoors. Meanwhile, the low consumption value ensures bright enthusiasm, as just 22.6 W are required for 1760 lm. The spotlight, equipped with a ceramic reflector, is available in black or white, has protection class IP 44 and can be adjusted by 80° horizontally and 150° vertically. Corner mounting is also possible as an option. High-quality materials such as UV-resistant plastic and elegant aluminium make the spotlight robust and guarantee a long service life. Speaking of which: with an operating time of 4.5 hours per day, the LED service life amounts to about 30 years. As the LS 150 has no sensor, it is switched on and off manually by a switch.

  • Spotlight without motion detector with robust aluminium spotlight head and optimum light diffusion thanks to ceramic reflector
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

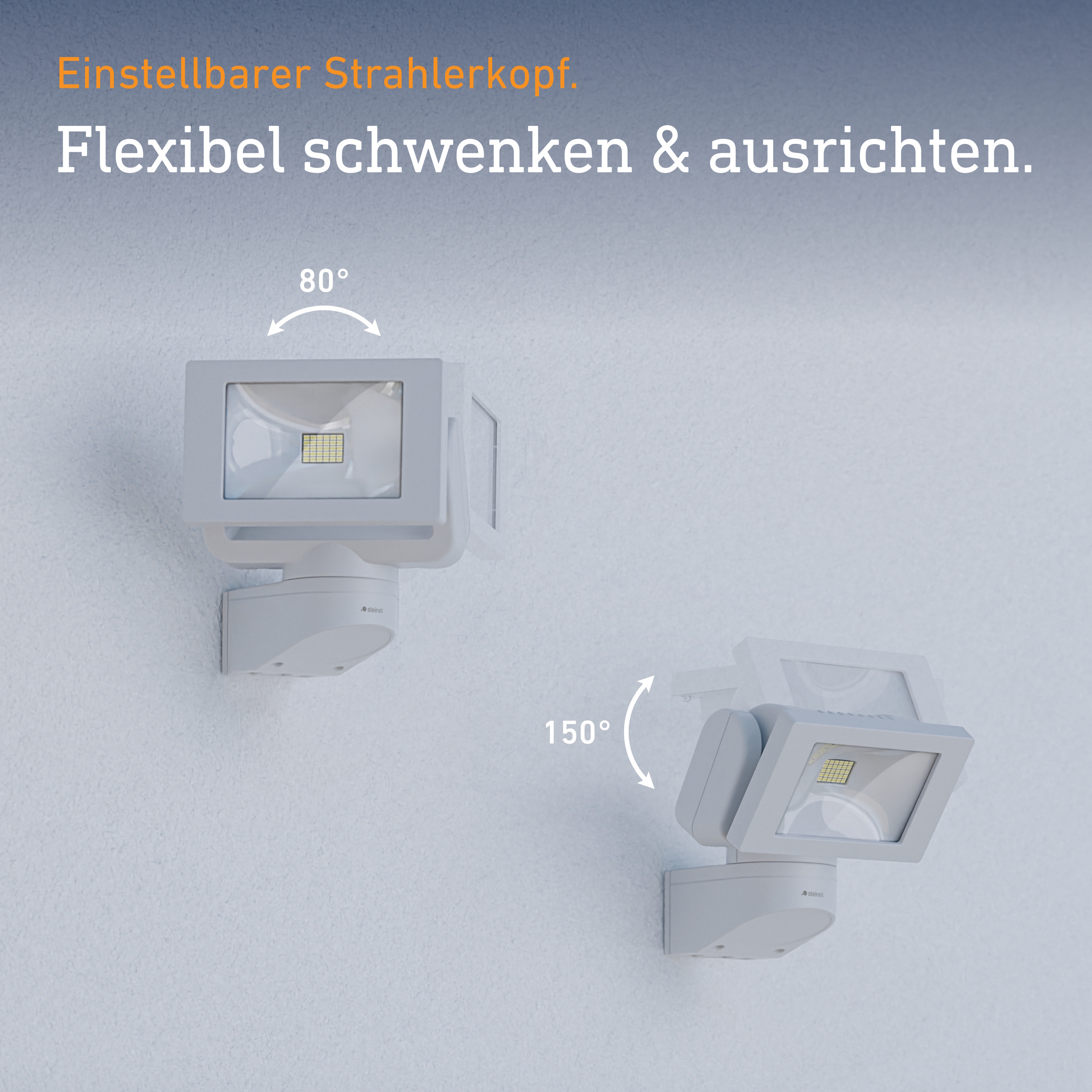

  • Spotlight head can be swivelled horizontally by 80° and vertically by 150°
  • Optional corner wall bracket available for optimal illumination of an area in front of two house walls
  • Neutral white light (4000 K) and long-life 14,7 W LEDs with 1375 lm, with an illumination of max. 150 sqm
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941502209

Variants

Colour White
Luminous flux 1760 lm
Sensor Without sensor

Dimensions

Dimensions L × W × H 178 x 157 x 178 mm
PU1 net weight 0.8100

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 14,7 W

Sensor technology

With motion detector No
Nevalux sensor technology On / Off

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 1486 lm
Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No
Efficiency without cover 77 lm/W

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 36000 h

Settings

Base light function No
Main light adjustable No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -10 up to 30 °C
Housing material Aluminium
Cover material Glass transparent
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room garden front door courtyard & driveway multi-storey / underground car park all round the building terrace / balcony
Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years
Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Light source

Including STEINEL LED system

UV-resistant plastic

Colour rendering index Ra ≥80

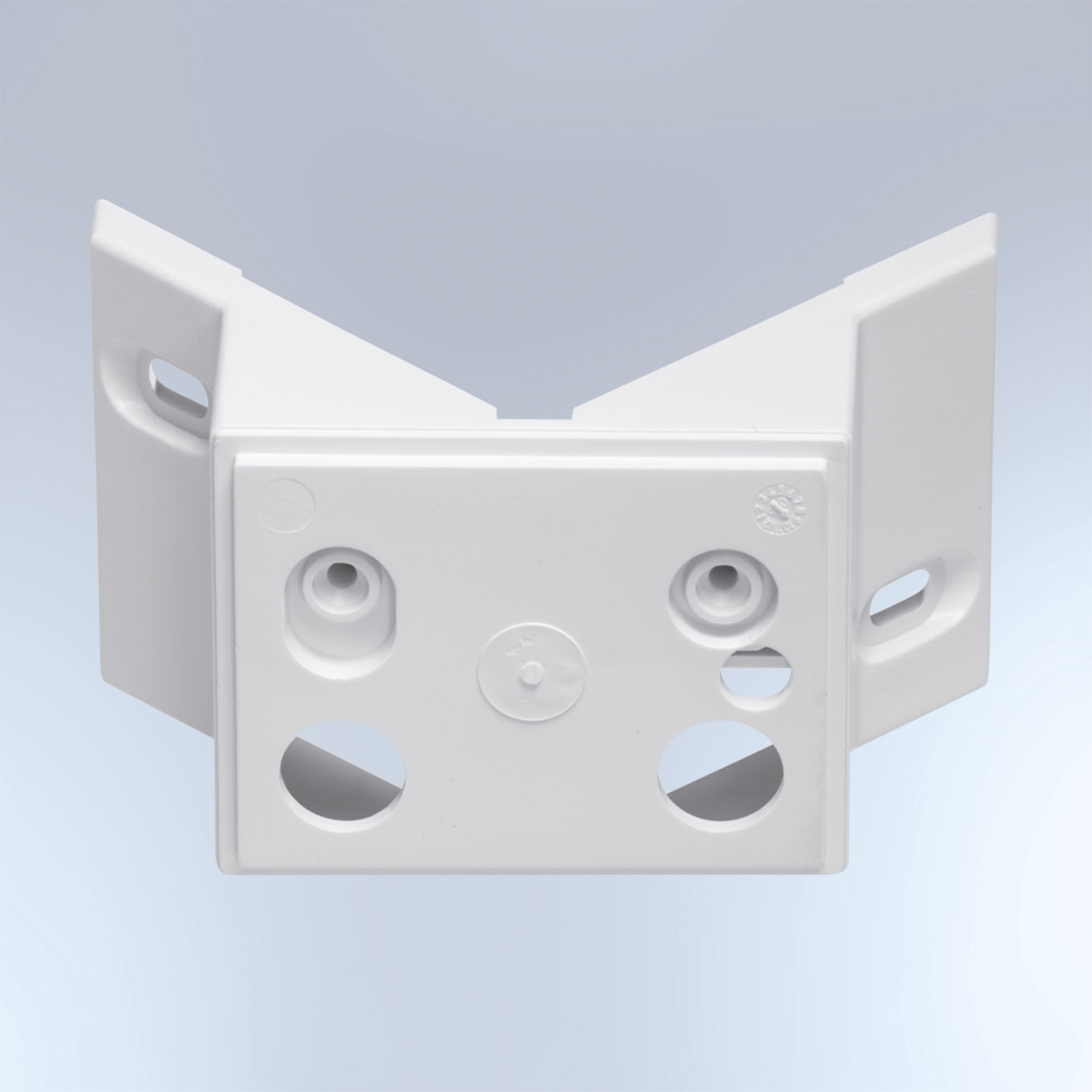

Optional corner wall mount bracket

Technical drawing

Wiring diagram 1

Circuit diagram
