Steinel LS 300 black

Steinel LS 300 black

EAN-No. 4007841069230 · ELDAS® no. 069230

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

Steinel LS 300 black

EAN-No. 4007841069230

ELDAS® no. 069230

Price: Please log in to see prices

Colour

White Black

Luminous flux

3120 lm 1760 lm

Sensor

With sensor Without sensor

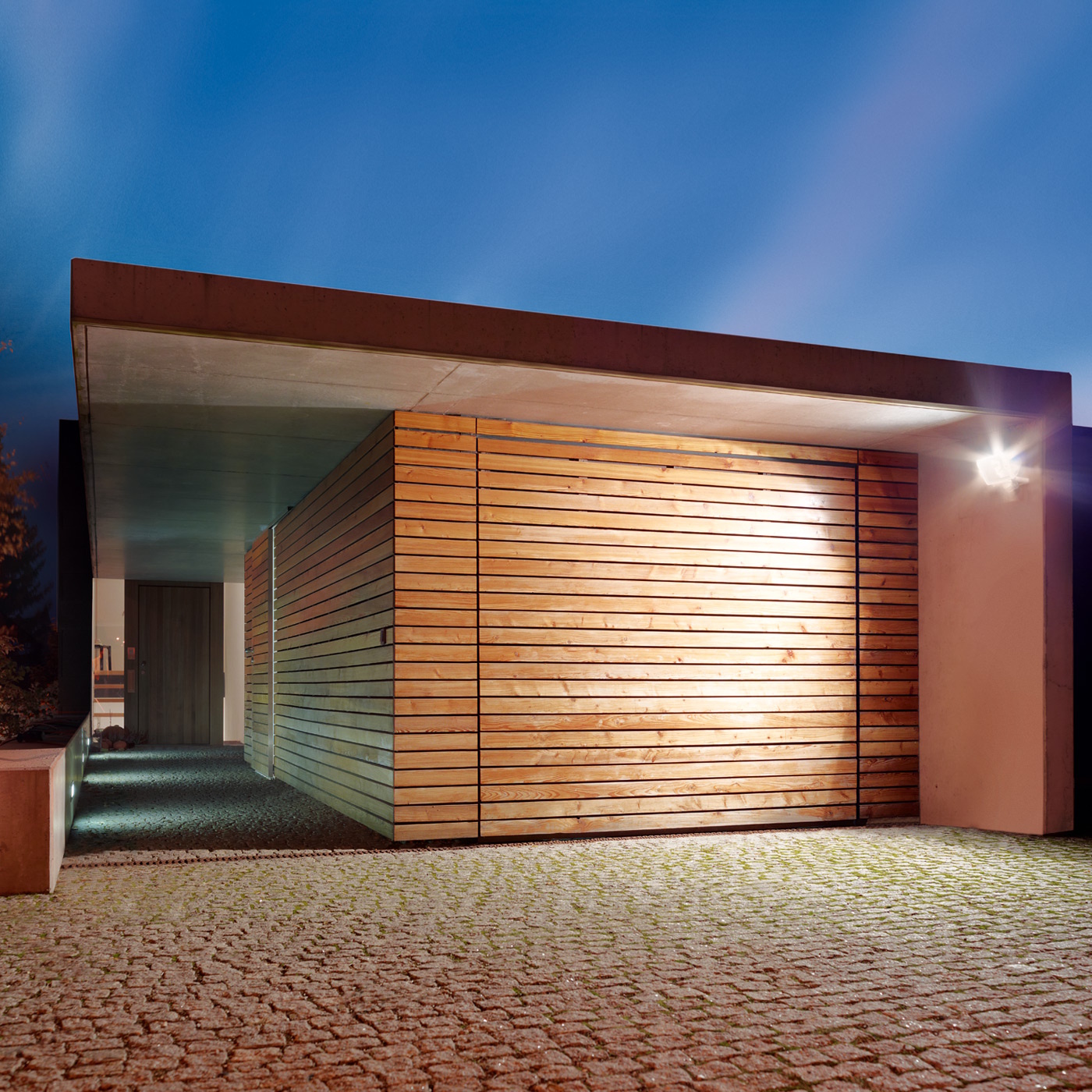

The LS 300 LED floodlight (without sensor) turns night into day with neutral white light (4,000 K). However, the consumption value is surprisingly low, at just 29,5 W for 2704 lm. The powerfully bright LED floodlight can be adjusted through 80° horizontally and 150° vertically. For the perfect illumination of courtyard entries, side entries, driveways, etc. right into the darkest corner. The LED floodlight, equipped with a high-quality ceramic reflector, is available in either black or white. Robust materials such as the UV-resistant plastic and elegant aluminium guarantee a long service life. The LS 300 is switched ON and OFF manually via switch.

  • Spotlight without motion detector with robust aluminium spotlight head and optimum light diffusion thanks to ceramic reflector
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

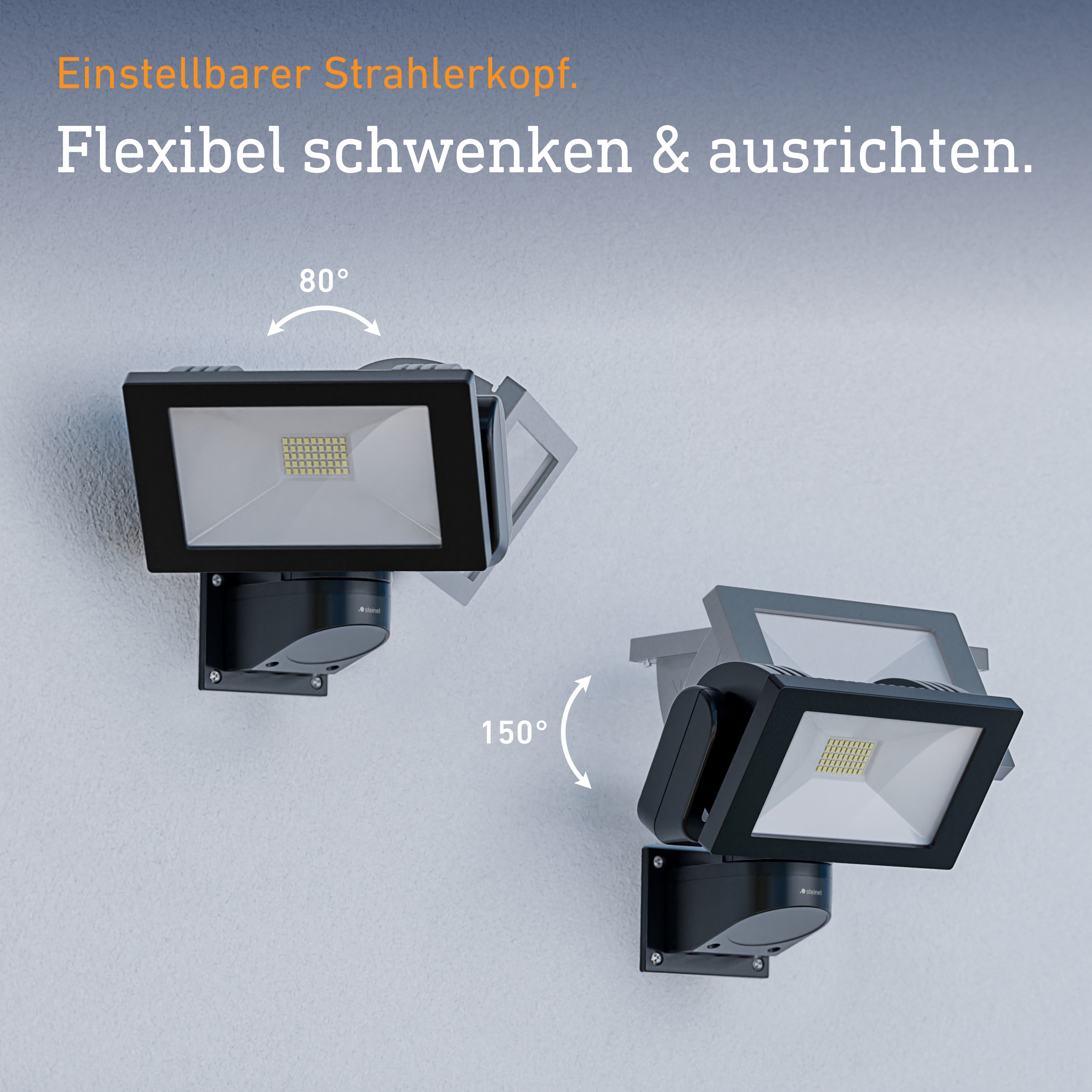

  • Spotlight head can be swivelled horizontally by 80° and vertically by 150°
  • Neutral white light (4000 K) and long-life 29,5 W LEDs with 2704 lm, with an illumination of over 300 sqm
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941502239

Variants

Colour Black
Luminous flux 3120 lm
Sensor Without sensor

Dimensions

Dimensions L × W × H 184 x 213 x 218 mm
PU1 net weight 1.1600

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 29,5 W

Sensor technology

With motion detector No
Nevalux sensor technology On / Off

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 2962 lm
Colour temperature 4000 K
LED colour deviation SDCM6
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 36000 h
Luminous flux decline per LM80 L70B50

Settings

Base light function No
Main light adjustable No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -10 up to 30 °C
Housing material Aluminium
Cover material Glass transparent
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room outdoors garden courtyard & driveway multi-storey / underground car park all round the building terrace / balcony
Colour black

Scope of delivery & warranty

Manufacturer warranty 3 years
Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class F
EPREL category Light source

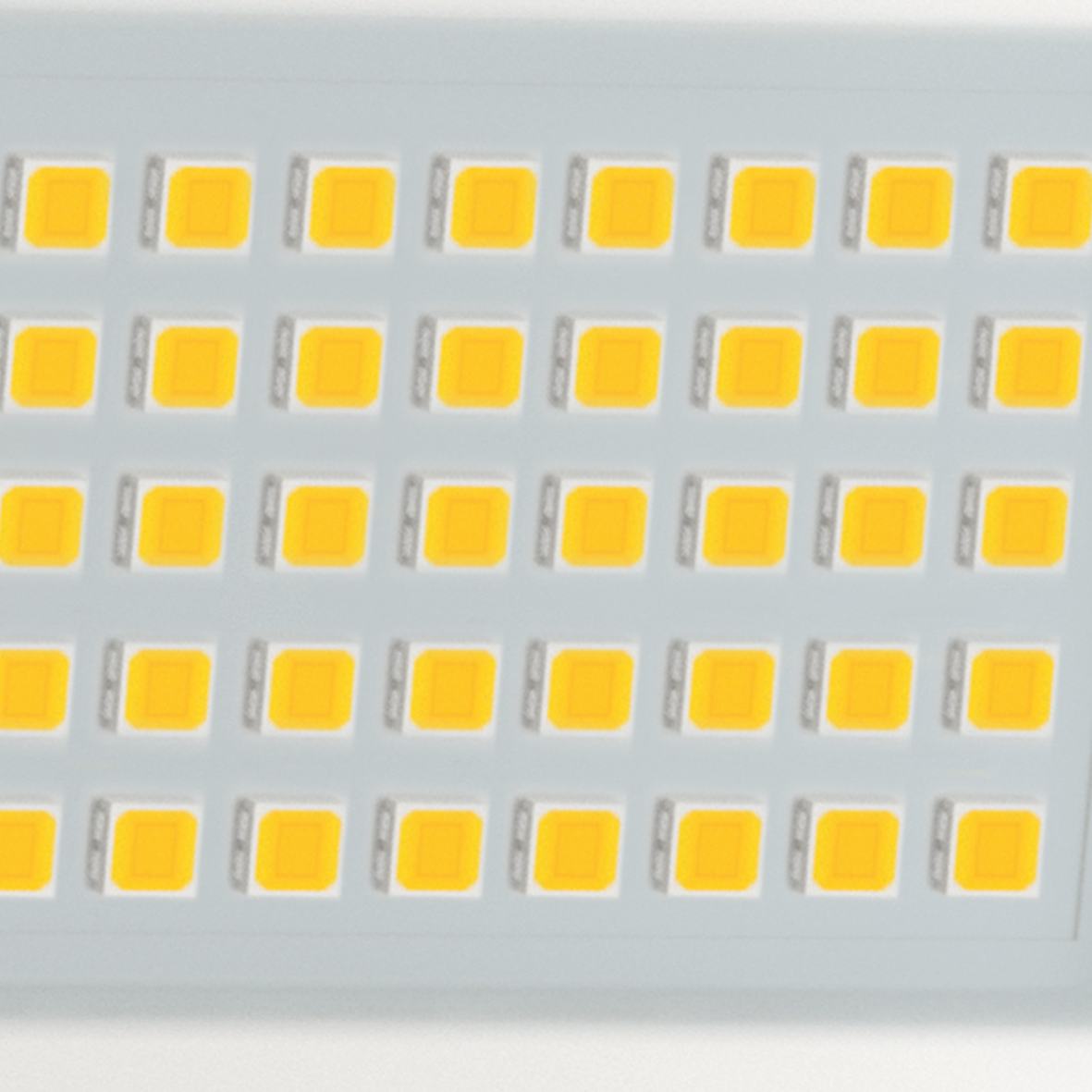

Including STEINEL LED system

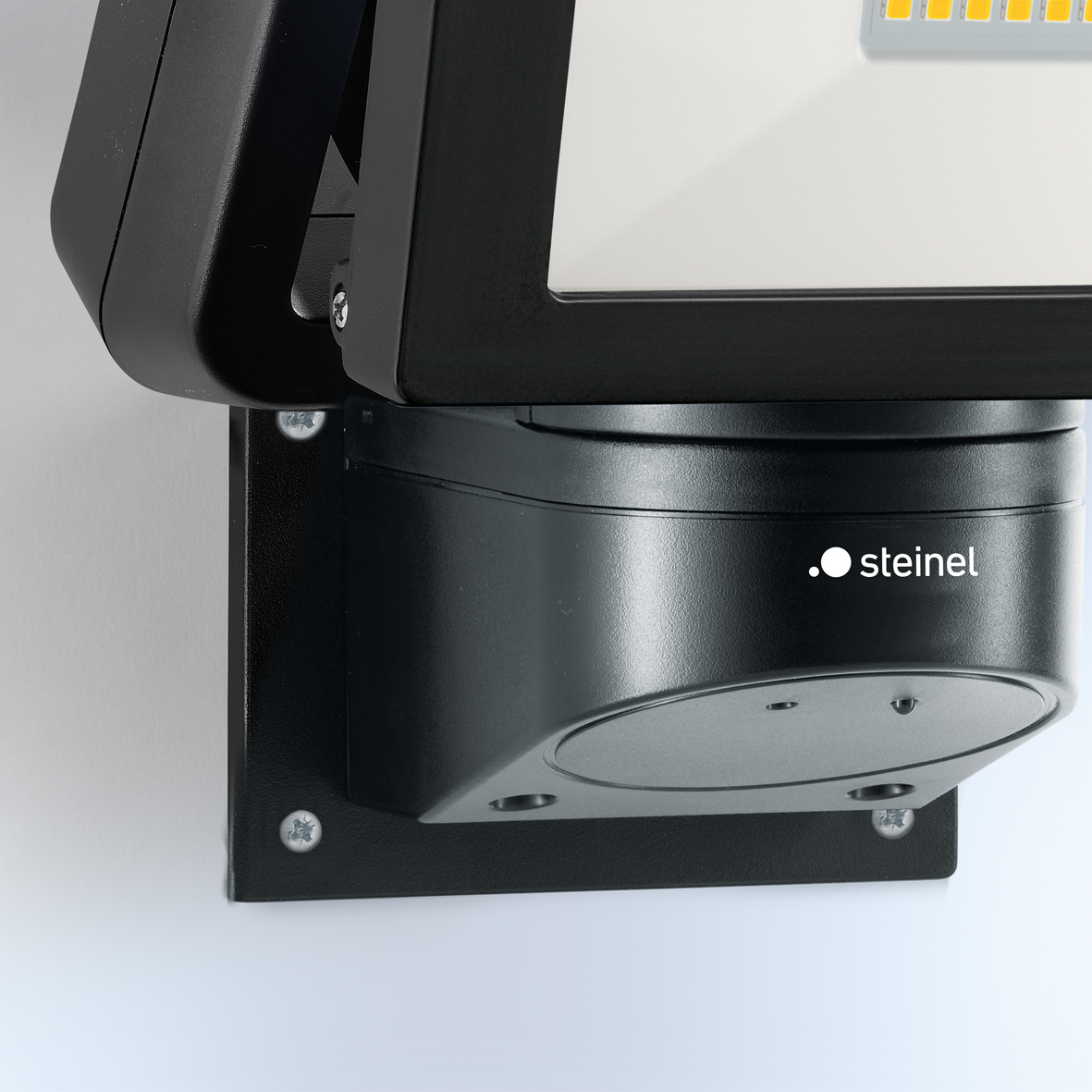

UV-resistant plastic

Colour rendering index Ra ≥80

Technical drawing

Wiring diagram 1

Circuit diagram
