Steinel LS 300 S white

Steinel LS 300 S white

EAN-No. 4007841067588 · ELDAS® no. 067588

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

Steinel LS 300 S white

EAN-No. 4007841067588

ELDAS® no. 067588

Price: Please log in to see prices

Colour

White Black

Luminous flux

3120 lm 1760 lm

Sensor

With sensor Without sensor

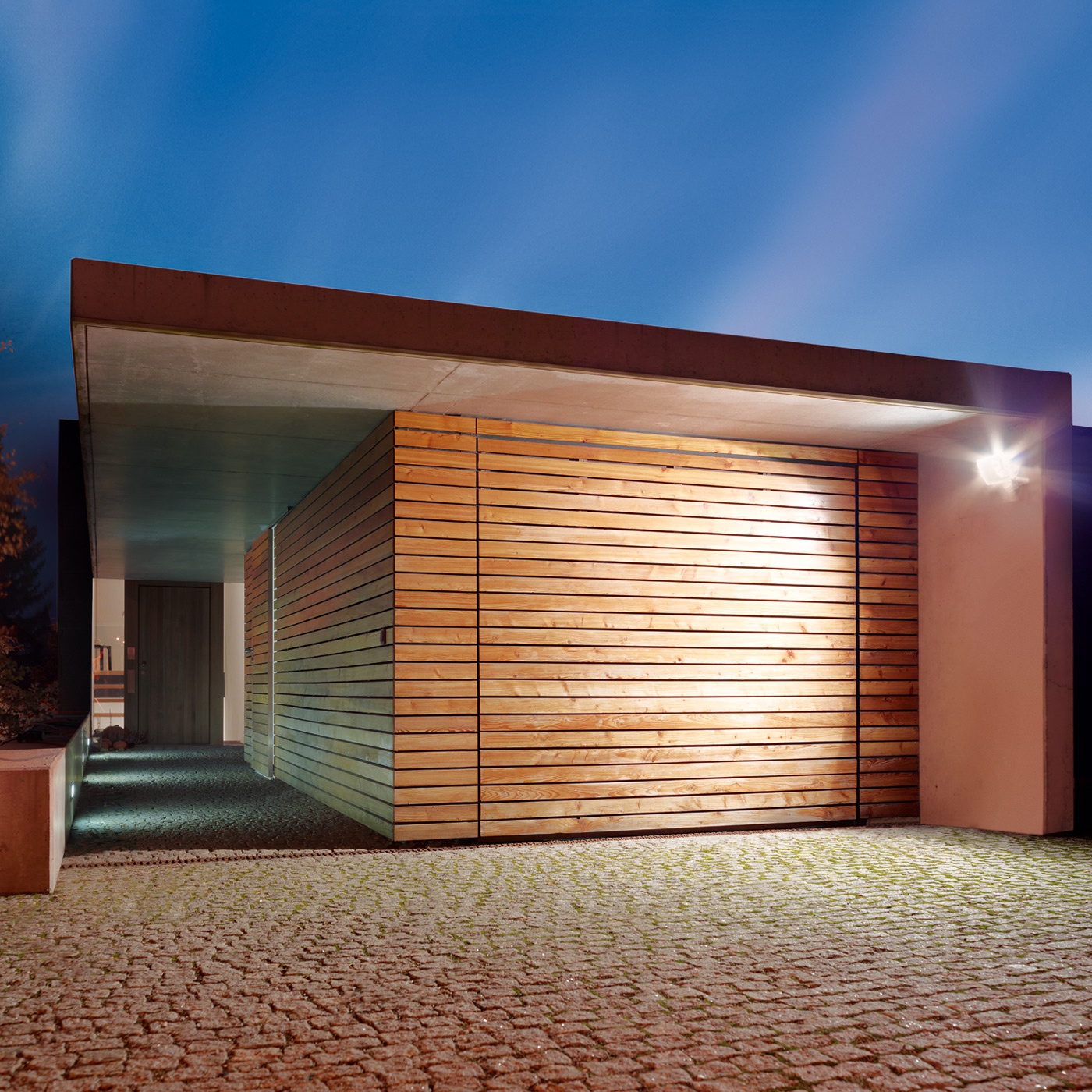

The LS 300 S sensor-switched LED floodlight with a pleasant light colour of 4000 K turns your driveway with a light output of 2704 lm and a consumption off only 29,5 W into a playing pitch at night too. With its ceramic reflector it puts the spotlight on eye-catching attractions, illuminates the way to the front door or frightens off uninvited guests. We have developed the attentive floodlight especially for needs at the front of homes, driveways and side entrances. Of course, the light durationand the light-level threshold at which the sensor responds is defined by no other than you yourself. The robust LED spotlight with aluminium spotlight head is available in black and white.

  • Spotlight with motion detector with robust aluminium spotlight head and optimum light diffusion thanks to ceramic reflector
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)
  • Automatic light thanks to 240 ° Infrared sensor with up to 12 m detection of movement
  • Spotlight head can be swivelled horizontally by 80° and vertically by 150°, sensor can be swivelled horizontally by 160°, incl. covers for exact adjustment of the detection area
  • Neutral white light (4000 K) and long-life 29,5 W LEDs with 2704 lm, with an illumination of over 300 sqm, max. 4m mounting height
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941502249

Variants

Colour White
Luminous flux 3120 lm
Sensor With sensor

Dimensions

Dimensions L × W × H 186 x 213 x 241 mm
PU1 net weight 1.2400

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 29,5 W
Own consumption 30,4 W

Sensor technology

Max. mounting height 4,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 240 °
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range r = 3.5 m (26 m²)
Tangential range r = 12 m (302 m²)
Mounting height 1,8 – 4,00 m
Optimal mounting height 2 m
Nevalux sensor technology On / Off

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 2962 lm
Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No
Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 36000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Time setting 10 s – 15 Min.
Base light function No
Settings via Potentiometers

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -10 up to 30 °C
Housing material Aluminium
Cover material Glass transparent
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room outdoors all round the building courtyard & driveway
Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years
Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class F
EPREL category Light source

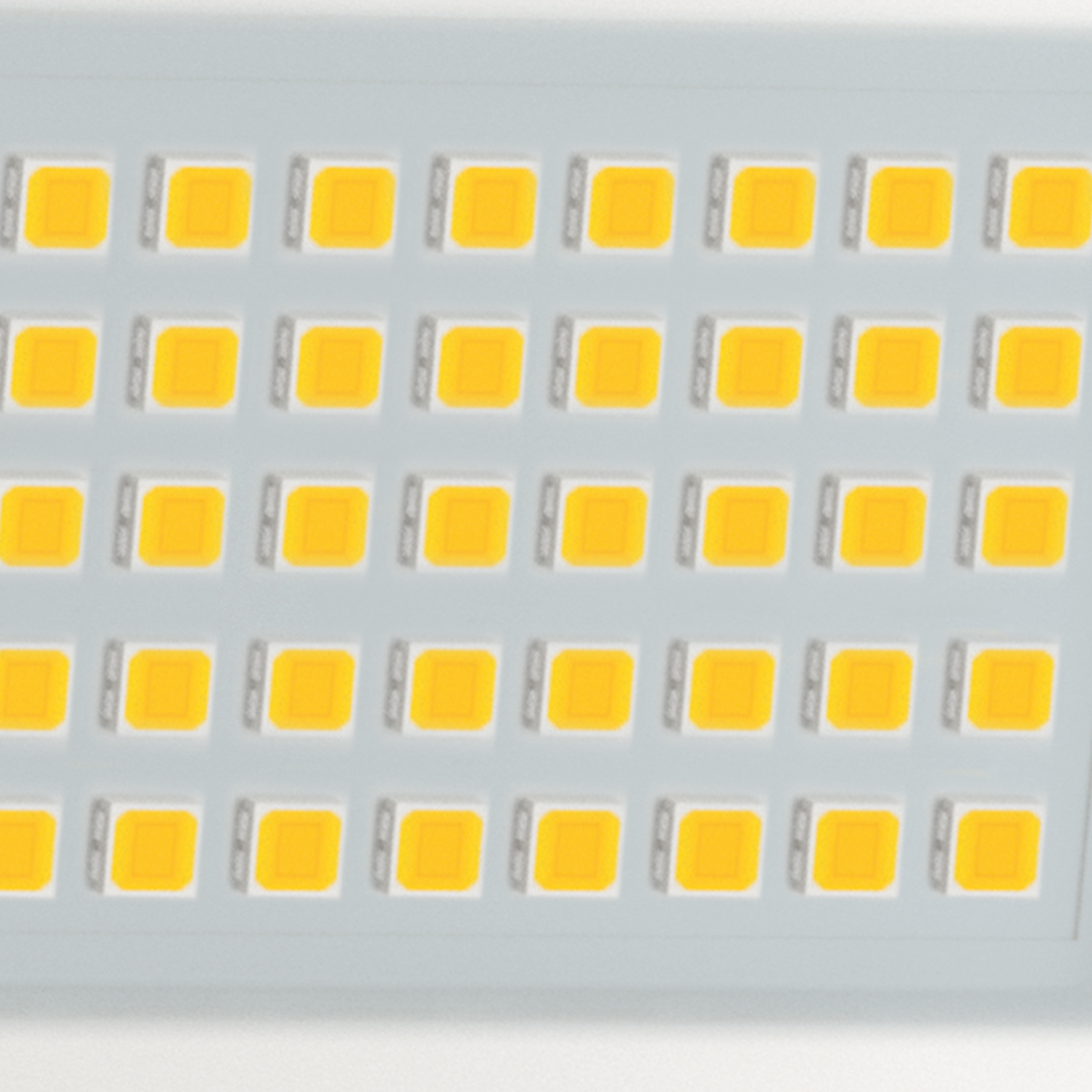

Including STEINEL LED system

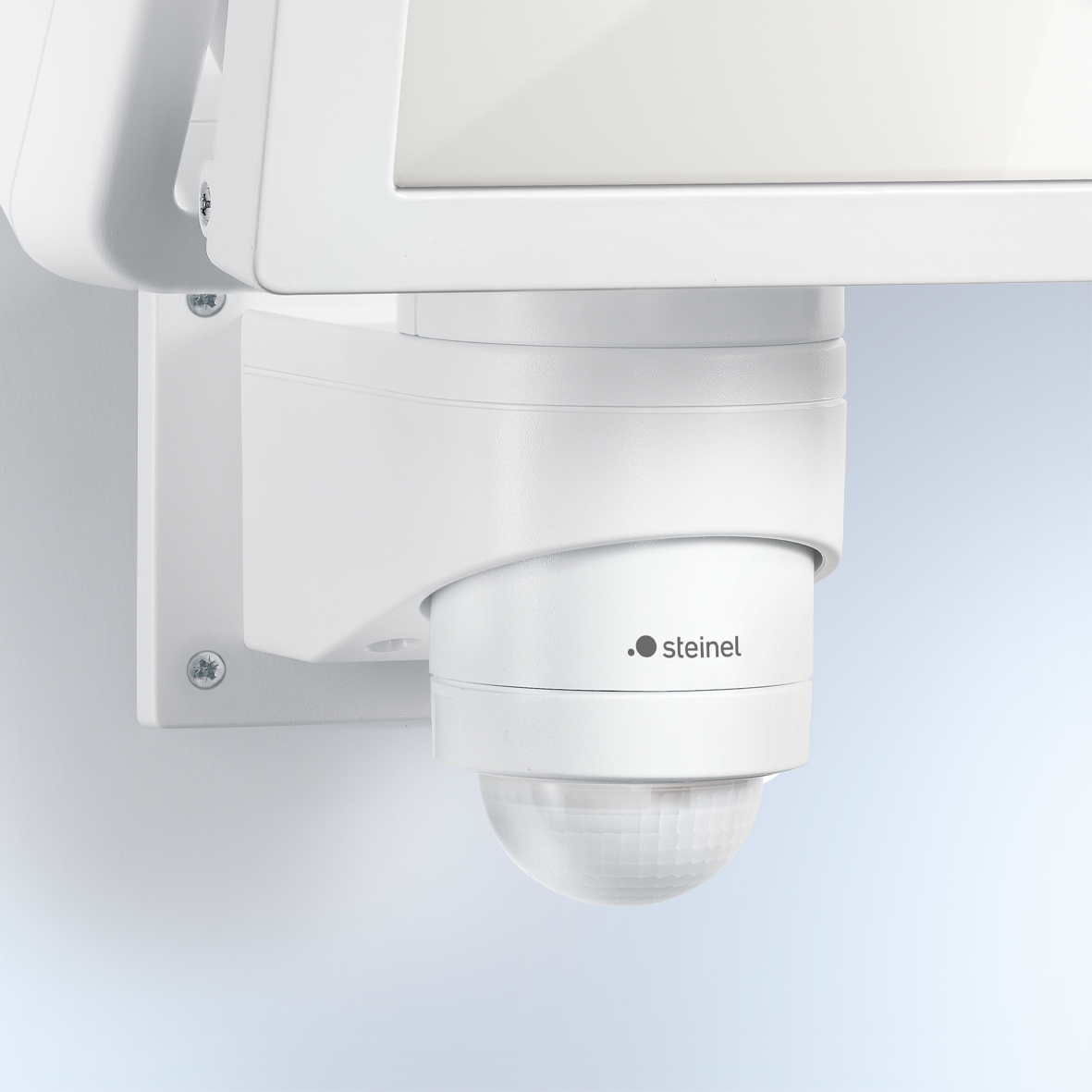

UV-resistant plastic

Colour rendering index Ra ≥80

Technical drawings

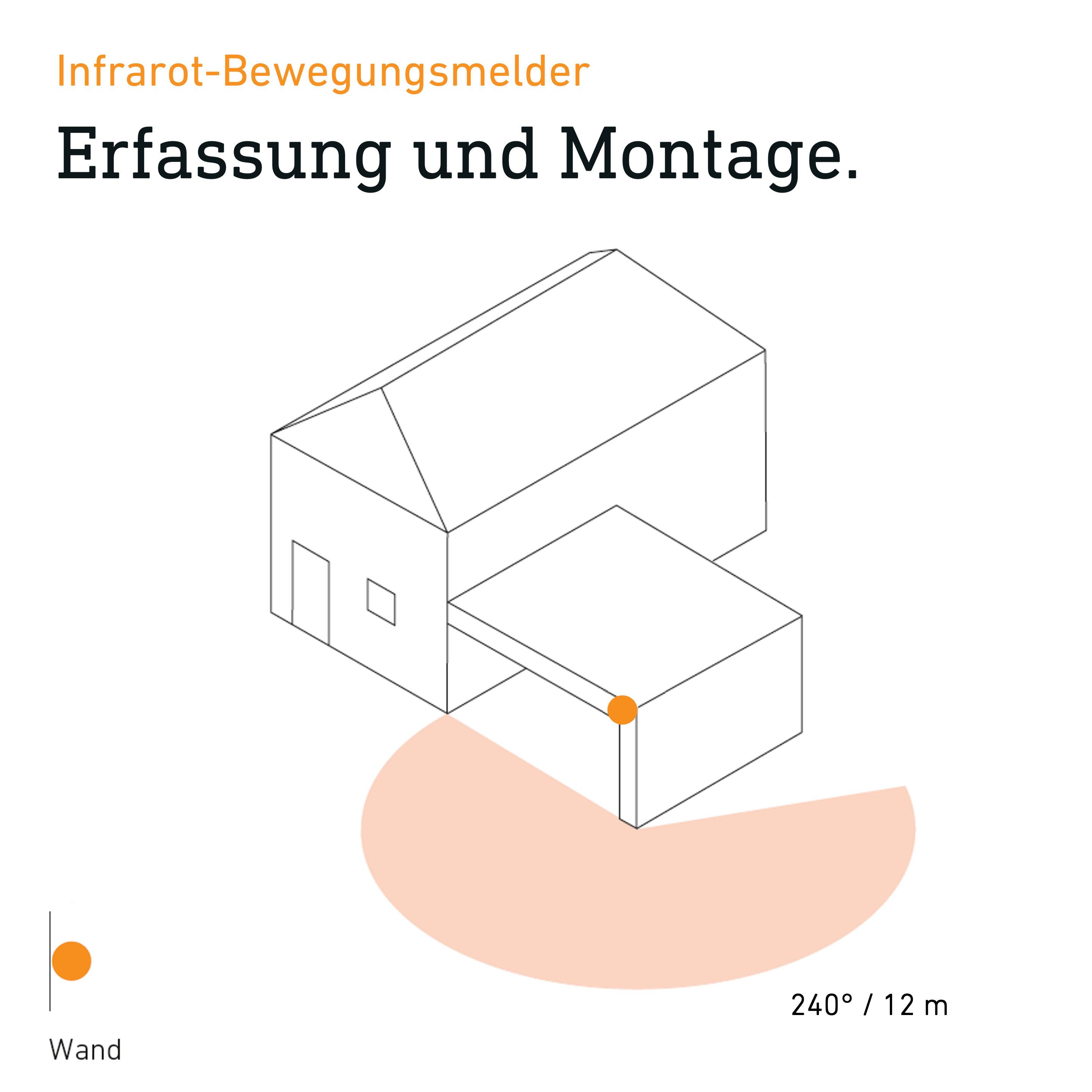

Sensor detection areas

Wiring diagram 1

Circuit diagram
