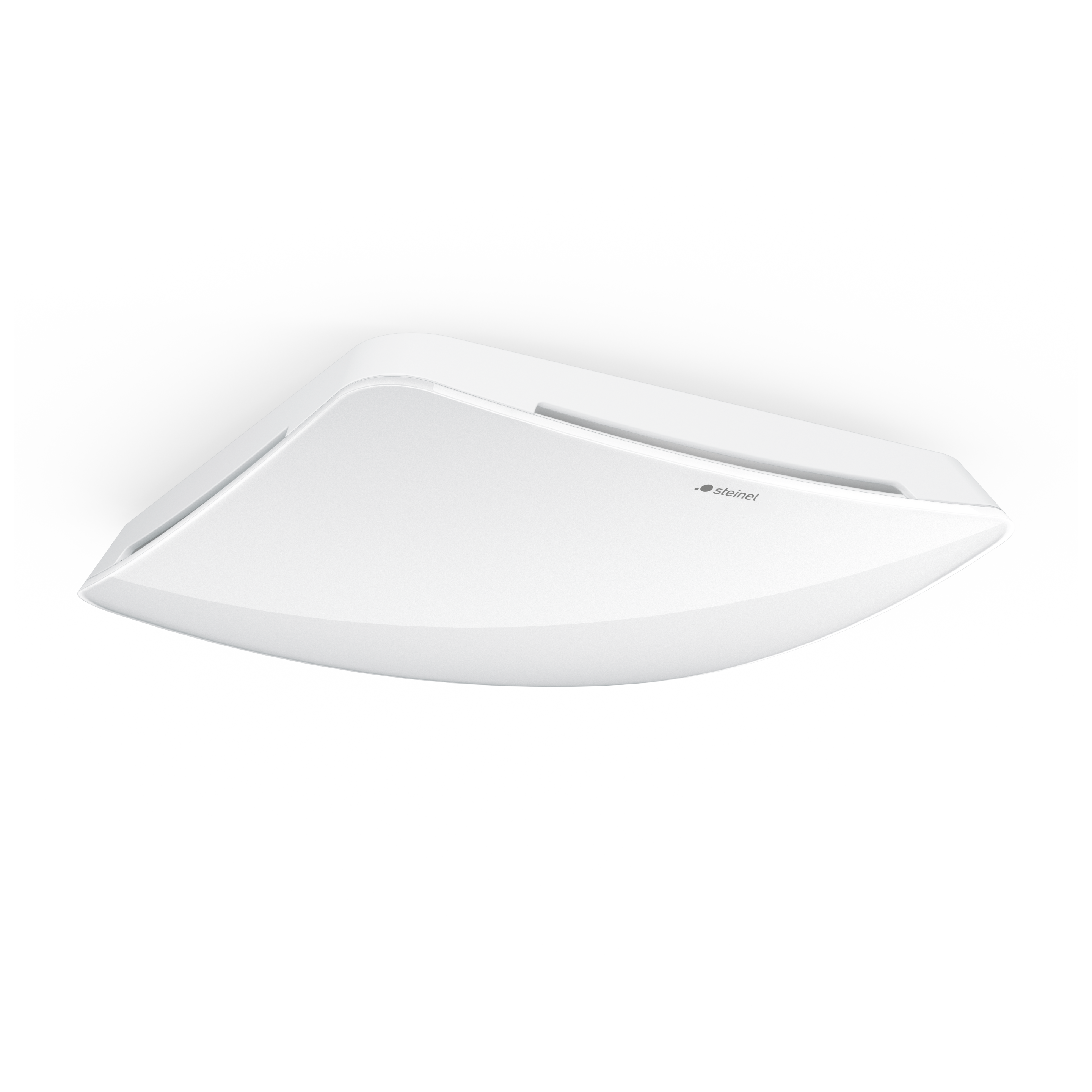

Steinel Multisensor Air IP - concealed

Steinel Multisensor Air IP - concealed

EAN-No. 4007841091781 · ELDAS® no. 091781

Steinel Bluetooth Mesh

Steinel Multisensor Air IP - concealed

EAN-No. 4007841091781

ELDAS® no. 091781

Price: Please log in to see prices

The True Presence® product family sets new standards. Completing it are sensors that simply and reliably feed additional information into the system. The Multisensor Air specialises in air, brightness and temperature measurements. Without True Presence® detection, but with the same exceptional design, it fits seamlessly into the modern ceiling appearance of buildings. The sensor with the sense for good air. The BT IPD interface has an additional noise level measurement. The BT IPD interface has an additional noise level measurement. In addition to the risk of infection, information is provided on comfort and dew point. Equipped with the latest Bluetooth Mesh Connect standard.

  • Air quality sensor with most detection sizes
  • Application area: school, office
  • Easy-to-install plug-in system with magnetic connection, integrated RBG LED traffic light and signal tone for visualising the room climate
  • Measurement of brightness, temperature, humidity, CO2, VOC, air pressure, noise level
  • Interface-dependent additional calculated values such as risk of infection
  • Award-winning design

Identification

Version Other
Manufacturer Steinel

Dimensions

PU1 net weight 0.1470

Sensor technology

Max. mounting height 12,00 m
With motion detector No
Mounting height 2 – 12 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Continuous light selectable

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Main light adjustable Yes
Settings via Smartphone Tablet Bluetooth Mesh
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature from 0 up to 50 °C
Housing material Plastic
Mounting location ceiling
Application location Indoors
Mounting type Concealed wiring
Material Plastic
Application room open-plan office hotel room classroom conference room / meeting room

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

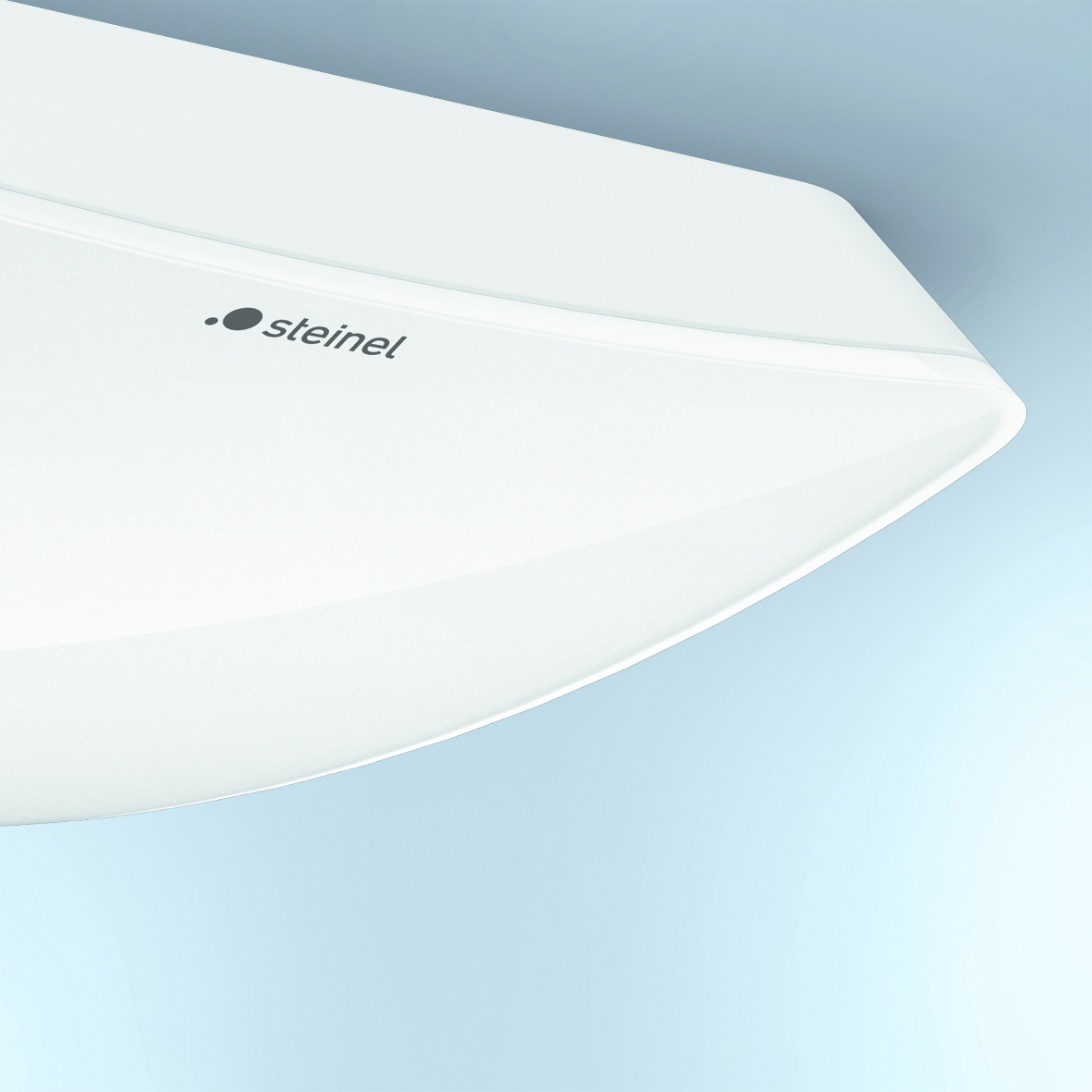

UV-resistant plastic

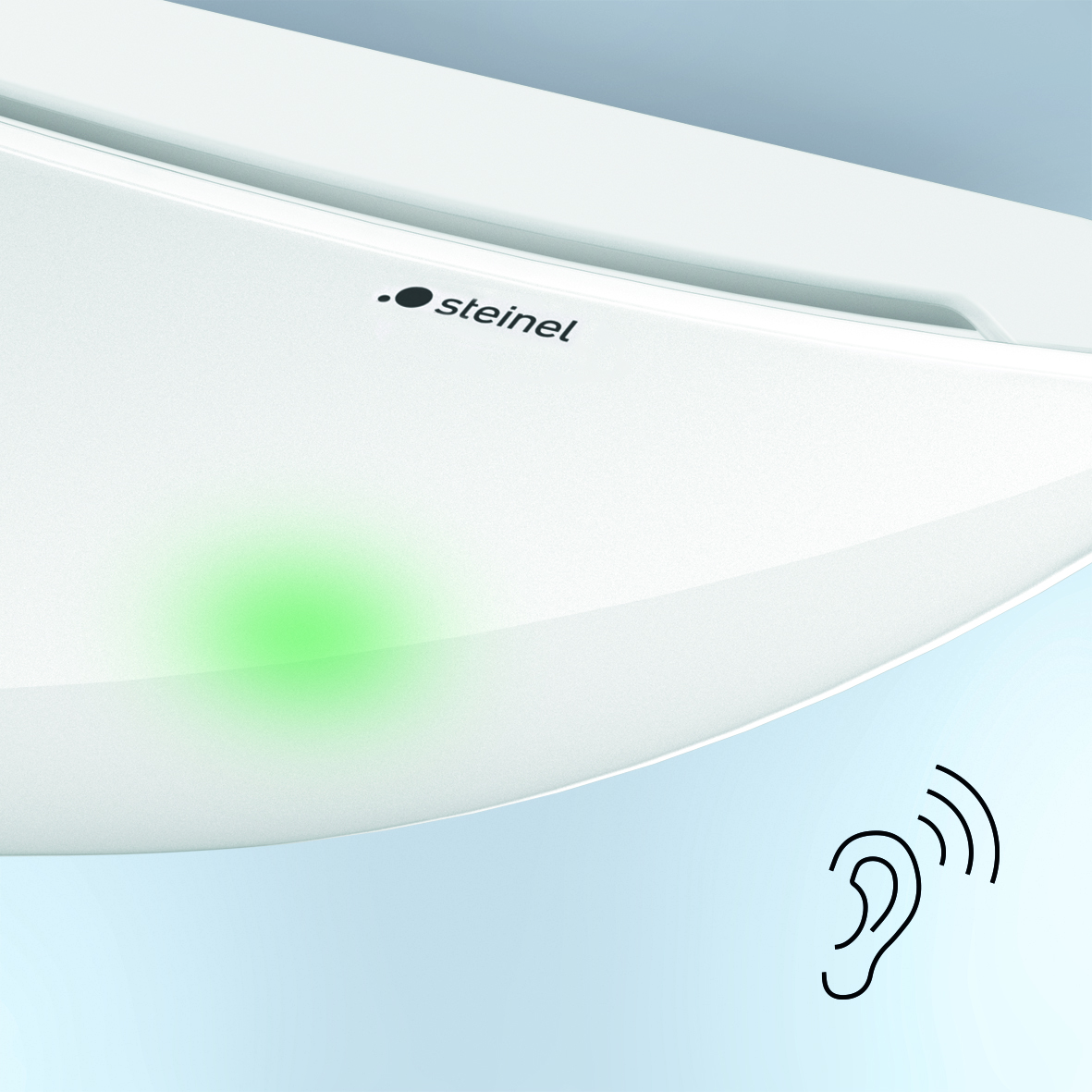

Visual and auditory signal on room climate

Technical drawing
