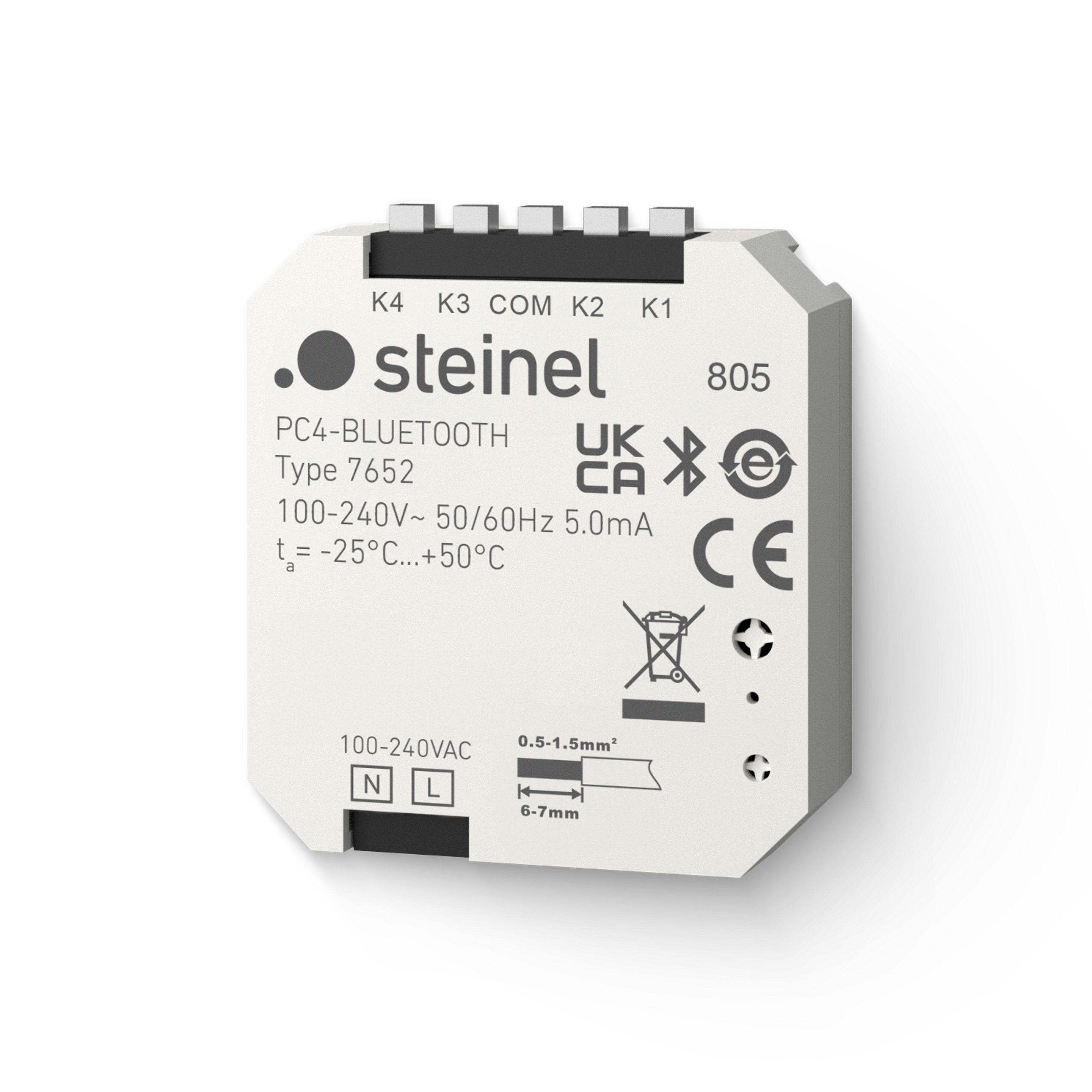

Steinel PC4 Bluetooth push-button coupler

EAN-No. 4007841067342

ELDAS® no. 067342

Bus functionality during renovation – without any new cables. This is now possible with STEINEL Bluetooth components. The proven wireless technology sets completely new standards in the latest mesh version and can be used wherever simple modernisation needs to be carried out quickly and cleanly. Integration of up to four standard push buttons. The PC4 Bluetooth push button coupler is installed in a standard flush-mounted box. Its functions can be freely programmed via an app. This means that the push button coupler is wiring-safe.

From the Bluetooth system component series
Integration of up to four standard push buttons
Installation in flush-mounted box
Functions freely programmable via app

Identification

Version Other

Manufacturer Steinel

E-number 535903086

Dimensions

Dimensions L × W × H 15 x 43 x 50 mm

PU1 net weight 0.0240

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Sensor technology

With motion detector No

Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes

Networking via Bluetooth Mesh

With bus coupler No

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch No

Base light function No

Main light adjustable No

Functions 4 inputs for conventional switches Semi-/fully automatic Neighbouring group function Push button configuration Encrypted communication

Settings via Bluetooth Mesh App Tablet Smartphone

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location wall ceiling

Application location Indoors

Mounting type Concealed wiring

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates TÜV

Technical drawings

Sensor detection range

Data sheet User manual
