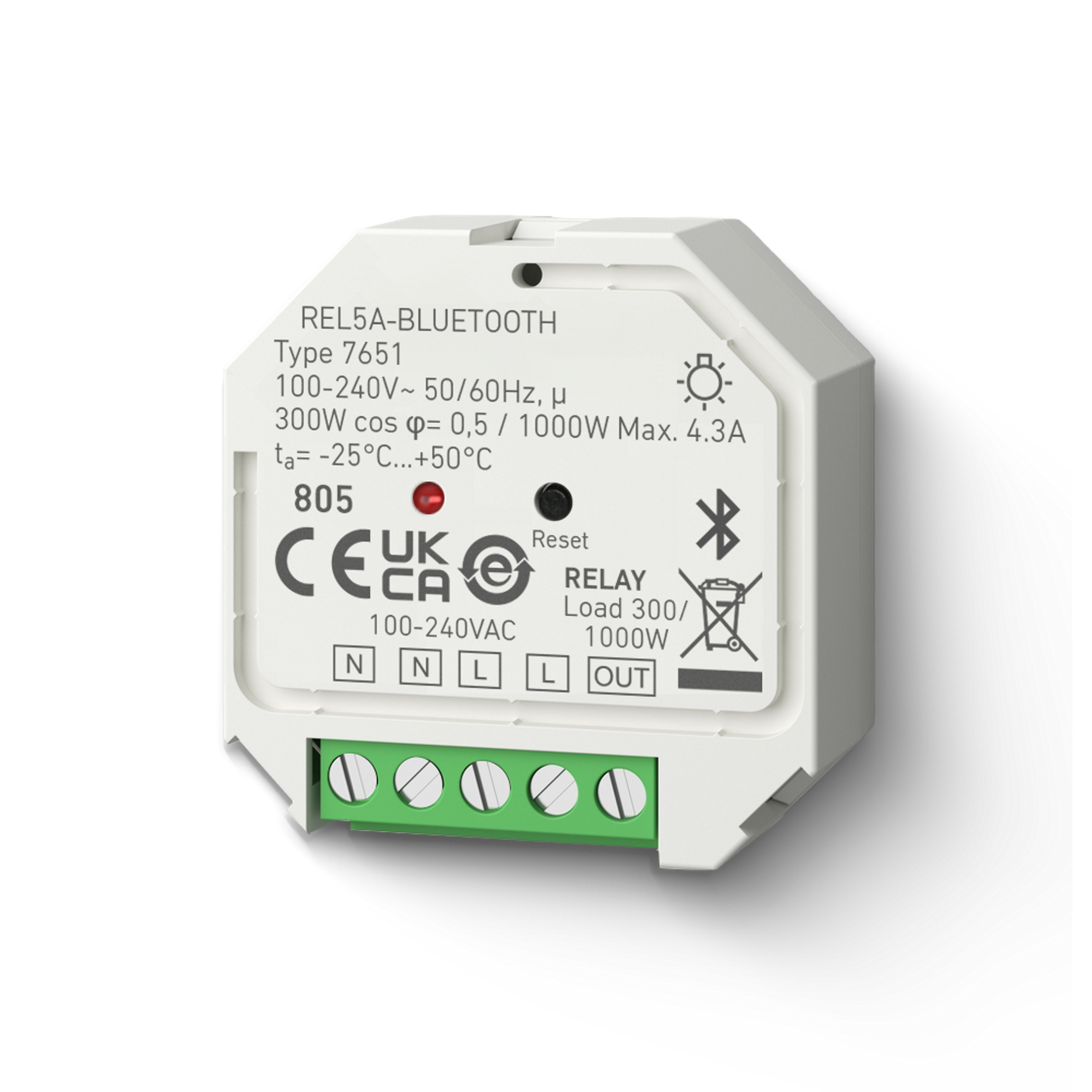

Steinel Relay REL5A-Bluetooth
EAN-No. 4007841067335
ELDAS® no. 067335
Price: Please log in to see prices
Bus functionality during renovation - without any new cables. This is now possible with STEINEL Bluetooth components. The proven wireless technology sets completely new standards in the mesh version and is used wherever simple modernisation needs to be implemented quickly and cleanly. With the REL5A-Bluetooth relay, switched loads can be integrated into the Bluetooth Mesh system. Suitable for installation in a flush-mounted box.
- From the range of Bluetooth system components
- Integration of switched loads into the Bluetooth Mesh system
- Installation in flush-mounted box
Identification
Version
Other
Type of accessory
Other
Manufacturer
Steinel
E-number
535903085
Dimensions
Dimensions L × W × H
20 x 46 x 45 mm
PU1 net weight
0.0400
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Switching output 1 resistive
1000 W
LED lamps > 8 W
300 W
Capacitive load in µF
176 µF
Switching output 1 number of LED/fluorescent lamps
50.0000
Sensor technology
With motion detector
No
Nevalux sensor technology
BT SIG Mesh, On / Off
Connectivity
Networking
Yes
Networking via
Bluetooth Mesh
With bus coupler
No
Lighting technology
Soft light start
No
Constant light regulation
No
Settings
Twilight switch
No
Base light function
No
Main light adjustable
No
Settings via
Bluetooth Mesh
App
Tablet
Smartphone
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Mounting type
Concealed wiring
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
TÜV
