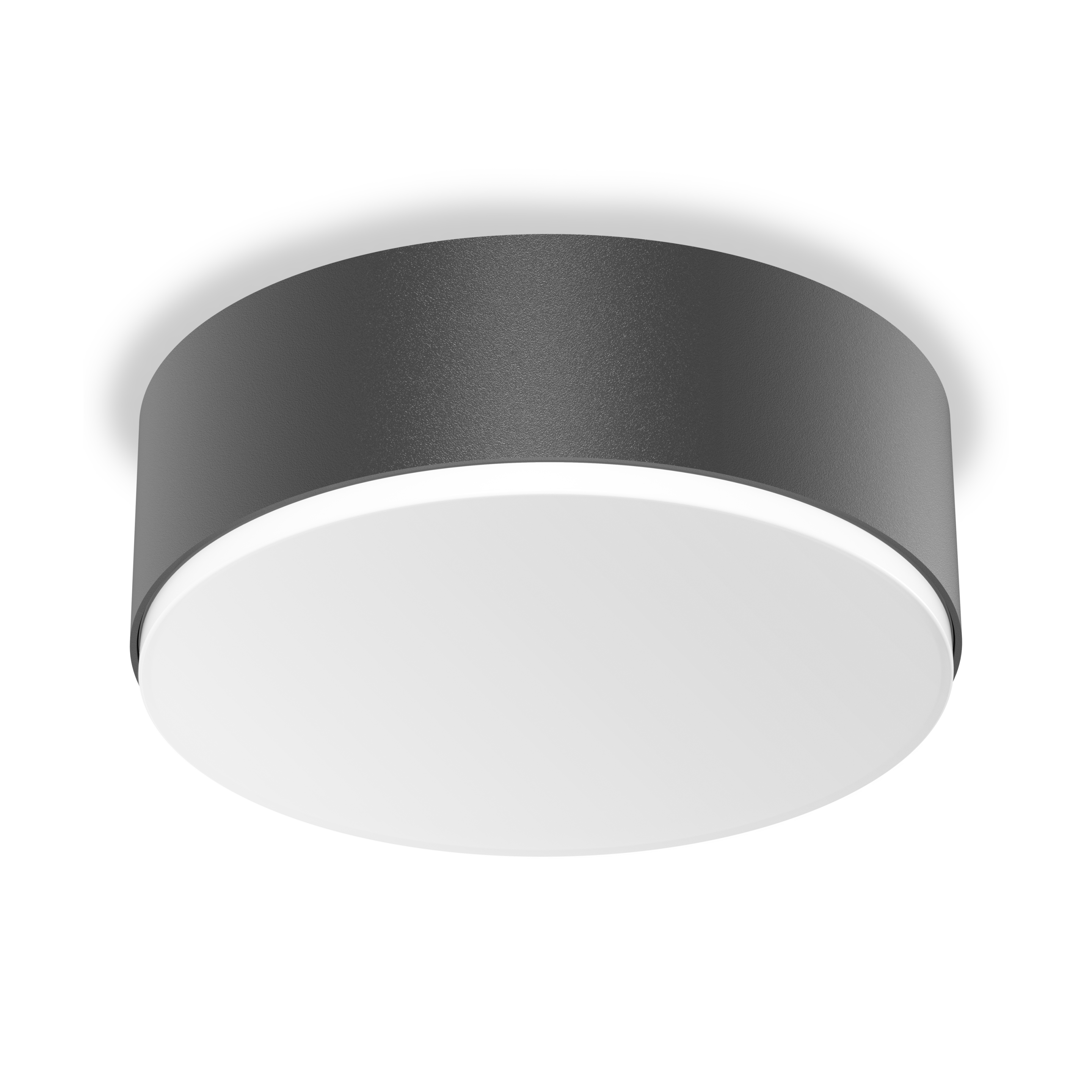

Steinel RS PRO A10 SC warm white anthracite

EAN-No. 4007841085315

ELDAS® no. 085315

Price: Please log in to see prices

Dimensions

A10 Ø193x69mm A20 Ø262x69 mm A30 Ø331x 69mm

Light colour

Warm white (3000K) Neutral white (4000K)

Colour

White Anthracite

Sophisticated design for demanding environments: Equipped with a powerful high-frequency sensor and an aluminium chassis that is as attractive as it is robust, the A series is ideal for pergolas or similar applications thanks to its IK10 impact resistance and tested IP54 protection class. In combination with our Connected Lighting System, the luminaires can be controlled using a wireless push-button. Semi-automatic operation, timer functions, the setting of neighbour groups and tracking light can also be implemented quickly and easily using Connected Lighting. Of course, cross-series networking is also possible at any time without any problems.

Ideal for demanding environments such as pergolas or similar applications
Non-visible high-frequency sensor with ø8 m range, 3000 K, 1095 lm, 10,7 W, 102,3 lm/W
Robust aluminium housing with high impact resistance IK10 and protection class IP54
Simple networking via Bluetooth Mesh Connect and commissioning via STEINEL Connect app
Benefits of the Connected Lighting System and cross-range networking possible
With plug-in terminals for easy installation

Identification

Manufacturer Steinel

E-number 941600899

Variants

Dimensions A10 Ø193x69mm

Light colour 3000K

Colour Anthracite

Dimensions

Dimensions Ø × H 193 x 69 mm

PU1 net weight 0.8350

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 10,7 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes

Type of networking Master/master

Networking via Bluetooth Mesh

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 1095 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable

Efficiency without cover 149,7 lm/W

Lifetime

LED lifetime max. °C 60000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B50

LED lifetime per IEC 62717 L70 > 60.000 Std.

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 Min.

Base light function Yes

Base light function time 1-60 min

Main light adjustable 0 - 100 %

Functions Selecting programmed lighting scenarios Motions sensor DIM function Adjustable fade time when switching on and off Semi-/fully automatic Neighbouring group function Encrypted communication Timer

Settings via Bluetooth App

With remote control No

Twilight setting teach Yes

Base light function in percent 0 – 100 %

Base light function percent from 0.0000

Base light function percent to 100.0000

Housing & material

Impact resistance IK10

Protection class (IP) IP54

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material PC, opal

Mounting location ceiling wall

Application location Indoors

Mounting type Surface wiring

Application room corridor / aisle function room / ancillary room warehouse kitchenette stairwell changing room WC / washroom

Colour Anthracite

Protection class ceiling IP54

Scope of delivery & warranty

Manufacturer warranty 5 years

House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Technical drawing

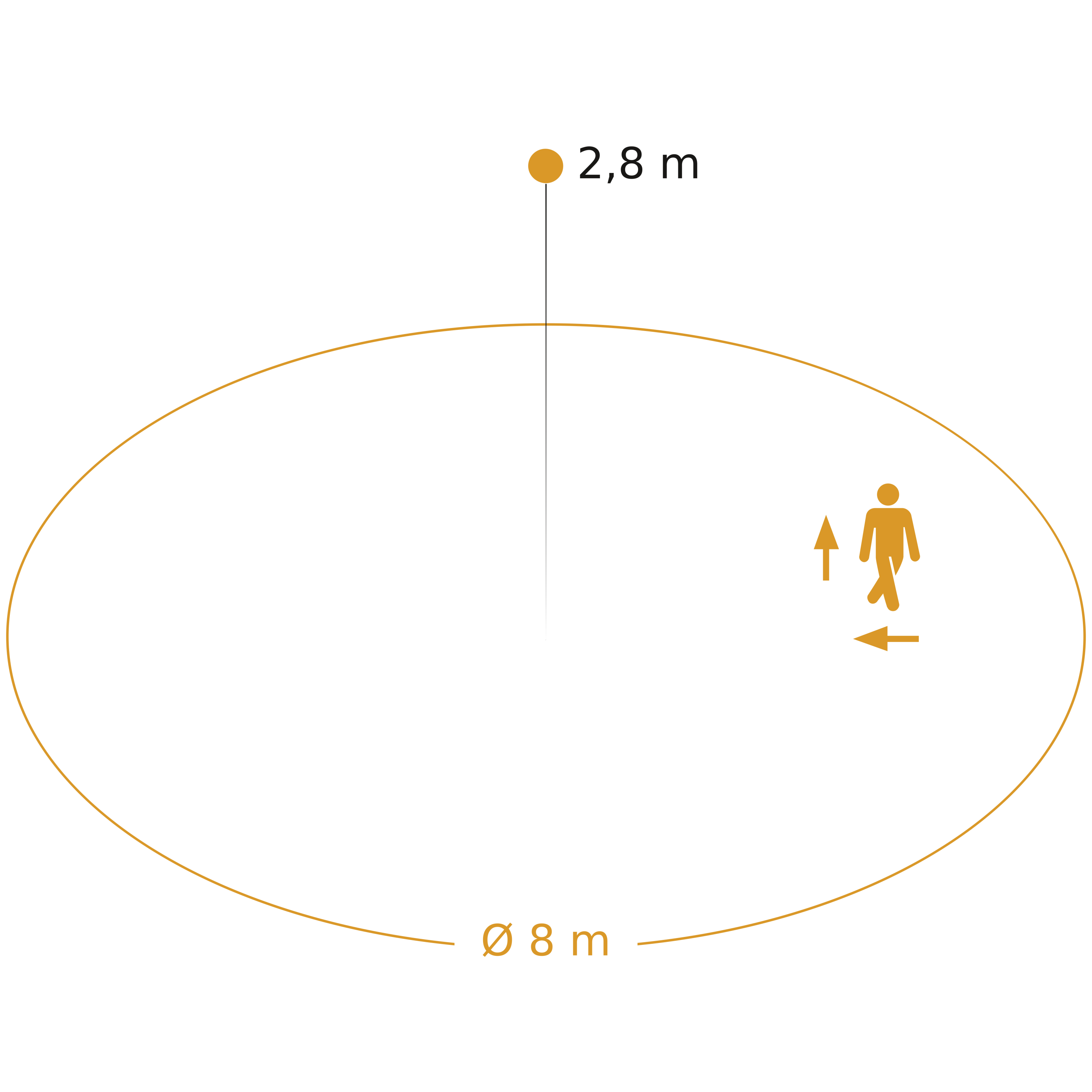

Sensor detection range

Data sheet User manual Declaration of conformity Drilling template Product brochure LDT file (light distribution)
