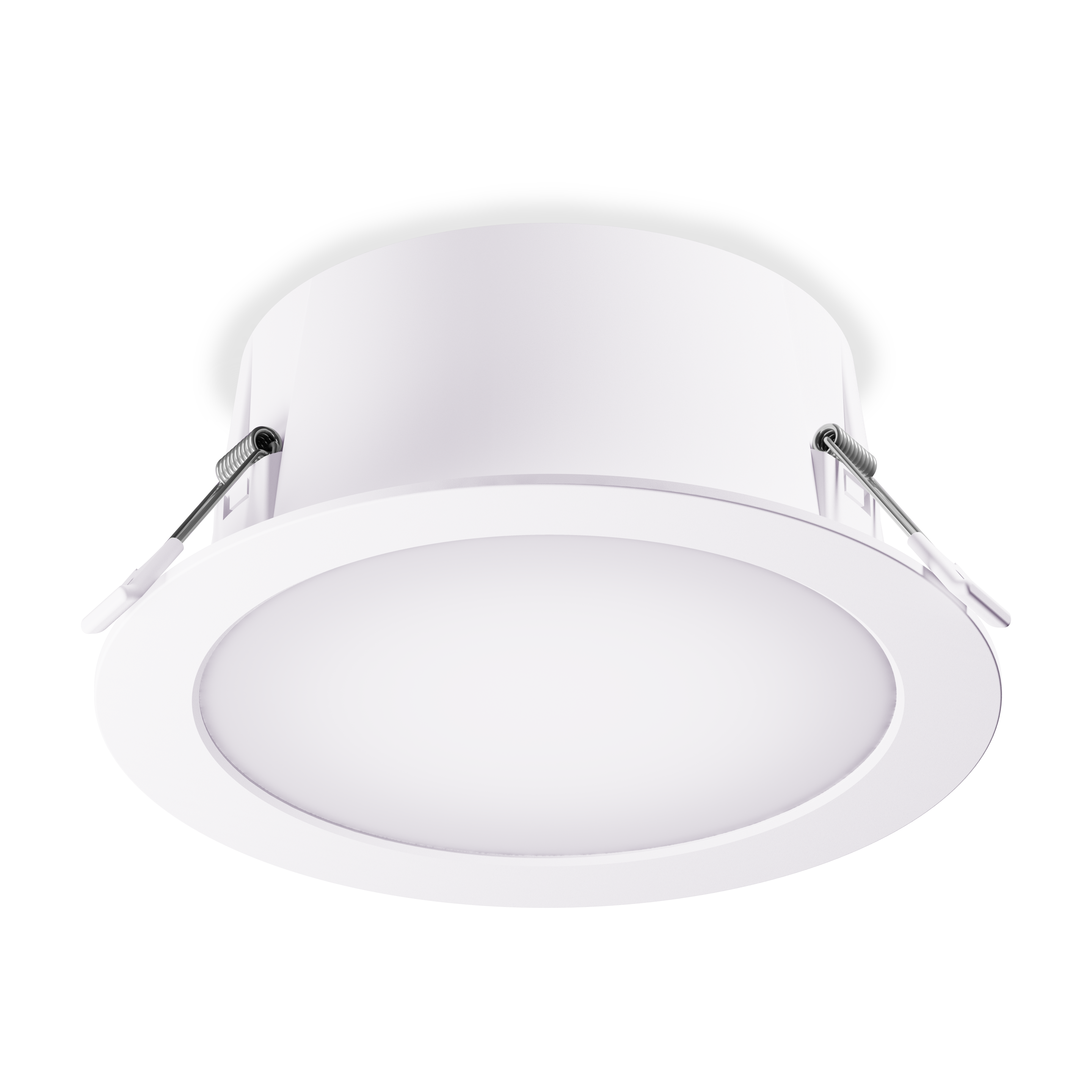

Steinel RS PRO DL 150 SC  with motion detector & Bluetooth

Steinel RS PRO DL 150 SC with motion detector & Bluetooth

EAN-No. 4007841084998 · ELDAS® no. 084998

Steinel Bluetooth Mesh

Steinel RS PRO DL 150 SC with motion detector & Bluetooth

EAN-No. 4007841084998

ELDAS® no. 084998

Price: Please log in to see prices

Packaging unit

1 piece 20 pieces

Ceiling cutout

Ø140 - 160 mm Ø190 - 220 mm

The future has arrived with these downlights for indoor use. These subtle indoor lights are based on the latest Bluetooth Mesh technology, provide convenient, future-proof lighting control at the highest STEINEL level, and are suitable for stairwells, hallways, WCs, washrooms, changing rooms, utility rooms and side rooms, thanks to their flat installation height. The two product variants RS PRO DL 150 SC and RS PRO DL 200 SC come with a diameter of 174 and 230 mm respectively, feature a 360° high-frequency sensor with a range of ø 7 m, and can easily be networked with other STEINEL Bluetooth Mesh products, both within the same product range and with other product ranges. No additional cables. Quick and easy to install. Quick, convenient connection and configuration via the STEINEL Connect App. This lets you create varied groups of lights with simultaneous lighting control. Practical: The indoor lights RS PRO DL 150 SC and RS PRO DL 200 SC feature a colour temperature change function. The light colour can be adjusted to three different levels, according to your preferences, using a switch on the back. Choose between a colour temperature of 3000 K, 4000 K or 5700 K. The innovative Bluetooth downlights operate at 1193 lm and 2205 lm, respectively. Functions include a soft light start, neighbouring group function, and dimmable basic light and main light. The ideal mounting height is 2 to 4 m. Thanks to a practical mounting adapter, oversized mounting holes from previously installed lights are no problem (available from Q2/2023).

  • Sensor downlights for recessed ceiling mounting
  • Downlight with invisible 360° high-frequency sensor and Ø 7 m range
  • Suitable for a ceiling cut-out of ø140-160 mm
  • Light colour adjustable via controller on downlight: 3000 K (1109 lm) / 4000 K (1177 lm) / 5700 K (1137 lm)
  • WAGO clamp terminals for 3-pole through-wiring
  • For ceiling cut-outs of Ø140 - 160 mm, optional mounting adapter available
  • Bluetooth Mesh technology for minimal installation and maintenance effort as well as cross-range networking

Identification

Manufacturer Steinel
E-number 941200689

Variants

Packaging unit 1 piece
Ceiling cutout Ø140 - 160 mm

Dimensions

Dimensions Ø × H 174 x 73 mm
PU1 net weight 0.3160

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 10,8 W
Own consumption 0,5 W
B10 fuse (pcs) 78.0000
B16 fuse (pcs) 125.0000
C10 fuse (pcs) 193.0000
C16 fuse (pcs) 209.0000

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Radial range Ø 7 m (38 m²)
Tangential range Ø 7 m (38 m²)
Mounting height 2 – 4 m
Optimal mounting height 2,8 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Colour temperature 3000 K 4000 K 5700 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control
Soft light start Yes
Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime per IEC 62717 L70 >54.000
LED lifetime per IEC 62717 L80 >54.000
LED lifetime per IES TM-21 L70 >54.000
LED lifetime per IES TM-21 L80 >54.000

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function detail LED effect light
Base light function time 5s-60 min
Main light adjustable Yes
Functions Connection to central battery systems DIM function Adjustable fade time when switching on and off Color temperature change Free selection of the light value in a luminaire group Group parameterisation Light sensor Neighbouring group function Orientation light Encrypted communication
Settings via Smartphone App Bluetooth
Base light function in percent 0 – 100 %
Base light function percent from 0.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK05
Protection class (IP) IP20
Protection class II
Ambient temperature from -20 up to 40 °C
Mounting location ceiling
Application location Indoors
Mounting type In-ceiling installation
Material Plastic
Application room corridor / aisle function room / ancillary room WC / washroom changing room stairwell kitchenette reception / lobby Indoors
Colour white
Protection class ceiling IP54

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Spare parts 27098,27099
Accessories 28171

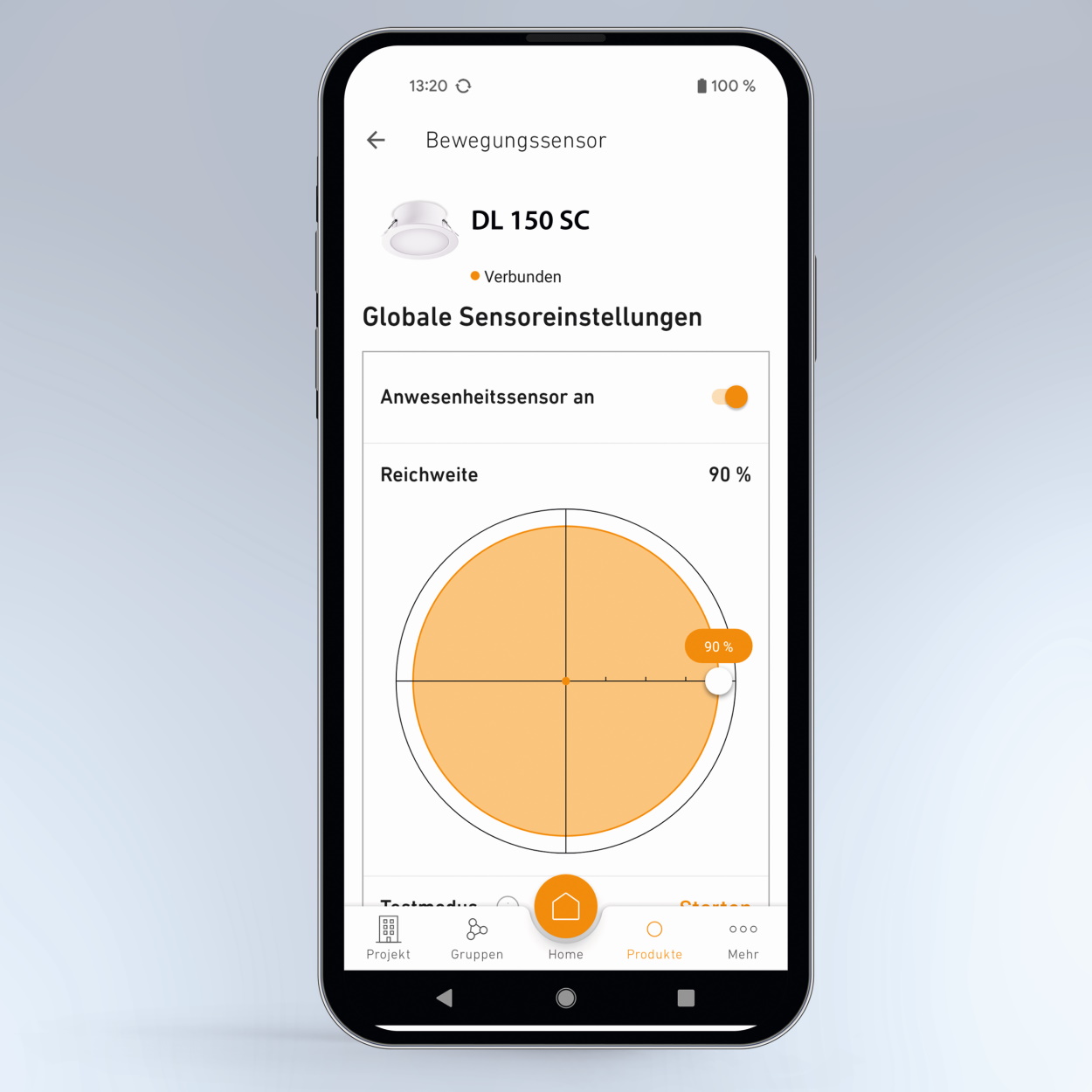

Interconnectable and adjustable via Bluetooth

Colour temperature change

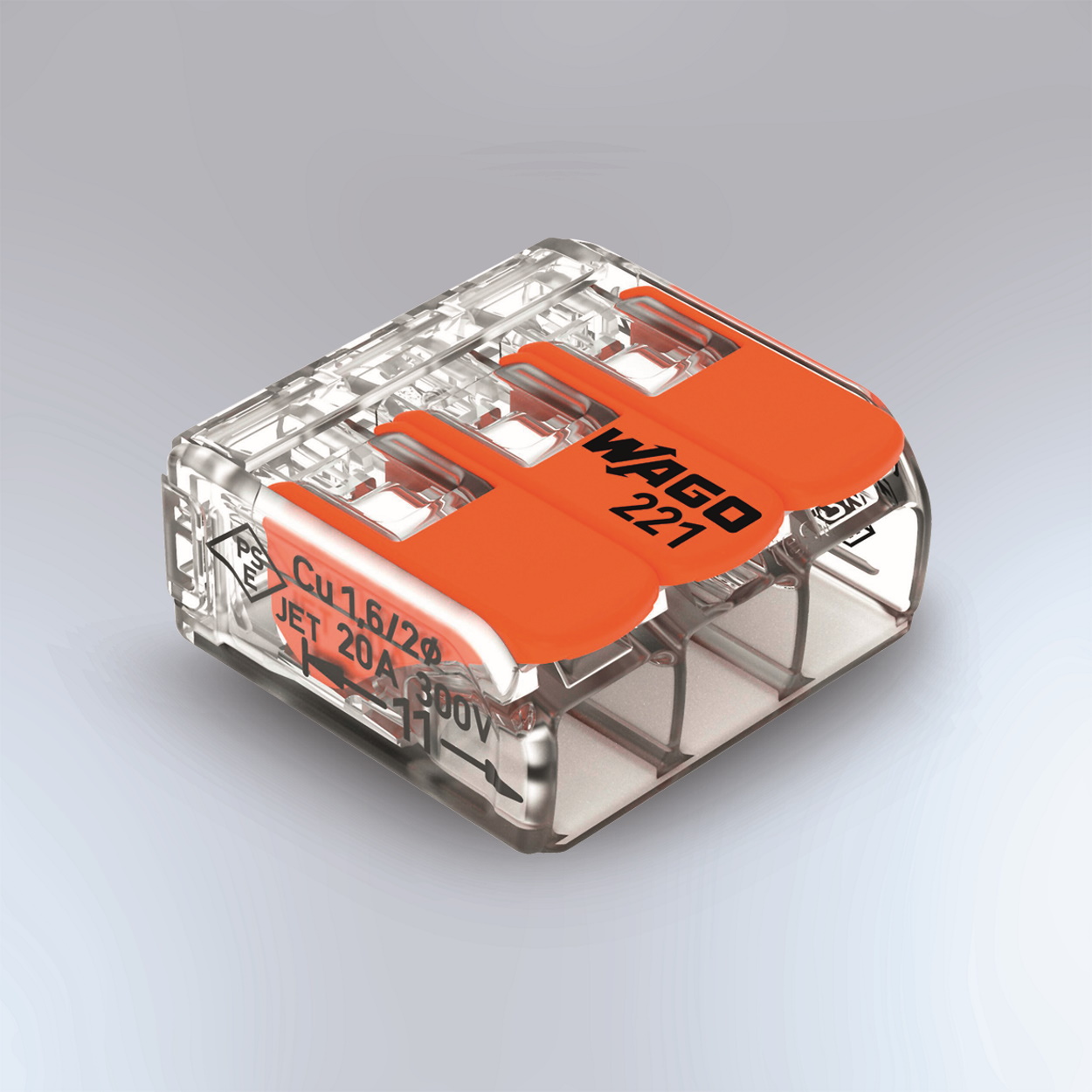

WAGO terminal

Technical drawing

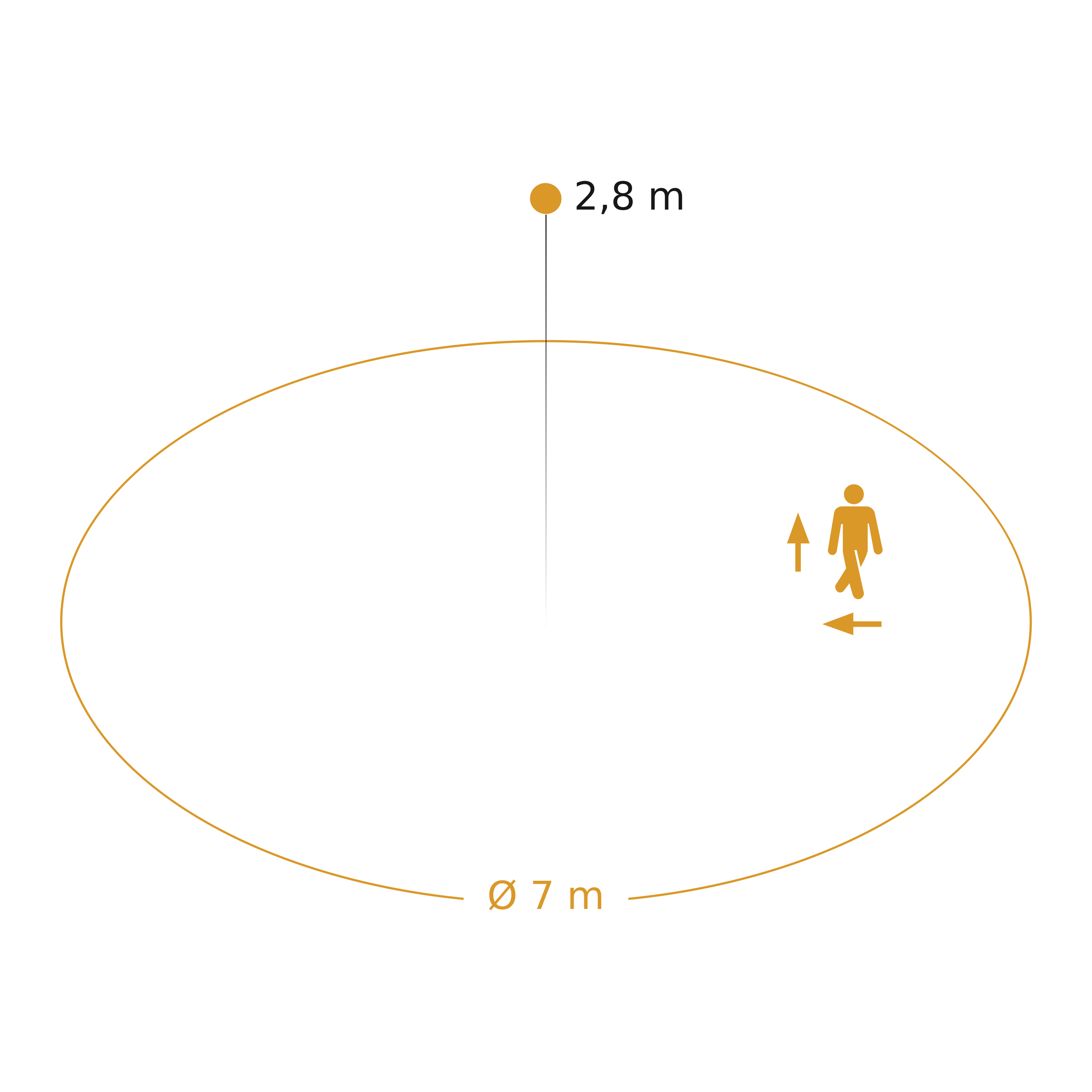

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master bluetooth interconnection circuit diagram

Refurbishment trim for RS PRO DL 150 SC

Refurbishment trim for RS PRO DL 150 SC

Item no. 087364
