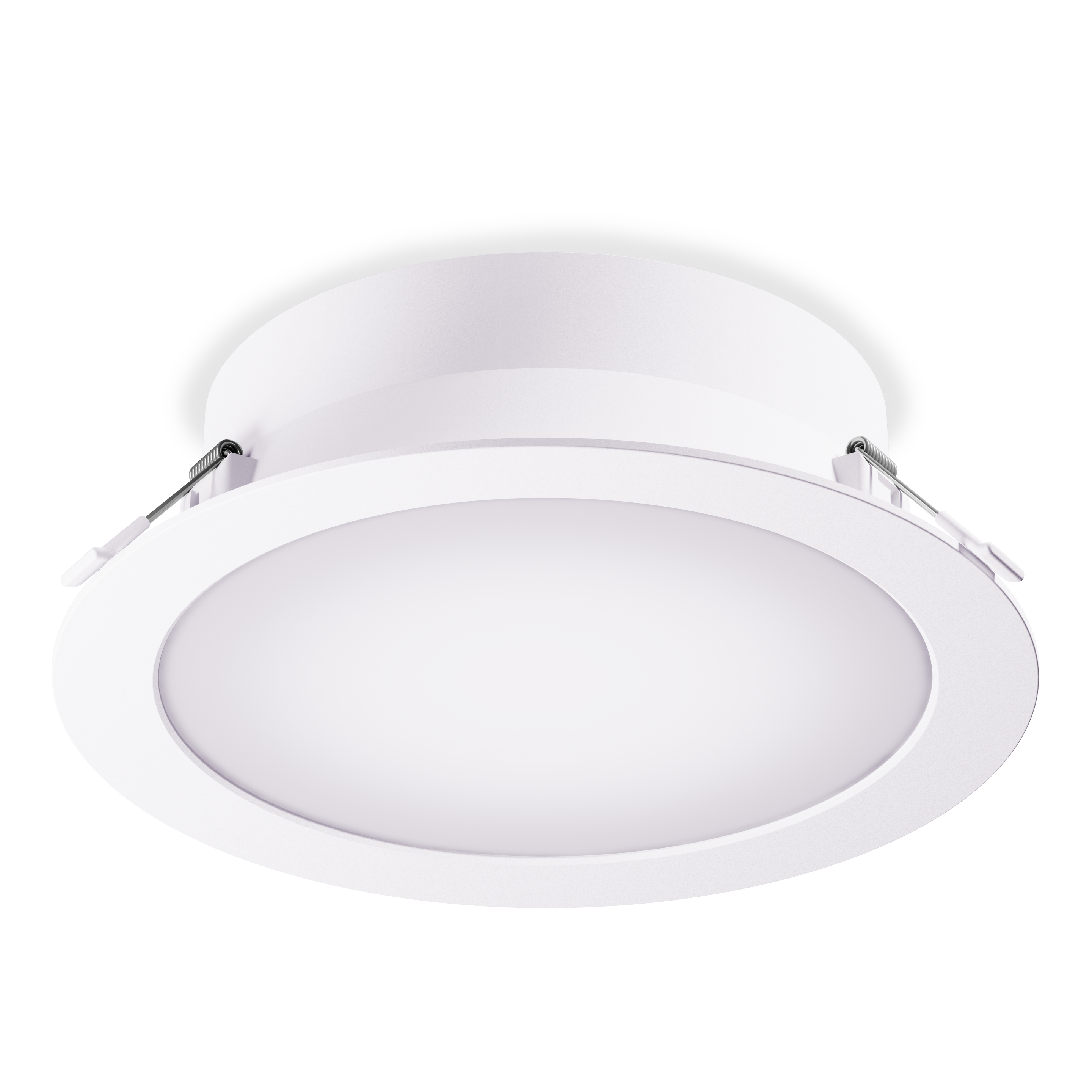

Steinel RS PRO DL 200 Multipack (20 pcs.) with motion detector & Bluetooth
EAN-No. 4007841087265
ELDAS® no. 087265
Price: Please log in to see prices
Packaging unit
Ceiling cutout
The future has arrived with these downlights for indoor use. These subtle indoor lights are based on the latest Bluetooth Mesh technology, provide convenient, future-proof lighting control at the highest STEINEL level, and are suitable for stairwells, hallways, WCs, washrooms, changing rooms, utility rooms and side rooms, thanks to their flat installation height. The two product variants RS PRO DL 150 SC and RS PRO DL 200 SC come with a diameter of 174 and 230 mm respectively, feature a 360° high-frequency sensor with a range of ø 7 m, and can easily be networked with other STEINEL Bluetooth Mesh products, both within the same product range and with other product ranges. No additional cables. Quick and easy to install. Quick, convenient connection and configuration via the STEINEL Connect App. This lets you create varied groups of lights with simultaneous lighting control. Practical: The indoor lights RS PRO DL 150 SC and RS PRO DL 200 SC feature a colour temperature change function. The light colour can be adjusted to three different levels, according to your preferences, using a switch on the back. Choose between a colour temperature of 3000 K, 4000 K or 5700 K. The innovative Bluetooth downlights operate at 1193 lm and 2205 lm, respectively. Functions include a soft light start, neighbouring group function, and dimmable basic light and main light. The ideal mounting height is 2 to 4 m. Thanks to a practical mounting adapter, oversized mounting holes from previously installed lights are no problem (available from Q2/2023).
- Sensor downlights in multipacks of 20 pcs. for ceiling installation
- Downlight with invisible 360° high-frequency sensor and Ø 7 m range
- Ideal for corridors, functional rooms or washrooms due to IP54 degree of protection on the room side
- Light colour adjustable via controller on downlight: 3000 K (1996 lm) / 4000 K (2170 lm) / 5700 K (2088 lm)
- WAGO clamp terminals for 3-pole through-wiring
- For ceiling cut-outs of Ø190 - 220 mm, optional mounting adapter available
- Bluetooth Mesh technology for minimal installation and maintenance effort as well as cross-range networking
- Products in multipacks come without outer packaging and are therefore not suitable for individual sale.
Identification
Variants
Dimensions
Electrical
Sensor technology
Connectivity
Lighting technology
Lifetime
Settings
Housing & material
Scope of delivery & warranty
Certificates & EPREL
Cross-/up-selling

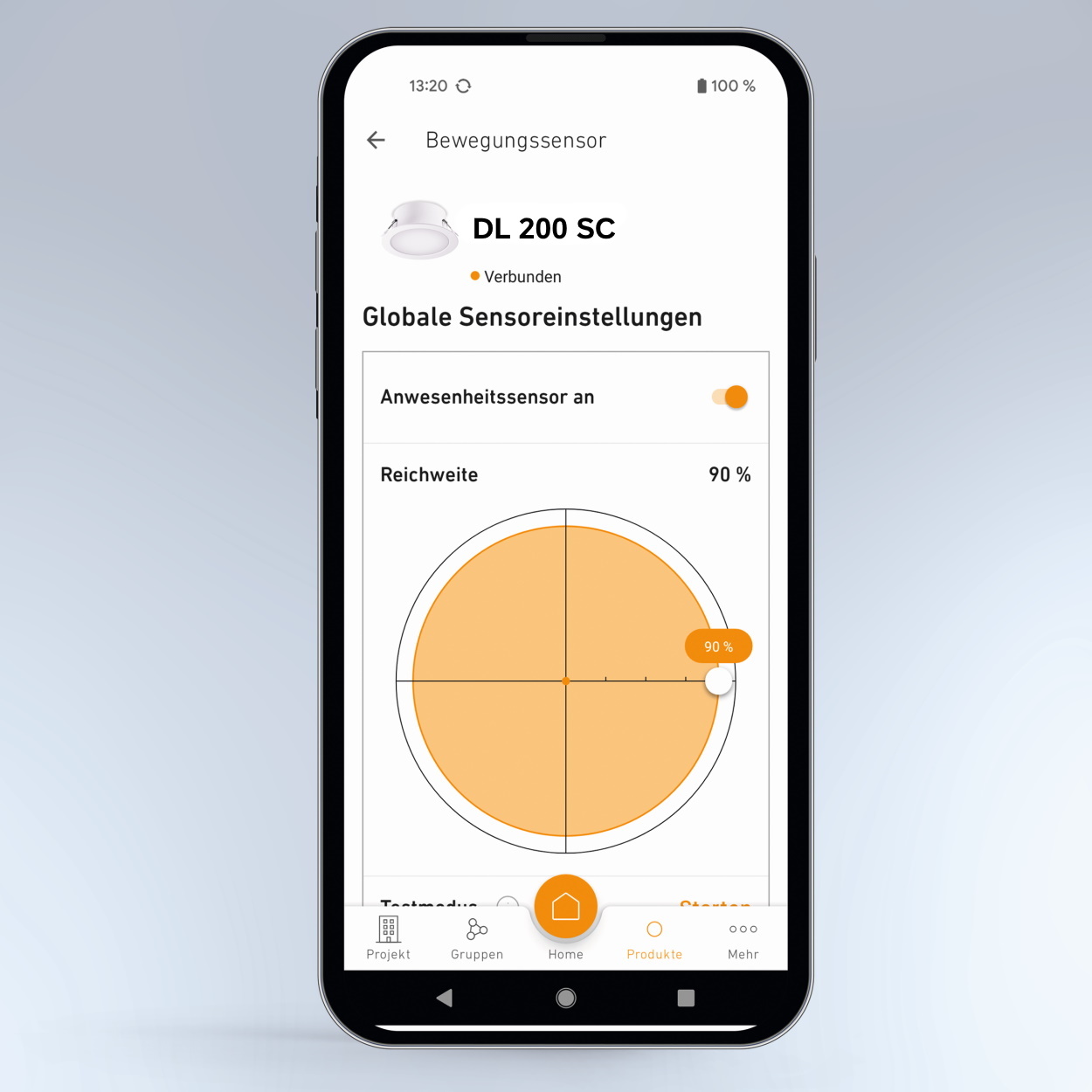

Interconnectable and adjustable via Bluetooth
Colour temperature change

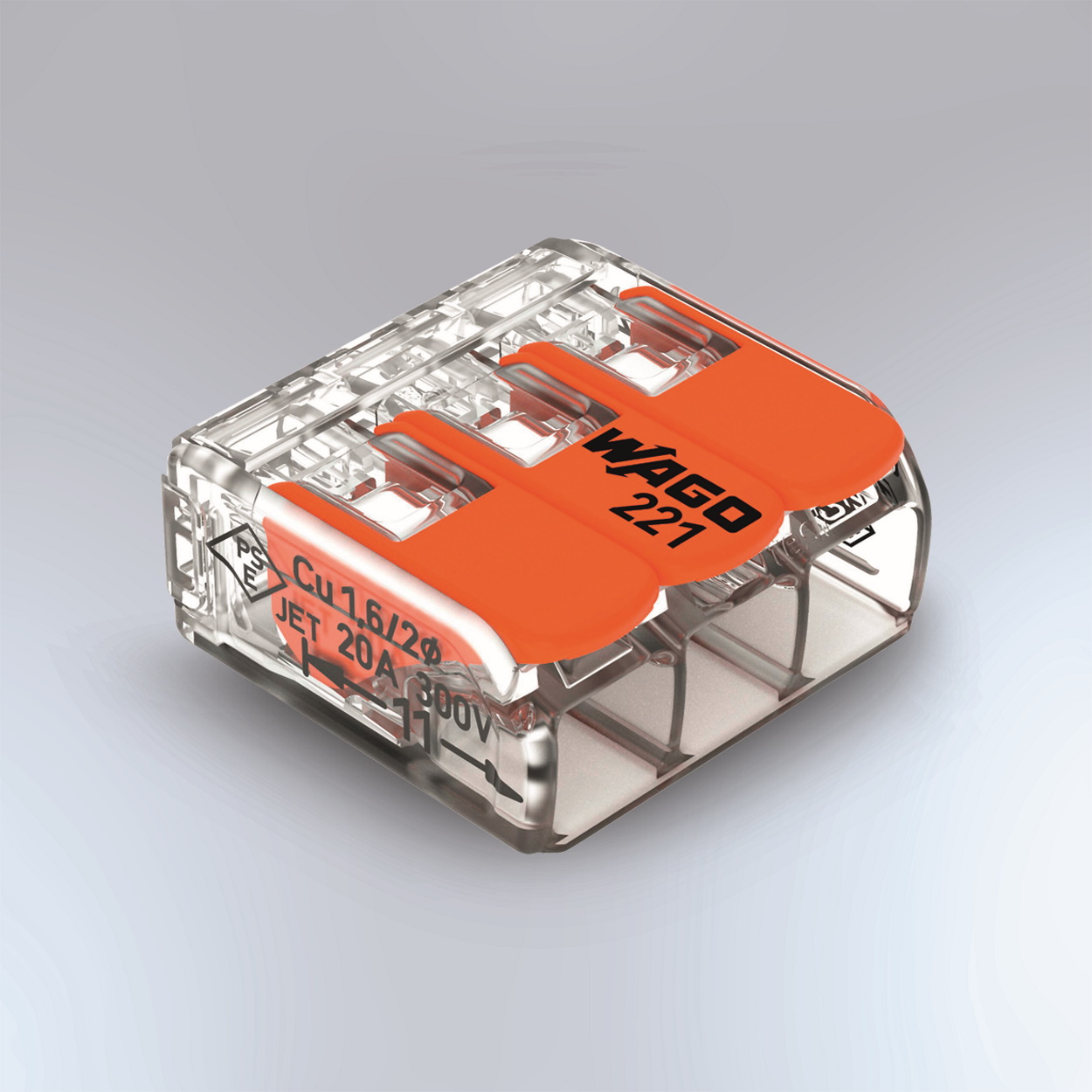

WAGO terminal
Sensor detection areas
Wiring diagram 1
Master circuit diagram
