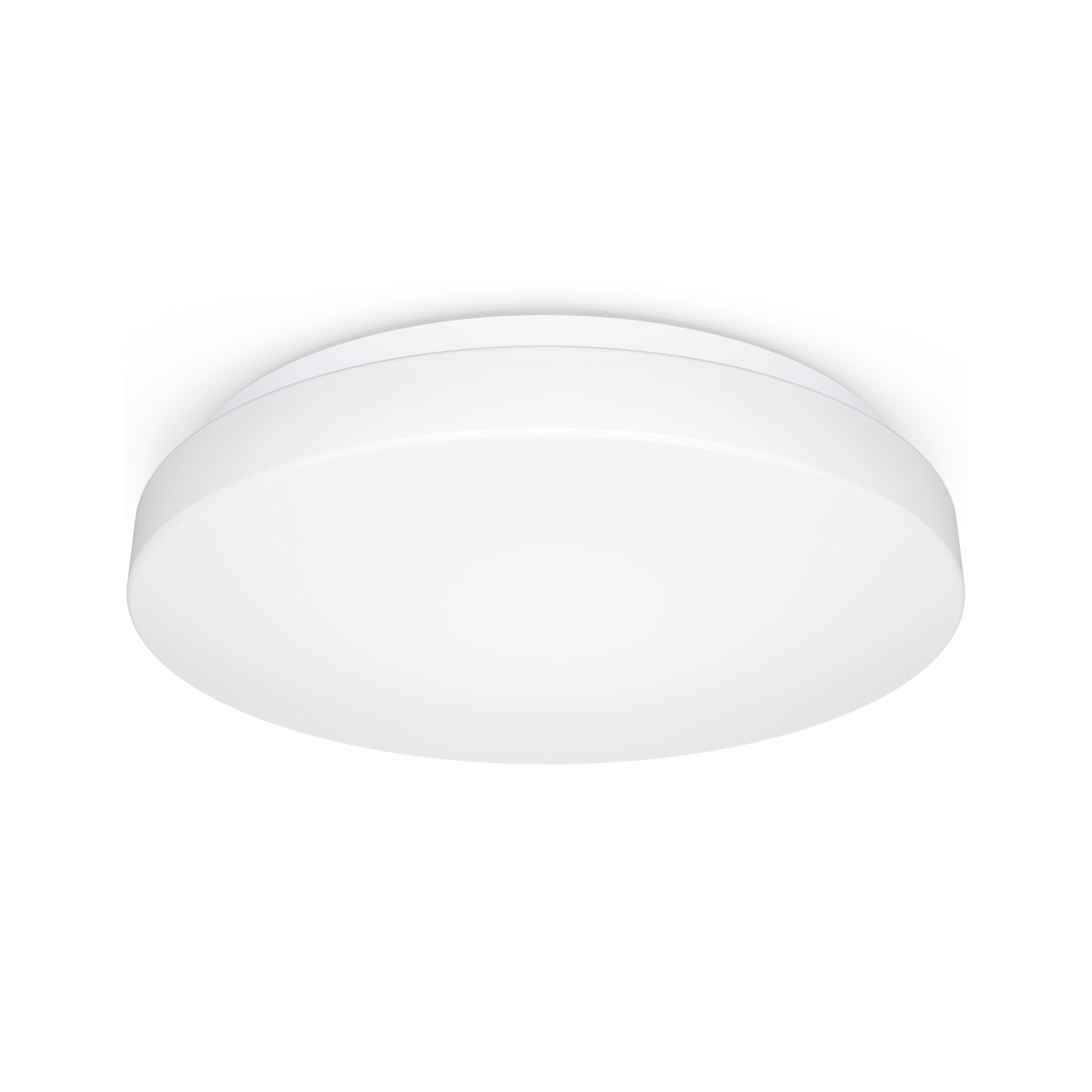

Steinel RS PRO P1 flat S Neutral white

EAN-No. 4007841069674

ELDAS® no. 069674

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Light colour

3000K Warm white 4000K Neutral white

Dimension

P2 Ø322mm P1 Ø272mm

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P1 flat. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. Because with the virtually invisible 360-degree high-frequency sensor always switching the 9,4 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

Identification

Manufacturer Steinel

E-number 941003259

Variants

Light colour 4000K Neutral white

Dimension P1 Ø272mm

Dimensions

Dimensions Ø × H 272 x 64 mm

PU1 net weight 0.3970

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,4 W

Fluorescent lamps ECG 400 W

Fluorescent lamps uncompensated 400 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 800 VA

LED lamps < 2 W 16 W

LED lamps > 2 W < 8 W 64 W

LED lamps > 8 W 64 W

Capacitive load in µF 88 µF

Switching output 1 number of LED/fluorescent lamps 50.0000

B10 fuse (pcs) 54.0000

B16 fuse (pcs) 87.0000

C10 fuse (pcs) 90.0000

C16 fuse (pcs) 145.0000

Maximum inrush current 13 A

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

With motion detector Yes

Detection angle 360 °

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2 – 4 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Networking via Cable

Lighting technology

Measured luminous flux 360° 965 lm

Colour temperature 4000 K

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime max. °C 60000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L80B10

LED lifetime per IEC 62717 L70 100.000 h

LED lifetime per IEC 62717 L80 73.000 h

LED lifetime per IES TM-21 L70 >60.000 h

LED lifetime per IES TM-21 L80 >60.000 h

Settings

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 10/30 min, all night

Main light adjustable No

Base light function in percent 10 %

Base light function percent from 10.0000

Base light function percent to 10.0000

Housing & material

Impact resistance IK03

Protection class (IP) IP54

Protection class II

Ambient temperature from -10 up to 40 °C

Housing material Plastic

Cover material Plastic, opal

Mounting location wall ceiling

Colour white

Protection class ceiling IP54

Scope of delivery & warranty

Manufacturer warranty 5 years

Media & files

Wiring diagram 3 text Master/slave interconnection circuit diagram

Certificates & EPREL

Certificates DEKRA

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Spare parts 27617

Including STEINEL LED system

Intelligent soft light start

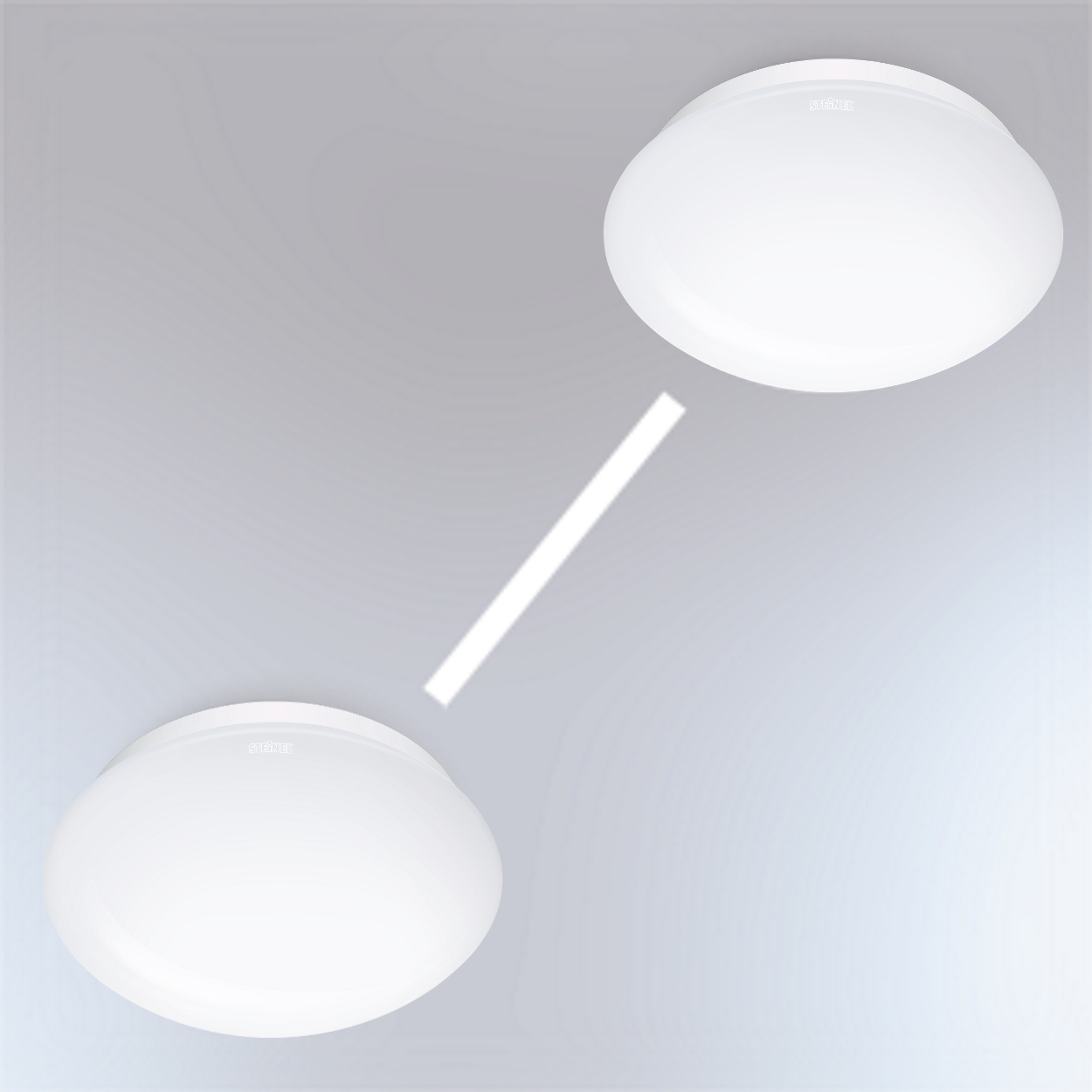

Interconnectable by cable (maximum of 10 units)

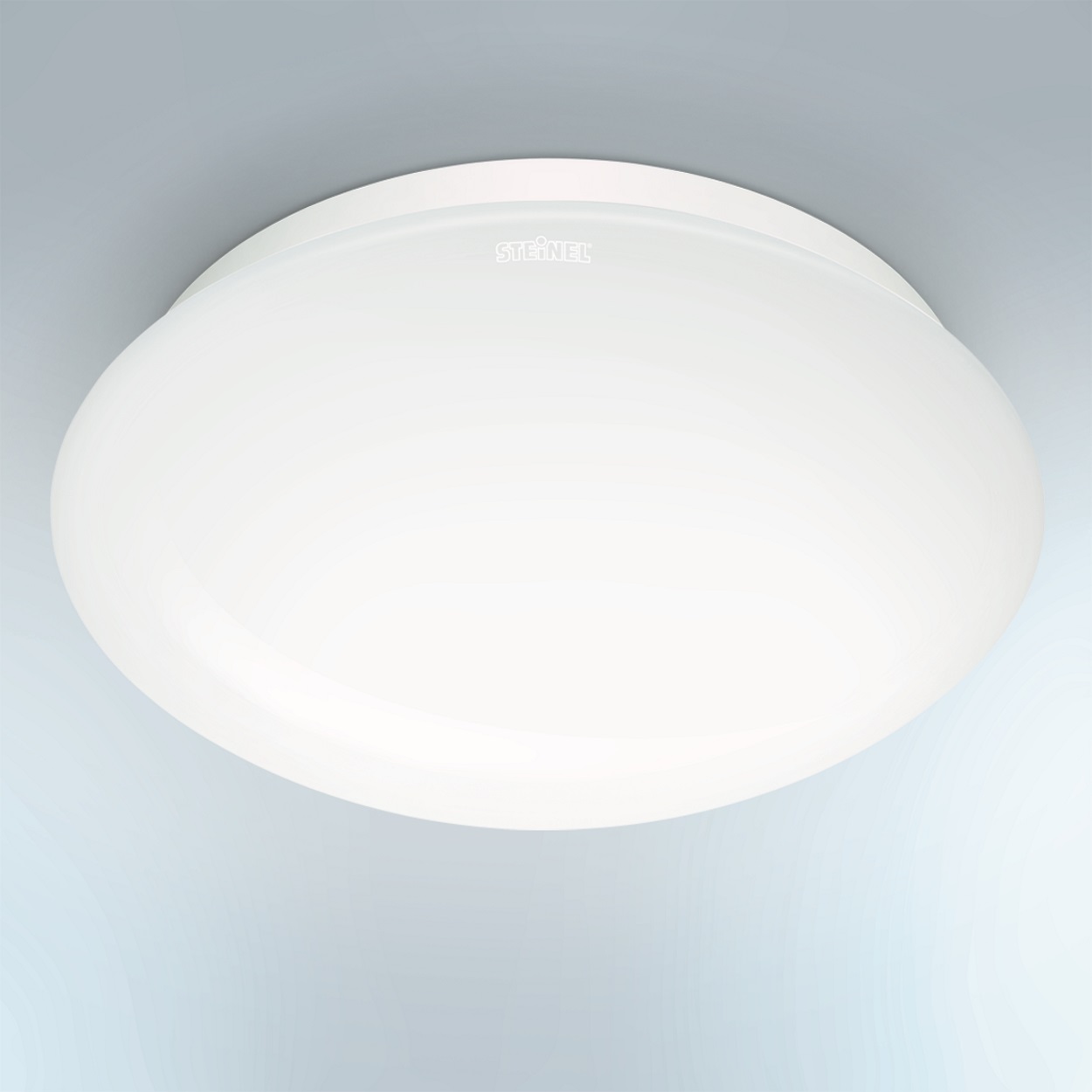

Optional basic lighting level 10 %

Technical drawings

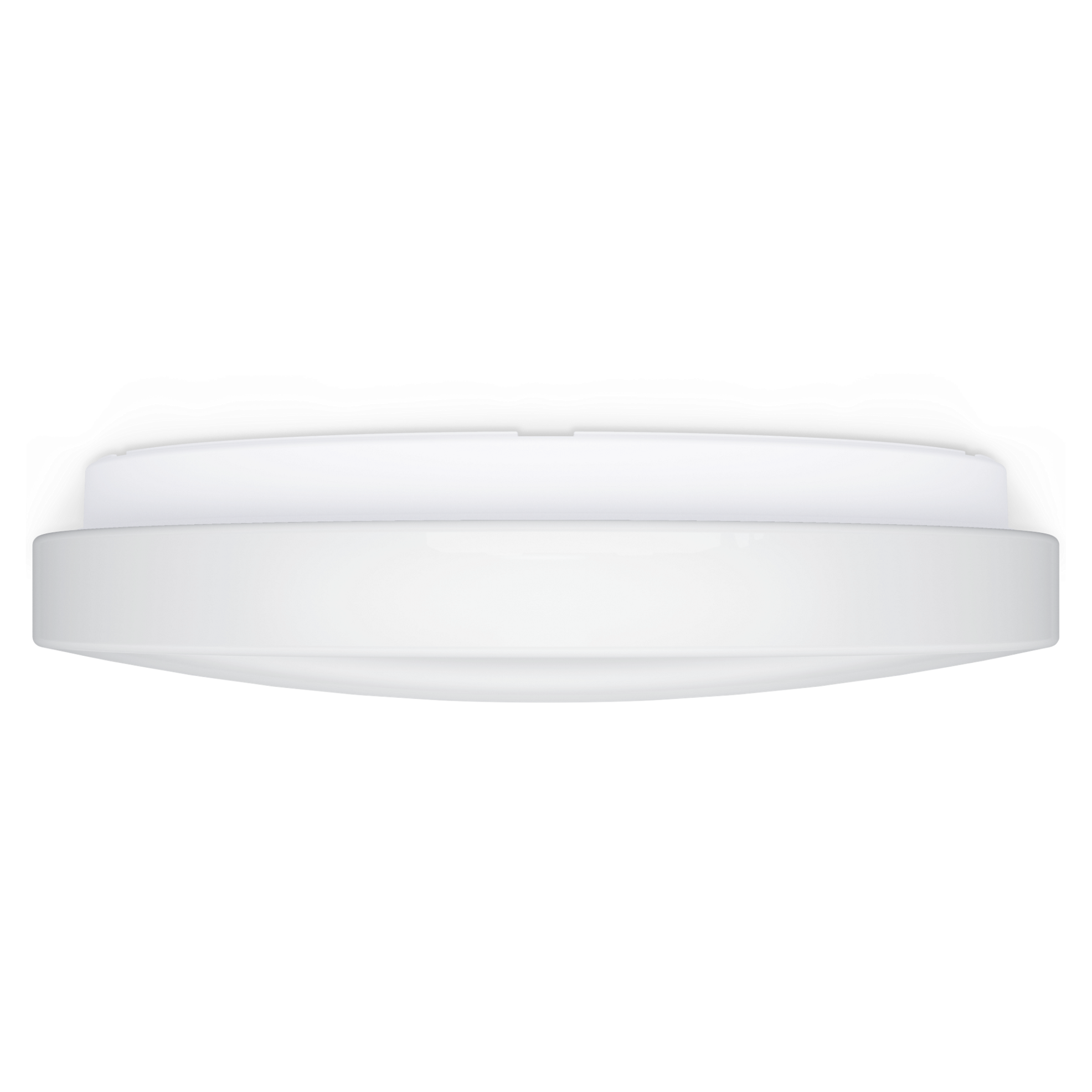

Sensor detection range

Wiring diagram 1

Master circuit diagram

Data sheet Drilling template LDT file (light distribution)
