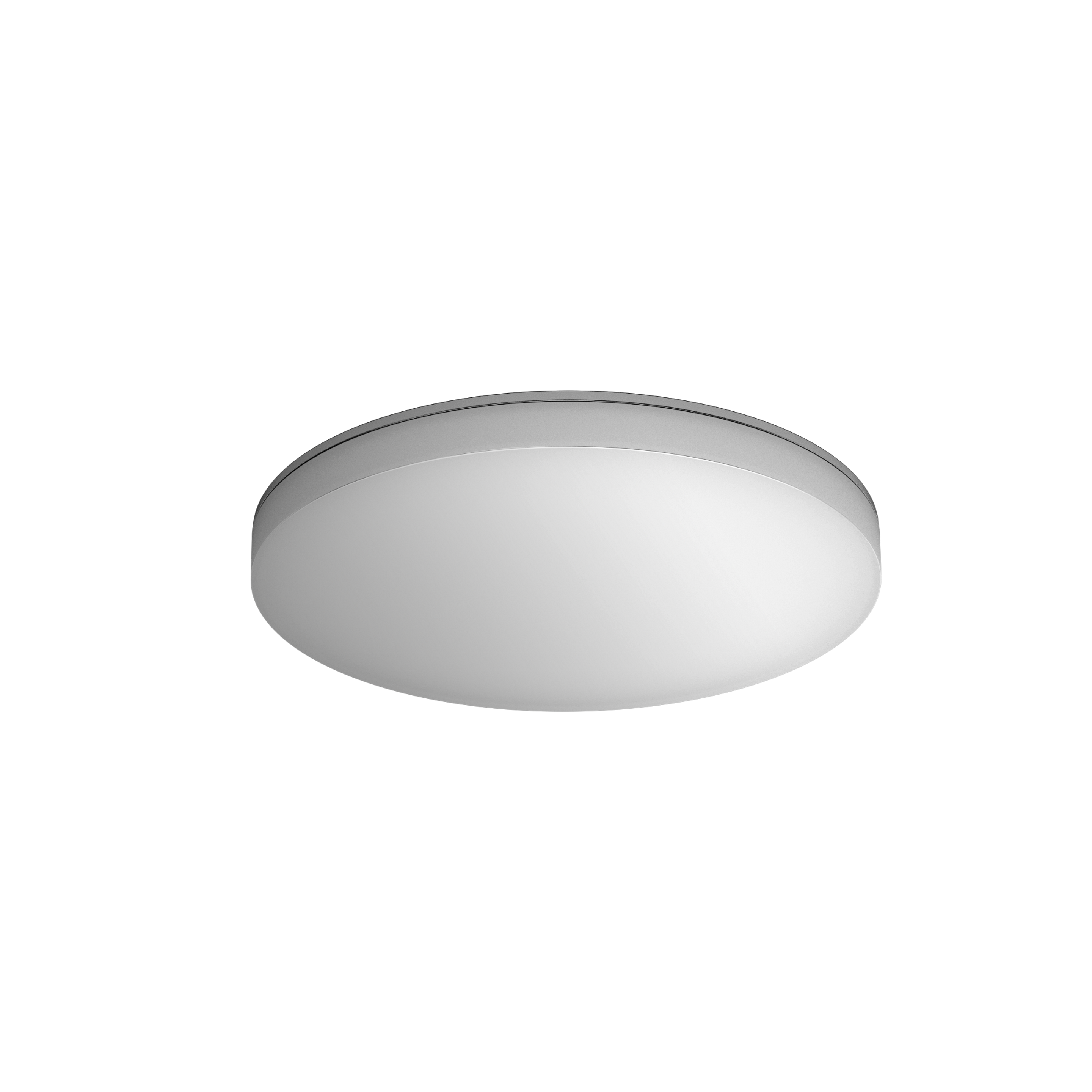

Steinel RS PRO R10 basic SC Singlepack- warm white

Steinel RS PRO R10 basic SC Singlepack- warm white

EAN-No. 4007841067816 · ELDAS® no. 067816

Steinel Bluetooth Mesh

Steinel RS PRO R10 basic SC Singlepack- warm white

EAN-No. 4007841067816

ELDAS® no. 067816

Price: Please log in to see prices

Dimensions

Light colour

Warm white (3000K) Neutral white (4000K)

Version

Plus Basic

Packaging unit

1 piece 5 pieces

Connected lighting perfection: wirelessly adjustable via app, the RS PRO R-series basic with three light functions (basic light, dimmable main light and optional emergency light) is the most intelligent and user-friendly digital sensor-switched light system on the market – and truly impresses planners, electricians and building owners alike. The RS PRO R series basic skilfully combines clean-cut, universally suitable design and optimum illumination with extremely easy installation and interconnection via app. Thanks to modern Bluetooth technology as well as update and IoT capability, the digital sensor-switched light system is absolutely future-proof. And impresses with high-precision HF sensor, outstanding efficiency and perfectly even light distribution. With two enclosure designs (round/square) and five sizes, the RS PRO R-series basic provides the right solution for every taste and need with lighting up to a maximum of 3200 lumens – in neutral or warm white light. Basic and main light level are easy to set via smartphone. The convenient neighbouring-group function ensures seamlessly efficient lighting at all times. In the event of a power failure, the optional emergency light module powered by rechargeable battery reliably provides sufficient light. Emergency lighting operation is alternatively possible via connection to central battery systems. Upshot: whether for new build or refurbishment – the RS PRO R series basic is by far the most comprehensive lighting solution of our time.

Identification

Manufacturer Steinel
E-number 941002529

Variants

Dimensions R10 Ø300x55mm
Light colour 3000K
Version Basic
Packaging unit 1 piece

Dimensions

Dimensions Ø × H 300 x 55 mm
PU1 net weight 1.0790

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 8,5 W
Own consumption 0,3 W
B10 fuse (pcs) 46.0000
B16 fuse (pcs) 74.0000
C10 fuse (pcs) 77.0000
C16 fuse (pcs) 122.0000
Maximum inrush current 13 A

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 10 m (79 m²)
Tangential range Ø 10 m (79 m²)
Mounting height 2,00 – 4,00 m
Optimal mounting height 2,8 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Type of networking Master/master
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 992 lm
Colour temperature 3000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable
Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime max. °C 55000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B50
LED lifetime per IEC 62717 L70 100.000 h
LED lifetime per IEC 62717 L80 74.000 h
LED lifetime per IES TM-21 L70 >60.000 h
LED lifetime per IES TM-21 L80 >60.000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function detail LED effect light
Base light function time 1-60 min
Main light adjustable 0 - 100 %
Functions Group parameterisation Manual ON / ON-OFF Neighbouring group function Orientation light Motions sensor Light sensor Encrypted communication Free selection of the light value in a luminaire group Adjustable fade time when switching on and off
Settings via Bluetooth
With remote control No
Twilight setting teach Yes
Base light function in percent 0 – 100 %
Base light function percent from 0.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK07
Protection class (IP) IP40
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material PC, opal
Mounting location wall ceiling
Application location Indoors
Mounting type Surface wiring
Material Plastic
Application room corridor / aisle changing room function room / ancillary room kitchenette stairwell Indoors
Colour white
Protection class ceiling IP40

Scope of delivery & warranty

Manufacturer warranty 5 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 28231,21915,27098,27099

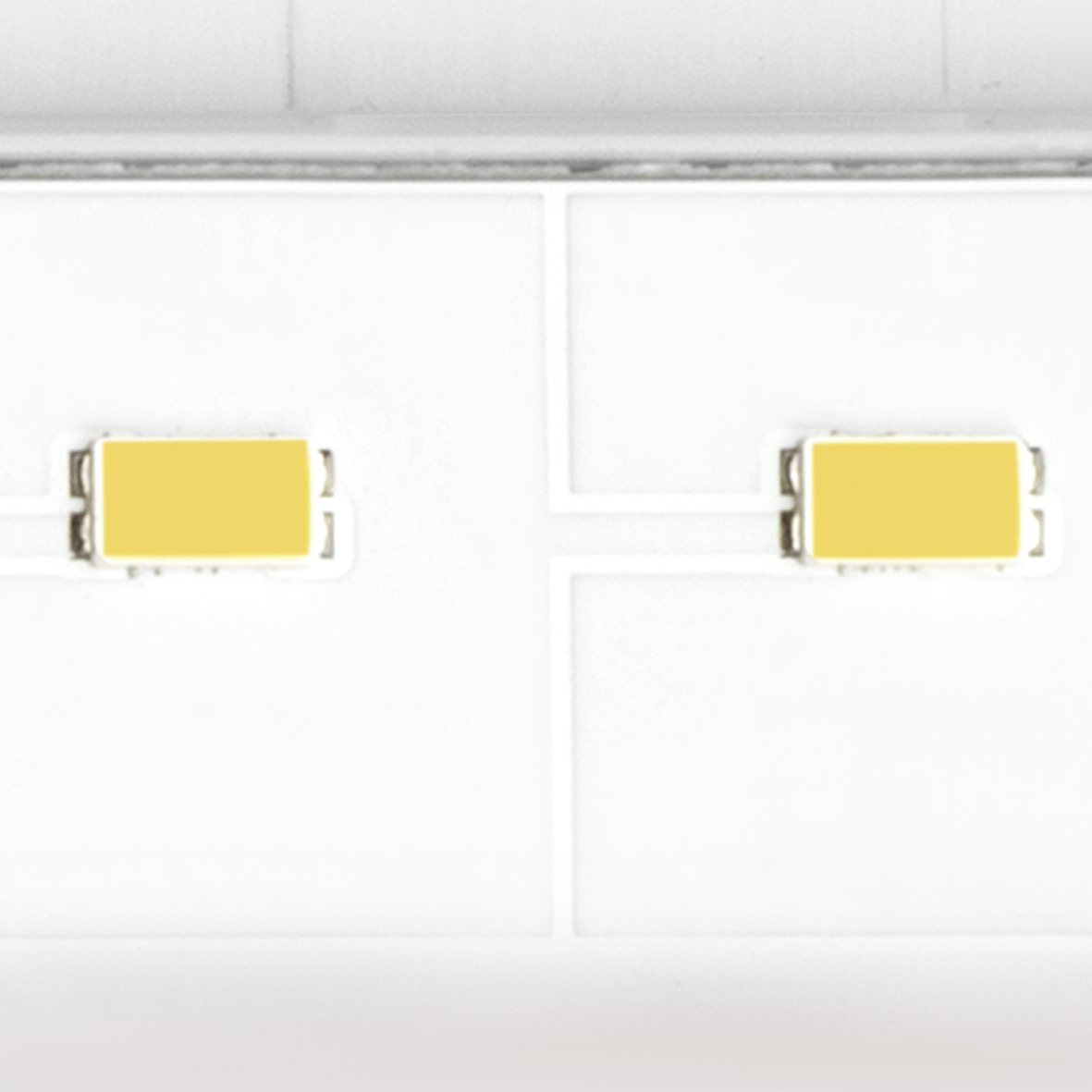

Including STEINEL LED system

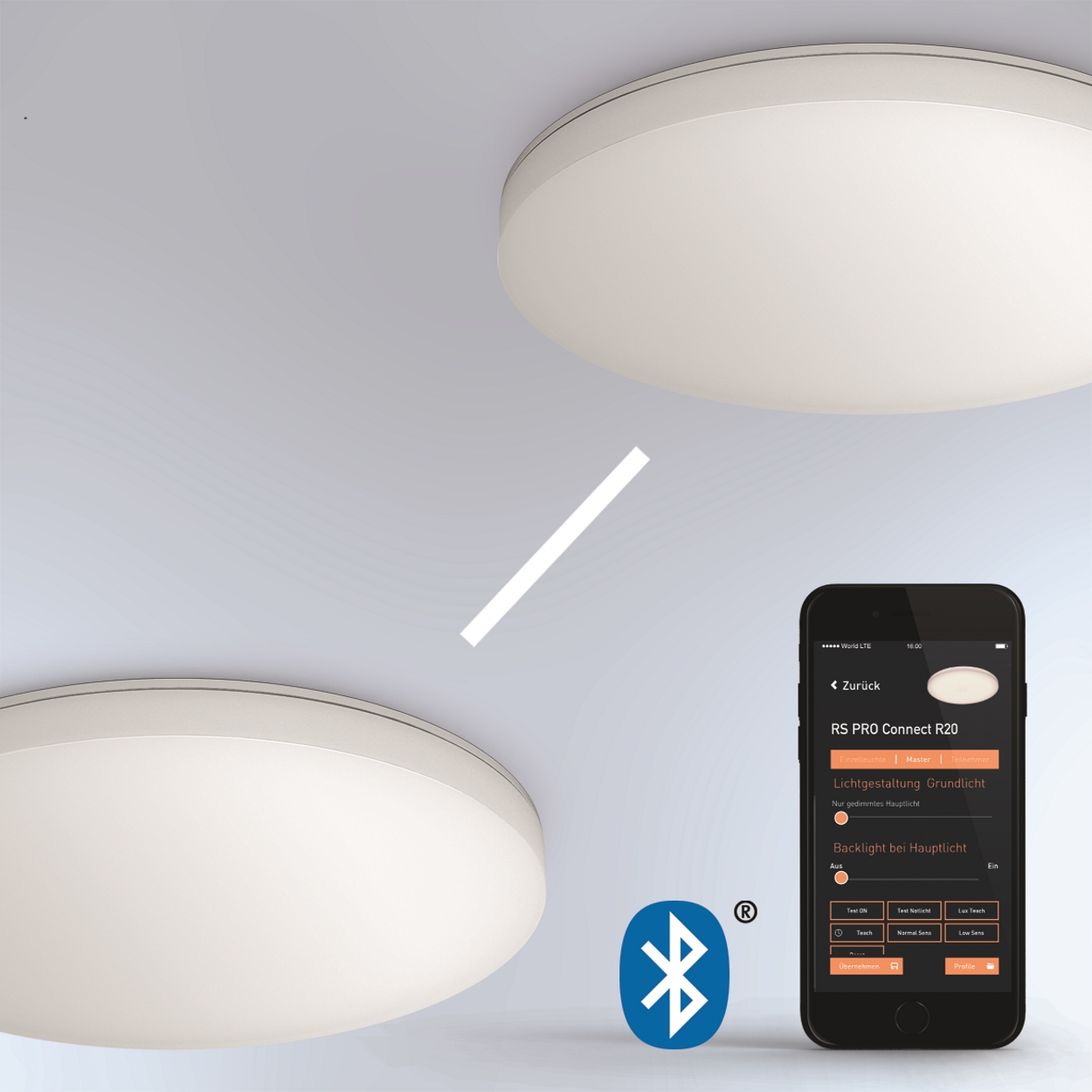

Interconnectable and adjustable via Bluetooth

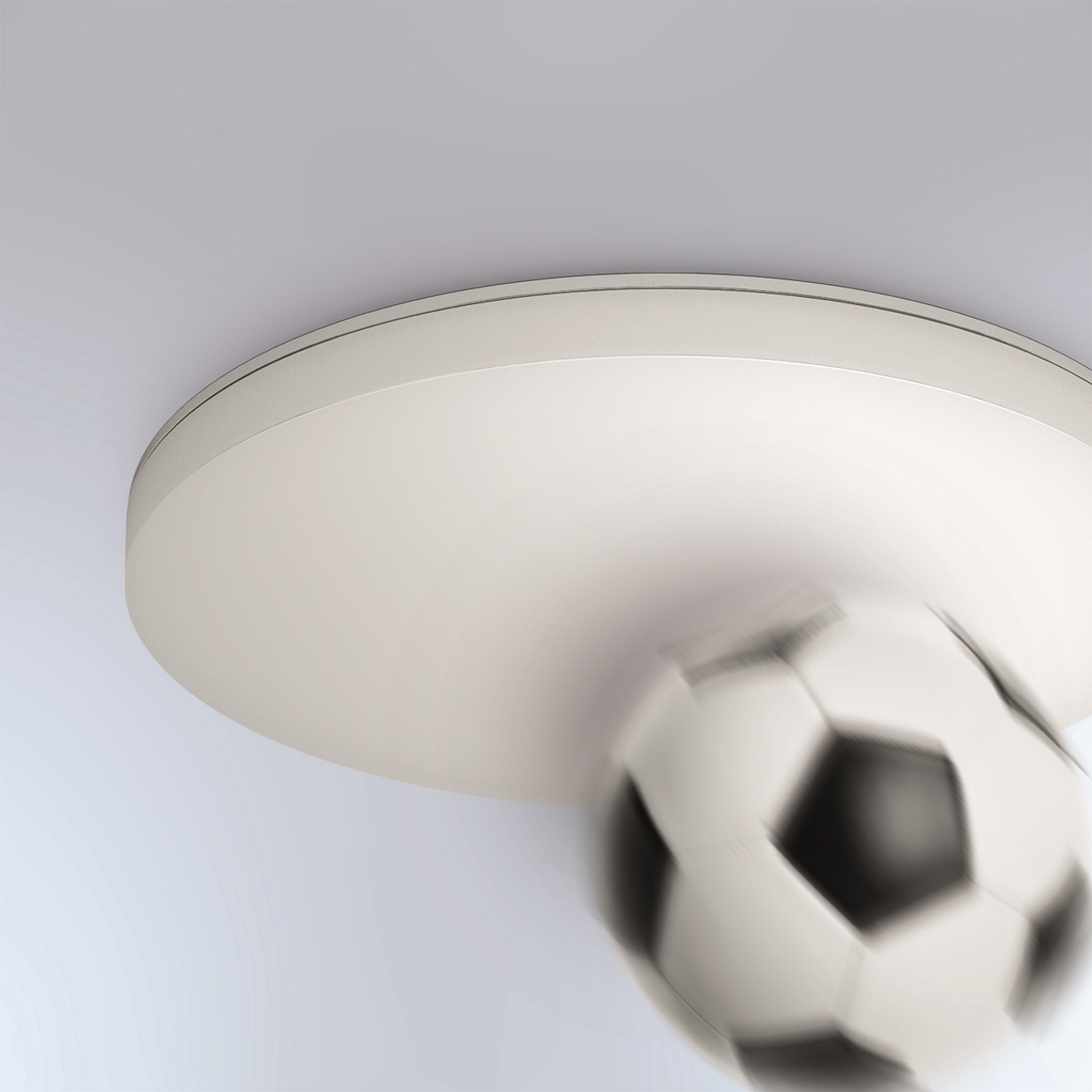

Impact-resistant material rated to IK07

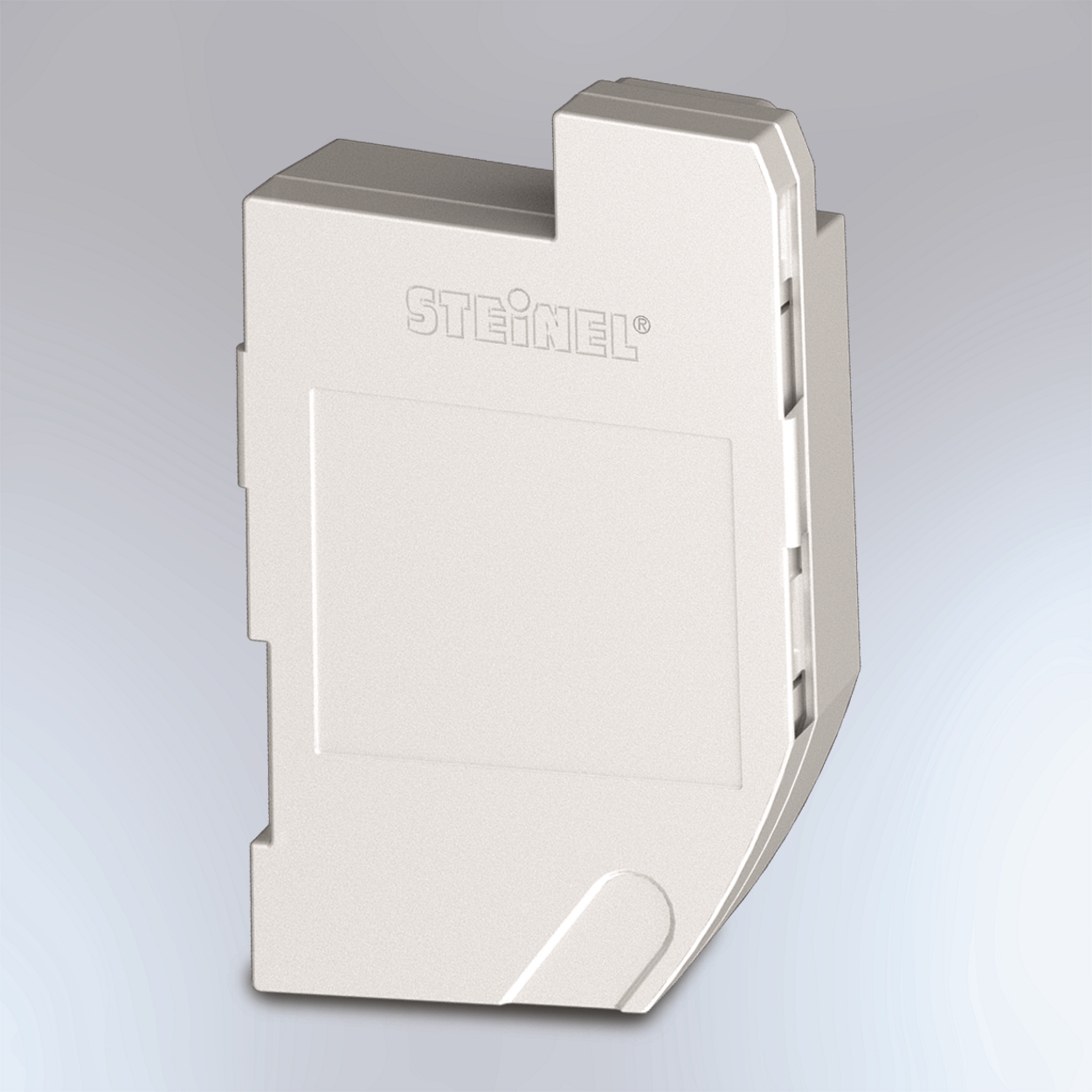

Optional emergency light

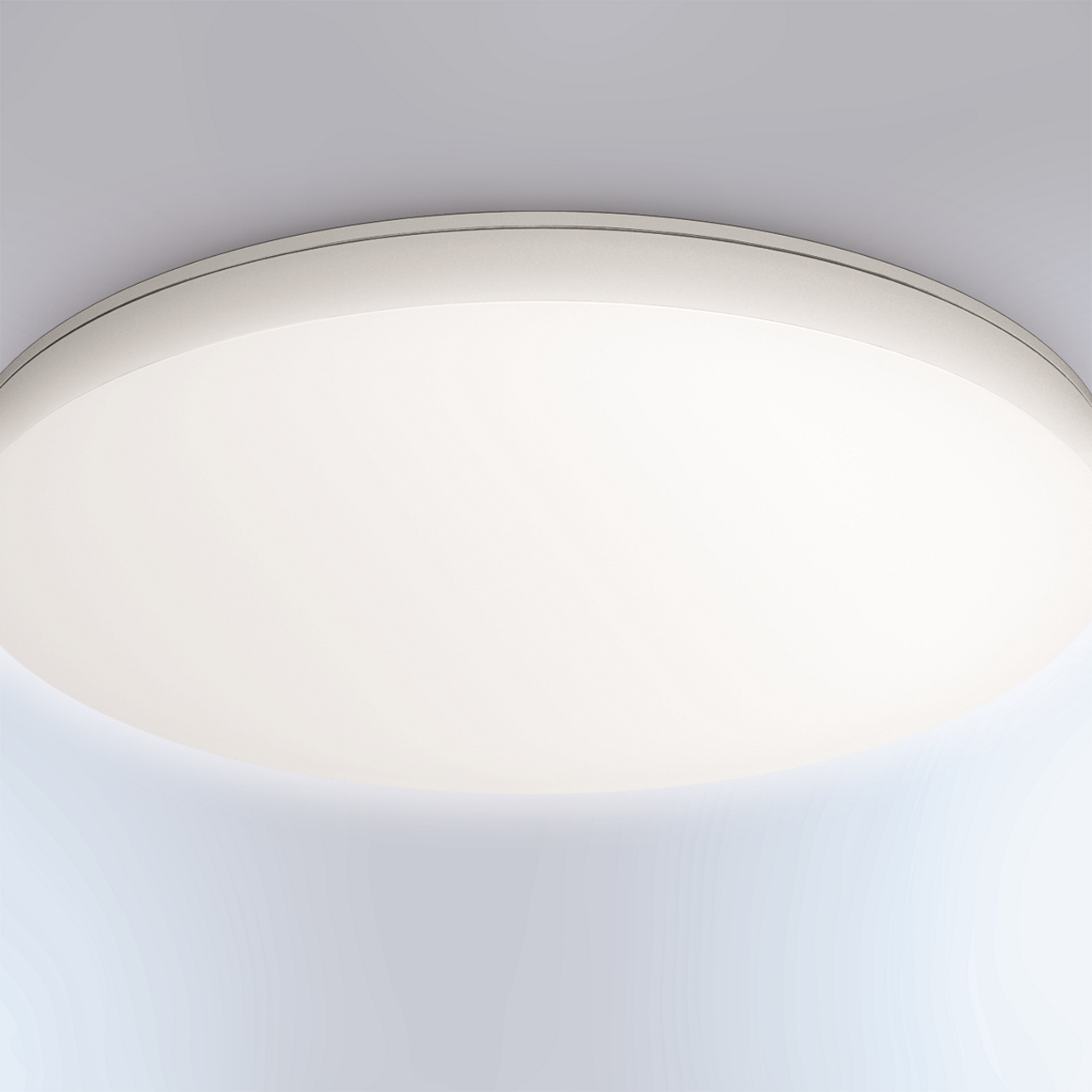

Optional basic lighting level 0 - 100 %

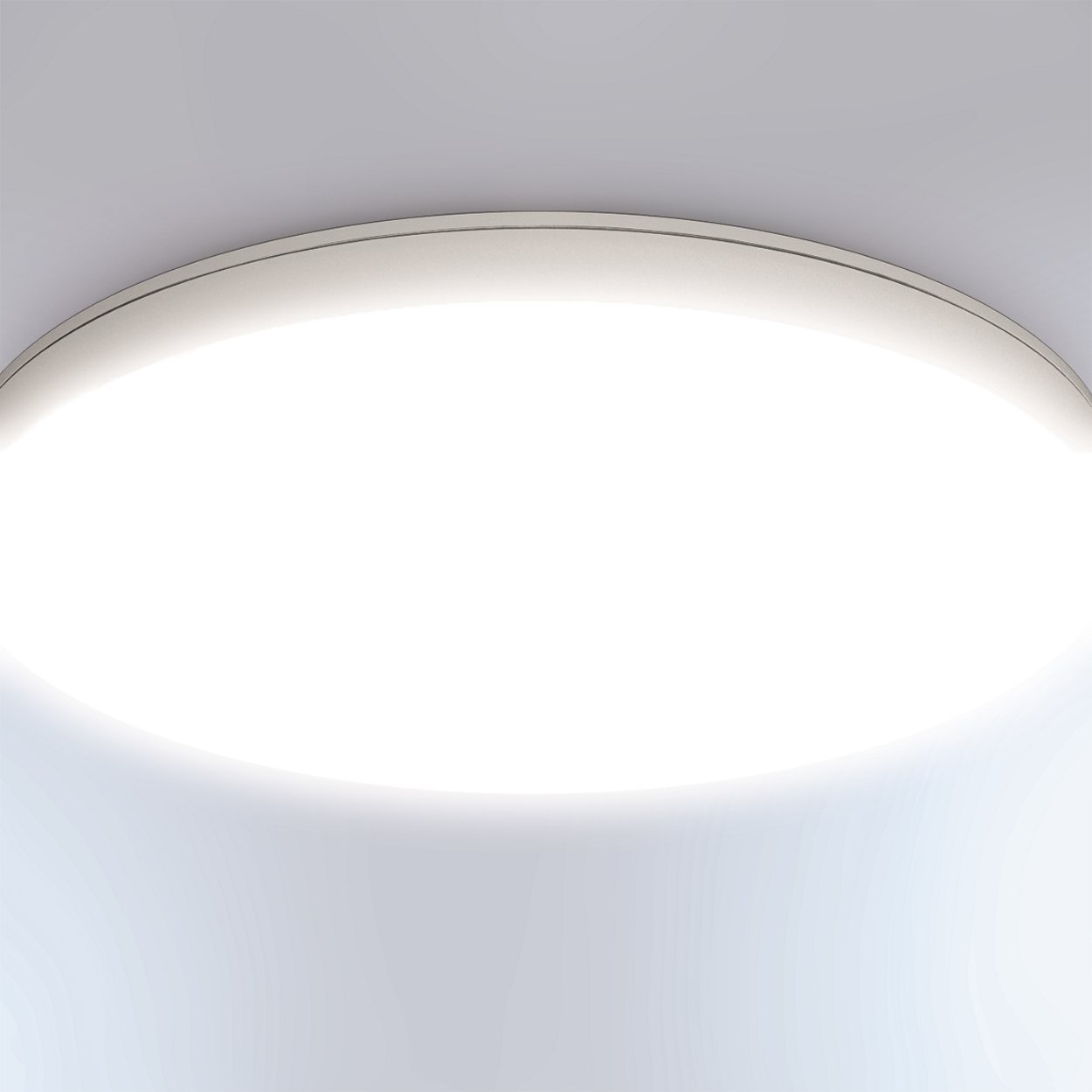

Adjustable main light brighness (0 - 100%)

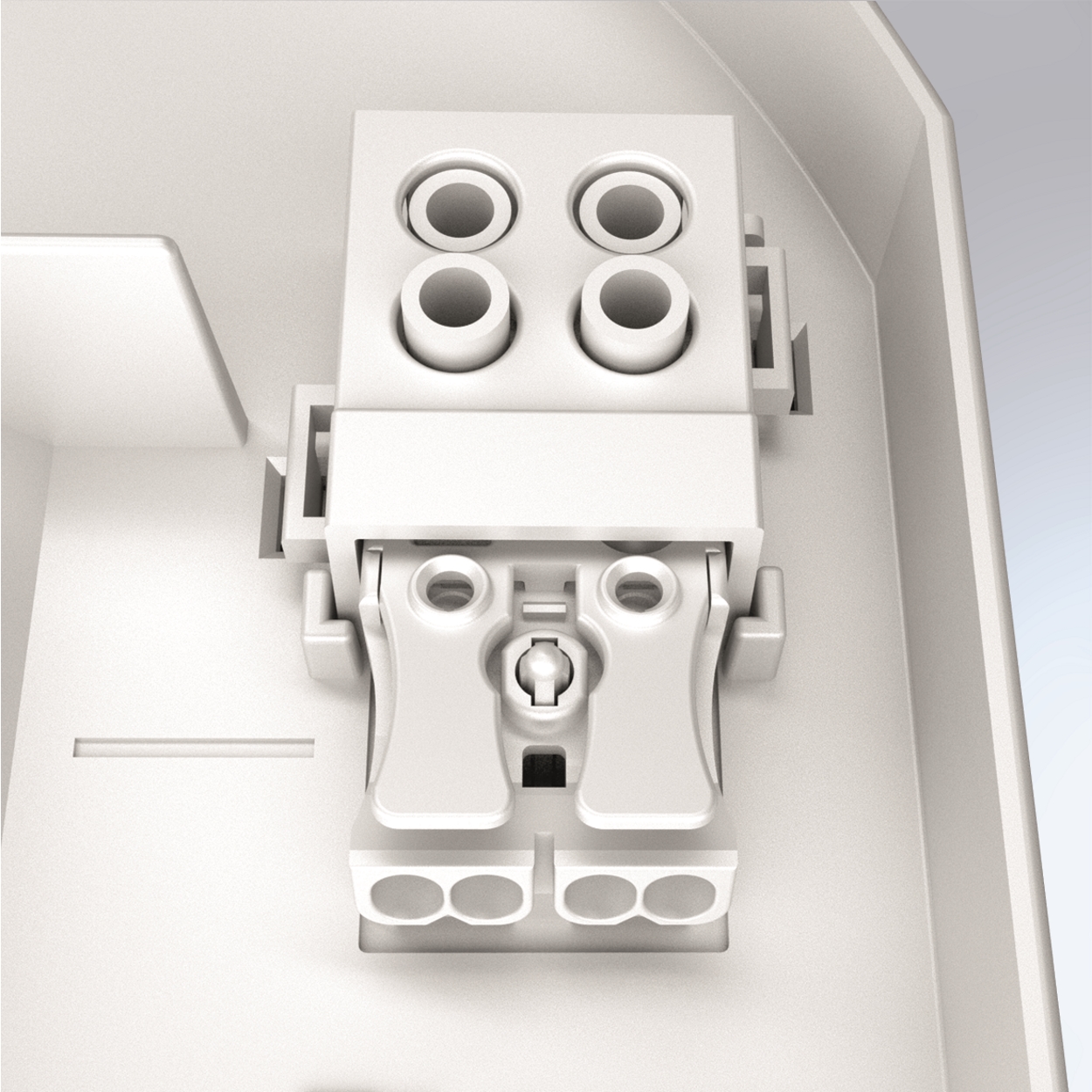

Modern plug-in terminals for straightforward installation

Technical drawings

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram
