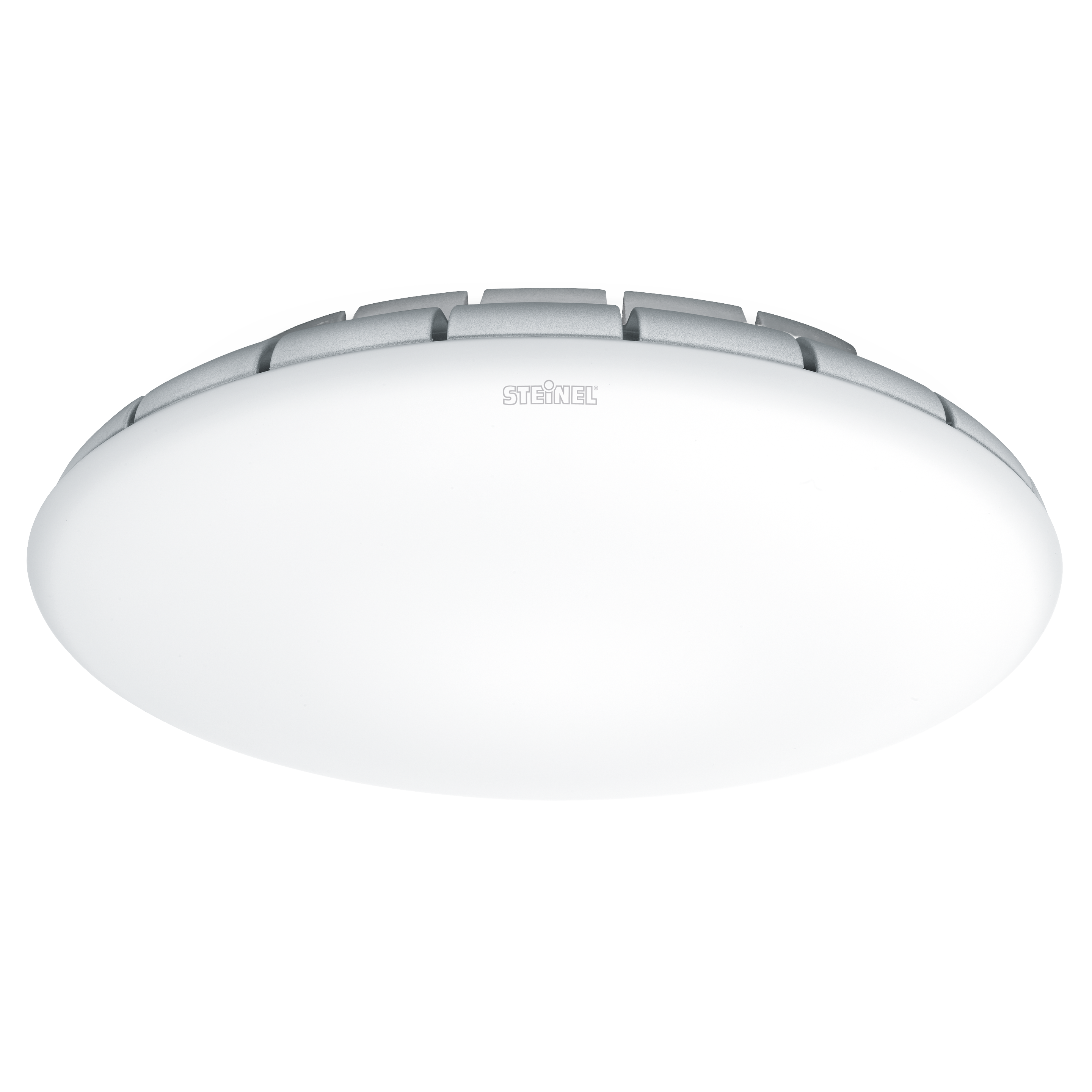

Steinel RS PRO S10 SC Multipack (5 pcs.) PC warm white

EAN-No. 4007841081935

ELDAS® no. 081935

Price: Please log in to see prices

Light colour

3000K Warm white 4000K Neutral white

Size

Ø350mm - 25.8 W - S30 Ø300mm - 9.5 W - S10 Ø300mm - 15.7 W - S20

Packaging unit

1 piece 5 pieces

Colour

Silver white

It is flat, puristic and perfectly shaped all round. It is intelligent, energy-efficient, a shining example and equipped with everything that is technically feasible today: 9,1 W STEINEL LED light system for instantaneous and power-saving light generation, no unintentional switching off ,light running ahead thanks to neighbouring group function, aluminium cooling fins and long service life. The high-frequency sensor detects 360°. With the Bluetooth Mesh radio connection, luminaire groups can be formed wirelessly and effortlessly. Conclusion: the RS PRO S series is more than just a lighting evolution, it is a revolution.

Identification

Manufacturer Steinel

E-number 941349469

Variants

Light colour 3000K Warm white

Size Ø300mm - 9.5 W - S10

Packaging unit 5 pieces

Dimensions

Dimensions Ø × H 300 x 71 mm

PU1 net weight 6.1910

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,1 W

Own consumption 0,38 W

B10 fuse (pcs) 46.0000

B16 fuse (pcs) 74.0000

C10 fuse (pcs) 77.0000

C16 fuse (pcs) 122.0000

Maximum inrush current 13 A

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2 – 4 m

Optimal mounting height 2,8 m

Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes

Networking via Bluetooth Mesh

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 979 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime per IEC 62717 L70 100.000 h

LED lifetime per IEC 62717 L80 69.000 h

LED lifetime per IES TM-21 L70 >60.000 h

LED lifetime per IES TM-21 L80 >60.000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function detail LED effect light

Base light function time 1-60 min

Main light adjustable Yes

Functions Motions sensor Adjustable fade time when switching on and off DIM function Free selection of the light value in a luminaire group Group parameterisation Semi-/fully automatic Light sensor Neighbouring group function Normal / test mode Orientation light Presence detector logic Encrypted communication

Settings via App Bluetooth Mesh

Twilight setting teach Yes

Base light function in percent 7 – 100 %

Base light function percent from 7.0000

Base light function percent to 100.0000

Housing & material

Impact resistance IK07

Protection class (IP) IP20

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material PC, opal

Mounting location wall ceiling

Application location Indoors

Mounting type Surface wiring

Application room corridor / aisle function room / ancillary room Indoors multi-storey / underground car park reception / lobby

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 27098,27099

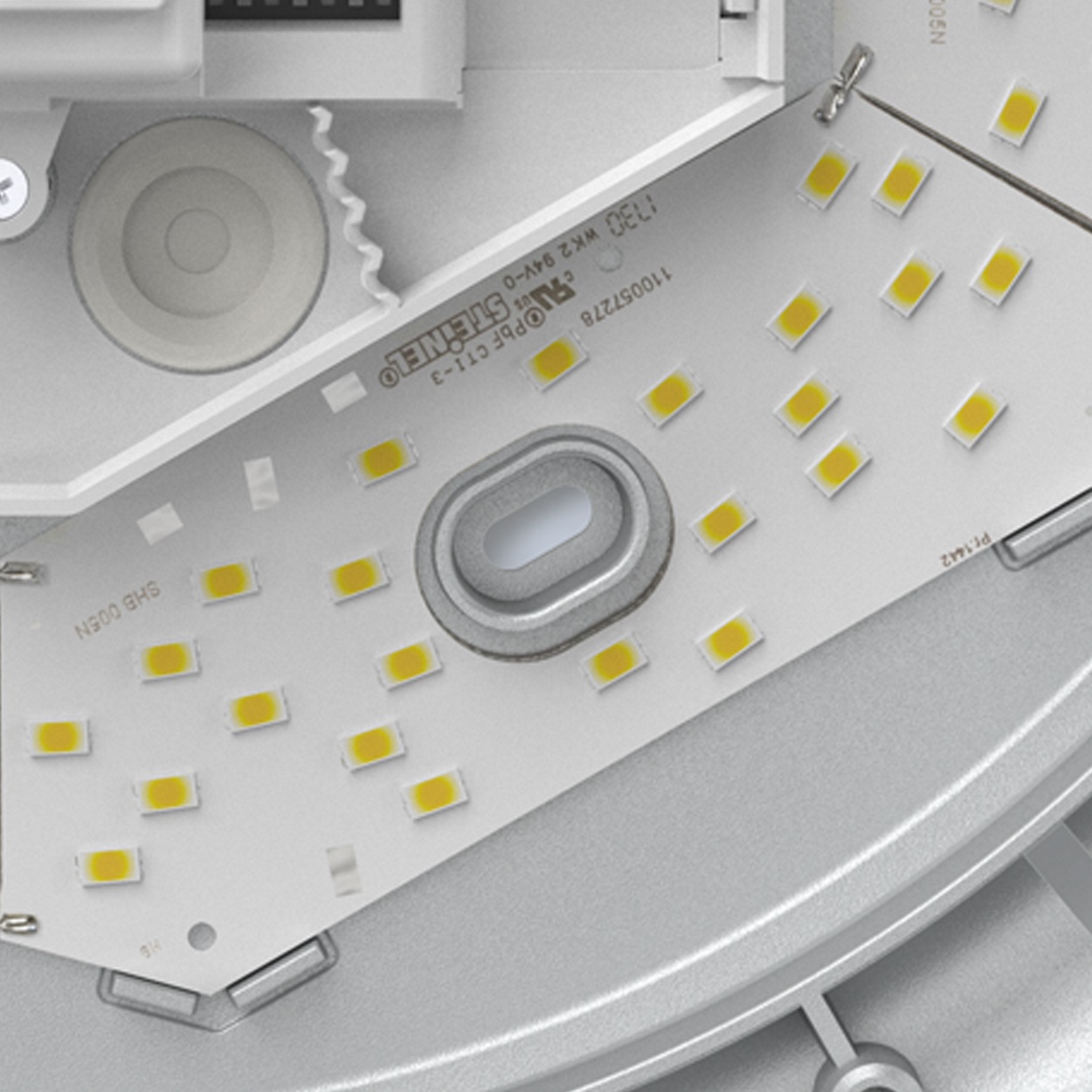

Including STEINEL LED system

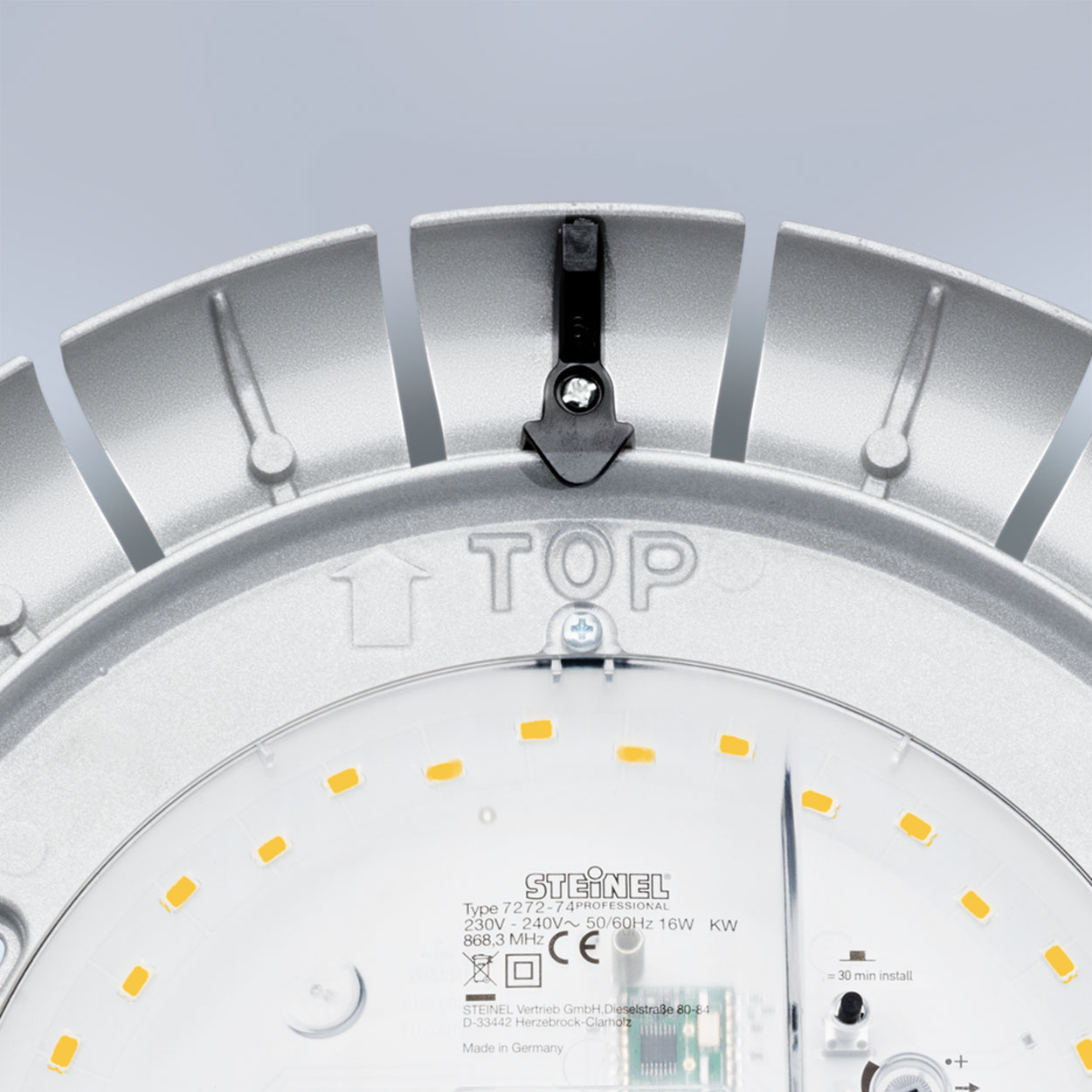

Intelligent LED cooling system

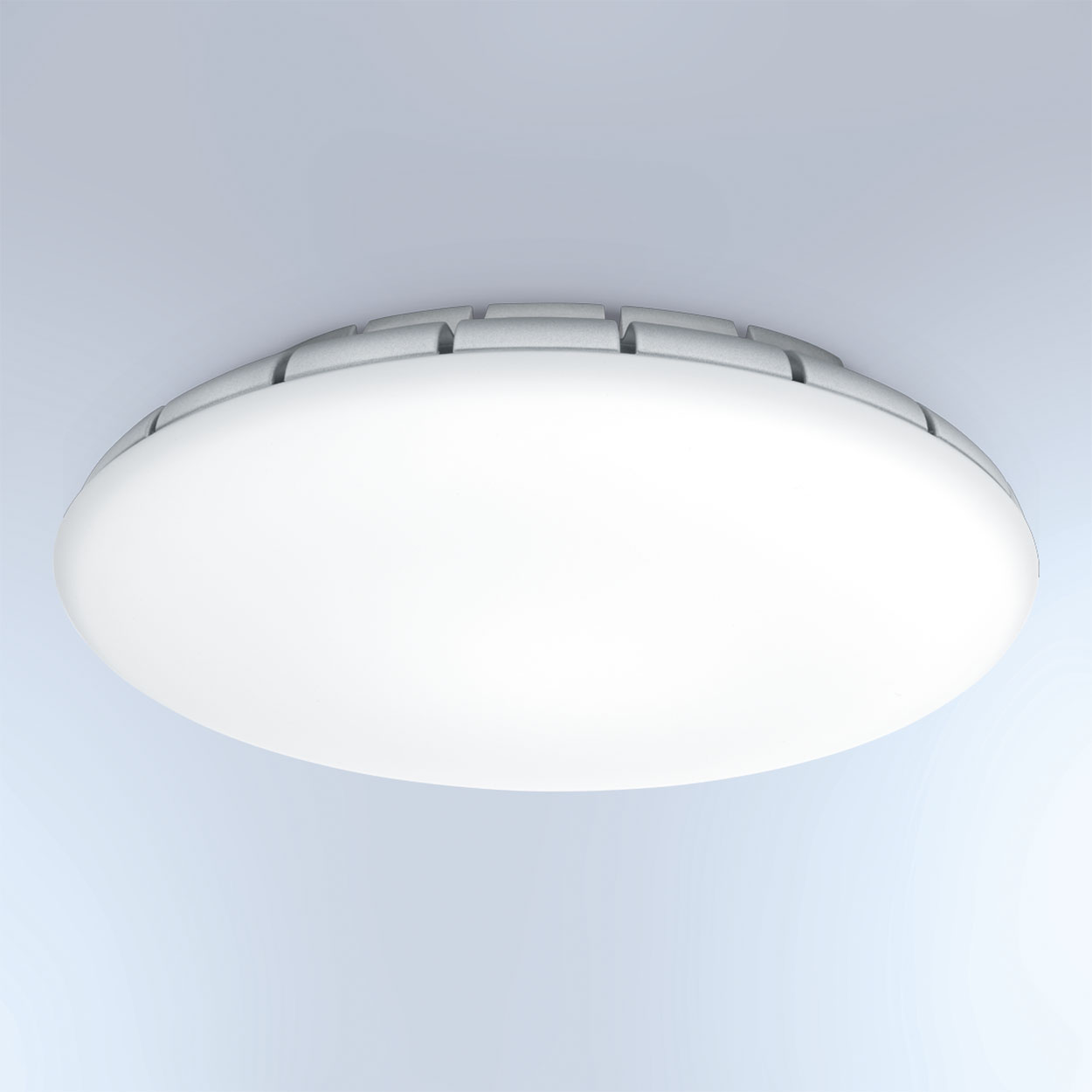

Optional basic lighting level 10 %

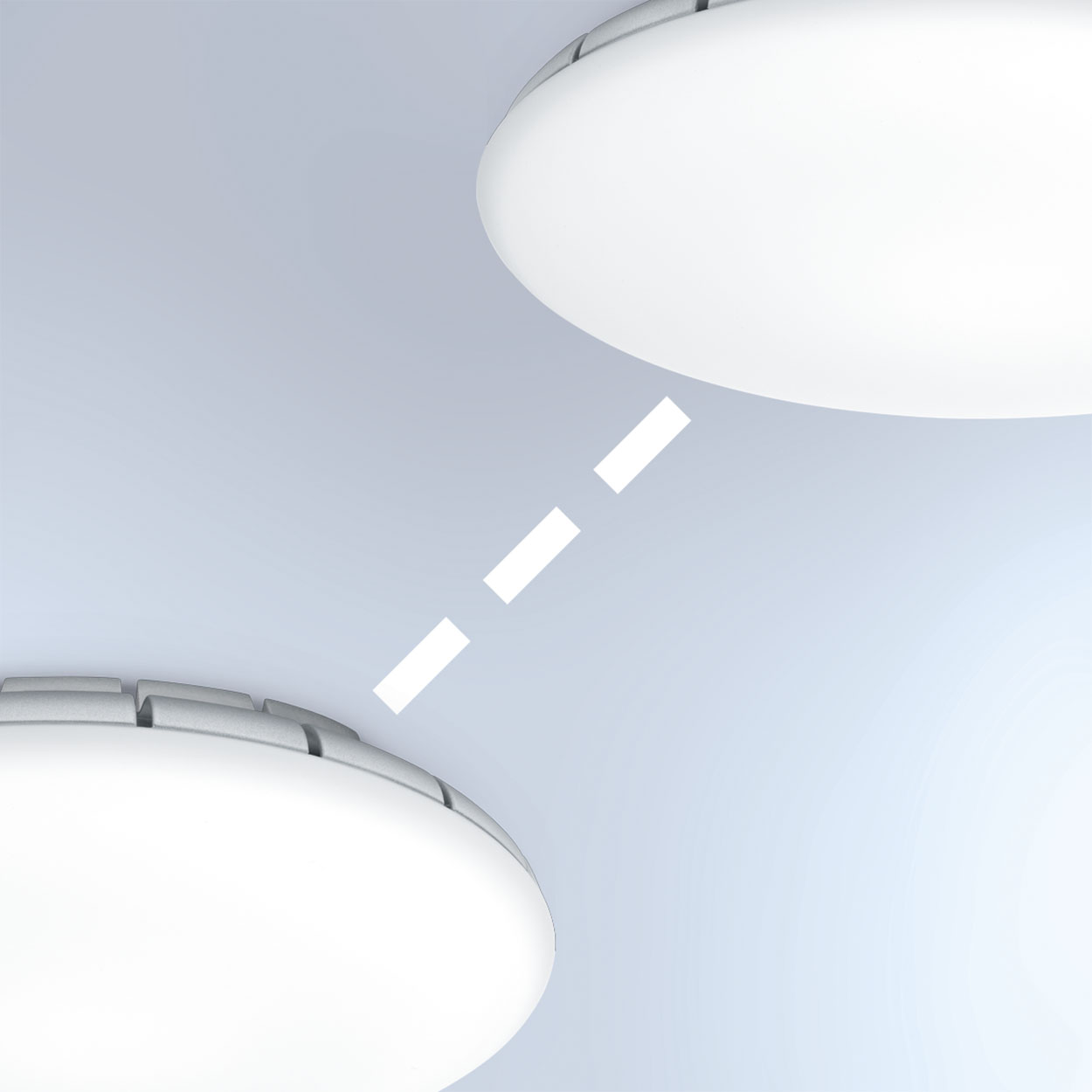

Interconnectable and adjustable via Bluetooth

High-quality aluminium

Technical drawing

Sensor detection areas

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet Drilling template
