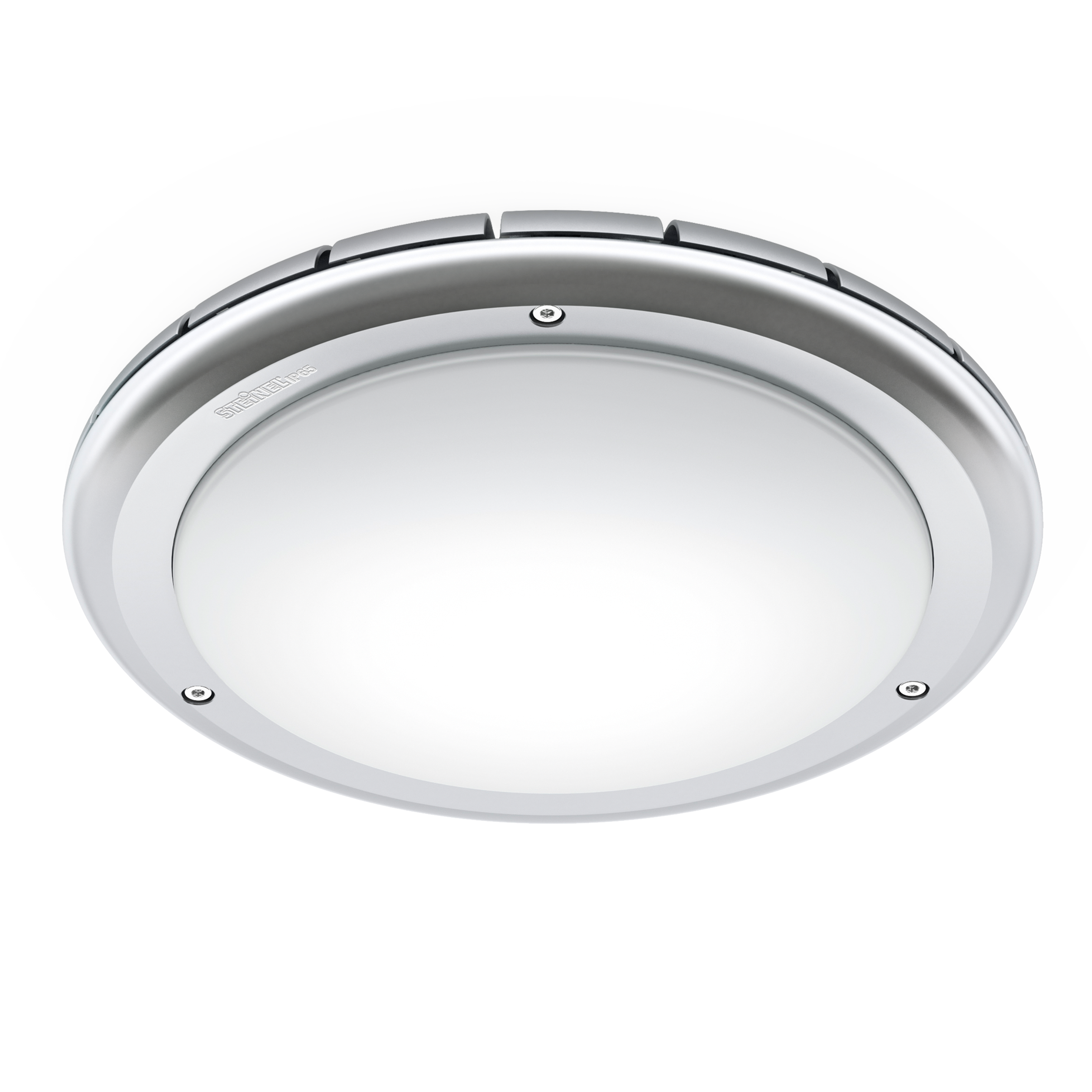

Steinel RS PRO S20 SC IP65 PC warm white

EAN-No. 4007841079789

ELDAS® no. 079789

Price: Please log in to see prices

Light colour

Warm white (3000K) Neutral white (4000K)

Public buildings, swimming pools, passages, subways and the like are tough environments when it comes to lighting. Because it's here that wet environments, unintentional knocks and vandalism are the order of the day. All this leaves the RS PRO S20 SC IP65 completely indifferent. Its screw-mounted surround is impervious to dust and jets of water. With a shatter-proof interior, shade and enclosure are impact-resistant to IK10 as well. It is intelligent, energy-efficient, a shining example and equipped with everything that is technically feasible today: 15,7 W STEINEL LED light system for instantaneous and power-saving light generation, no unintentional switching off ,light running ahead thanks to neighbouring group function, aluminium cooling fins and long service life. The high-frequency sensor detects 360°. With the Bluetooth Mesh radio connection, luminaire groups can be formed wirelessly and effortlessly.

Identification

Manufacturer Steinel
E-number 941004619

Variants

Light colour 3000K

Dimensions

Dimensions Ø × H 300 x 71 mm
PU1 net weight 1.2990

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 15,7 W
Own consumption 0,39 W
B10 fuse (pcs) 46.0000
B16 fuse (pcs) 74.0000
C10 fuse (pcs) 77.0000
C16 fuse (pcs) 122.0000
Maximum inrush current 13 A

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 8 m (50 m²)
Tangential range Ø 8 m (50 m²)
Mounting height 2 – 4 m
Optimal mounting height 2,8 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 1209 lm
Colour temperature 3000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
Soft light start Yes
Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 60000 h
Luminous flux decline per LM80 L80B10
LED lifetime per IEC 62717 L70 100.000 h
LED lifetime per IEC 62717 L80 66.000 h
LED lifetime per IES TM-21 L70 >60.000 h
LED lifetime per IES TM-21 L80 >60.000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function detail LED effect light
Base light function time 1-60 min
Main light adjustable Yes
Functions Neighbouring group function Group parameterisation Manual ON / ON-OFF Connection to central battery systems Motions sensor Adjustable fade time when switching on and off Orientation light DIM function Free selection of the light value in a luminaire group Light sensor Normal / test mode Encrypted communication
Settings via Smartphone Bluetooth Mesh
Twilight setting teach Yes
Base light function in percent 7 – 100 %
Base light function percent from 7.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK10
Protection class (IP) IP65
Protection class II
Ambient temperature from -10 up to 50 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location ceiling wall
Application location Indoors
Material Aluminium
Application room corridor / aisle function room / ancillary room kitchenette changing room WC / washroom stairwell outdoors Indoors
Colour Silver

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates KEMA EAC
EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 27098,27099

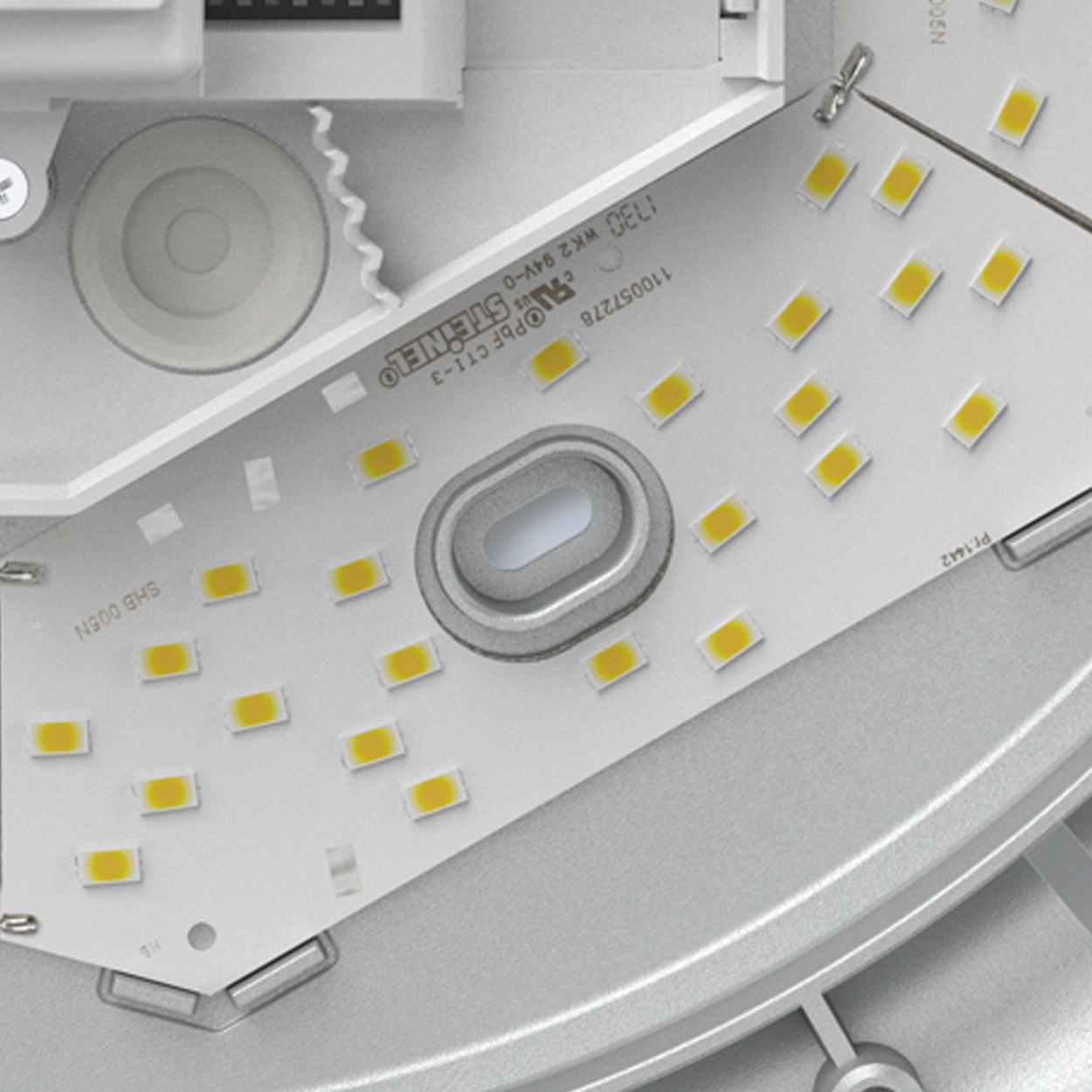

Including STEINEL LED system

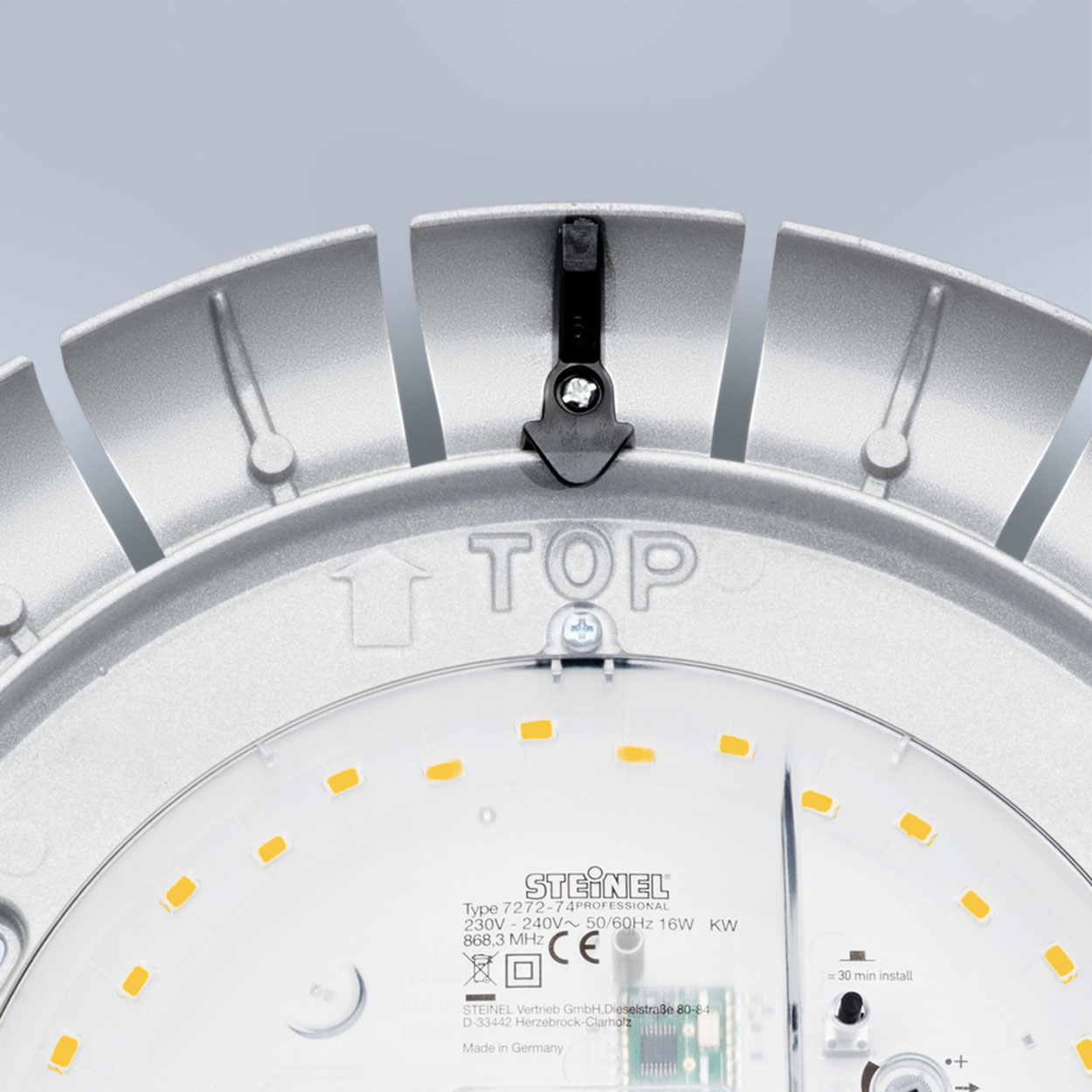

Intelligent LED cooling system

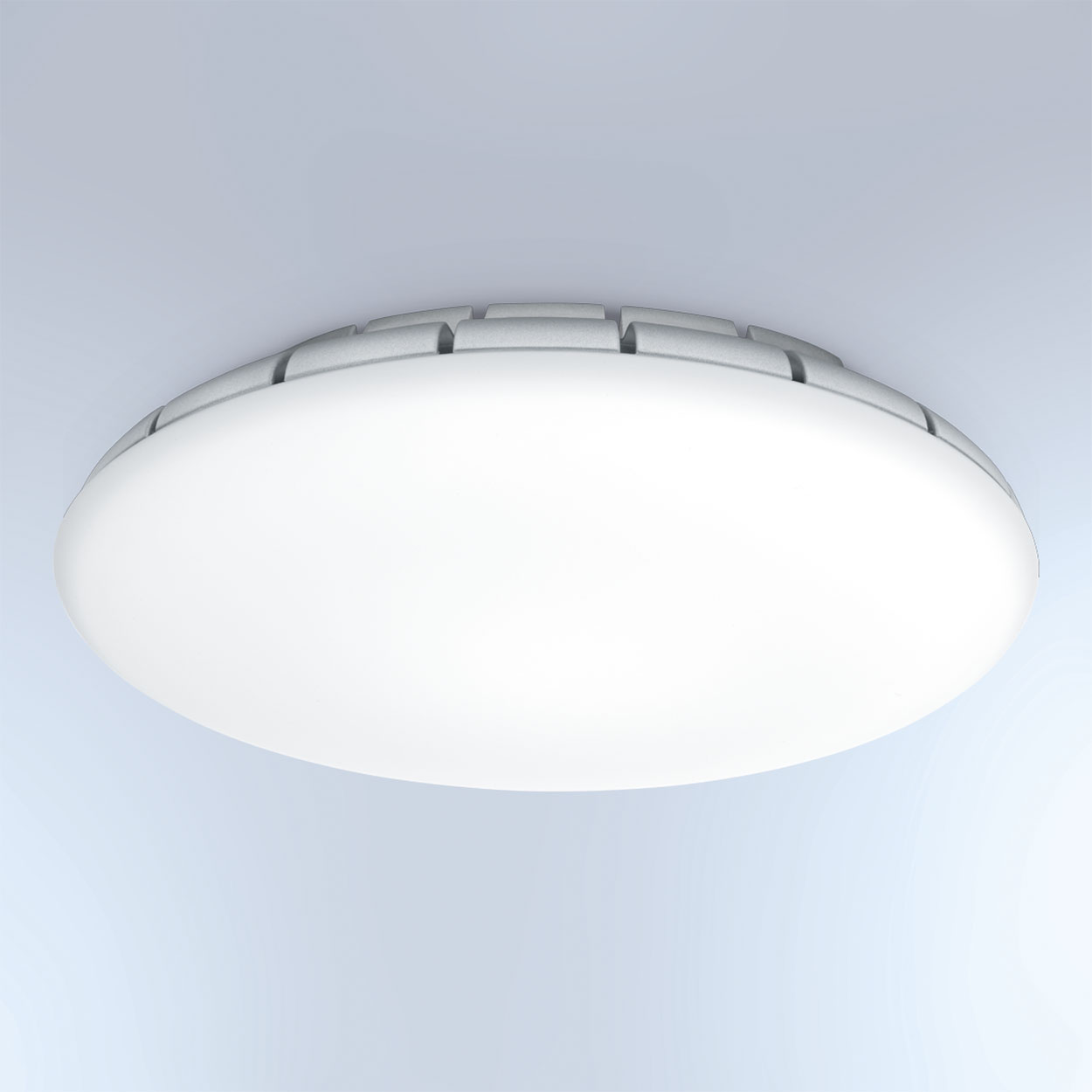

Optional basic lighting level 10 %

High-quality aluminium

Technical drawing

Sensor detection areas

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
